Battery Junction Box

NOTE: Battery junction box may also be referred to as power distribution box. Battery junction box is located on driver's side of engine compartment, next to battery. See Fig 1.

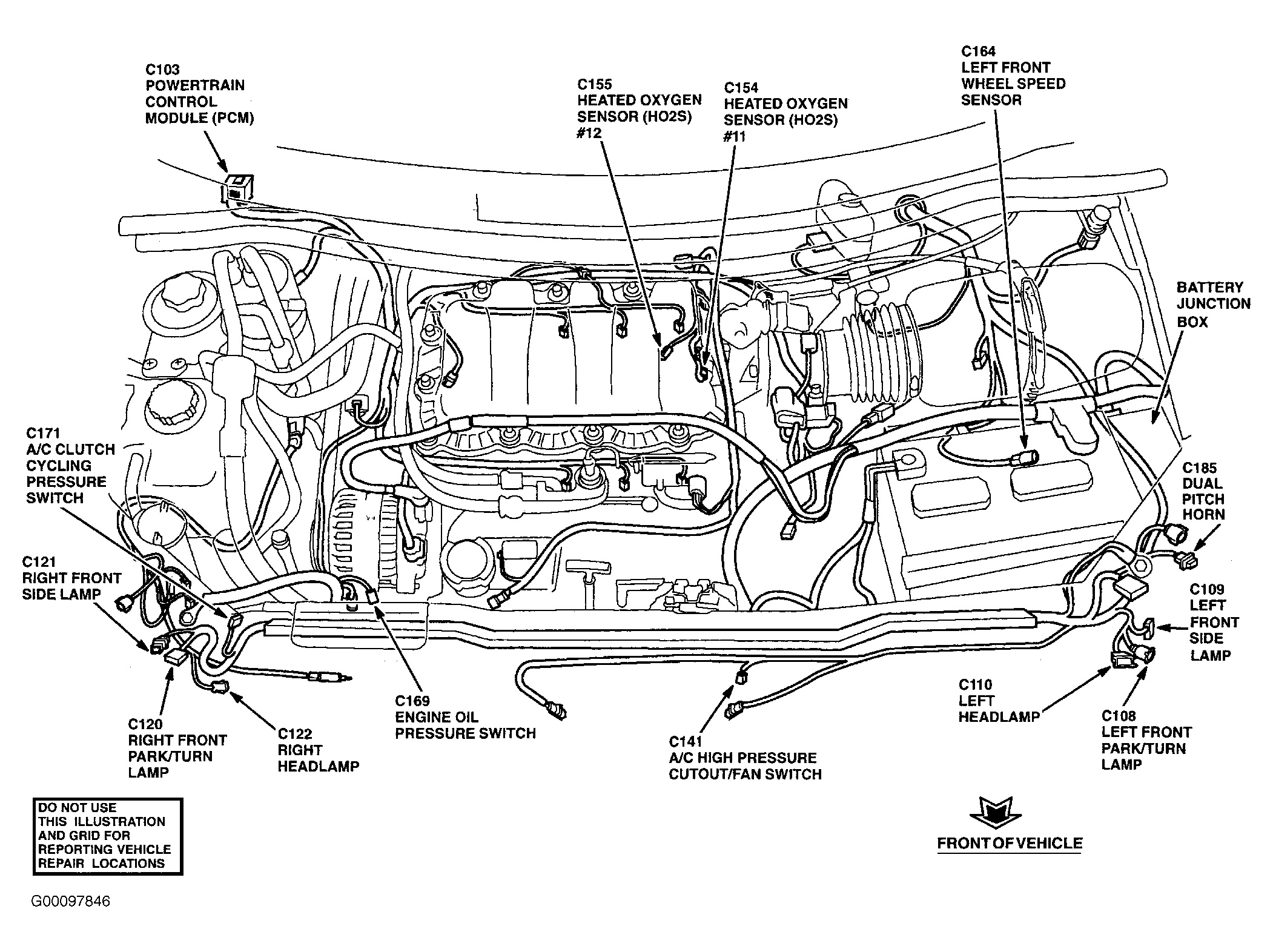

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

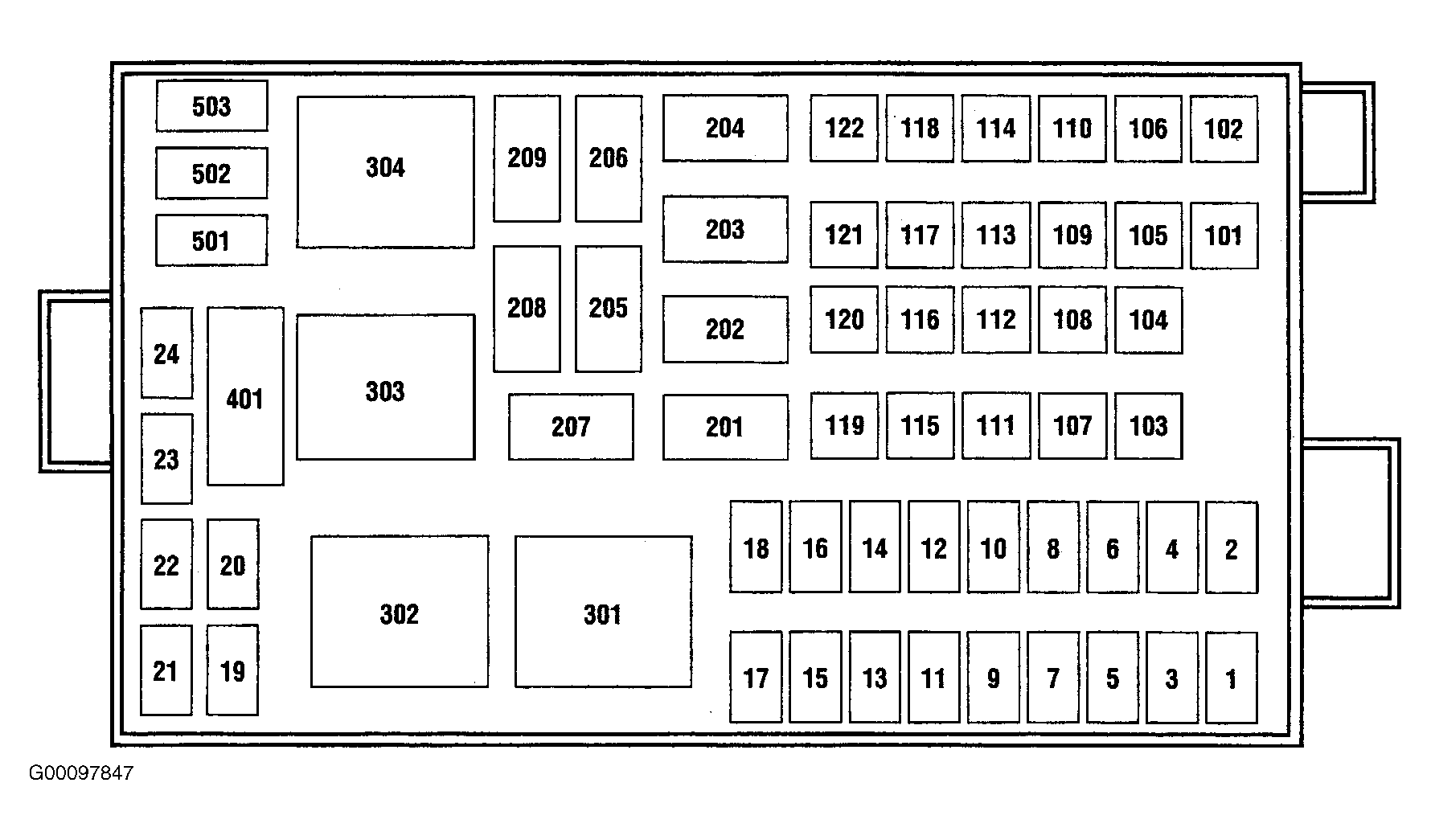

Fig 2: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

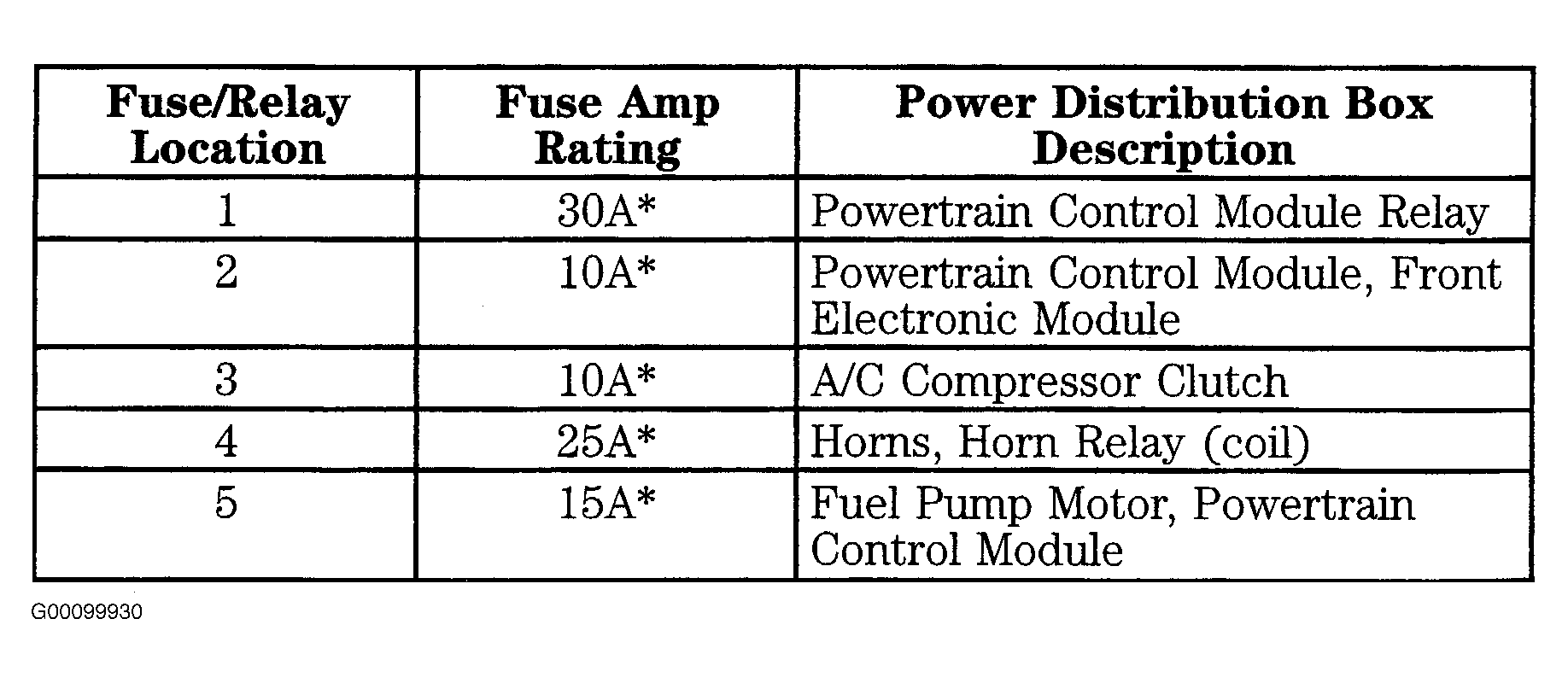

Fig 3: Battery Junction Box Legend (1 Of 5)

Courtesy of FORD MOTOR CO.

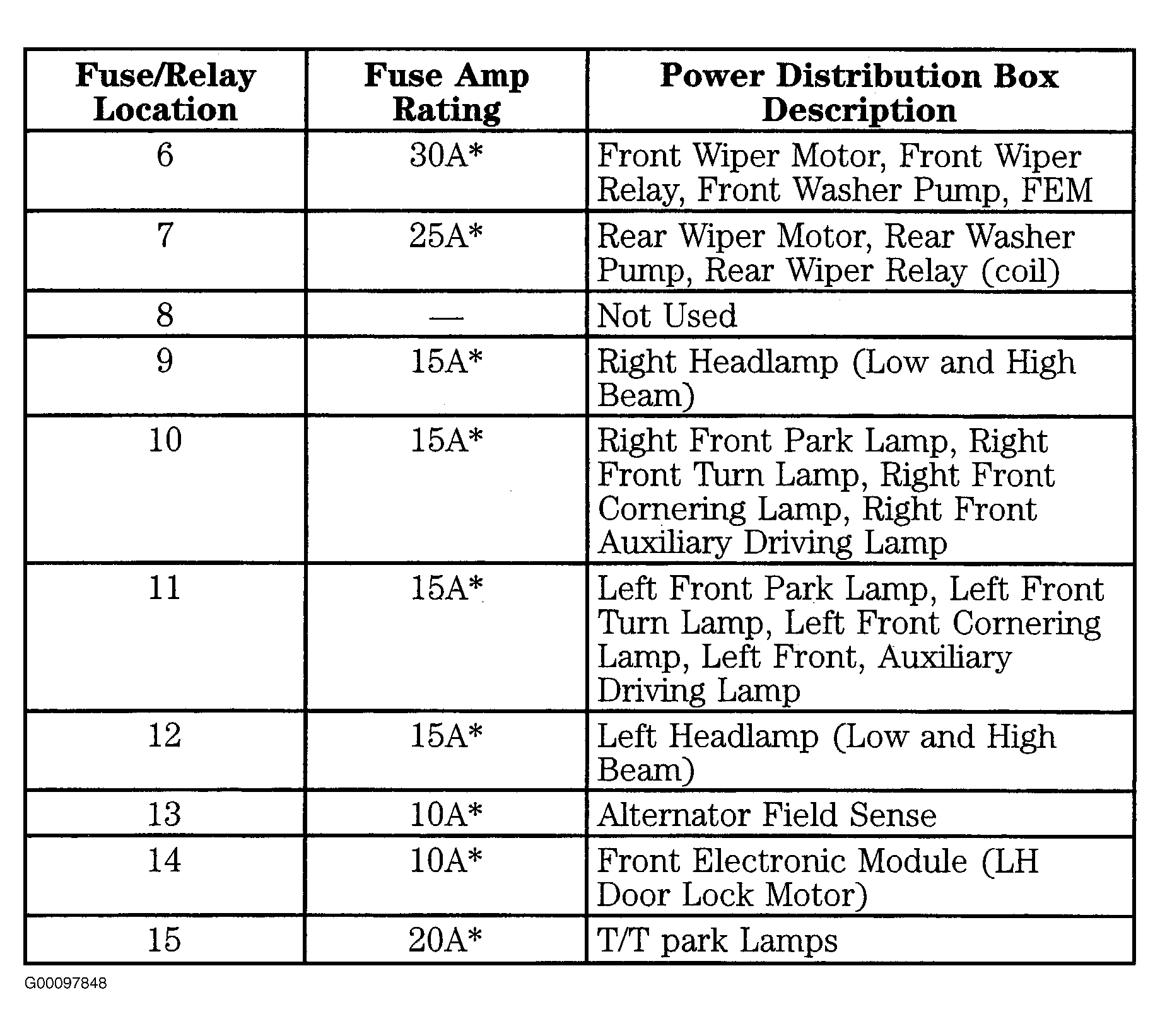

Fig 4: Battery Junction Box Legend (2 Of 5)

Courtesy of FORD MOTOR CO.

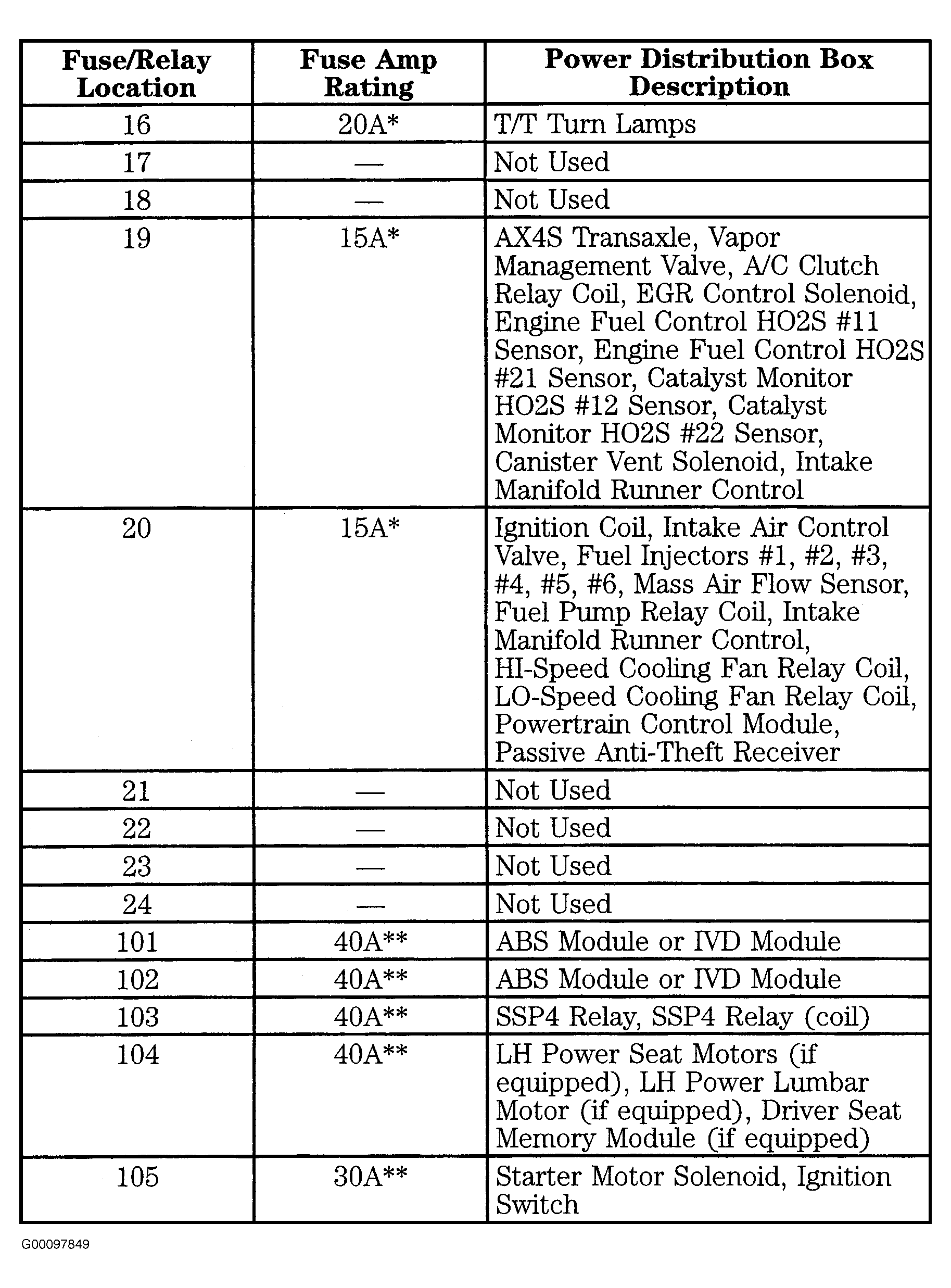

Fig 5: Battery Junction Box Legend (3 Of 5)

Courtesy of FORD MOTOR CO.

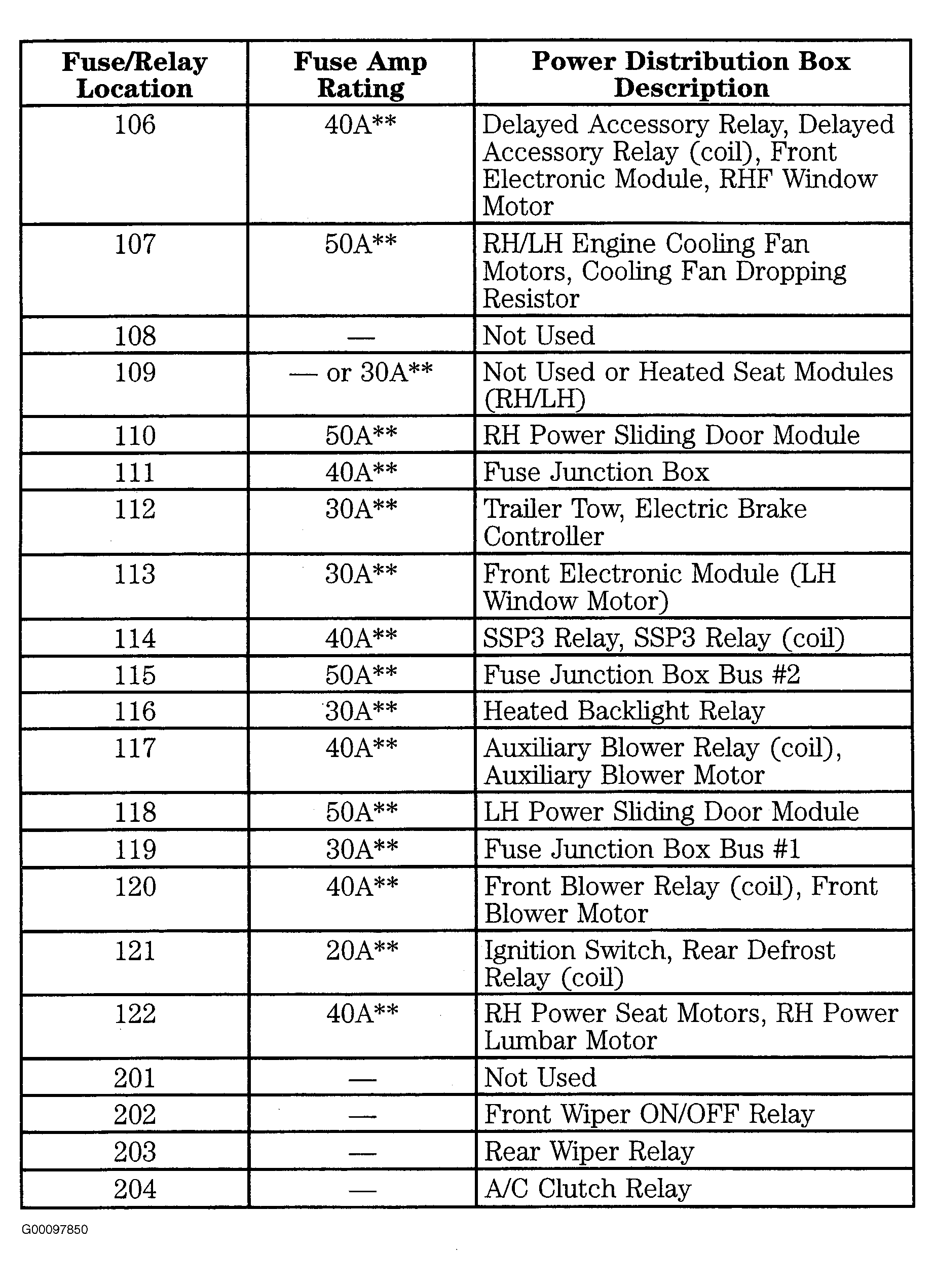

Fig 6: Battery Junction Box Legend (4 Of 5)

Courtesy of FORD MOTOR CO.

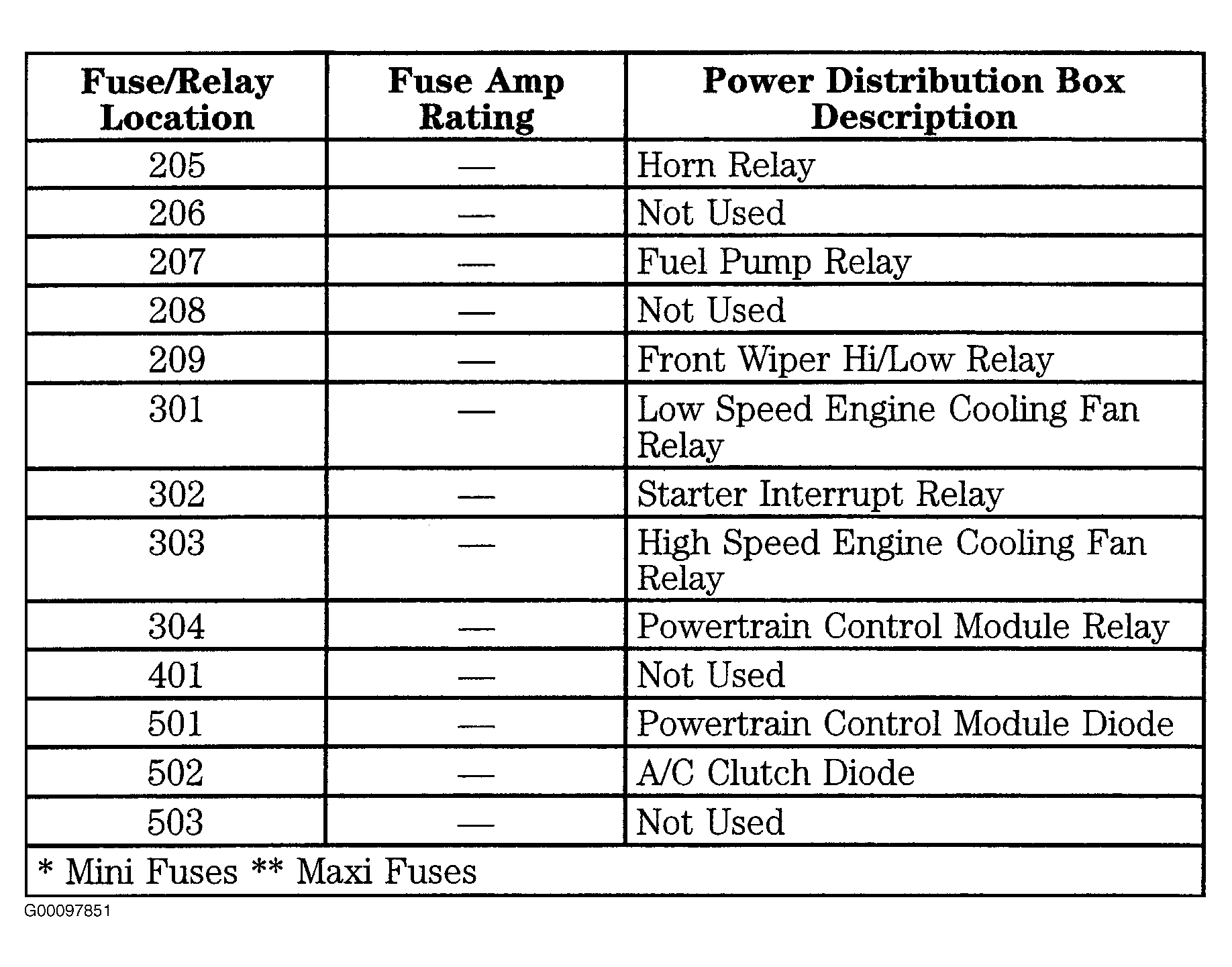

Fig 7: Battery Junction Box Legend (5 Of 5)

Courtesy of FORD MOTOR CO.
