Home >> Ford >> 2001 >> Taurus SEL >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Overhaul - 4F50N >> Disassembly & Assembly Of Subassemblies >> Sun & Shell Assembly - Disassembly >> Notes

Sun & Shell Assembly - Disassembly: Notes

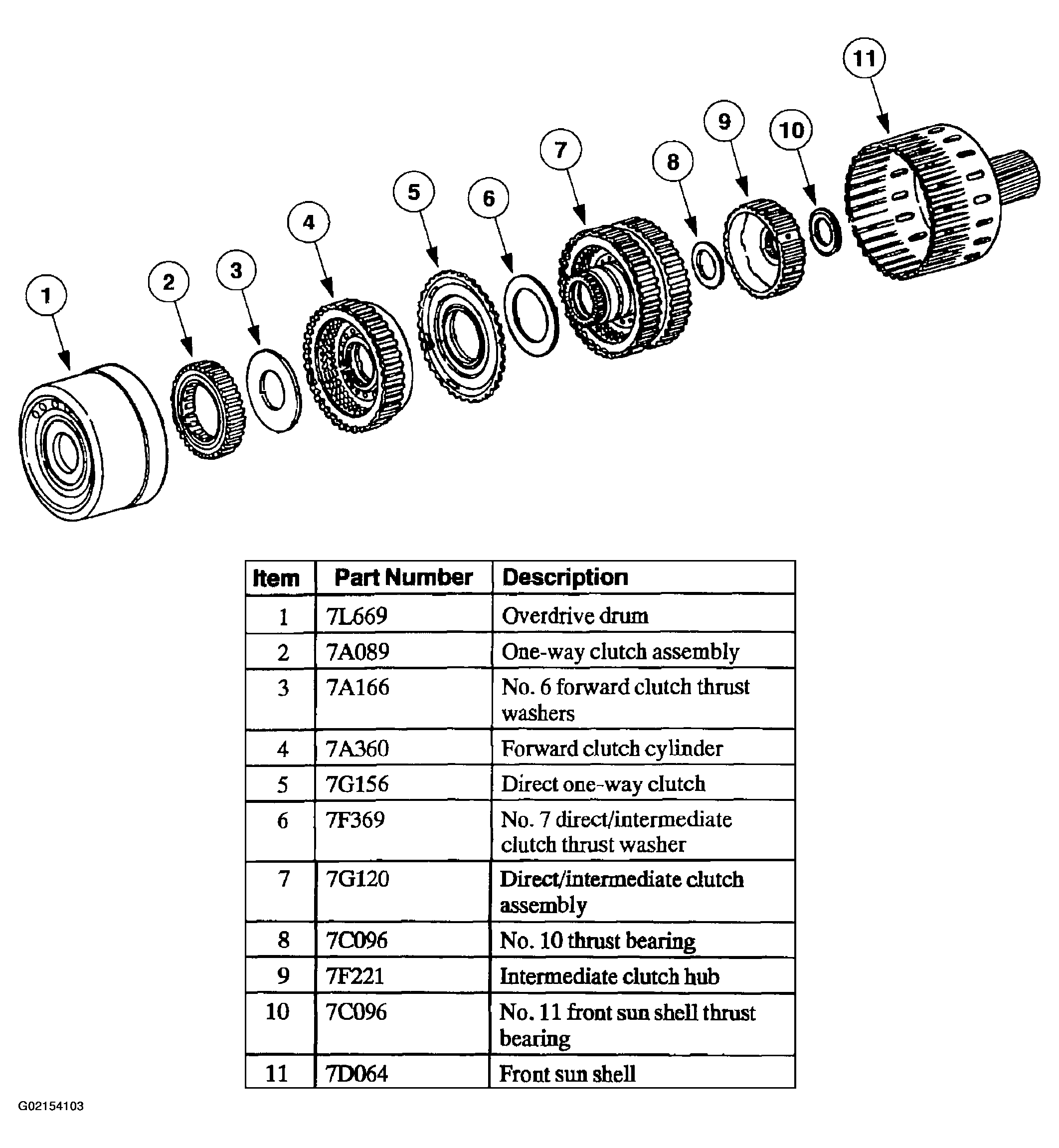

Fig 1: Sun & Shell Assembly

G02154103

Courtesy of FORD MOTOR CO.
