Automatic Transmission Overhaul - 4F50N
>>
Disassembly & Assembly Of Subassemblies
>>

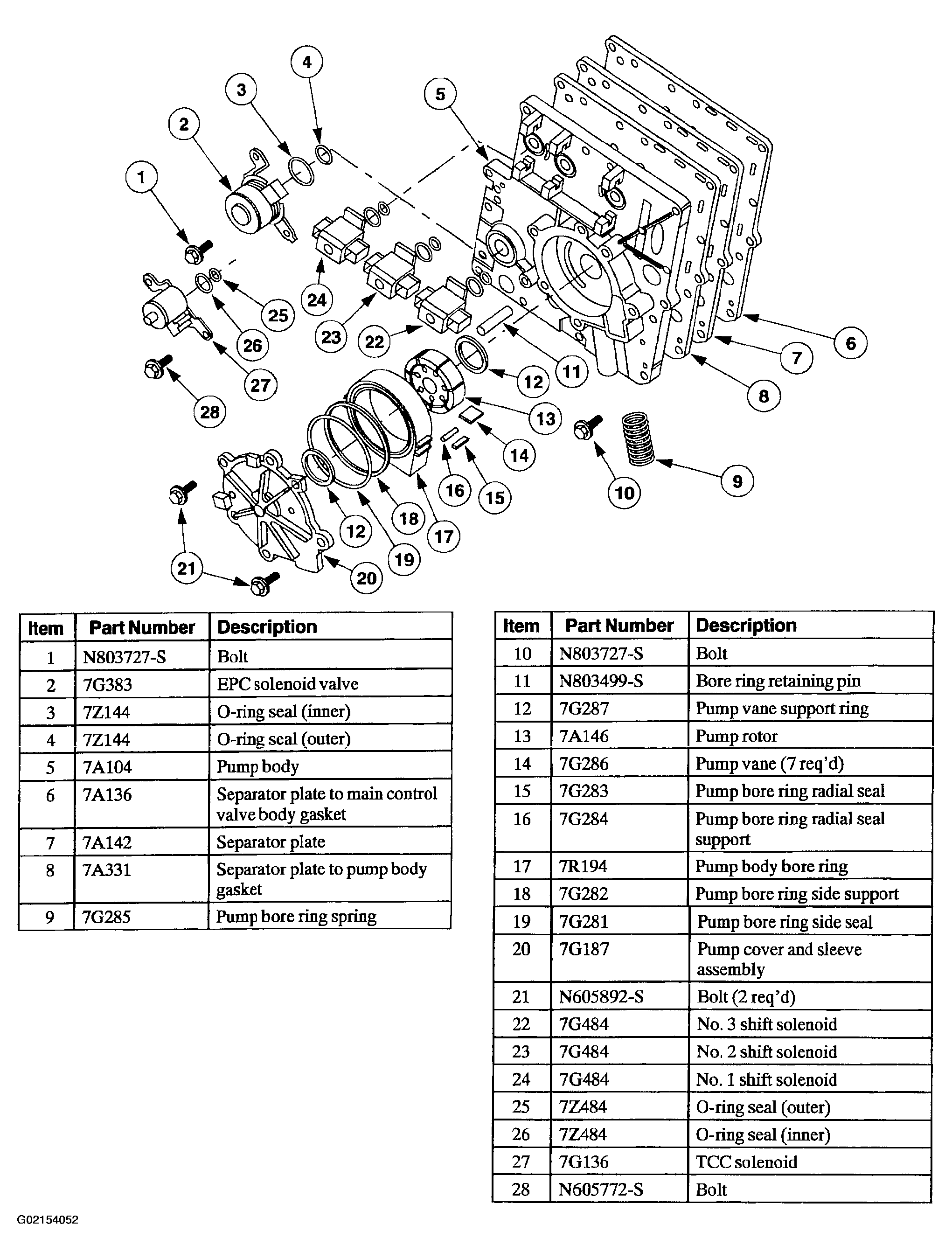

Pump Assembly
>>
Notes
Pump Assembly: Notes
Special Tool(s)
Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
