Automatic Transmission Overhaul - 4F50N
>>
Disassembly & Assembly Of Subassemblies
>>
Final Drive
>>
Notes
Final Drive: Notes

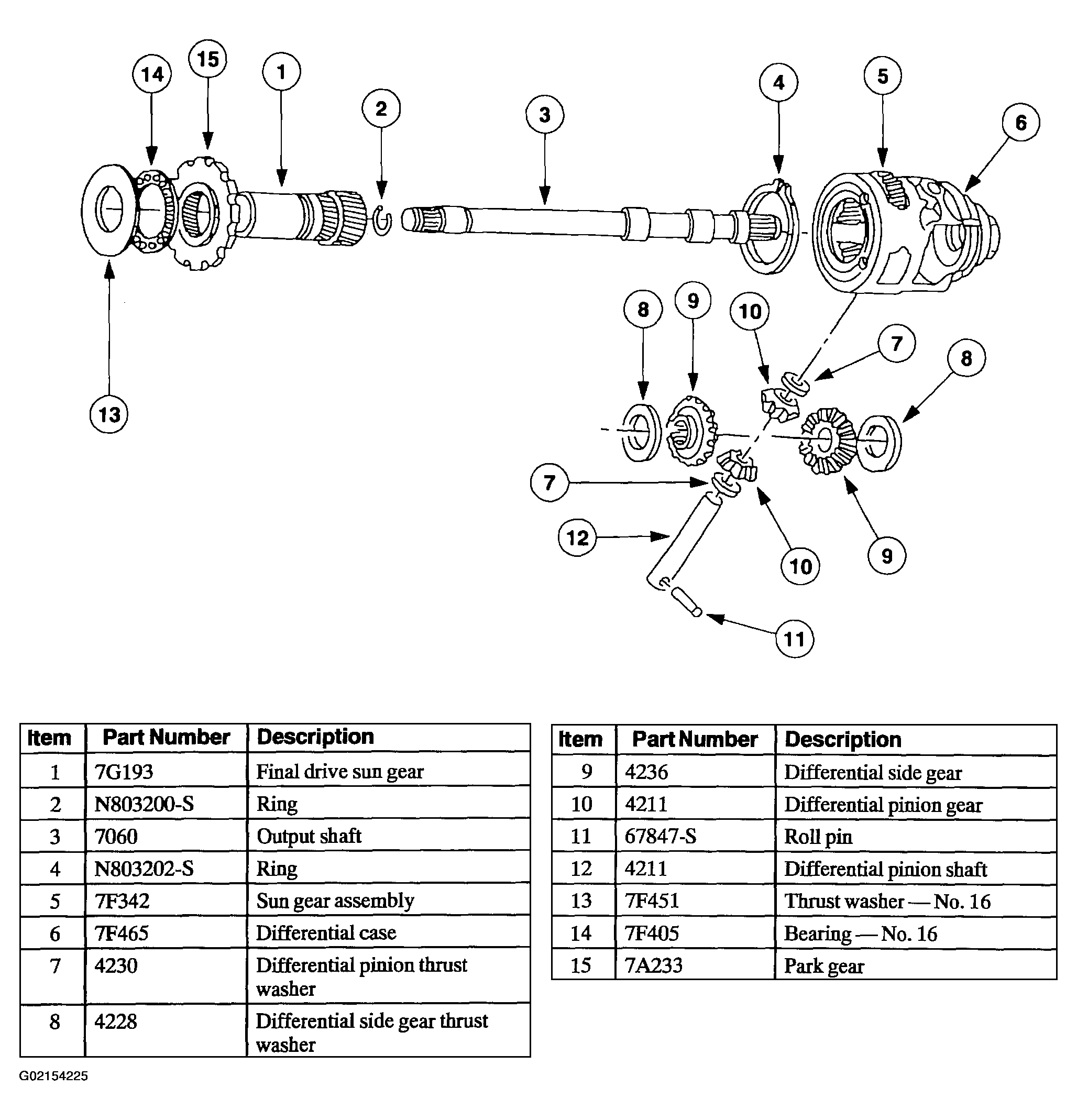

Fig 1: Final Drive Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
