Final Drive: Disassembly

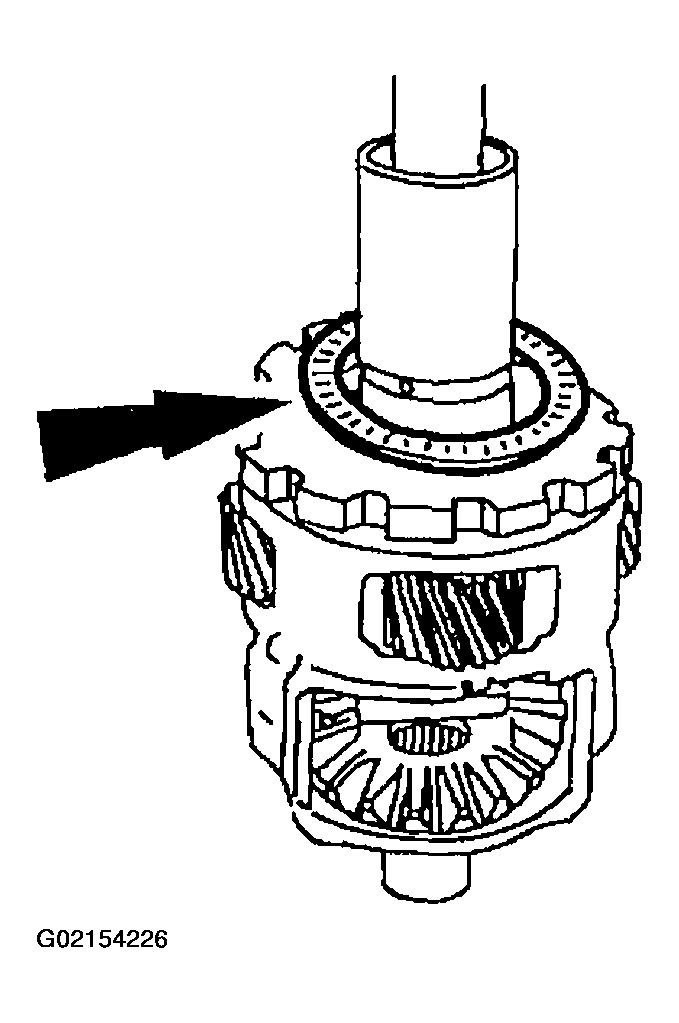

Remove the No. 16 final drive gear front thrust bearing.

Fig 1: Removing No. 16 Final Drive Gear Front Thrust Bearing
Courtesy of FORD MOTOR CO.

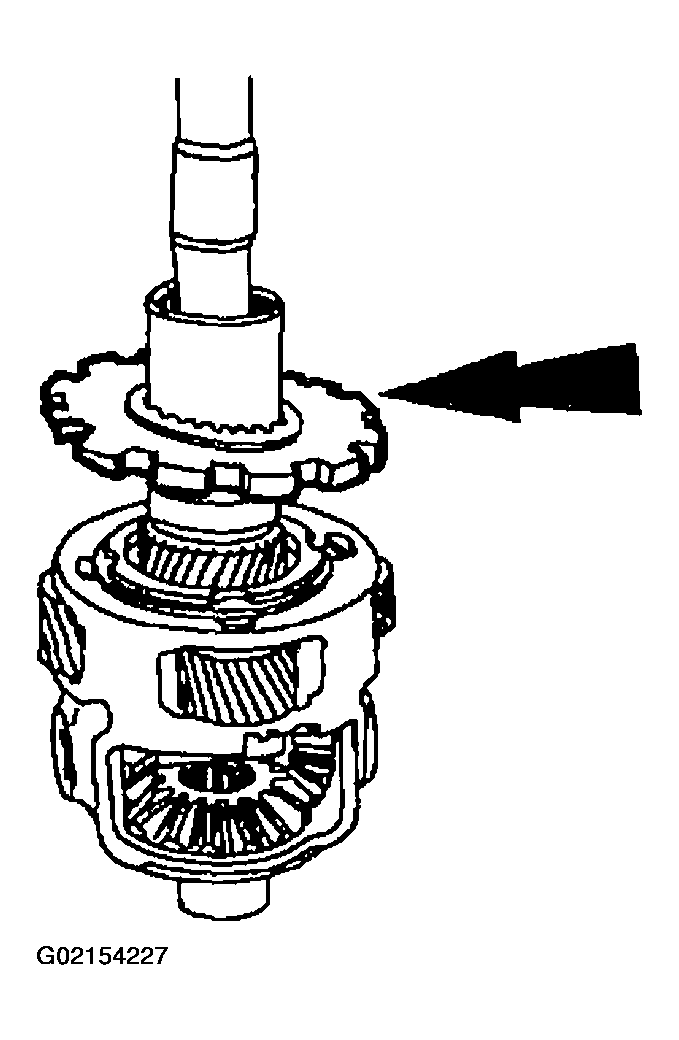

Remove the park gear.

Fig 2: Removing Park Gear
Courtesy of FORD MOTOR CO.

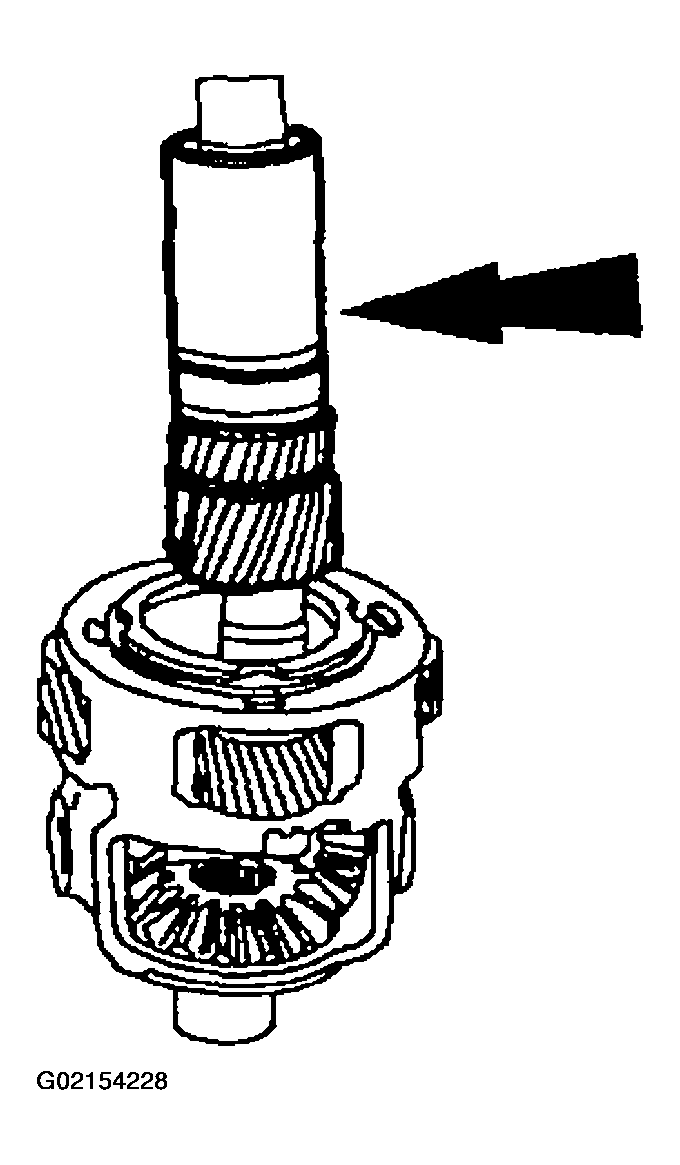

Remove the final drive sun gear and deflector.

Fig 3: Removing Final Drive Sun Gear & Deflector
Courtesy of FORD MOTOR CO.

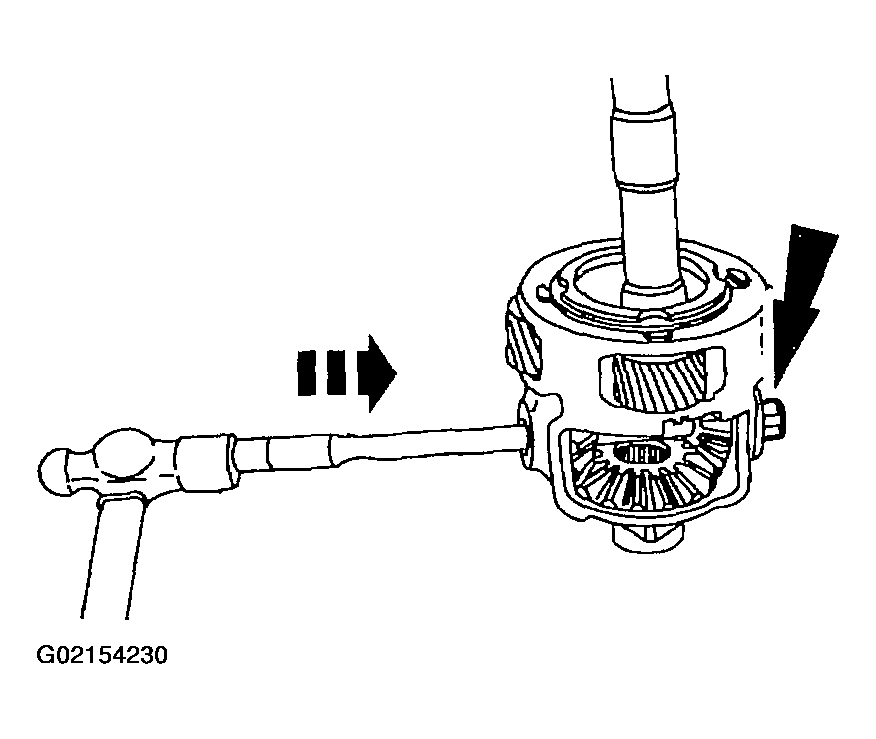

Remove the differential pinion shaft roll pin.

Fig 4: Removing Differential Pinion Shaft Roll Pin
Courtesy of FORD MOTOR CO.

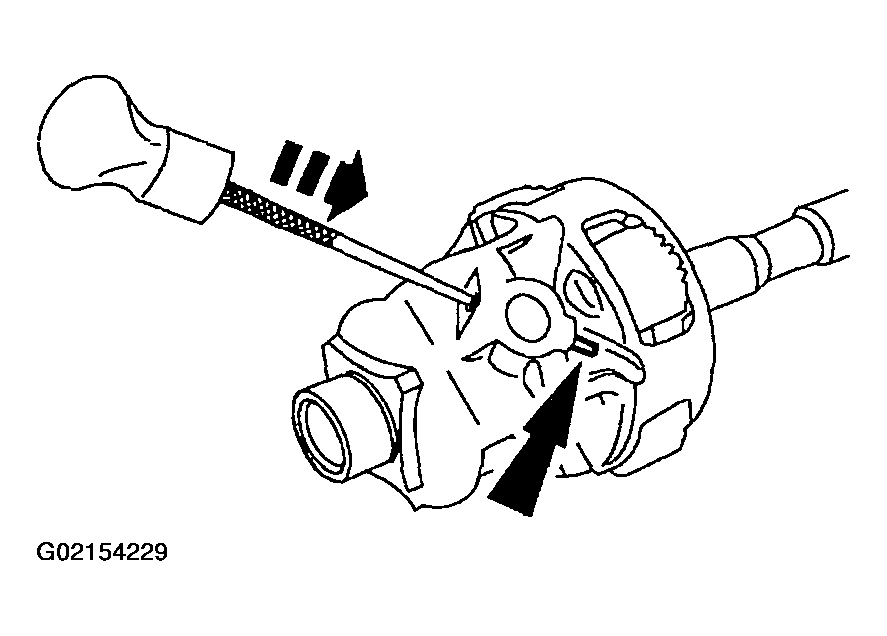

Remove the differential pinion shaft.

Fig 5: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

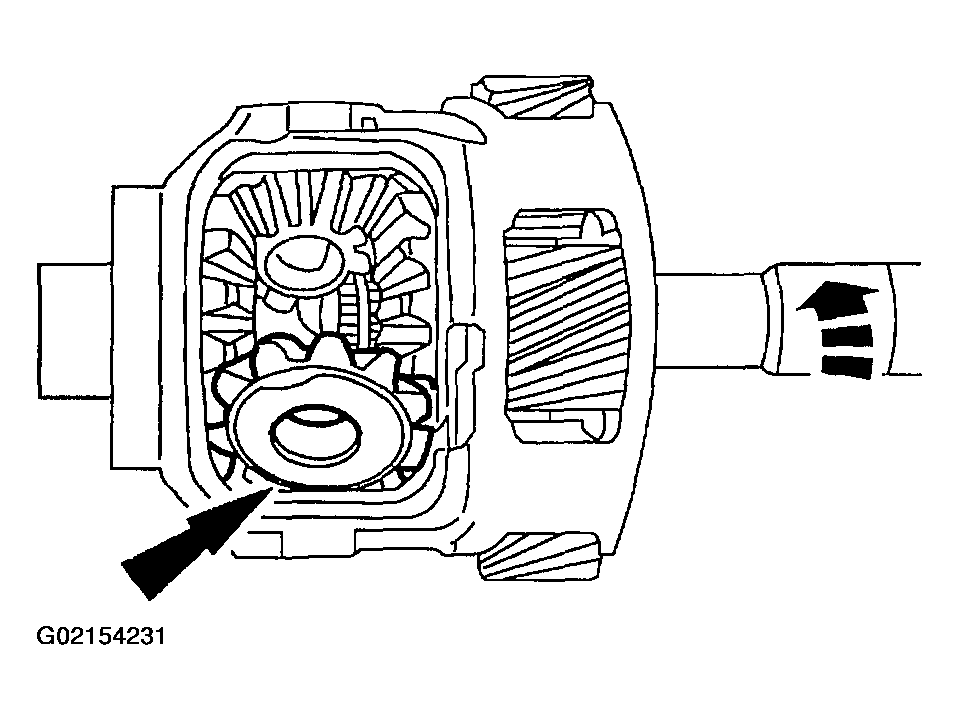

Rotate the output shaft and remove the differential pinion gear, and the differential pinion thrust washers.

Fig 6: Removing Differential Pinion Gear & Thrust Washers
Courtesy of FORD MOTOR CO.

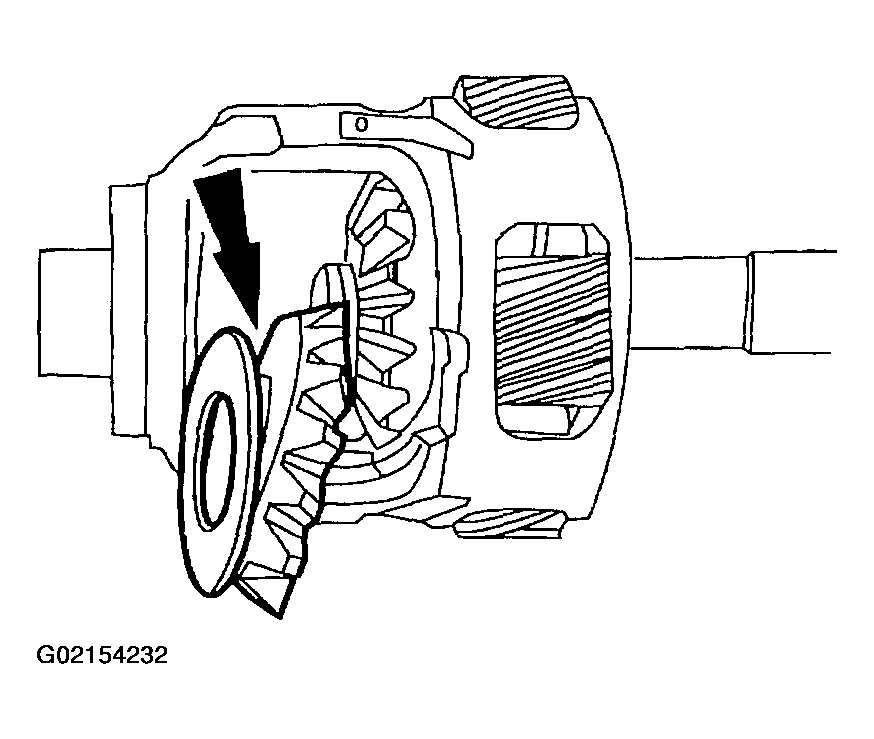

Remove the differential side gear and differential side gear thrust washer.

Fig 7: Removing Differential Side Gear & Thrust Washers
Courtesy of FORD MOTOR CO.

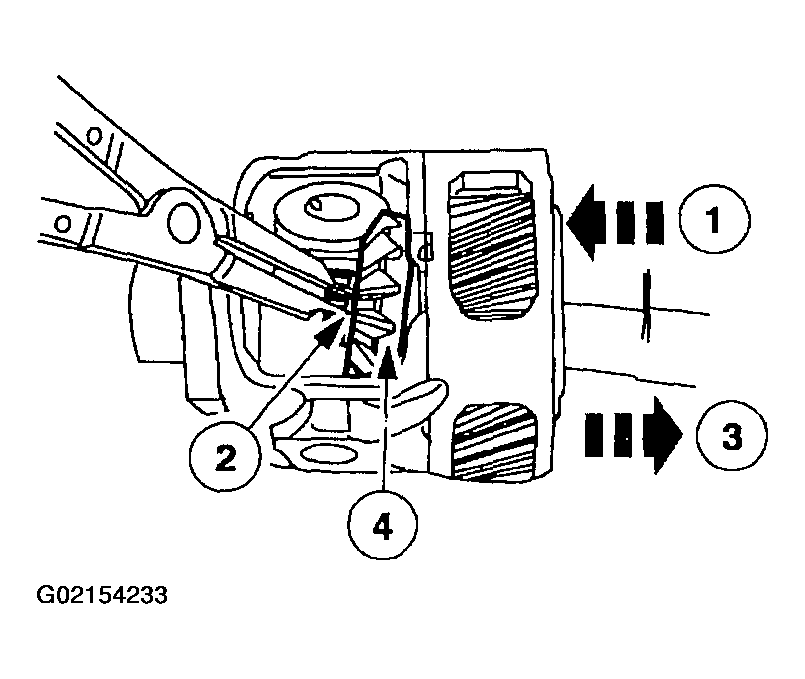

Remove the differential side gear and differential side gear thrust washer.
1. Move the output shaft.
2. Use the snap ring pliers to remove the retaining ring.
3. Remove the output shaft.
4. Remove the differential side gear and differential side gear thrust washer.
Fig 8: Removing Differential Side Gear & Thrust Washers
Courtesy of FORD MOTOR CO.
