Combination Fluid Cooler

CAUTION: Use new clamps, position within hose marking.

If the concern(s) remains after the inspection, determine the symptom(s). GO to SYMPTOM CHART .
Remove the splash shield.
1. Remove the five screws and air deflector, if equipped.
2. Remove the remaining seven screws and the splash shield.

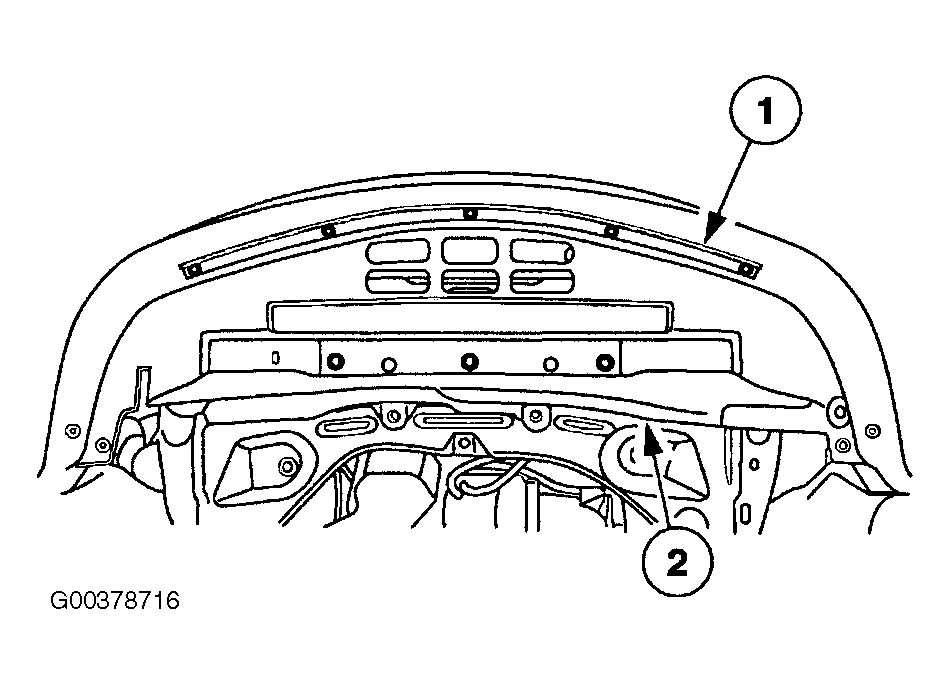

  Fig 1: Removing Splash Shield
  Courtesy of FORD MOTOR CO.

NOTE: Place a drain pan under the transaxle fluid cooler.

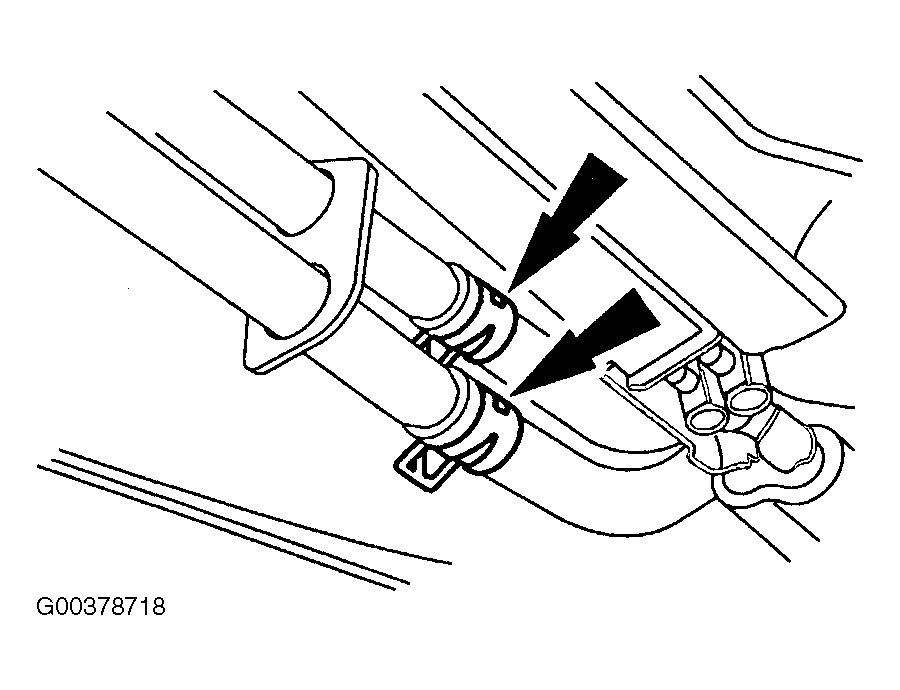

Fig 2: Identifying Transmission Fluid Cooler Hoses

Courtesy of FORD MOTOR CO.

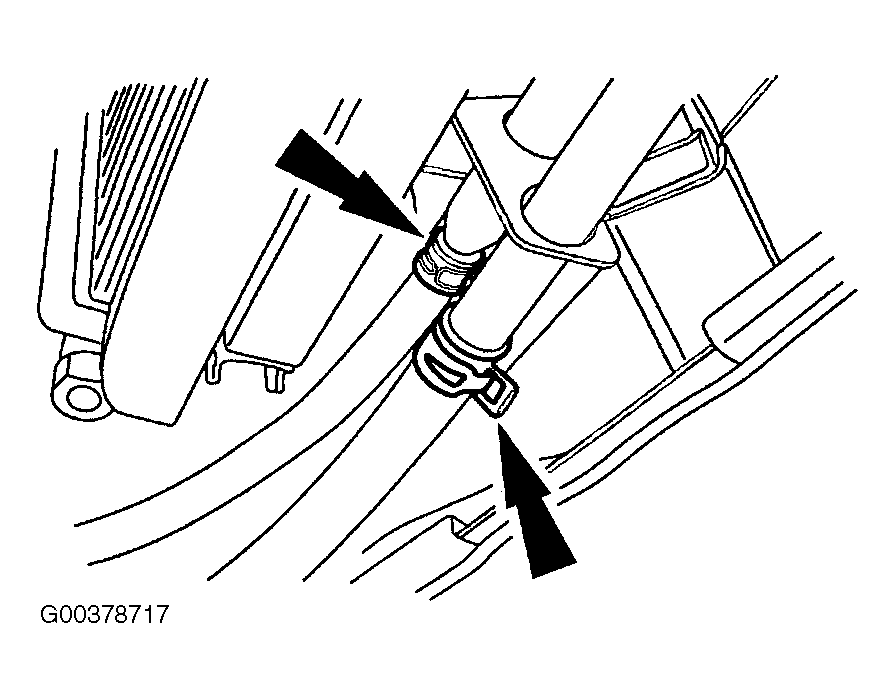

Fig 3: Identifying Power Steering Fluid Hoses

Courtesy of FORD MOTOR CO.

Disengage the clamps and remove the transmission fluid cooler hoses and the power steering fluid cooler hoses.
Remove the bolts and the combination fluid cooler.

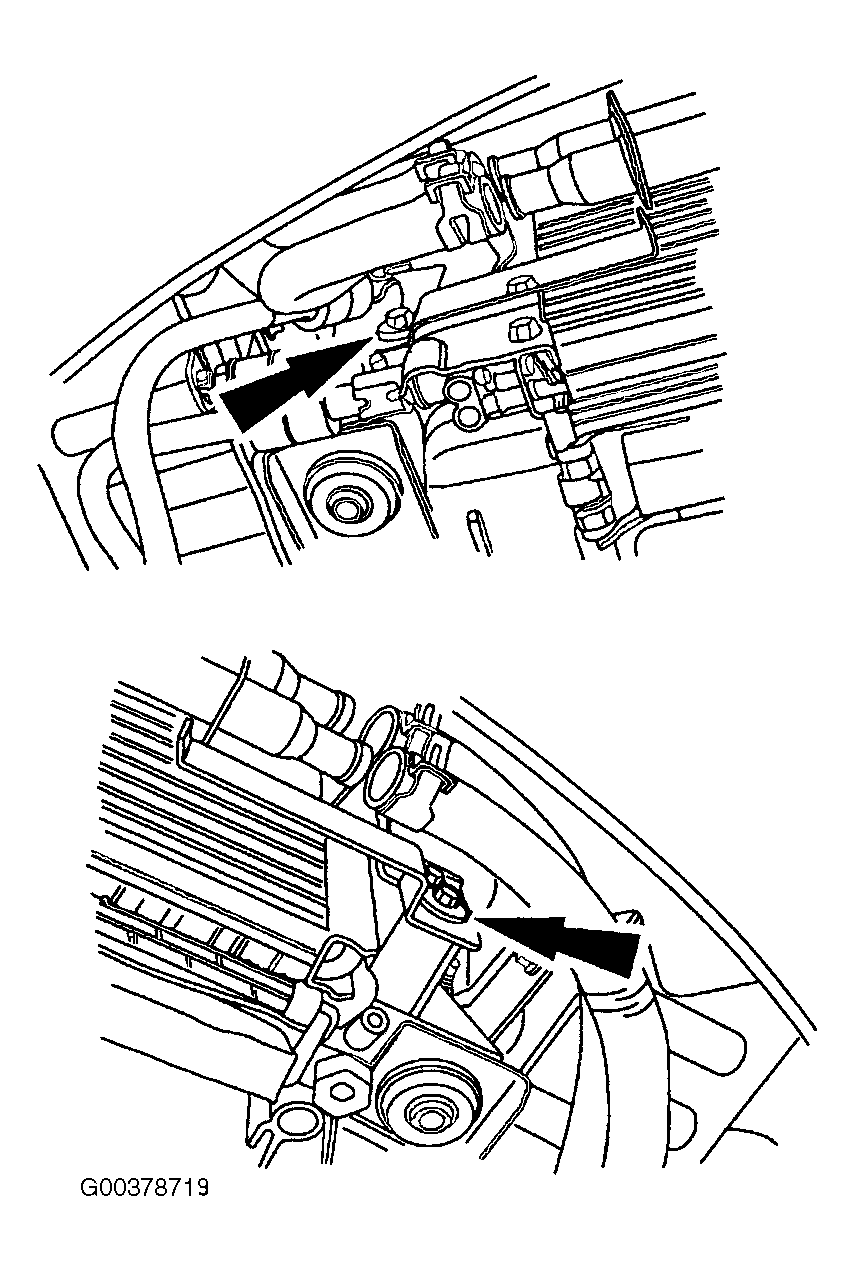

Fig 4: Identifying Combination Cooler Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Fill the transaxle to the specified level. For additional information, refer to CHECKING FLUID LEVEL & CONDITION .
- Fill and purge the power steering system of air.
