Component Locations

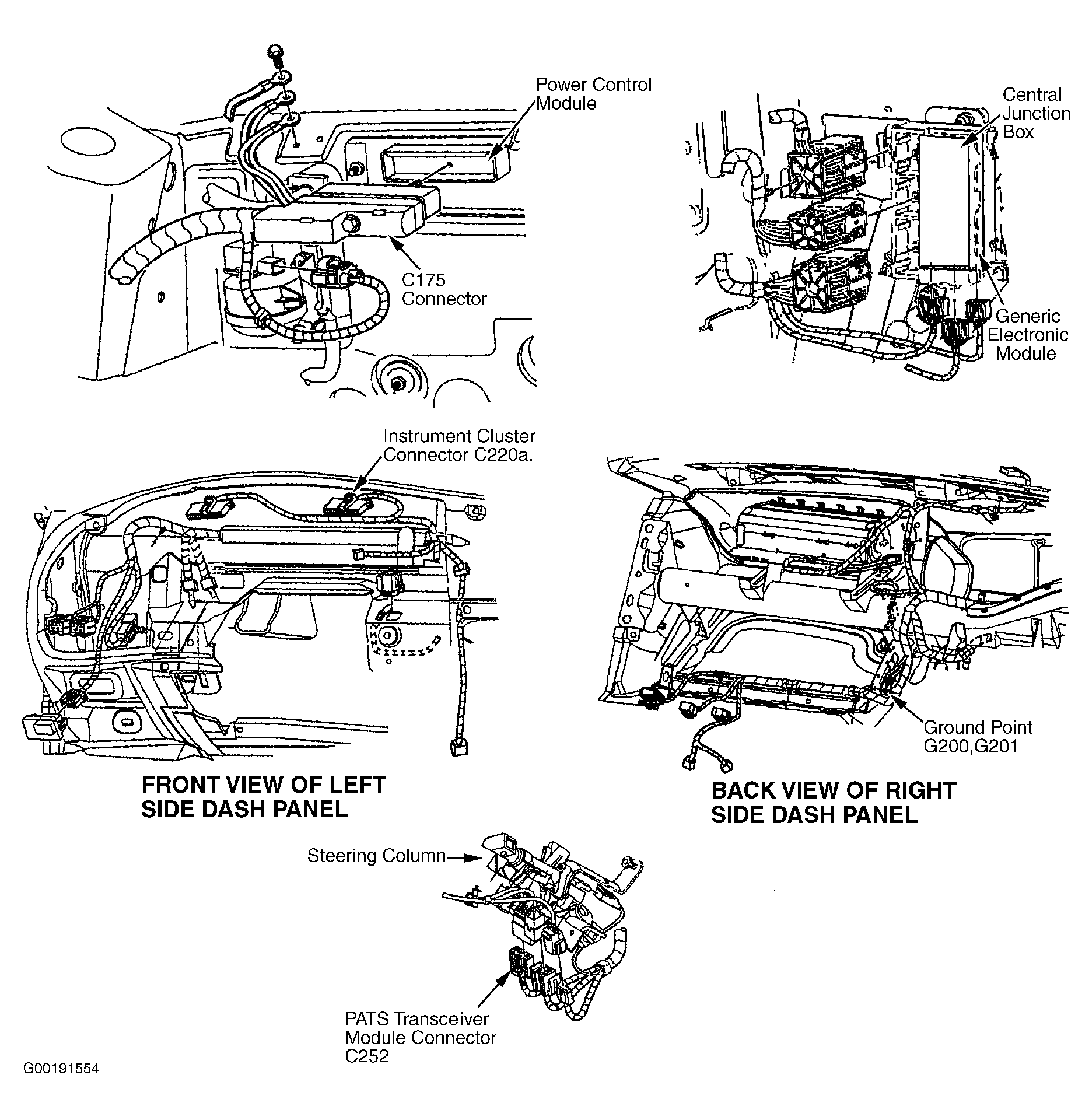

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Battery Junction Box | Front Center Of Engine Compartment |
| Central Junction Box | Under Left Side Of Instrument Panel, On Top Of Generic Electric Module |
| Data Link Connector | Mounted On Instrument Panel, Below Steering Column |
| Passive Anti-Theft System Transceiver Module | On Steering Column |
| Powertrain Control Module | On Right Side Of Firewall, In Engine Compartment |
| THEFT Indicator Light | On Instrument Panel |
