Pinpoint Test C: The Transmission Control Switch Is Not Operating Properly

WARNING: This page is about a different variant/trim than selected.

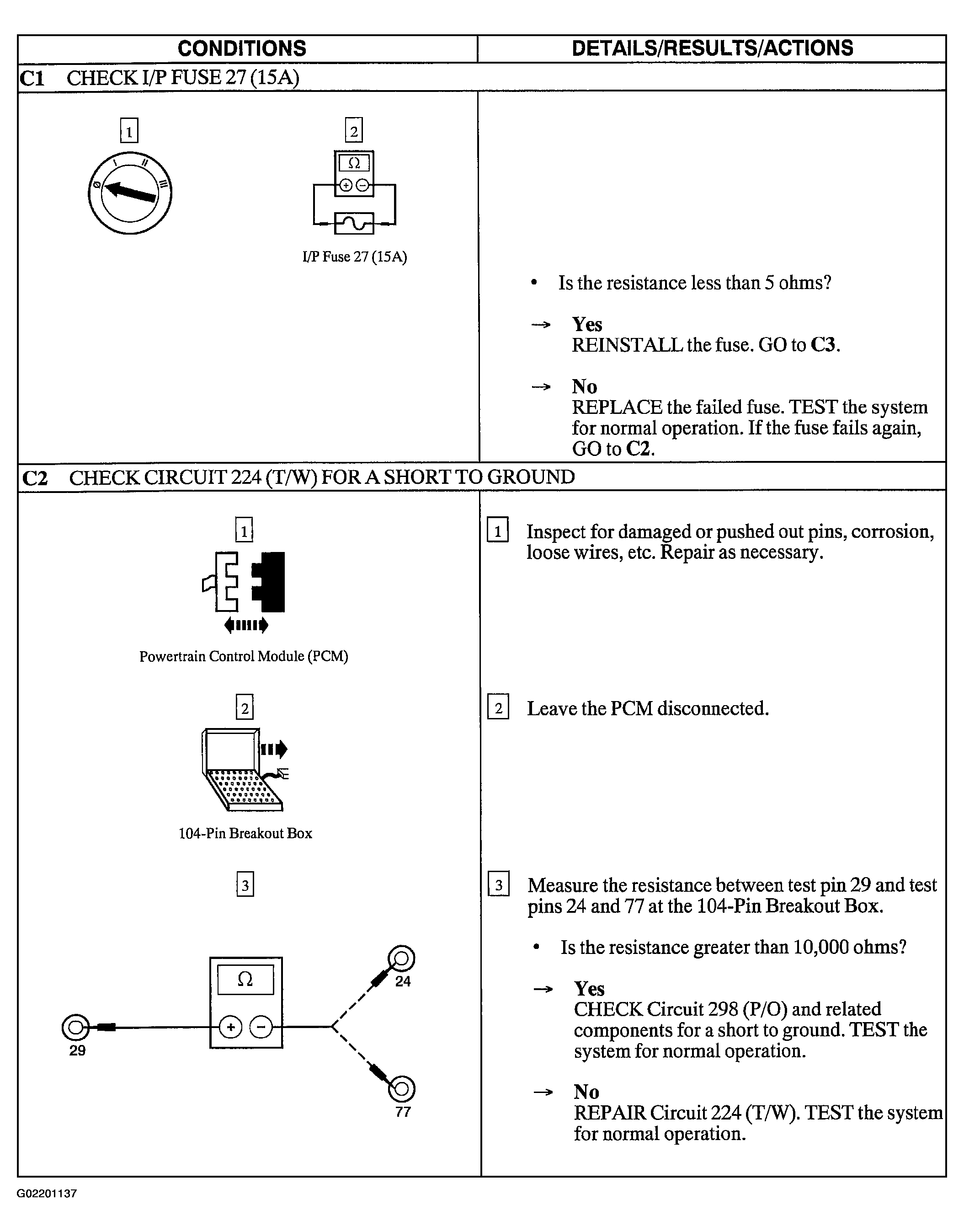

Fig 1: Pinpoint Tests C: The Transmission Control Switch Is Not Operating Properly (Steps C1 & C2)

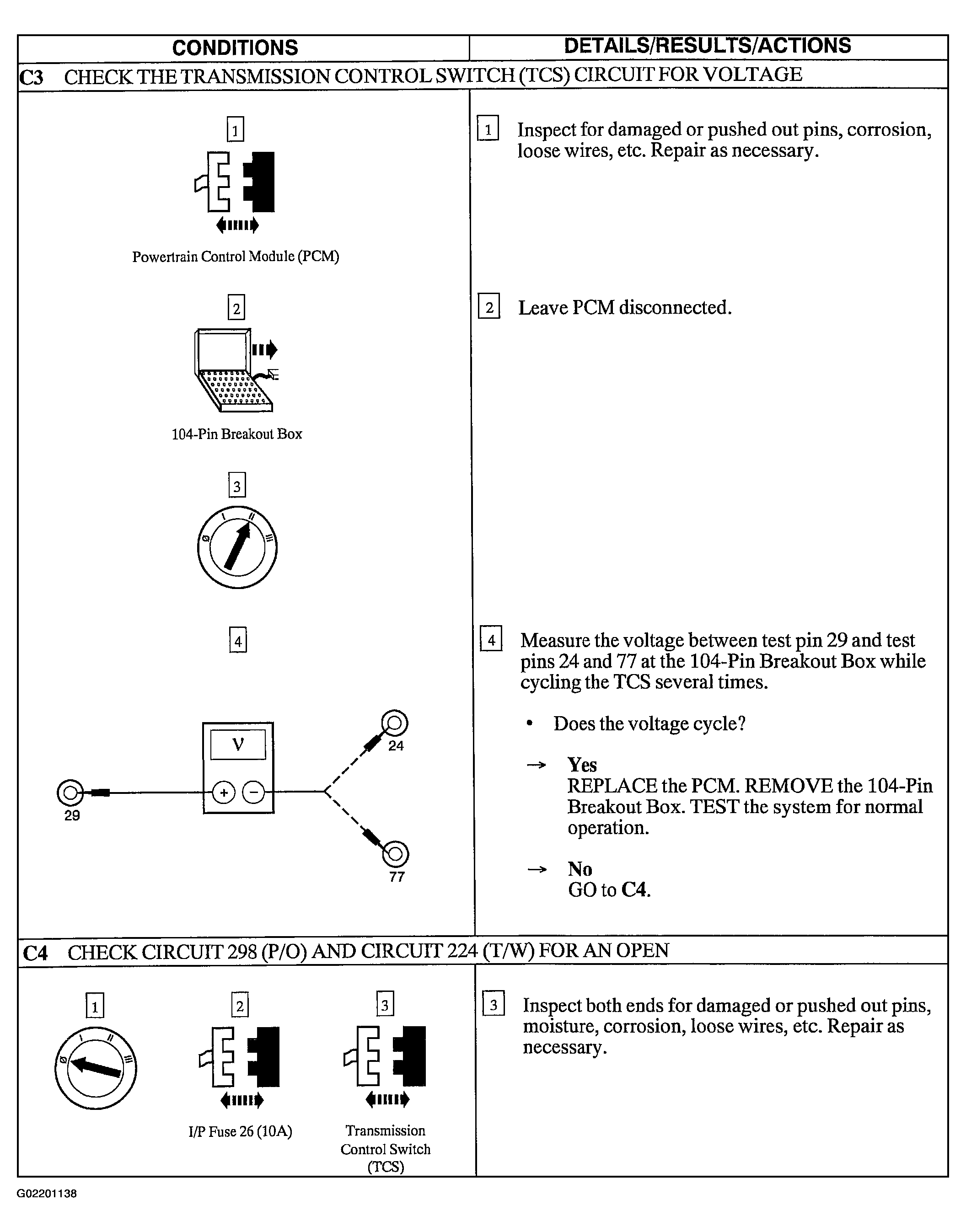

Fig 2: Pinpoint Tests C: The Transmission Control Switch Is Not Operating Properly (Steps C3 & C4)

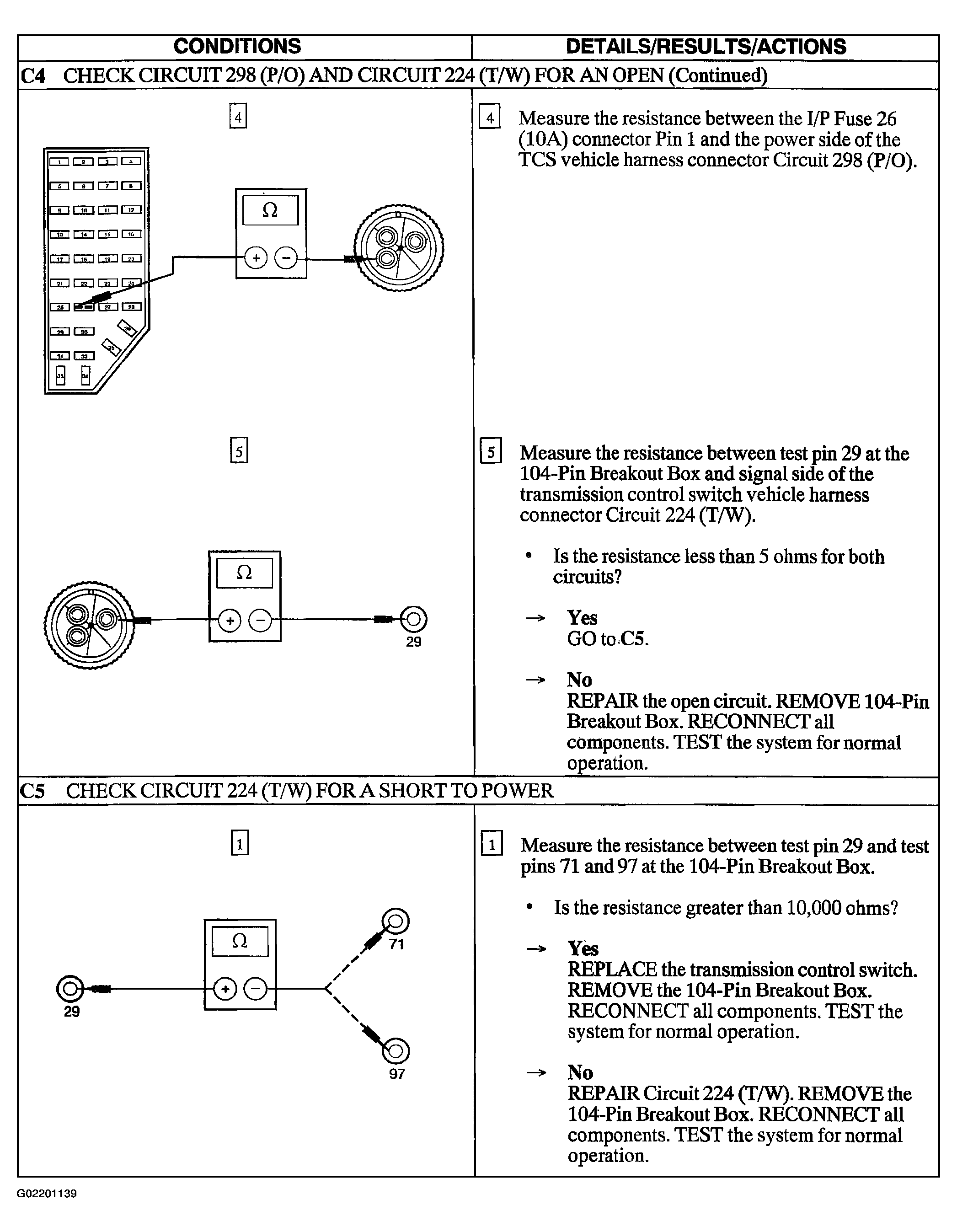

Fig 3: Pinpoint Tests C: The Transmission Control Switch Is Not Operating Properly (Steps C4 Cont. & C5)
