Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| A/C Compressor Front Mounting Bracket Bolts |
| Ranger |
34 (46) |
| Camshaft Sprocket Bolt |
46 (63) |
| Connecting Rod Cap Nut |
26 (35) |
| Crankshaft Damper Bolt |
107 (145) |
| Crankshaft Pulley Bolt |
| Ranger |
46 (63) |

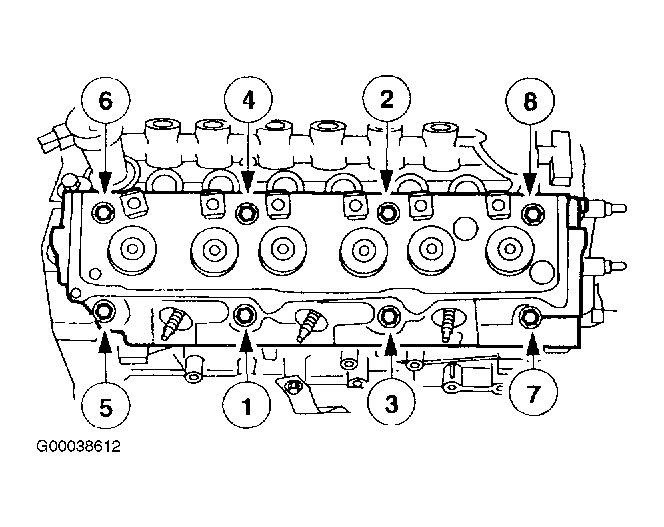

| Cylinder Head Bolt |
| Ranger |
| Step 1 |
37 (50) |
| Step 2 |
Loosen One Turn |
| Step 3 |
22 (30) |
| Step 4 |
Tighten an Additional 90° |
| |
Step 5 |
Tighten an Additional 90° |
| Engine Mount-To-Subframe Bolt |
| Ranger |
71 (96) |
| Engine Mount-To-Engine Bolt |
46 (63) |
| Exhaust Flange Bolt |
22 (30) |
| Exhaust Manifold Bolt |
| Step 1 |
7 (10) |
| Step 2 |
16 (22) |
| Flexplate-To-Converter Bolt |
27 (36) |
| Flexplate-To-Crankshaft Bolts |
54-64 (73-87) |
| Flywheel Bolt |
59 (80) |
| Front Cover Bolt |
18 (24) |
| Idler Pulley Bolt |
35 (47) |

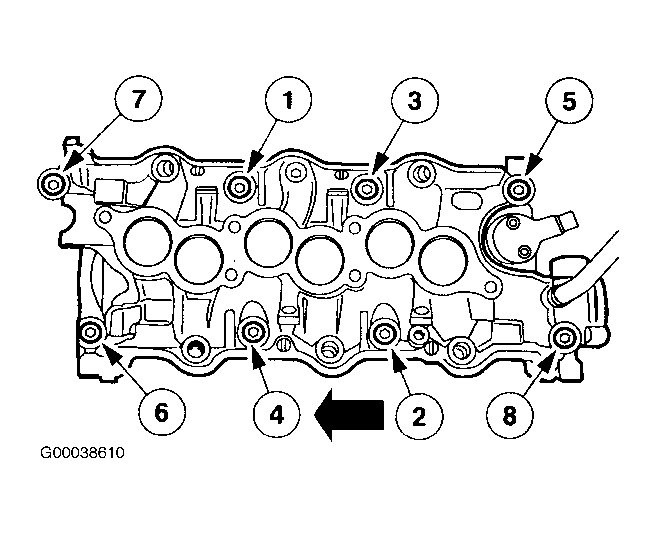

| Lower Intake Manifold Bolt |
| Ranger |
21 (29) |
| Main Bearing Cap Bolt |
59 (80) |
| Oil Pump Bolt |
35 (47) |
| Power Steering Pump Bracket Bolt |
35 (47) |
| Rear Mount-To-Crossmember Bolt |
66 (89) |
| Rear Mount-To-Transmission Bolt |
66 (89) |
| Rocker Arm Bolt |
| Ranger |
21 (29) |
| Starter Bolt |
20 (27) |
| Steering Gear-To-Subframe Bolt |
98 (133) |
| Subframe-To-Body Bolts |
66 (89) |
| Throttle Body Bolts |
18 (24) |
| Transmission-To-Engine Bolt |
46 (63) |
| Upper Spindle-To-Control Arm Ball Joint Pinch Bolt |
91 (123) |
| Water Pump Pully Bolt |
18 (24) |
| Water Pump Bolt |
| To Timing Cover (6 mm) |
|
| Through Timing Cover To Block (8 mm) |
18 (24) |
| INCH Lbs. (N.m) |
| Camshaft Thrust Plate Bolt |
89 (10) |
| Fuel Supply Manifold Bolt |
89 (10) |
| Oil Pan Bolt |
| Step 1 (Tighten 4 Corner Bolts) |
106 (12) |
| Step 2 (Tighten Remaining Bolts) |
106 (12) |
| Step 3 (Loosen All Bolts) |
One Full Turn |
| Step 4 (Tighten All Bolts) |
106 (12) |
| Spark Plug |
97 (11) |
| Upper Intake Manifold Bolt |
| Ranger |
89 (10) |
| Valve Cover Bolt |
106 (12) |
