Pinpoint Tests: Notes

Fig 1: Pinpoint Test Symptom Chart (1 Of 2)

G02201127

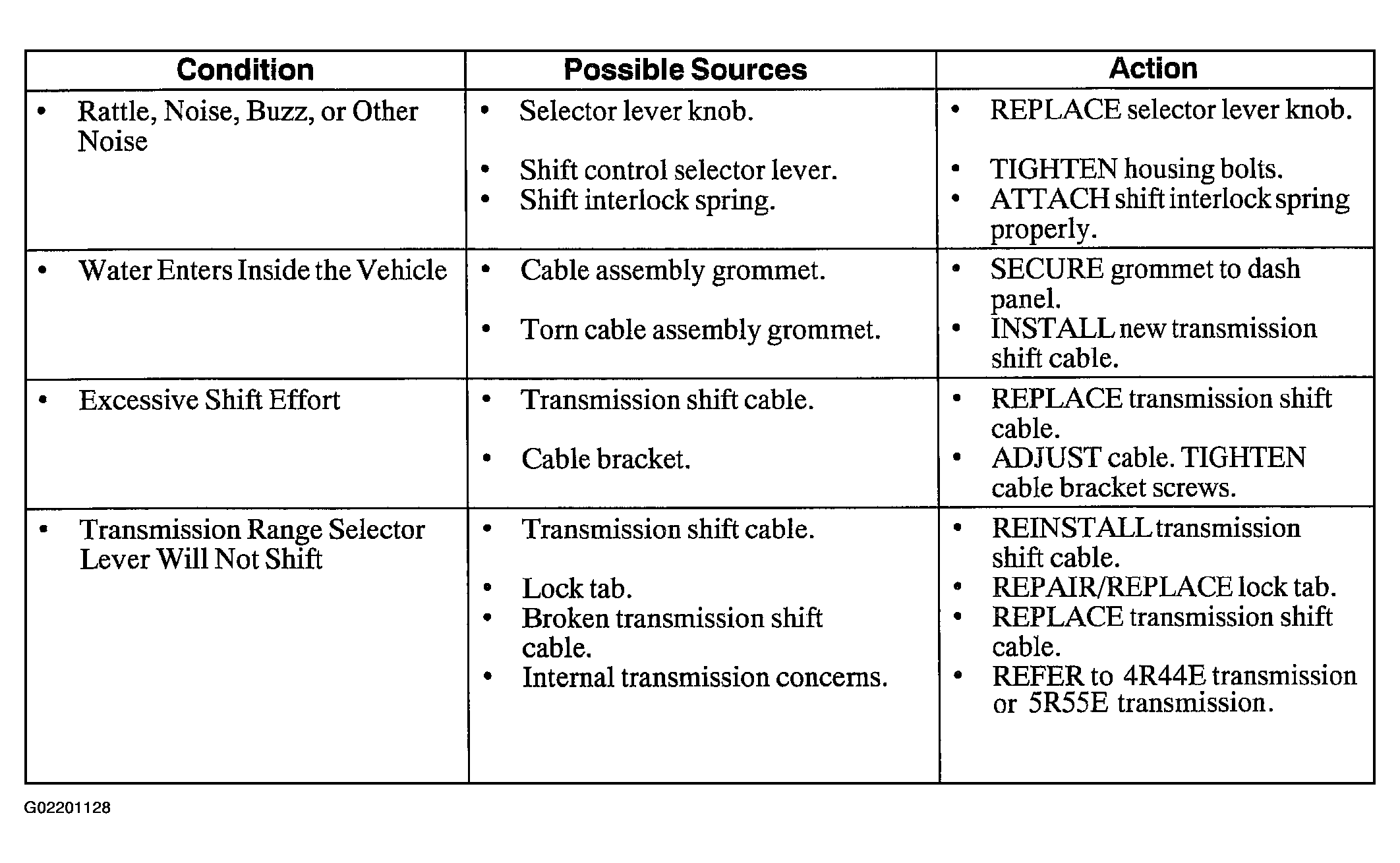

Fig 2: Pinpoint Test Symptom Chart (2 Of 2)

G02201128
