Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake System (ABS) Module (2.3L) | On left front of engine compartment. |

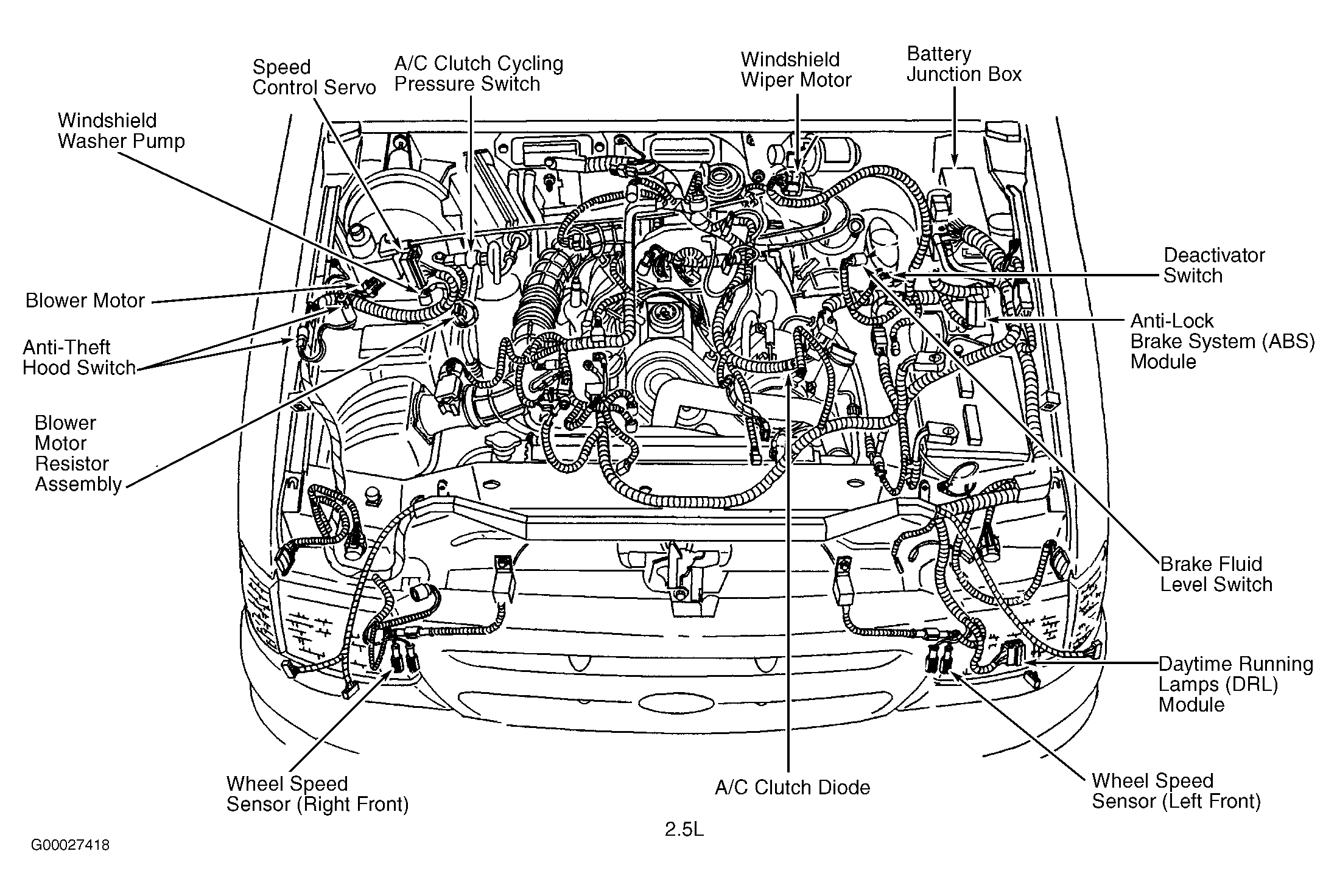

| Anti-Lock Brake System (ABS) Module (2.5L) | On left front of engine compartment. See Figure. |

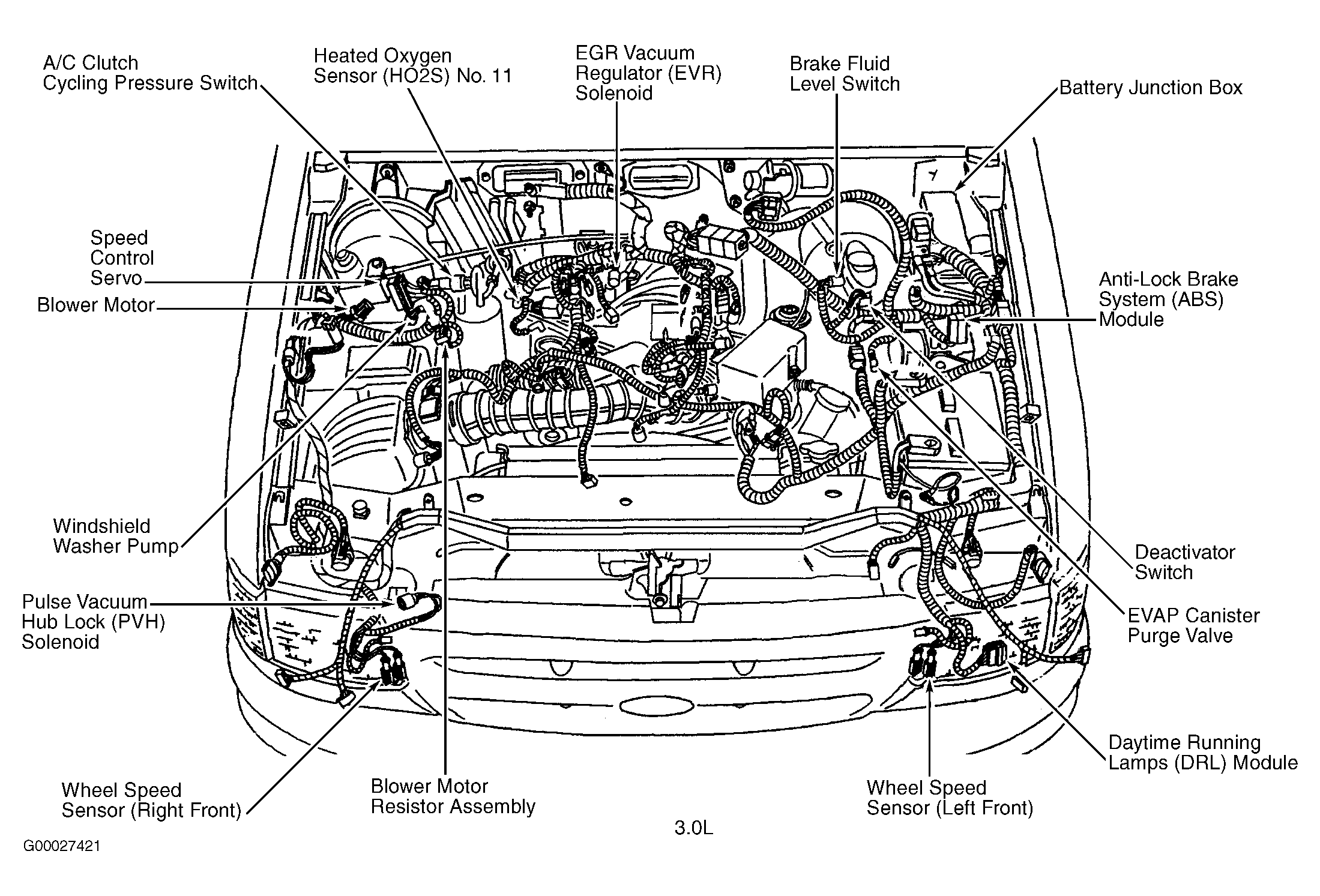

| Anti-Lock Brake System (ABS) Module (3.0L) | On left front of engine compartment. See Figure. |

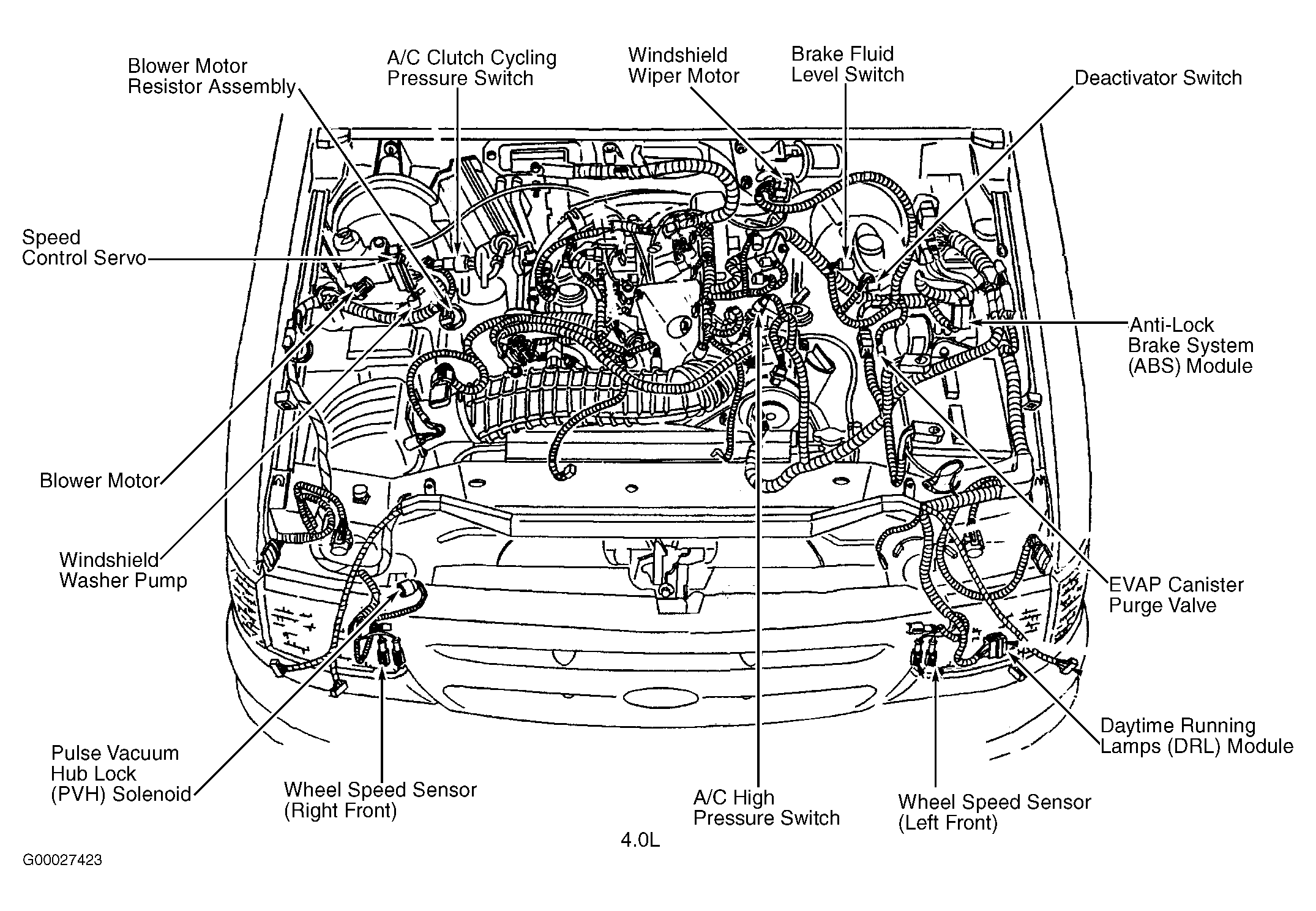

| Anti-Lock Brake System (ABS) Module (4.0L) | On left front of engine compartment. See Figure. |
| Central Security Module | Behind upper right side of dash. |
| Central Timer Module (CTM) | Behind center of dash. See Figure. |
| Daytime Running Lamps (DRL) Module (2.3L) | Left side of lower radiator support. |
| Daytime Running Lamps (DRL) Module (2.5L) | Left side of lower radiator support. See Figure. |
| Daytime Running Lamps (DRL) Module (3.0L) | Left side of lower radiator support. See Figure. |
| Daytime Running Lamps (DRL) Module (4.0L) | Left side of lower radiator support. See Figure. |

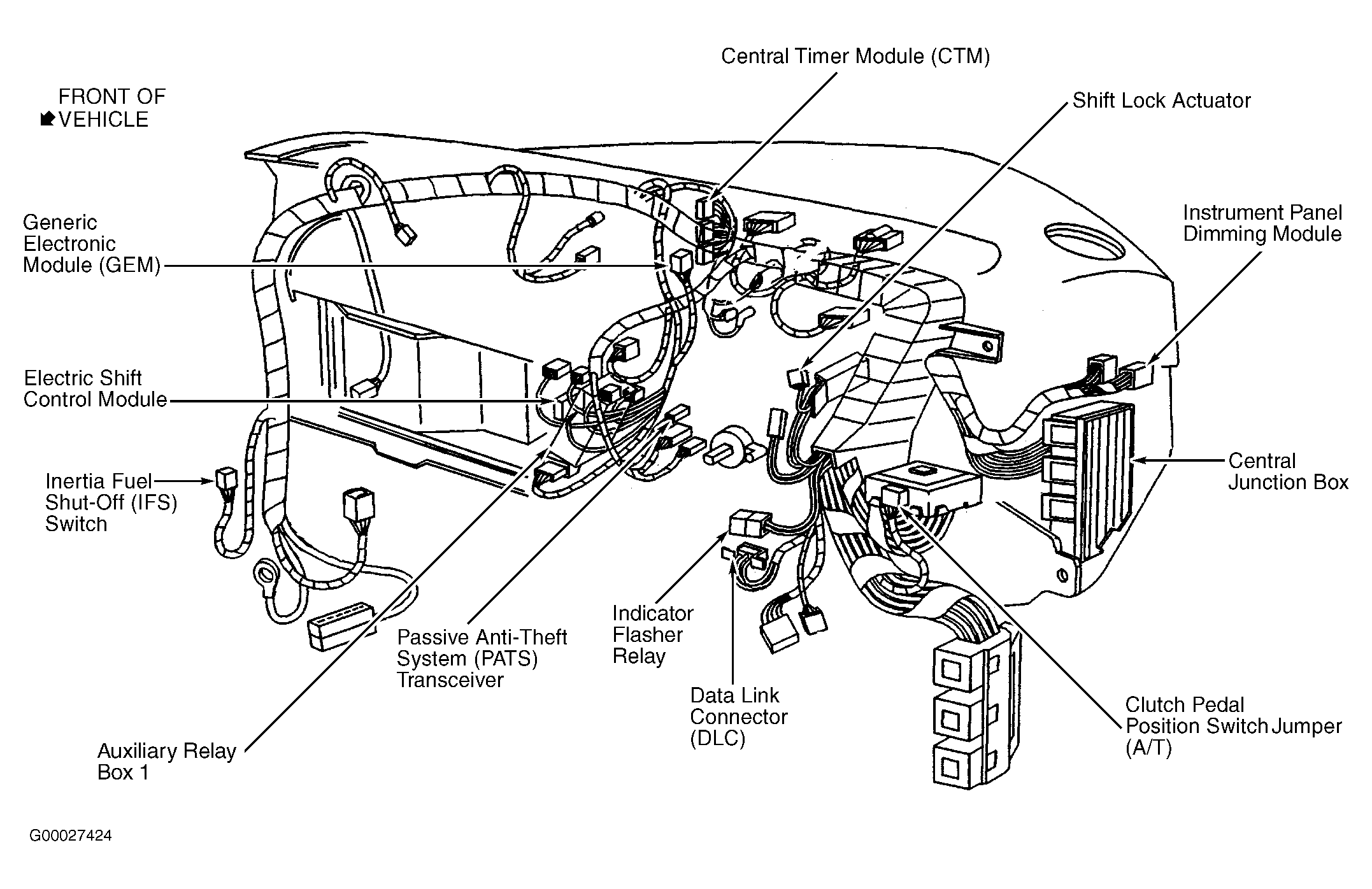

| Electric Shift Control Module | Behind center of dash. See Figure. |
| Four Wheel Drive Control Module | In right kick panel. |
| Generic Electronic Module (GEM) | Behind center of dash. See Figure. |
| Instrument Panel Dimming Module | Top left side of dash. See Figure. |
| Passive Anti-Theft System (PATS) Module | Behind right side of dash. |
| Powertrain Control Module (PCM) (2.3L) | Right rear of engine compartment, through firewall. See Figure. |

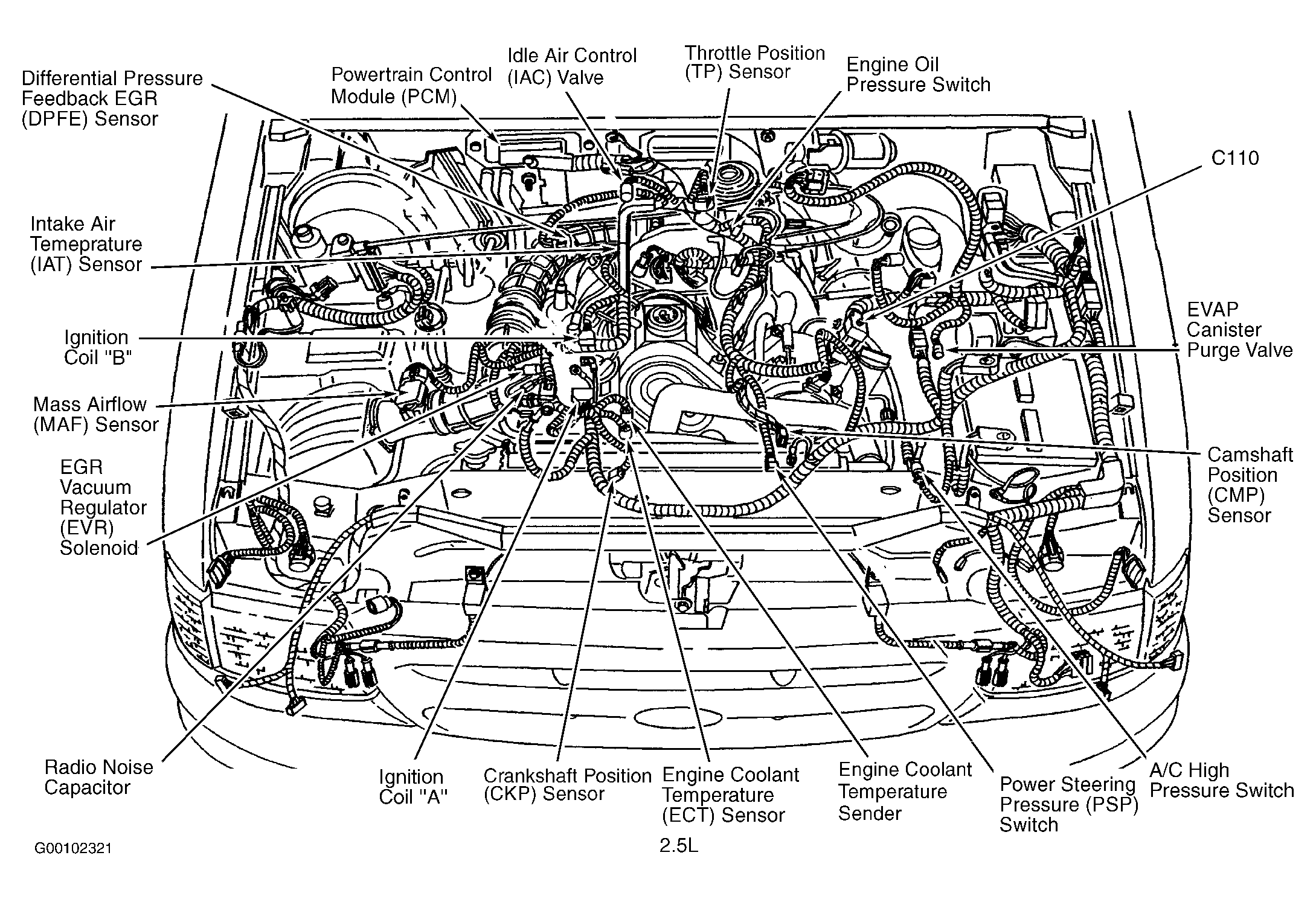

| Powertrain Control Module (PCM) (2.5L) | Right rear of engine compartment, through firewall. See Figure. |

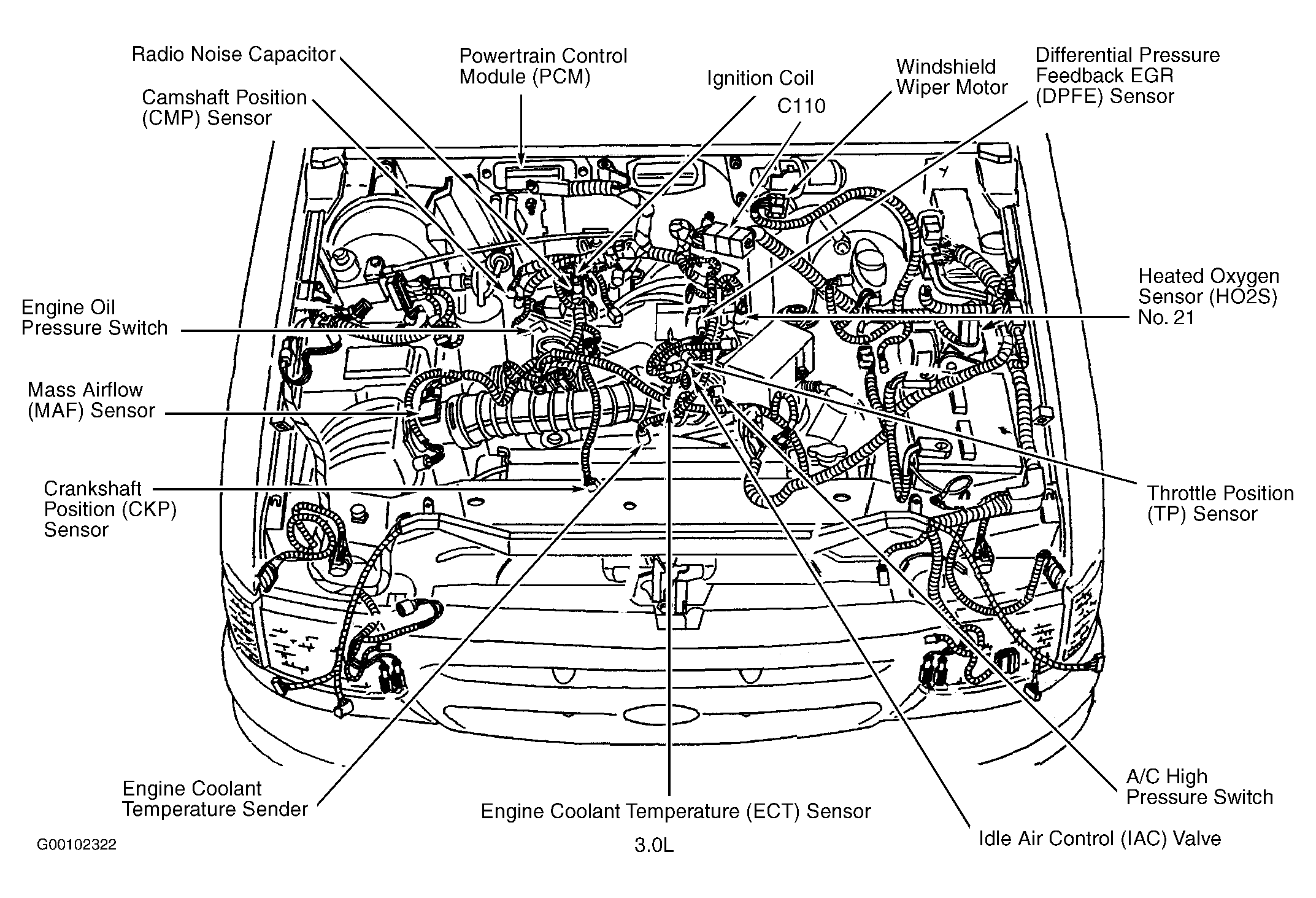

| Powertrain Control Module (PCM) (3.0L) | Right rear of engine compartment, through firewall. See Figure. |

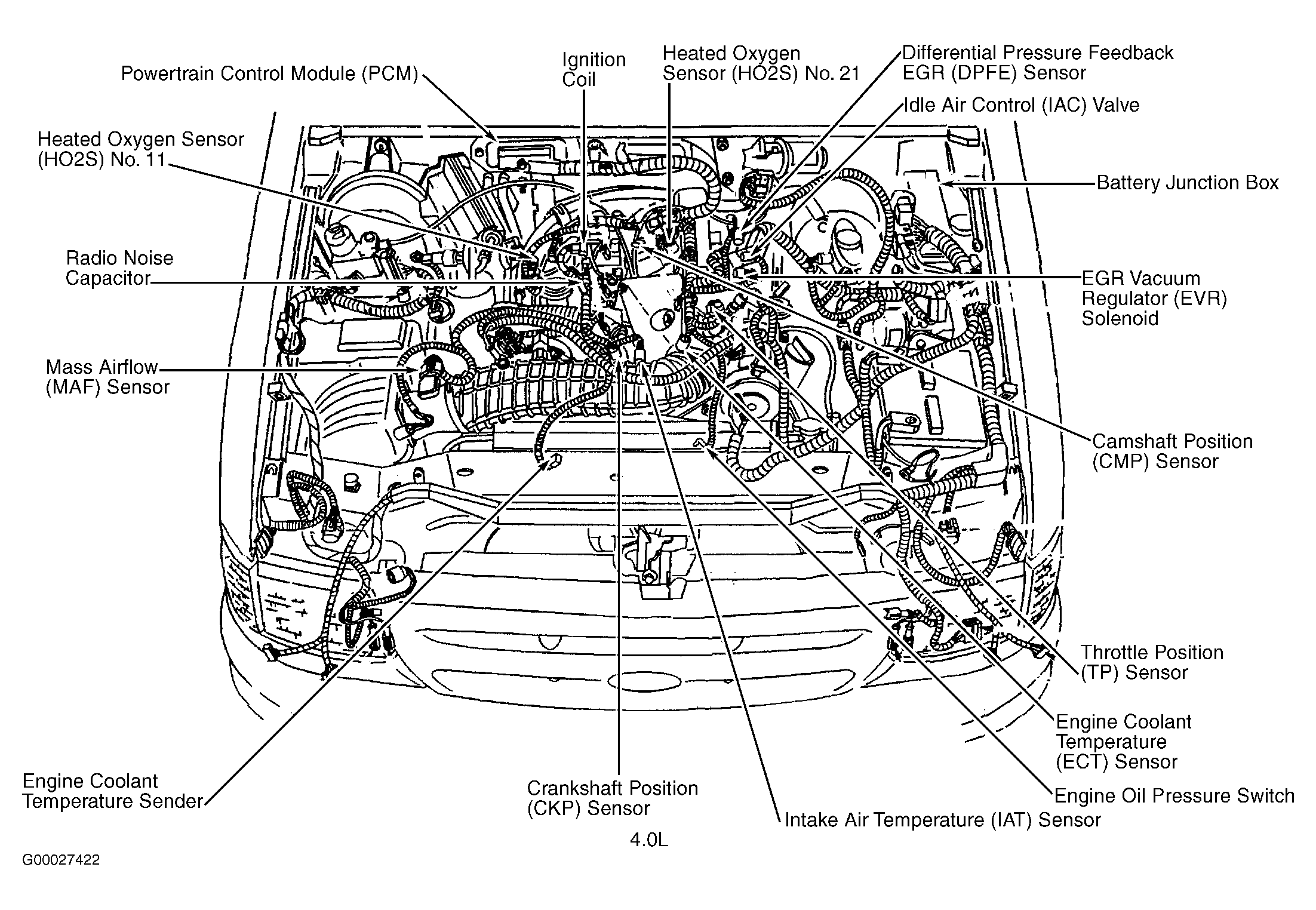

| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment, through firewall. See Figure. |
| Remote Anti-Theft Personality (RAP) Module | In left rear corner of cab. |
| Restraints Control Module | In center of vehicle, under dash. |

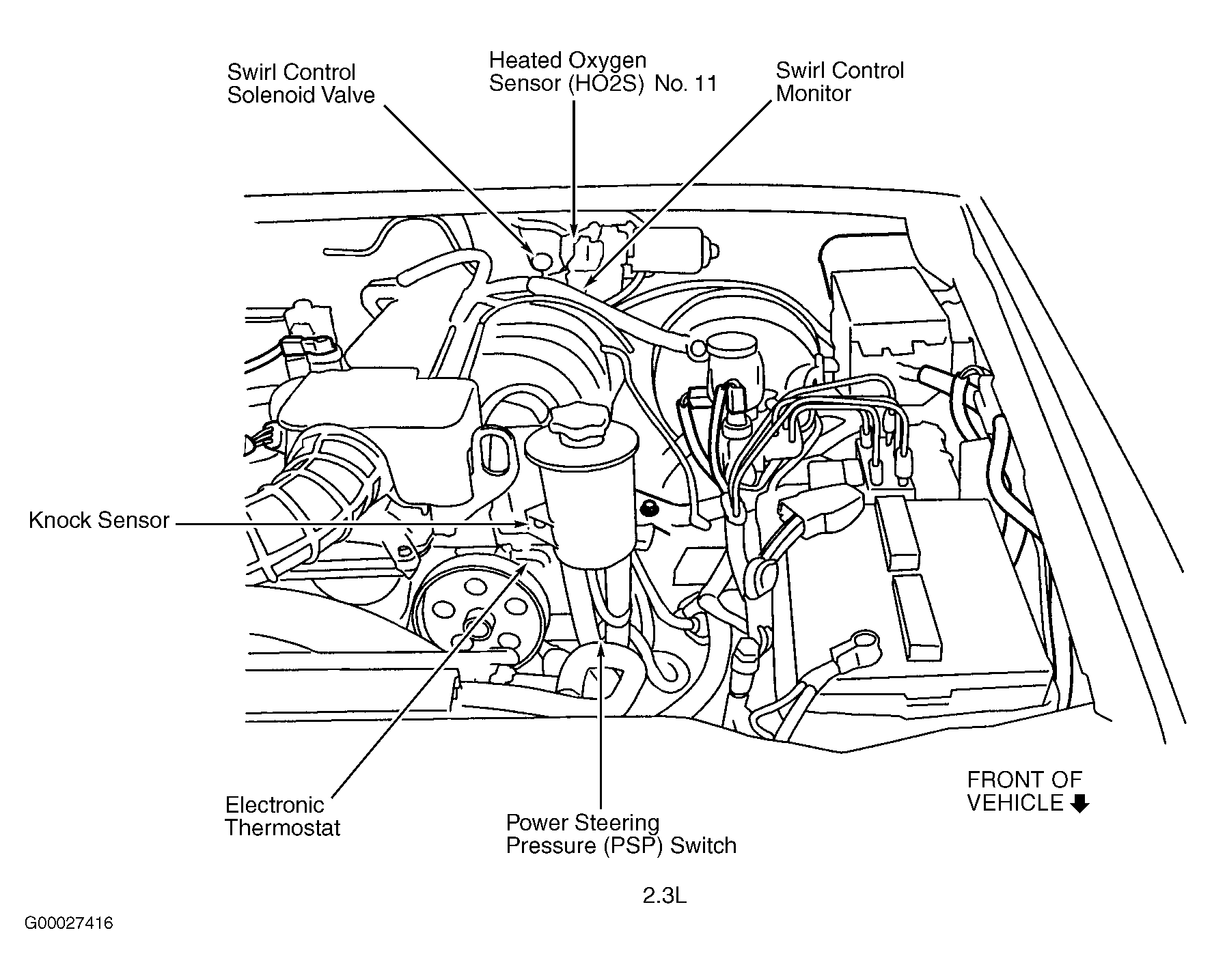

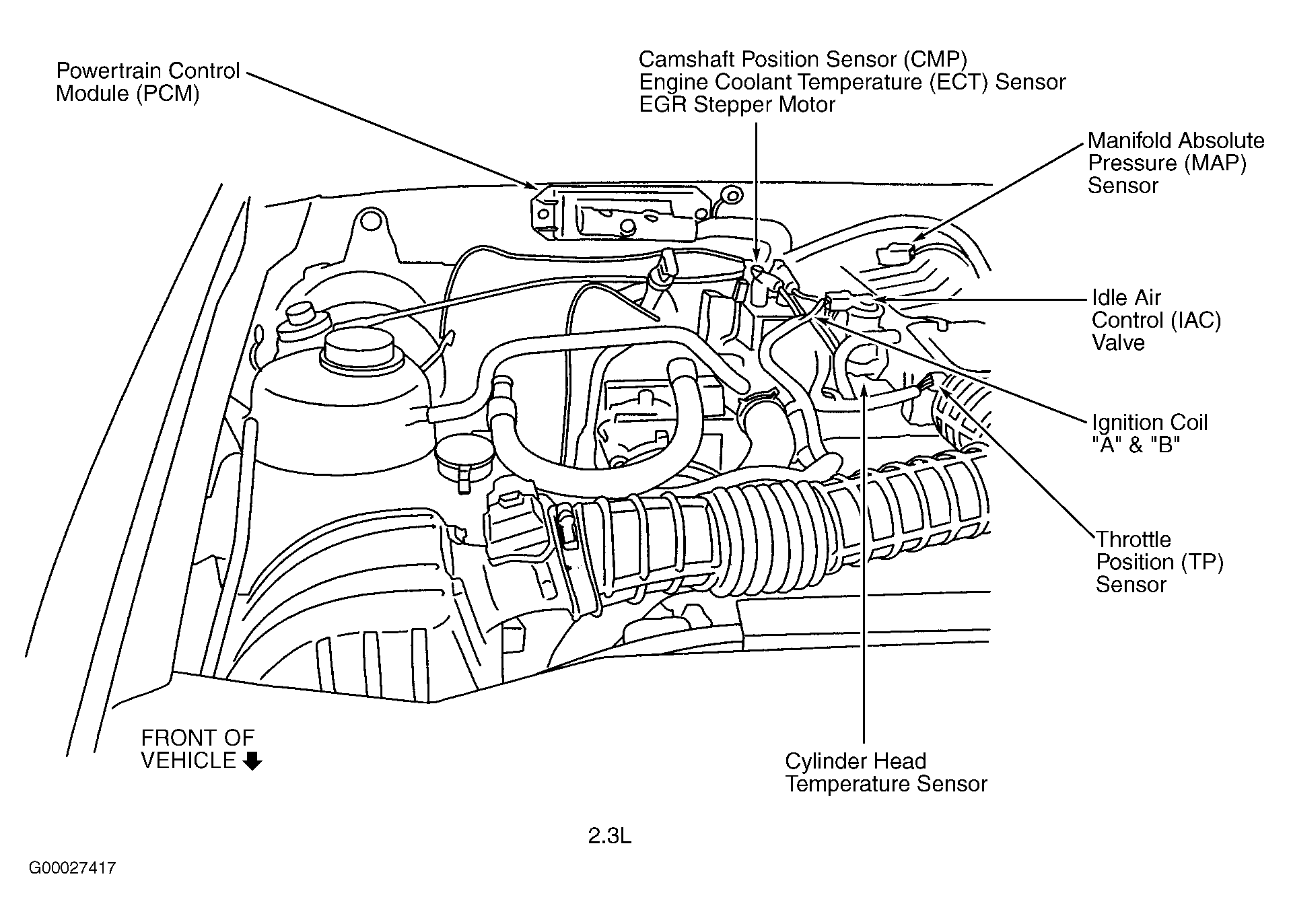

| Swirl Control Monitor (2.3L) | In rear of engine compartment. See Figure. |
