Automatic Transmission: Assembly: Transmission

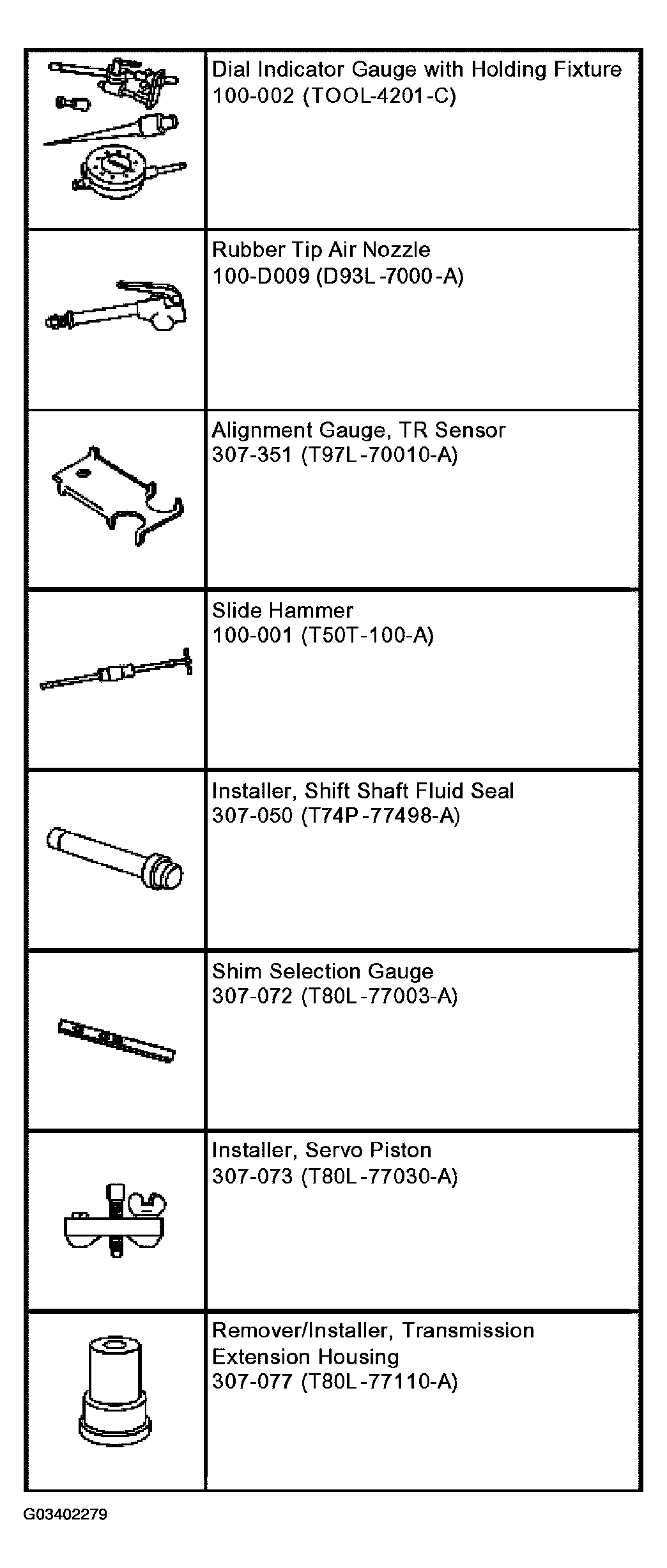

Fig 1: Identifying Special Tool(s) (1 Of 2)
G03402279Courtesy of FORD MOTOR CO.

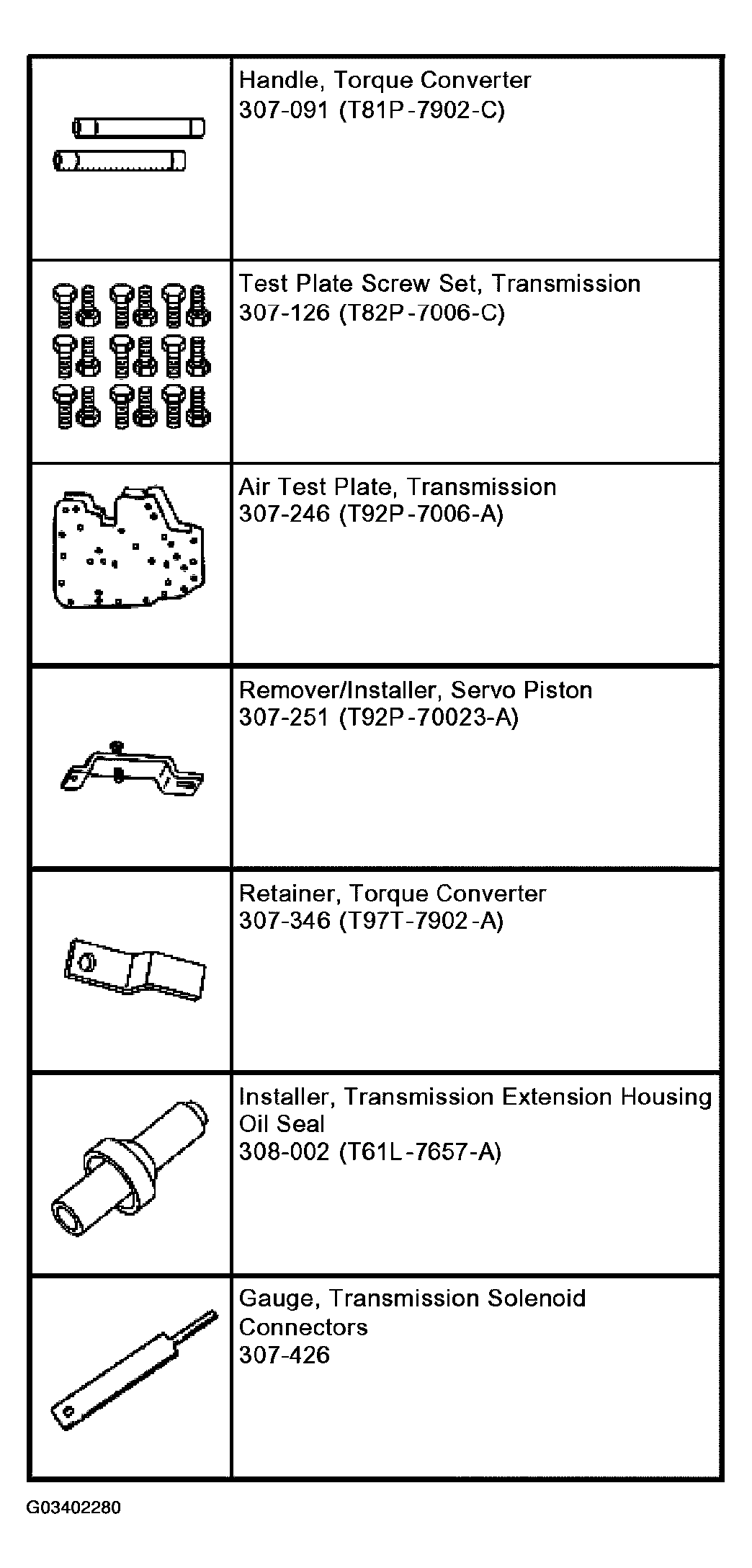

Fig 2: Identifying Special Tool(s) (2 Of 2)
G03402280Courtesy of FORD MOTOR CO.

Material

MATERIAL SPECIFICATION

Item Specification
Multi-Purpose Grease
D0AZ-19584-AA		 ESB-M1C93-B
MERCON® V Automatic Transmission Fluid
XT -5-QM, XT-5-DM		 MERCON® V
CAUTION: Before beginning assembly, carry out and inspect the following:
When building up subassemblies and assembling the transmission, ALWAYS use new gaskets and seals.
All fasteners must be tightened to the torque specification indicated. The necessary torques can be found in GENERAL SPECIFICATIONS .
When building up subassemblies, each component part should be lubricated with clean transmission fluid. It is also good practice to lubricate the subassemblies as they are installed in the case.

Needle bearings, thrust washers and seals should be lightly coated with petroleum jelly during subassembly buildup or transmission assembly.

Many components and surfaces in the transmission are precision machined. Careful handling during disassembly, cleaning, inspection and assembly can prevent unnecessary damage to machined surfaces.

  1. Use the special tools to install the rear case bushing if removed.
    1. Position the rear case bushing and the special tool inside the case.
    2. Assemble the special tools through the back of the case.
      Fig 3: Installing Rear Case Bushing
      G03402281Courtesy of FORD MOTOR CO.
  2. Place the transmission in the vertical position.

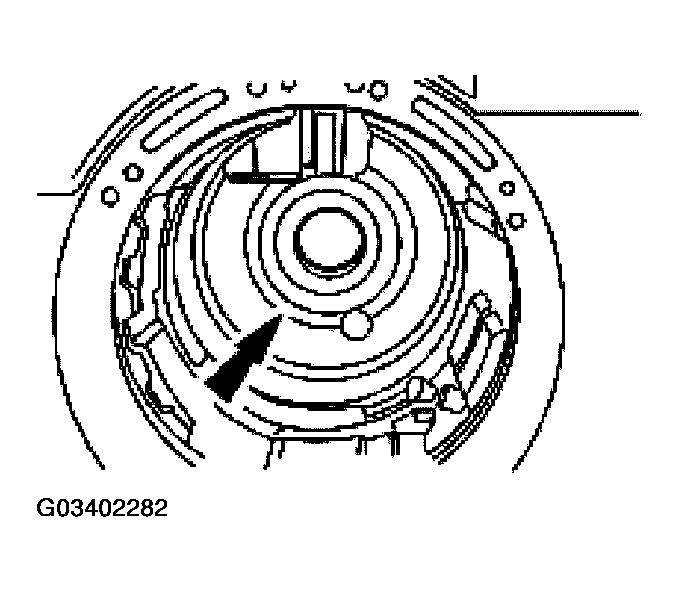

  3. Coat the No. 9 case rear bearing with petroleum jelly and install on the case boss.
    Fig 4: Coating Case Rear Bearing With Petroleum Jelly
    G03402282Courtesy of FORD MOTOR CO.
    4. CAUTION: Be sure the No. 7 needle bearing and direct clutch hub are installed as shown in the Subassembly. Internal damage and shift problems may occur.

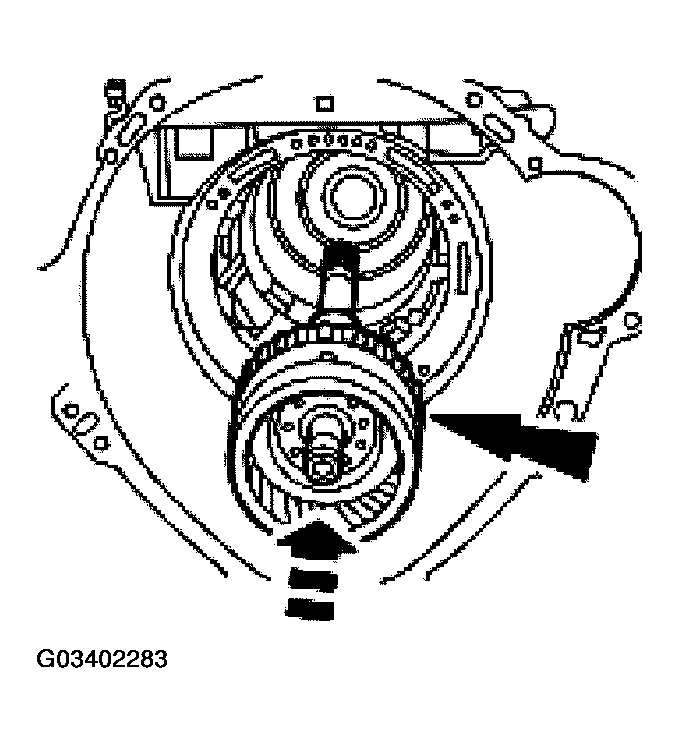

    Fig 5: Installing Output Shaft And Output Shaft Ring Gear
    G03402283Courtesy of FORD MOTOR CO.
  4. Install the output shaft and output shaft ring gear.
  5. Install the No. 8 bearing.

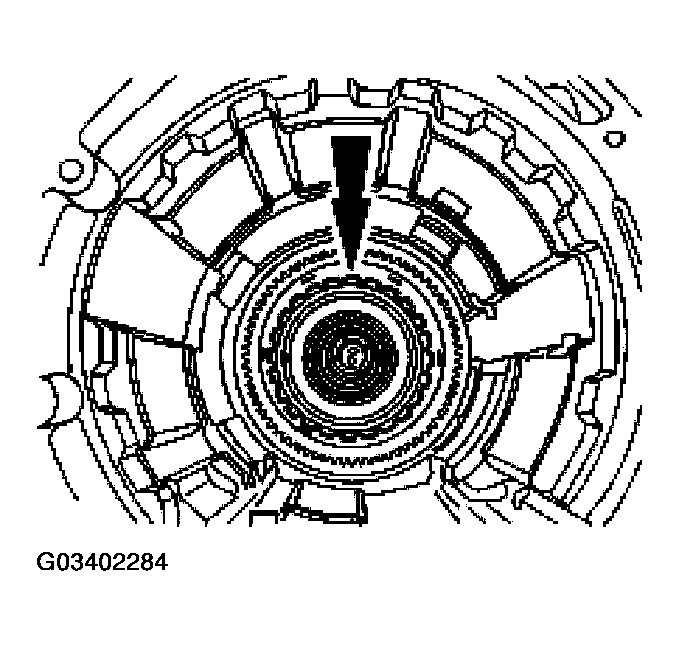

    Fig 6: Installing Bearing
    G03402284Courtesy of FORD MOTOR CO.
  6. Install the direct clutch.

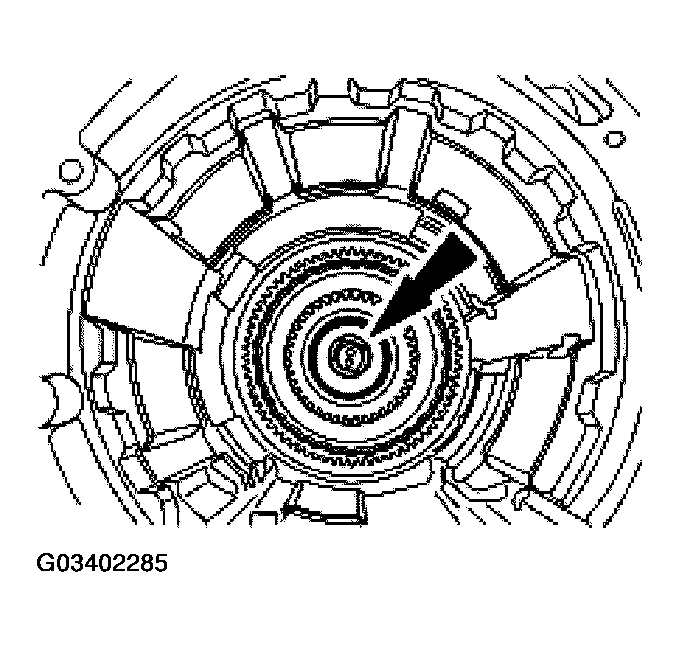

    Fig 7: Installing Direct Clutch
    G03402285Courtesy of FORD MOTOR CO.
    7. NOTE: The reverse band support retaining ring is used for assembly purposes during production. The reverse band support retaining ring is not required during assembly and it will not affect the operation of the transmission.

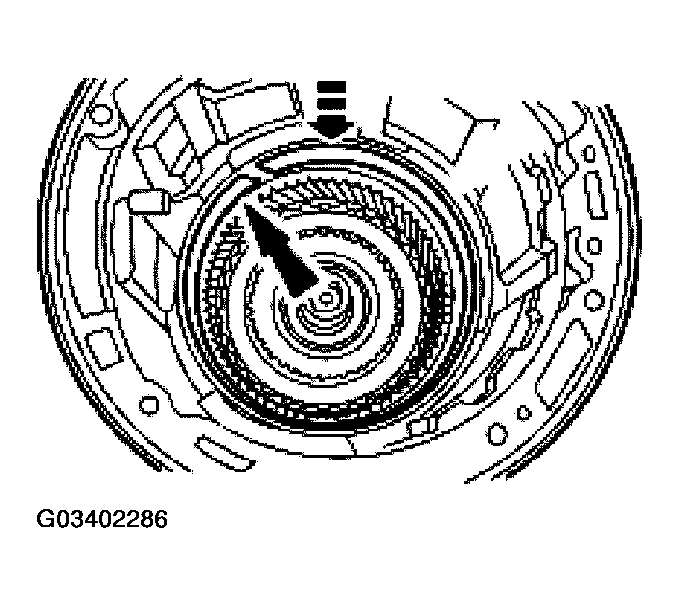

    Fig 8: Installing Reverse Band Support Retaining Ring
    G03402286Courtesy of FORD MOTOR CO.
  7. Install the reverse band support retaining ring.
    8. NOTE: Make sure the band is seated on the anchor pins.
    Fig 9: Installing Reverse Band
    G03402287Courtesy of FORD MOTOR CO.

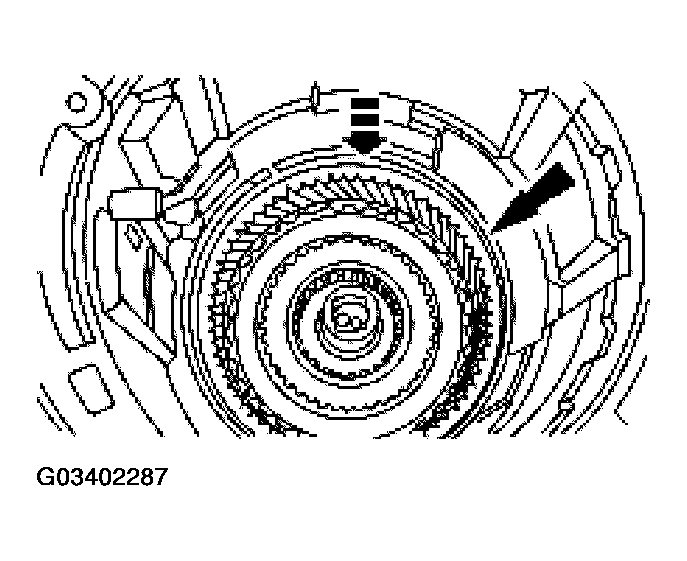

  8. Install the reverse band.
    9. NOTE: The planetary assembly and planetary gear support cannot be installed unless the notch cut in the planetary gear support is aligned with the overdrive band anchor pin.
    NOTE: The top of the planetary gear support must be below the snap ring groove.

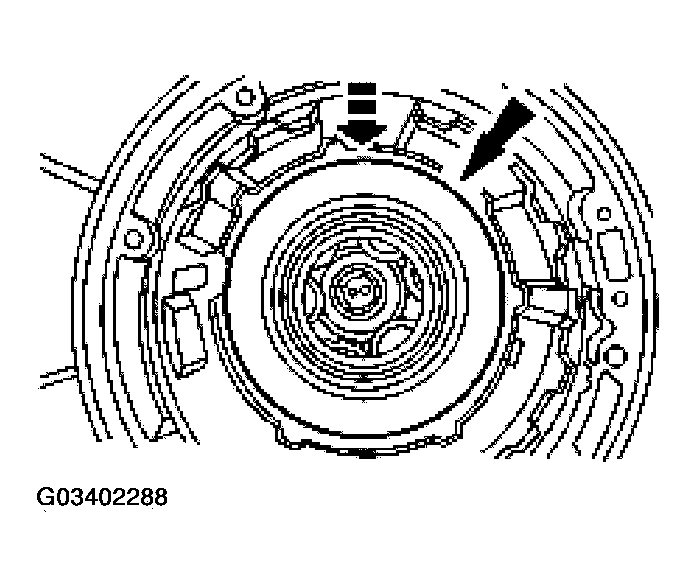

  9. Install the planetary assembly and planetary gear support as a unit.
    • Rotate the output shaft to fully seat the planetary assembly.
      Fig 10: Installing Planetary Assembly And Planetary Gear Support As A Unit
      G03402288Courtesy of FORD MOTOR CO.
    10. NOTE: The planet support spring must be compressed and installed below the snap ring groove. When the planet support spring is installed correctly both ends of the spring will be visible.
    Fig 11: Installing Case To Planet Support Spring
    G03402289Courtesy of FORD MOTOR CO.
  10. Install the case to the planet support spring located at the 1 o'clock position.
  11. Install the center support retaining ring.
    • Reference the retaining ring tabs to the band anchor pin location.

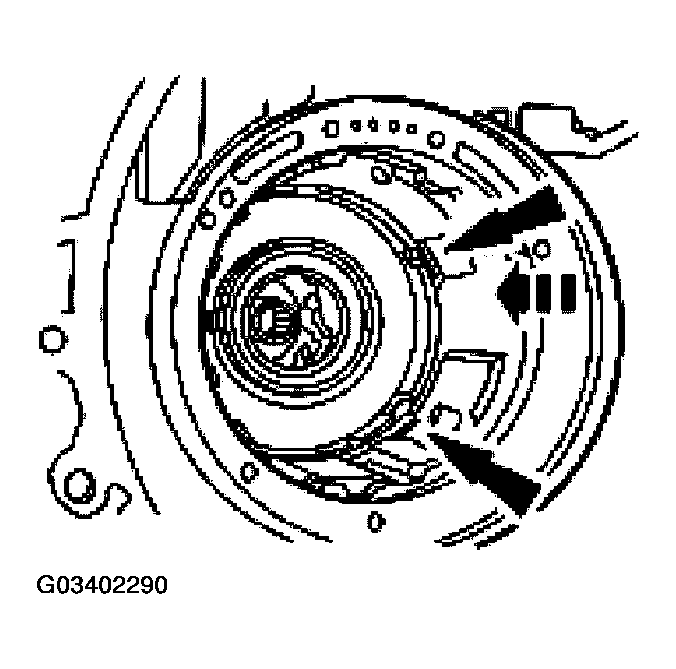

      Fig 12: Installing Center Support Retaining Ring
      G03402290Courtesy of FORD MOTOR CO.
  12. Install the forward clutch sun gear, the No. 5 forward clutch sun gear bearing and the reverse sun gear.

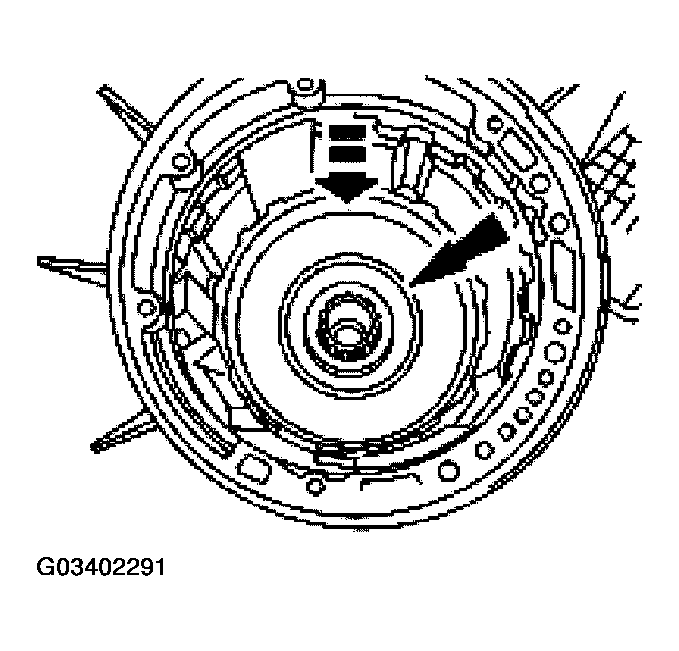

    Fig 13: Installing Forward Clutch Sun Gear
    G03402291Courtesy of FORD MOTOR CO.

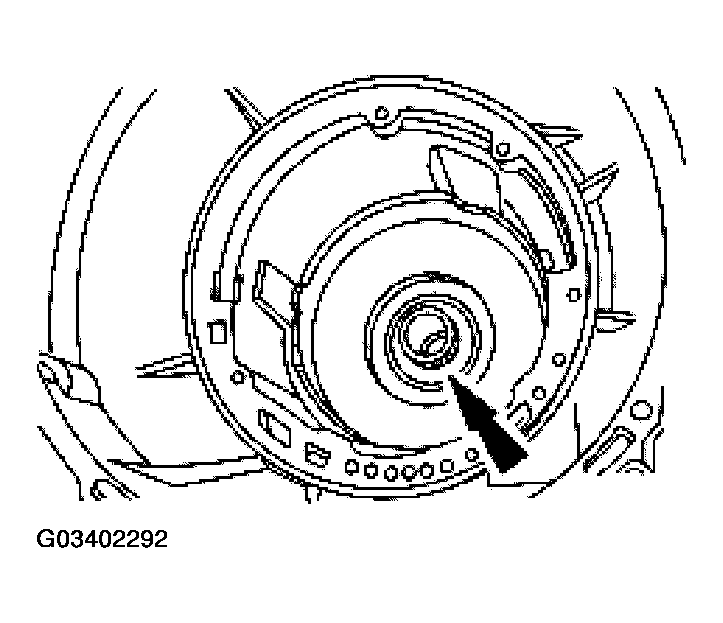

  13. Install the No. 4 forward clutch hub bearing.
    Fig 14: Installing Forward Clutch Hub Bearing
    G03402292Courtesy of FORD MOTOR CO.
  14. Install the intermediate stub shaft.

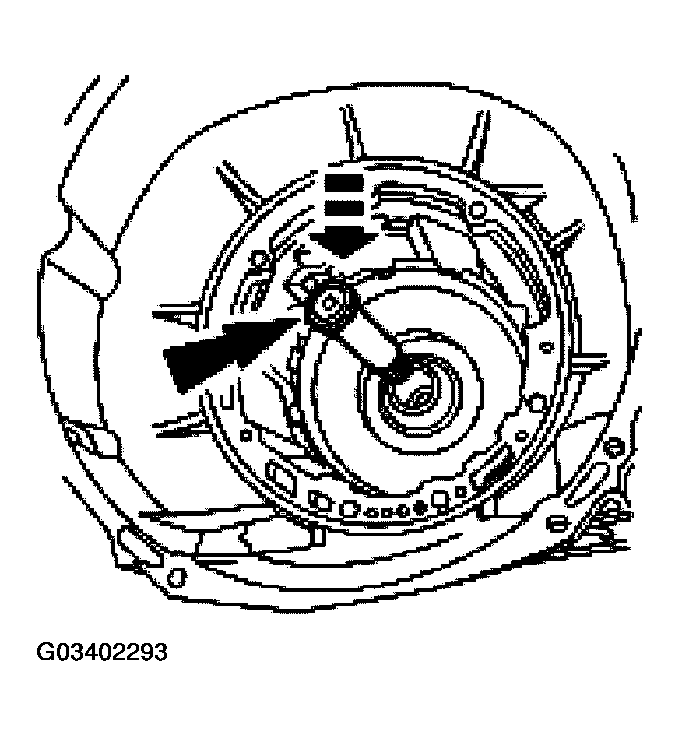

    Fig 15: Installing Intermediate Stub Shaft
    G03402293Courtesy of FORD MOTOR CO.
  15. Install the forward clutch hub and the No. 3 forward clutch hub front bearing.

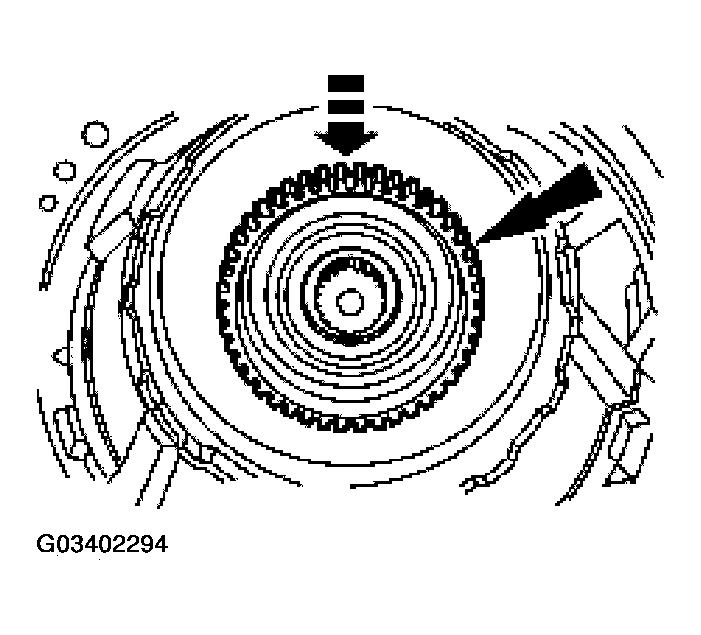

    Fig 16: Installing Forward Clutch Hub
    G03402294Courtesy of FORD MOTOR CO.
  16. Install the forward clutch assembly.

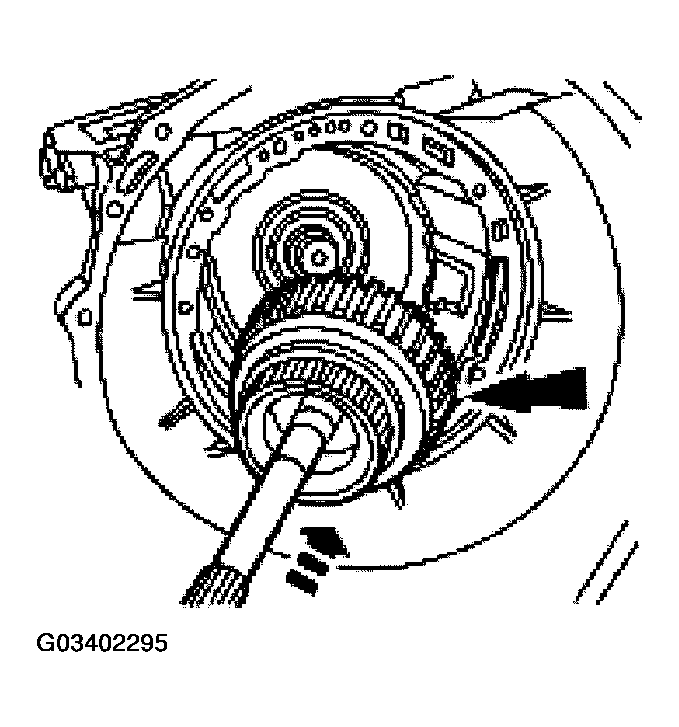

    Fig 17: Installing Forward Clutch Assembly
    G03402295Courtesy of FORD MOTOR CO.
    17. NOTE: Make sure the reverse clutch cylinder lugs are completely seated in the notches of the reverse sun gear.
  17. Install the reverse clutch cylinder assembly.
    1. Install the reverse clutch cylinder.
    2. Install the No. 2 forward clutch bearing.

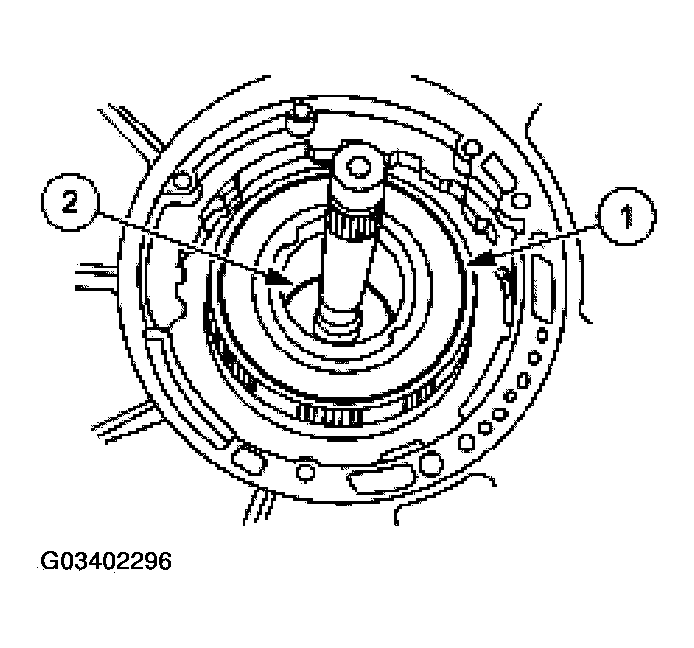

      Fig 18: Installing Reverse Clutch Cylinder
      G03402296Courtesy of FORD MOTOR CO.
  18. Install the overdrive band.
    • Position the overdrive band pocket onto the anchor pin.

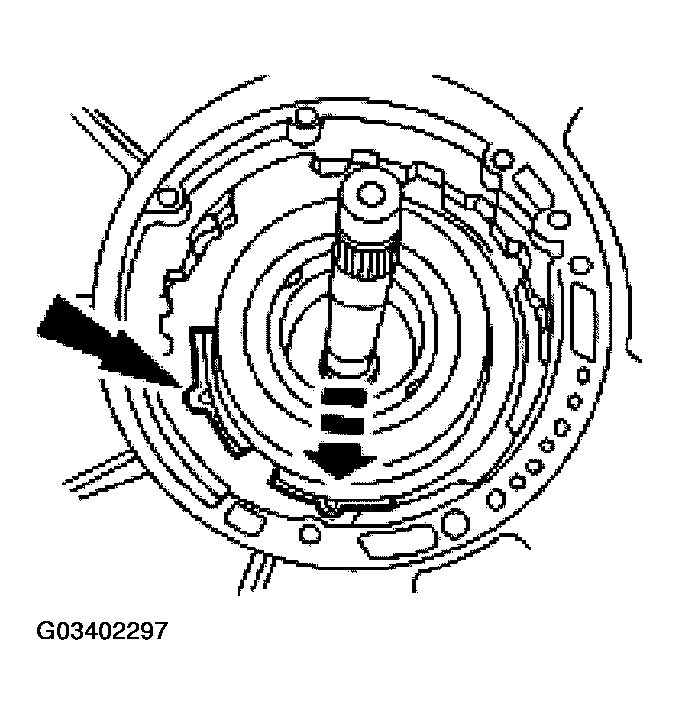

      Fig 19: Positioning Overdrive Band Pocket Onto Anchor Pin
      G03402297Courtesy of FORD MOTOR CO.
  19. Install the overdrive servo spring.
    1. Install the overdrive servo piston return spring.
    2. Install the overdrive servo piston.
      Fig 20: Installing Overdrive Servo Spring
      G03402298Courtesy of FORD MOTOR CO.

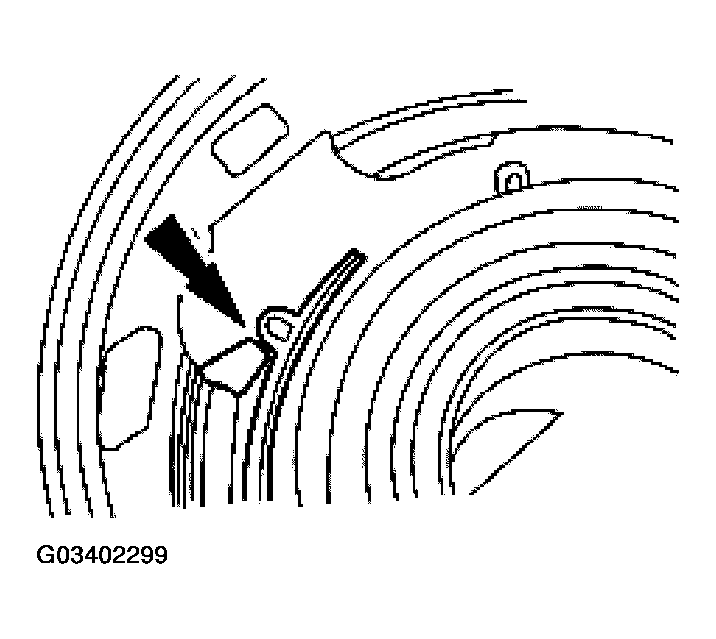

  20. Verify the tip of the piston assembly engages the pocket of the overdrive band.
    Fig 21: Verifying Tip Of Piston Assembly
    G03402299Courtesy of FORD MOTOR CO.

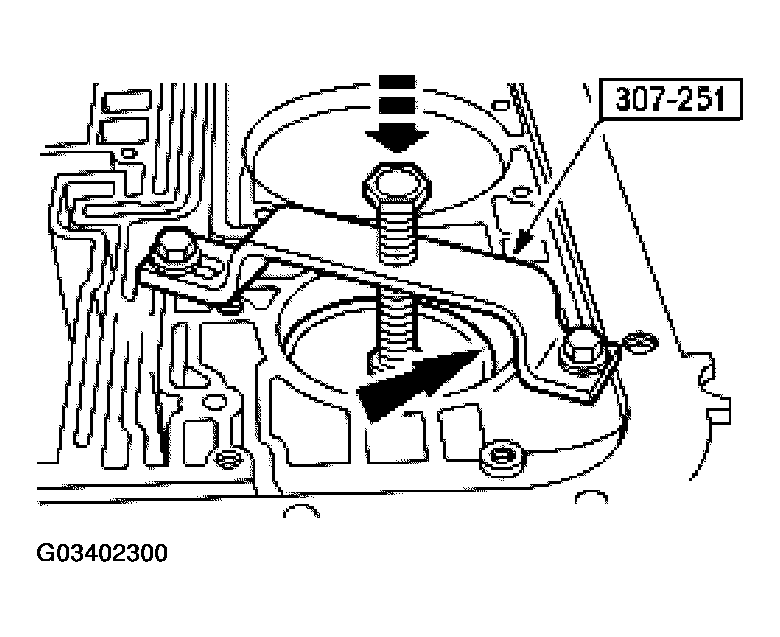

  21. Using the special tool, compress the overdrive servo assembly and install the overdrive servo retaining ring.
    Fig 22: Compressing Overdrive Servo Assembly
    G03402300Courtesy of FORD MOTOR CO.
  22. Install the intermediate clutch pressure plate.

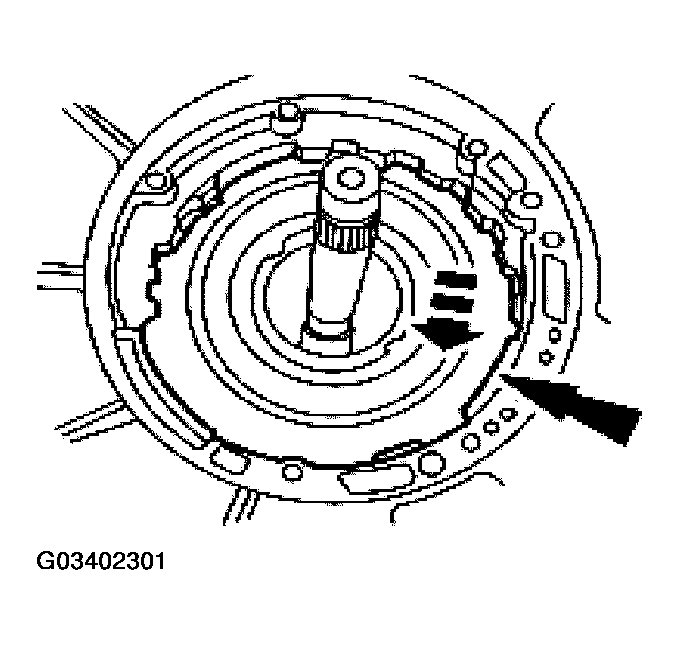

    Fig 23: Installing Intermediate Clutch Pressure Plate
    G03402301Courtesy of FORD MOTOR CO.
    23. NOTE: Before assembly, soak the new clutch discs in clean automatic transmission fluid for 15 minutes.

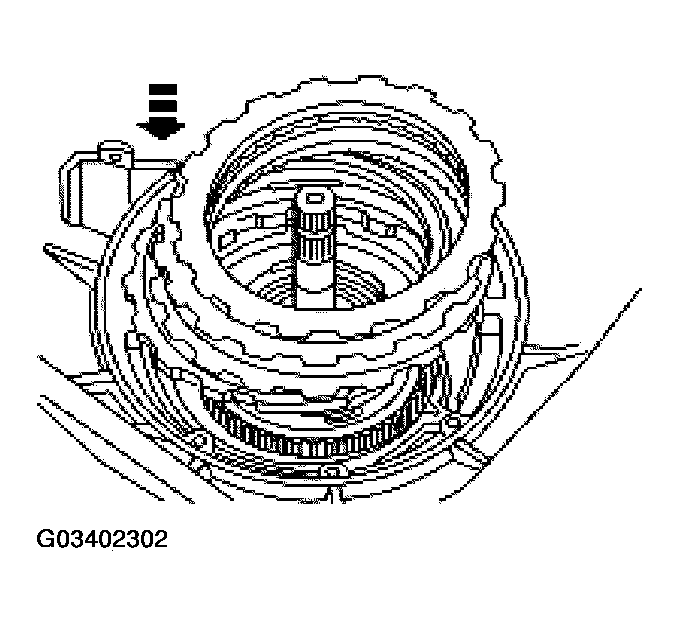

    Fig 24: Installing Intermediate Clutch Pack
    G03402302Courtesy of FORD MOTOR CO.
  23. Install the intermediate clutch pack and selective steel plate.
  24. Using the special tool, check the intermediate clutch clearance.
    1. Position the special tool on the pump case mounting surface.
    2. Maintaining downward pressure, use a depth micrometer to measure and verify intermediate clutch clearance is within specification.

      If the intermediate clutch is not within specification, install a correct selective plate.

      SELECTIVE STEEL PLATES SPECIFICATION

      Specification
      1.80-1.70 mm (0.071-0.067 inch)
      2.05-1.95 mm (0.081-0.077 inch)
      2.31-2.20 mm (0.091-0.087 inch)
      2.56-2.46 mm (0.101-0.097 inch)

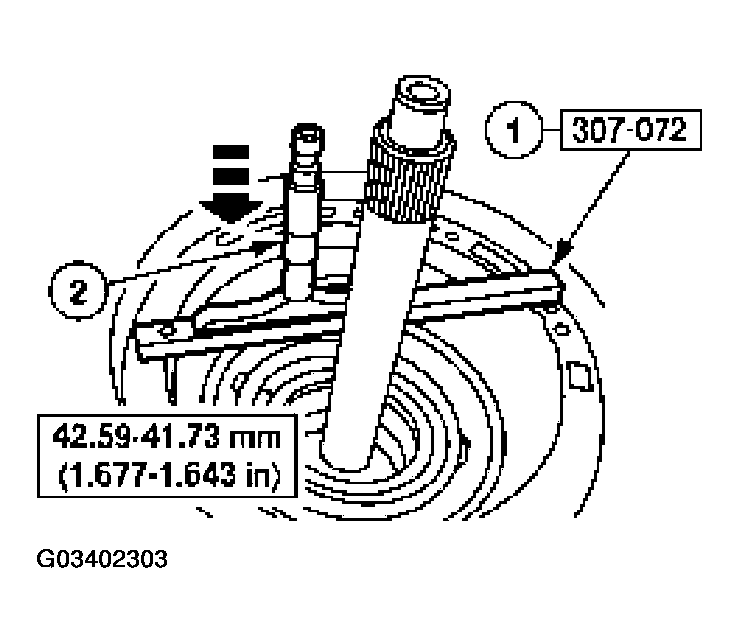

      Fig 25: Checking Intermediate Clutch Clearance
      G03402303Courtesy of FORD MOTOR CO.
  25. Install the intermediate anti-rattle clip, if equipped.

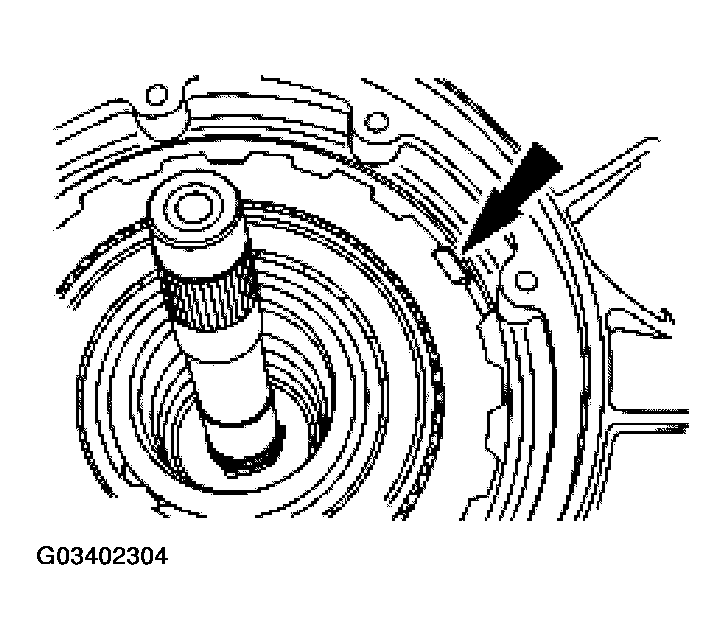

    Fig 26: Installing Intermediate Anti-Rattle Clip
    G03402304Courtesy of FORD MOTOR CO.

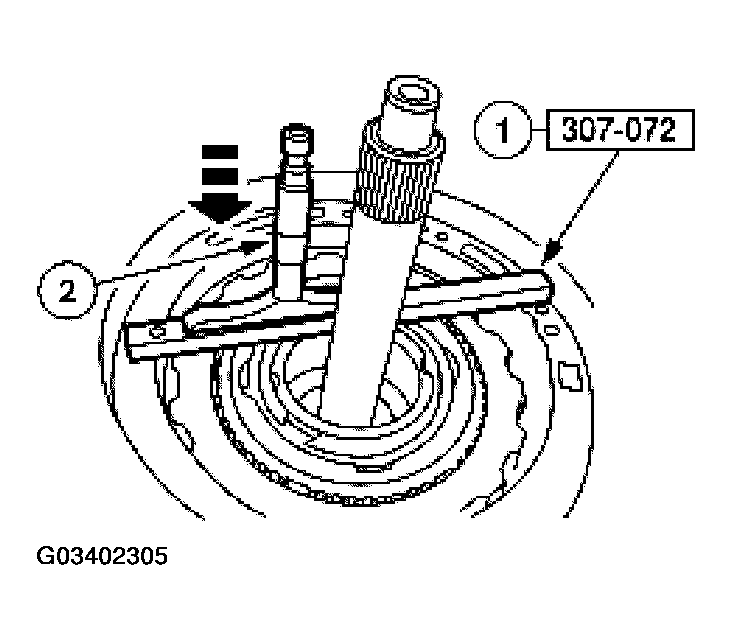

  26. Using the special tool, measure end clearance for the No.1 front pump thrust washer.
    1. Position the special tool on the pump case mounting surface.
    2. Maintaining downward pressure, use a depth micrometer to measure end play clearance. Use the No.1 thrust washer chart to select the correct washer.
      THRUST WASHER CHART

      Depth Thickness Color Code
      37.706 - 38.184 mm (1.485-1.503 inch) 1.270-1.372 mm (0.050-0.054 inch) Green
      38.185 - 38.641 mm (1.504-1.521 inch) 1.727-1.829 mm (0.068-0.072 inch) Yellow
      38.642 - 39.073 mm (1.522-1.538 inch) 2.159-2.261 mm (0.085-0.089 inch) Natural
      39.074 - 39.505 mm (1.539-1.555 inch) 2.591-2.692 mm (0.102-0.106 inch) Red
      39.506 - 40.165 mm (1.556-1.581 inch) 3.023-3.124 mm (0.119-0.123 inch) Blue
      Fig 27: Measuring End Clearance For Front Pump Thrust Washer
      G03402305Courtesy of FORD MOTOR CO.
  27. Install the No.1 front pump support thrust washer.
    • Use petroleum jelly to hold the washer in place.

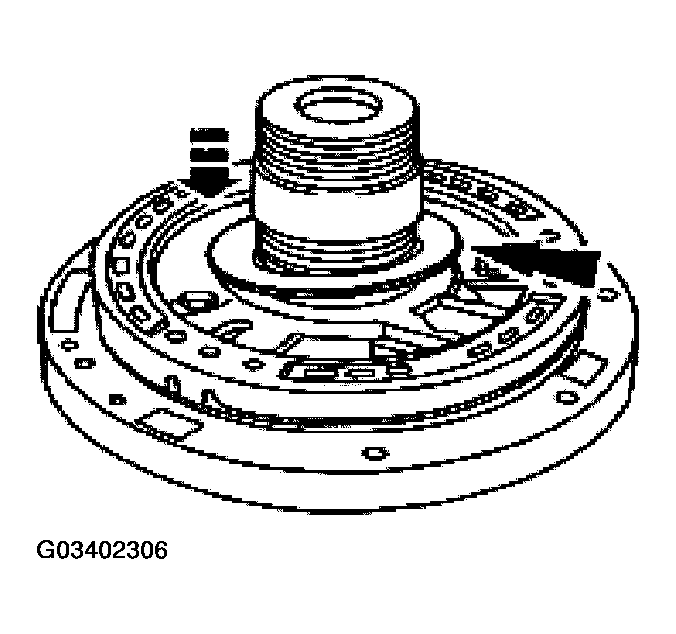

      Fig 28: Installing Front Pump Support Thrust Washer
      G03402306Courtesy of FORD MOTOR CO.
    28. NOTE: The alignment pin is a fabricated M8 x 1.25 mm (0.05 in) bolt with the head removed.

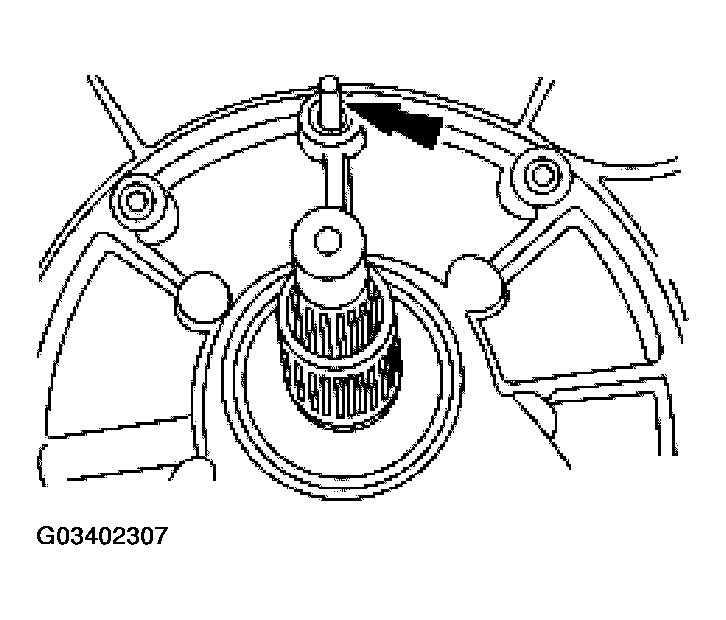

    Fig 29: Installing An Alignment Pin At Top Of The Case
    G03402307Courtesy of FORD MOTOR CO.
  28. Install an alignment pin at the top of the case.
    29. NOTE: Make sure the gasket is positioned correctly and the case passages are not covered.

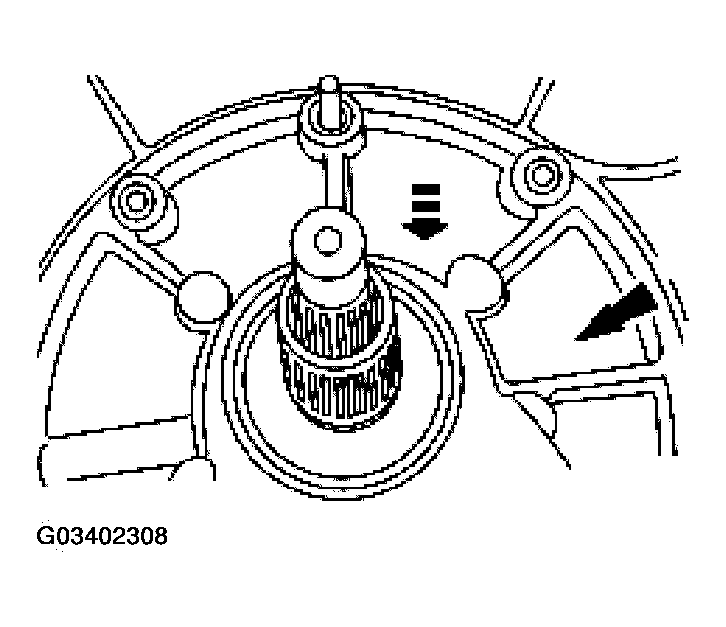

  29. Install the pump gasket.
    30. NOTE: To aid assembly, shake the input shaft while pushing down on the pump.
    Fig 30: Installing Pump Gasket
    G03402308Courtesy of FORD MOTOR CO.
  30. Install the pump assembly.

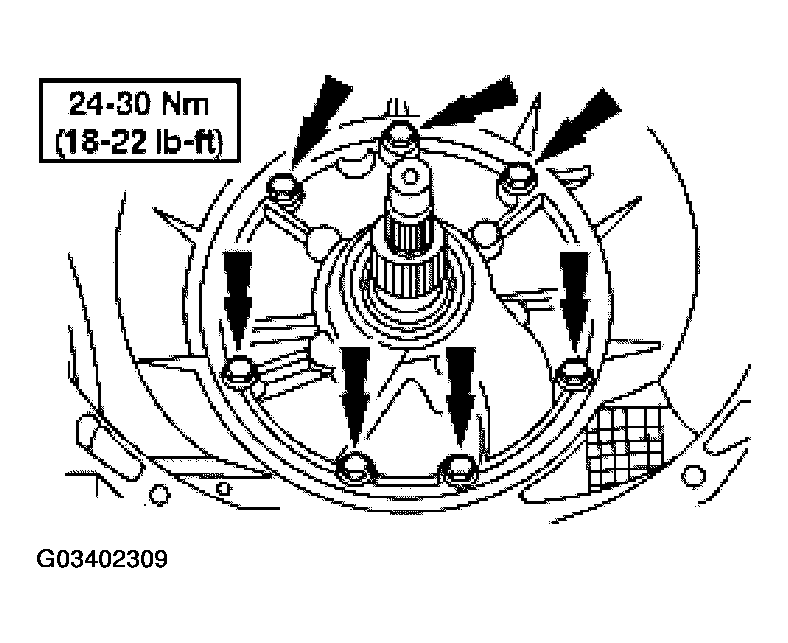

  31. Remove the alignment pin and install the front pump bolts.
    • Alternate bolt tightening to set the pump.
      Fig 31: Removing Alignment Pin And Install Front Pump
      G03402309Courtesy of FORD MOTOR CO.
  32. Rotate the transmission to the horizontal position.

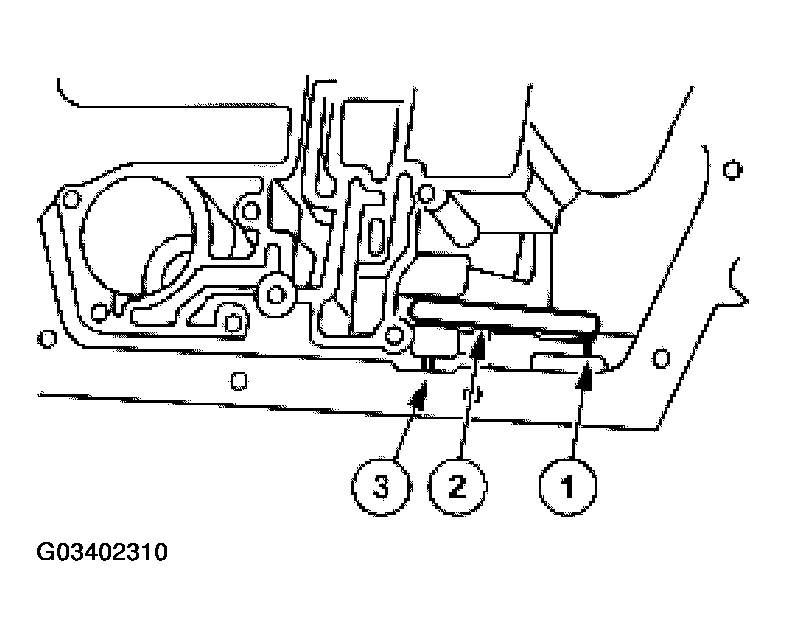

  33. Install the parking pawl.
    1. Position the parking pawl return spring.
    2. Position the parking pawl.
    3. Install the parking pawl shaft.
      Fig 32: Installing Parking Pawl Shaft
      G03402310Courtesy of FORD MOTOR CO.
  34. Install a new extension housing gasket and the extension housing.
    1. Position the extension housing.
    2. Install the four bolts and two nuts.
      Fig 33: Installing A New Extension Housing Gasket
      G03402311Courtesy of FORD MOTOR CO.
  35. Using the special tool, install a new extension housing seal.
    Fig 34: Installing A New Extension Housing Seal
    G03402312Courtesy of FORD MOTOR CO.
  36. Install the output shaft speed (OSS) sensor.
    1. Position the OSS sensor.
    2. Install the bolt.
      Fig 35: Installing Output Shaft Speed (OSS) Sensor
      G03402313Courtesy of FORD MOTOR CO.
  37. Using the special tool, install the manual control lever seal.

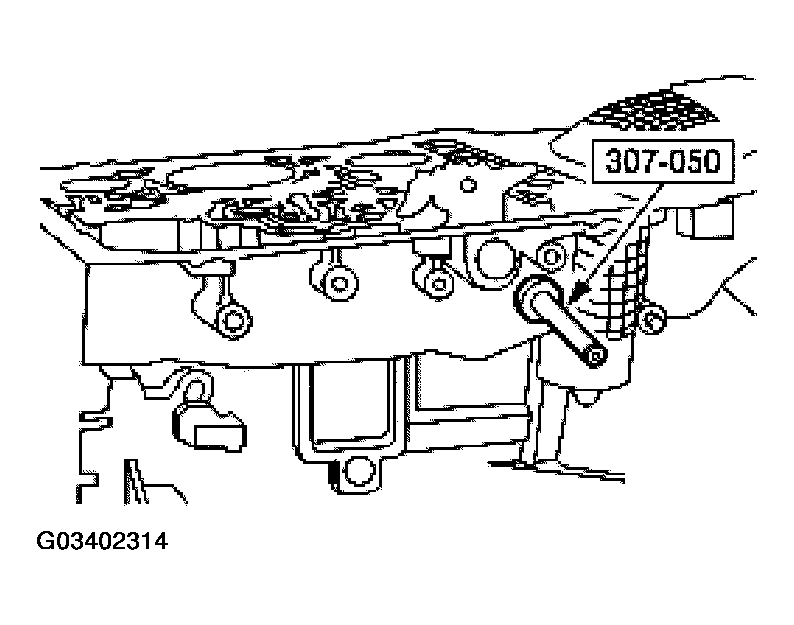

    Fig 36: Installing Manual Control Lever Seal
    G03402314Courtesy of FORD MOTOR CO.
    38. NOTE: Lubricate the electronic pressure control (EPC) solenoid O-rings with clean automatic transmission fluid.
  38. Install the EPC solenoid.
    1. Install the EPC solenoid.
    2. Install the EPC solenoid bracket and bolt.

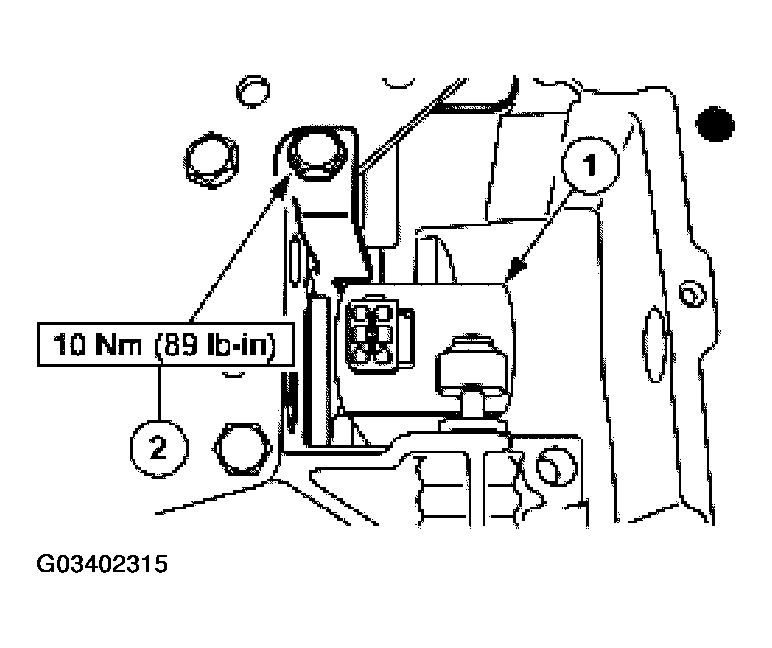

      Fig 37: Installing EPC Solenoid
      G03402315Courtesy of FORD MOTOR CO.
  39. Install the manual valve detent lever and parking lever actuating rod.

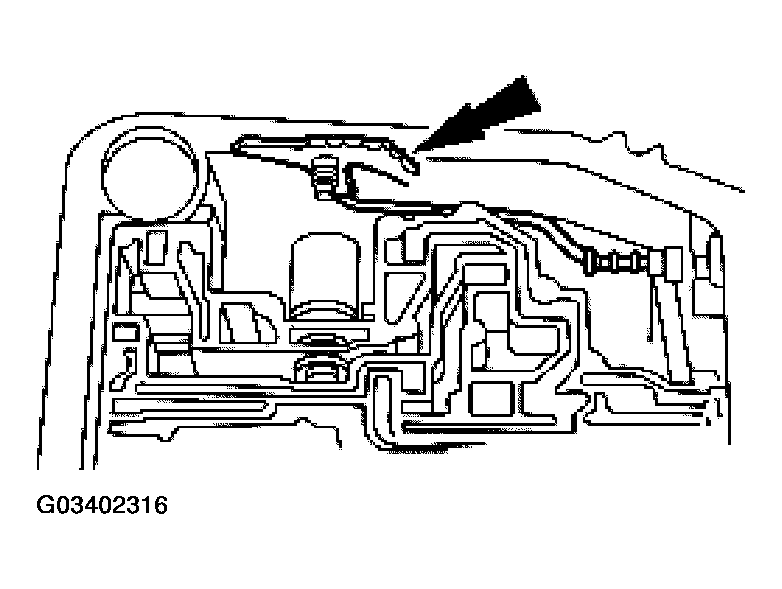

    Fig 38: Installing Manual Valve Detent Lever And Parking Lever Actuating Rod
    G03402316Courtesy of FORD MOTOR CO.
  40. Install the manual control lever shaft.
    1. Slide the manual control shaft into the case.
    2. Install the manual lever shaft inner nut.
    3. Install the manual lever shaft retaining pin.
      Fig 39: Installing Manual Control Lever Shaft
      G03402317Courtesy of FORD MOTOR CO.
  41. Install the 1-2 accumulator piston assembly.
    1. Install the 1-2 accumulator upper spring.
    2. Install the 1-2 accumulator.
    3. Install the 1-2 accumulator lower spring.
    4. Install the 1-2 accumulator cover and seal.
      Fig 40: Installing Accumulator Piston Assembly
      G03402318Courtesy of FORD MOTOR CO.
  42. Install the 1-2 accumulator retaining ring.
    Fig 41: Installing Accumulator Retaining Ring
    G03402319Courtesy of FORD MOTOR CO.
    43. NOTE: This is not an ordinary installation procedure and does not compensate for band wear. When new piston and rod assembly installation becomes necessary, or when a new reverse band has been installed, the reverse piston and rod length must be adjusted.
    NOTE: Lubricate the reverse piston seal to facilitate assembly and prevent damage to the seal.
    NOTE: Do not install the reverse servo piston cover and seal at this time.

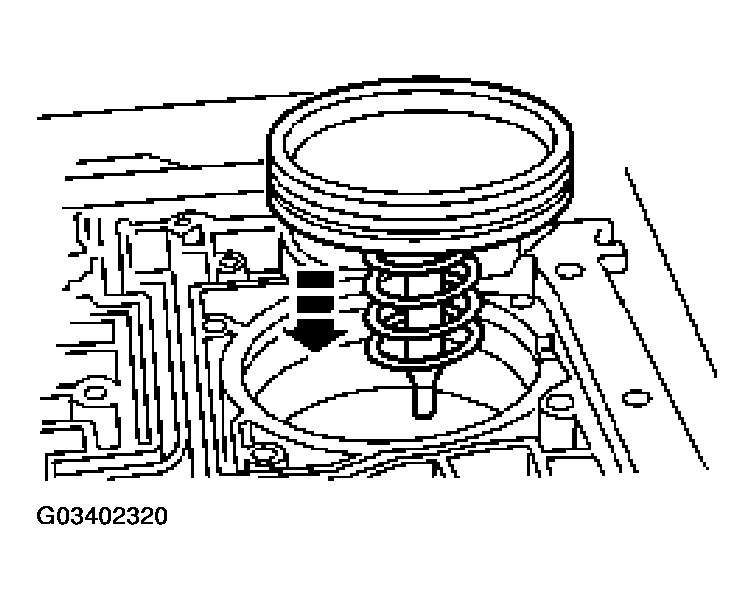

    Fig 42: Installing Reverse Servo Piston And Rod Assembly
    G03402320Courtesy of FORD MOTOR CO.
  43. Install the reverse servo piston and rod assembly.
  44. Install the special tool.
    • Tighten the bolt.

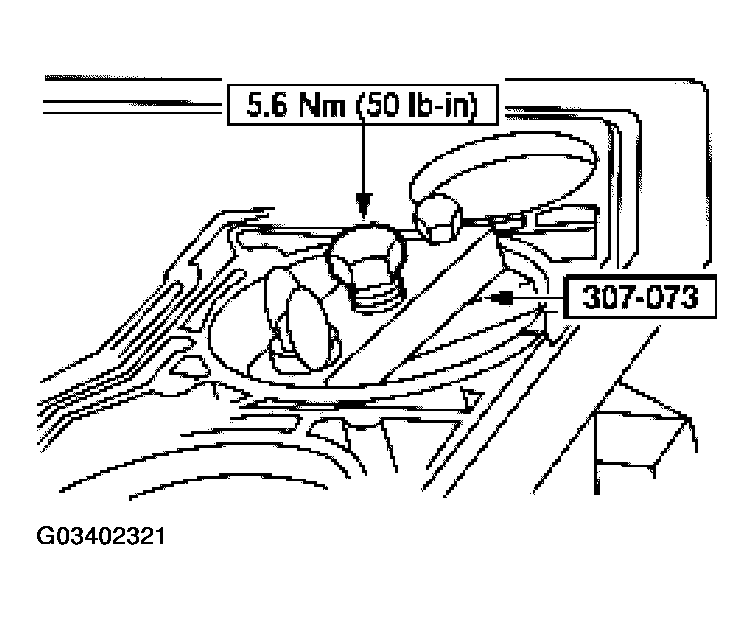

      Fig 43: Installing Special Tool
      G03402321Courtesy of FORD MOTOR CO.
  45. Install the special tool.
    • Position the indicator stem on the flat portion of the reverse servo piston and zero the dial indicator.
      Fig 44: Positioning Indicator Stem On Flat Portion
      G03402322Courtesy of FORD MOTOR CO.
  46. Loosen the bolt until the piston stops against the tool.
    Fig 45: Loosing Bolt Until Piston Stops
    G03402323Courtesy of FORD MOTOR CO.
  47. Verify that the amount of piston travel on the dial indicator is within specification.
    Fig 46: Verifying Amount Of Piston Travel
    G03402324Courtesy of FORD MOTOR CO.
  48. If piston travel is not within specification, select and install the correct servo assembly to bring the servo piston travel within specification.
    1. One groove
    2. Two grooves
      Fig 47: Installing Correct Servo Assembly
      G03402325Courtesy of FORD MOTOR CO.
    3. Three grooves
  49. Remove the special tools.
    Fig 48: Removing Special Tools
    G03402326Courtesy of FORD MOTOR CO.
  50. Install the reverse servo piston cover and seal assembly.

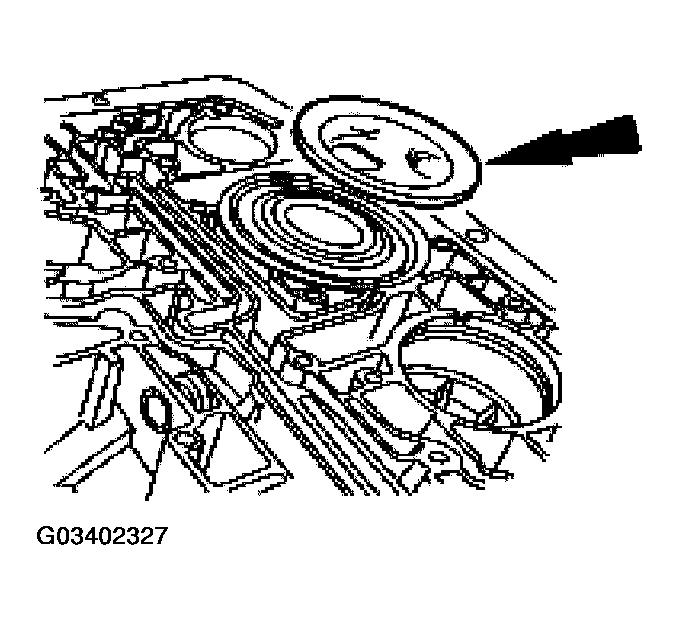

    Fig 49: Installing Reverse Servo Piston Cover And Seal Assembly
    G03402327Courtesy of FORD MOTOR CO.

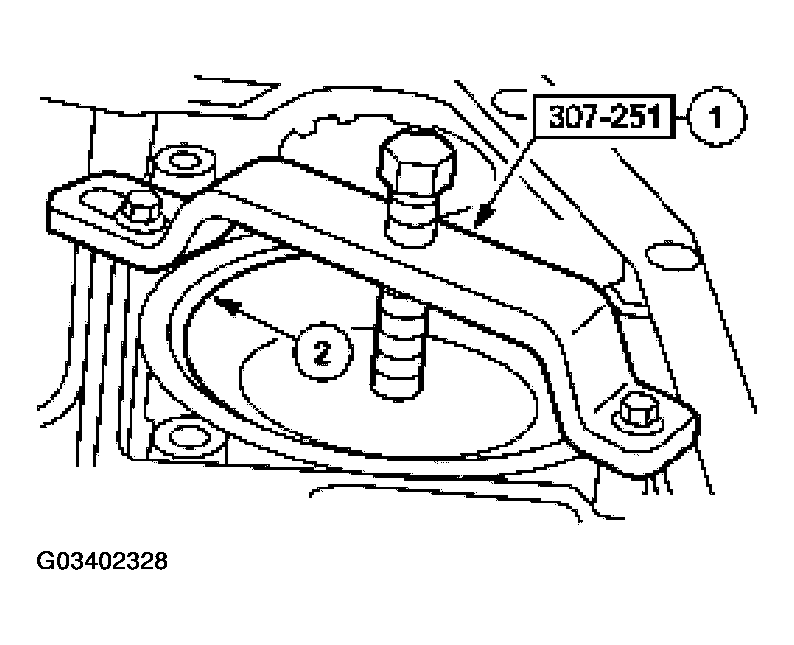

  51. Using the special tool, install the reverse servo retaining ring.
    1. Compress the reverse band servo.
    2. Install the reverse band servo retaining ring.
      Fig 50: Compressing Reverse Band Servo
      G03402328Courtesy of FORD MOTOR CO.

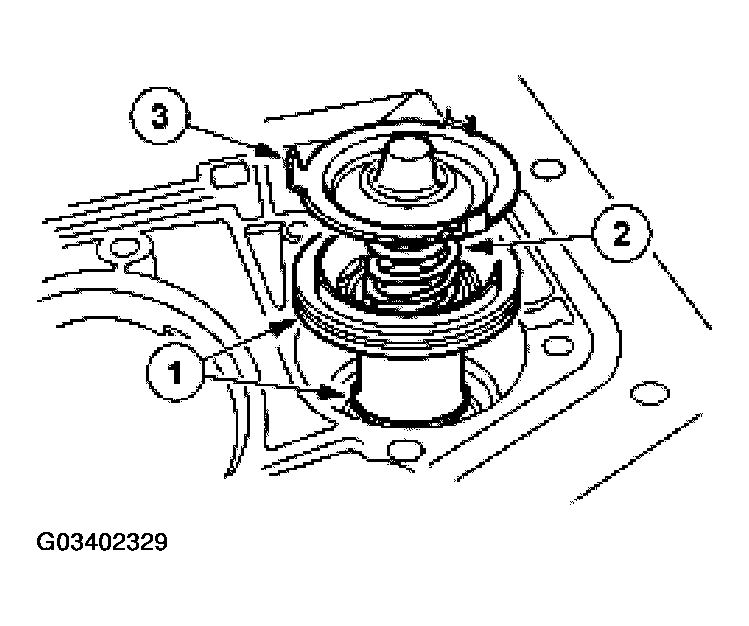

  52. Install the 2-3 accumulator assembly.
    1. Install the accumulator piston.
    2. Install the accumulator piston spring.
      Fig 51: Installing Accumulator Piston
      G03402329Courtesy of FORD MOTOR CO.
    3. Install the accumulator spring retainer.
  53. Using the special tools apply regulated air pressure to the test ports. Verify that the components are applied and released.
    Fig 52: Installing Accumulator Spring Retainer
    G03402330Courtesy of FORD MOTOR CO.
    54. NOTE: The tab on the electrical connector is secured by main control valve body.

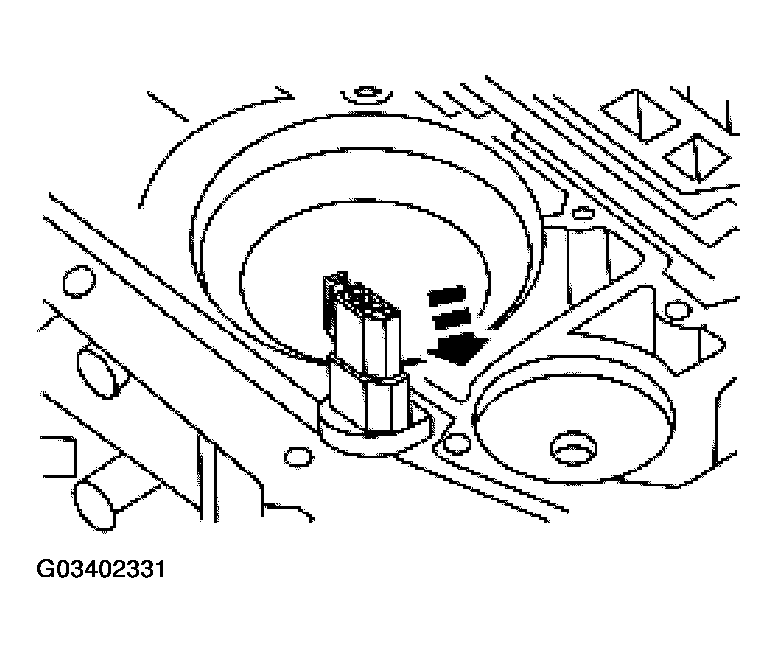

    Fig 53: Installing Electrical Connector Into Case
    G03402331Courtesy of FORD MOTOR CO.
  54. Install the electrical connector into the case.
    55. NOTE: The alignment bolts are valve body assembly bolts and are in the valve body.

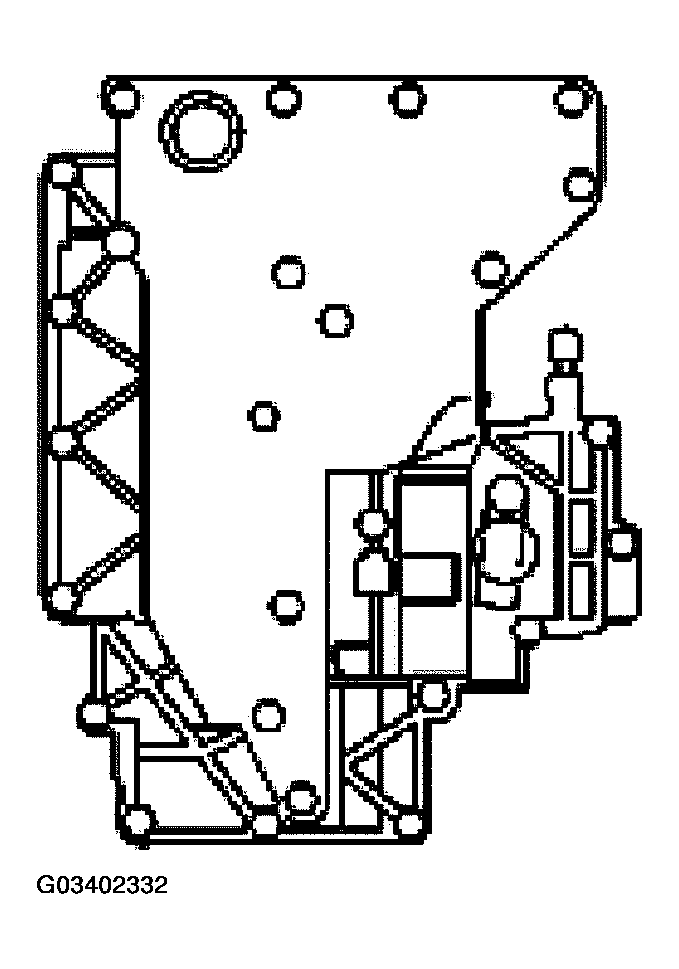

    Fig 54: Aligning Main Control Valve Body
    G03402332Courtesy of FORD MOTOR CO.
  55. Align the main control valve body alignment bolts and position the main control valve body.
    56. NOTE: The main control valve body bolts will be tightened in later steps.

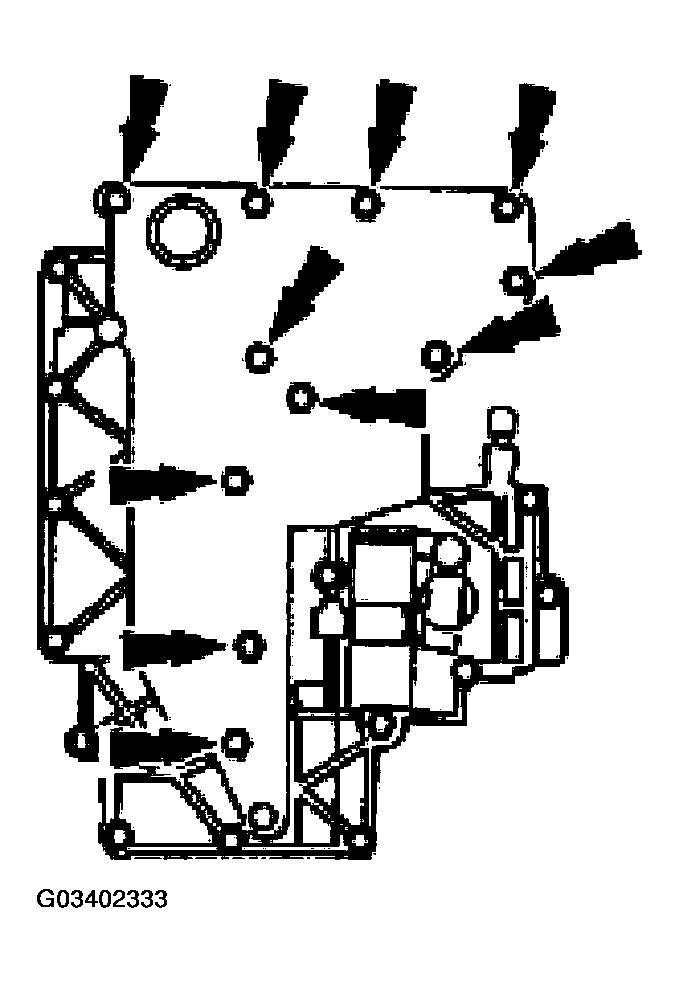

    Fig 55: Installing 11 Main Control Valve Body Bolts
    G03402333Courtesy of FORD MOTOR CO.
  56. Loosely install the 11 long main control valve body bolts.
    57. NOTE: The main control valve body bolts will be tightened in later steps.

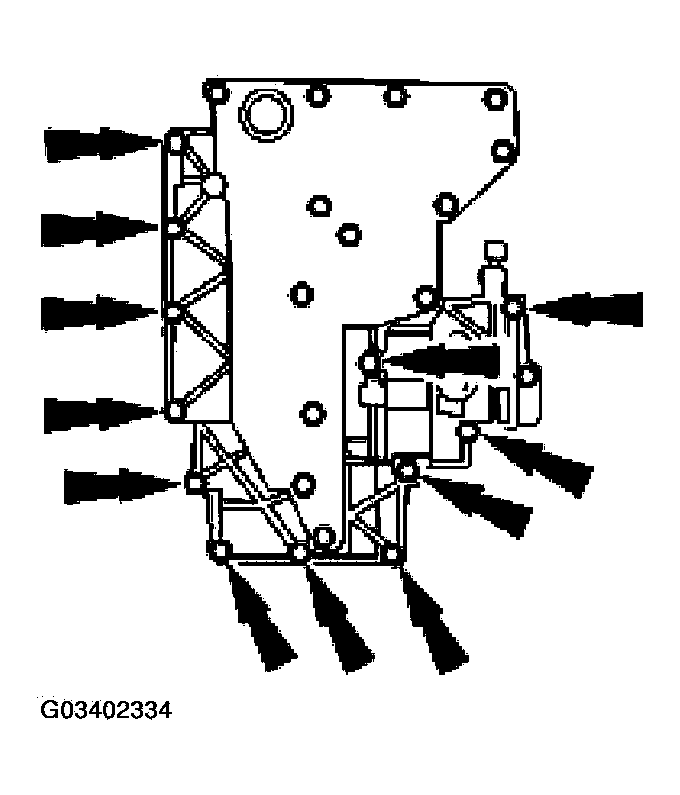

    Fig 56: Installing 12 Short Main Control Valve Body Bolts
    G03402334Courtesy of FORD MOTOR CO.
  57. Loosely install the 12 short main control valve body bolts.
  58. Install the manual control valve detent lever spring.
    1. Position the manual control valve detent lever spring.
    2. Install the bolt.
      Fig 57: Installing Manual Control Valve Detent Lever Spring
      G03402335Courtesy of FORD MOTOR CO.

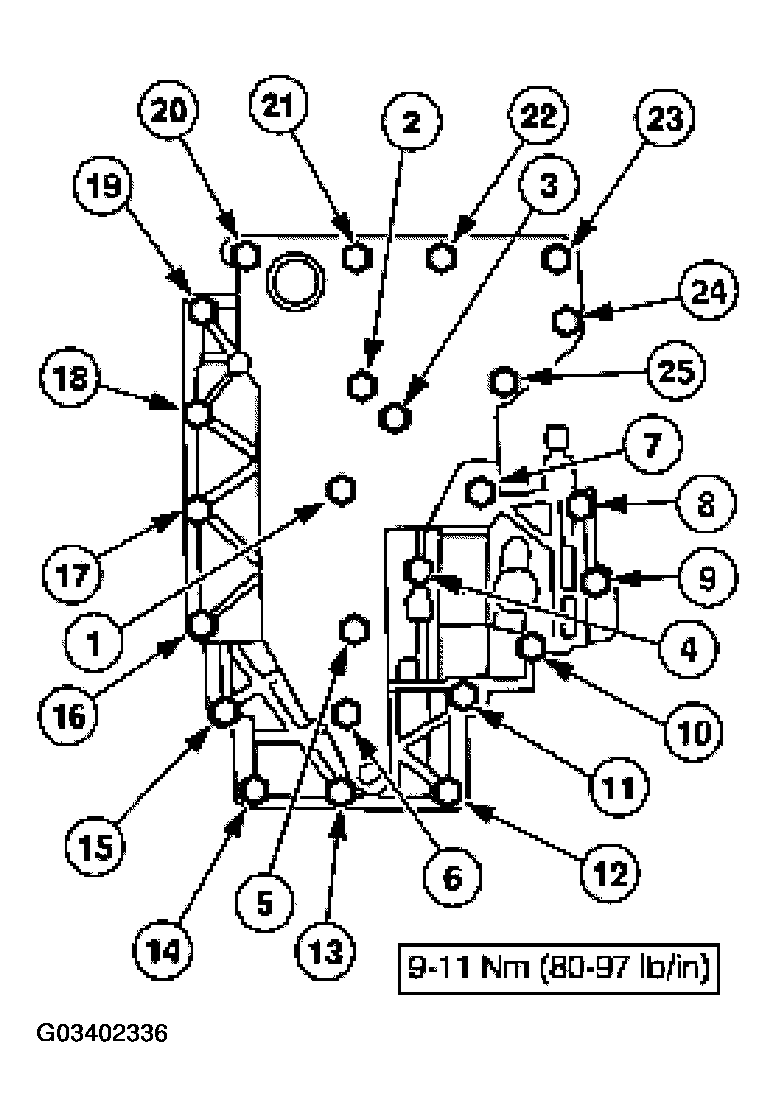

  59. Tighten the bolts in the sequence shown.
    Fig 58: Tightening Bolts
    G03402336Courtesy of FORD MOTOR CO.
  60. Inspect the lead frame for damage.
    • Using the special tool, check all the lead frame solenoid connections. The gauge should fit tightly and not fall out after being inserted.
    • If the special tool passes through any lead frame connector pins or does not feel like it makes a good contact, install a new lead frame.
      Fig 59: Checking All Lead Frame Solenoid Connections
      G03402337Courtesy of FORD MOTOR CO.

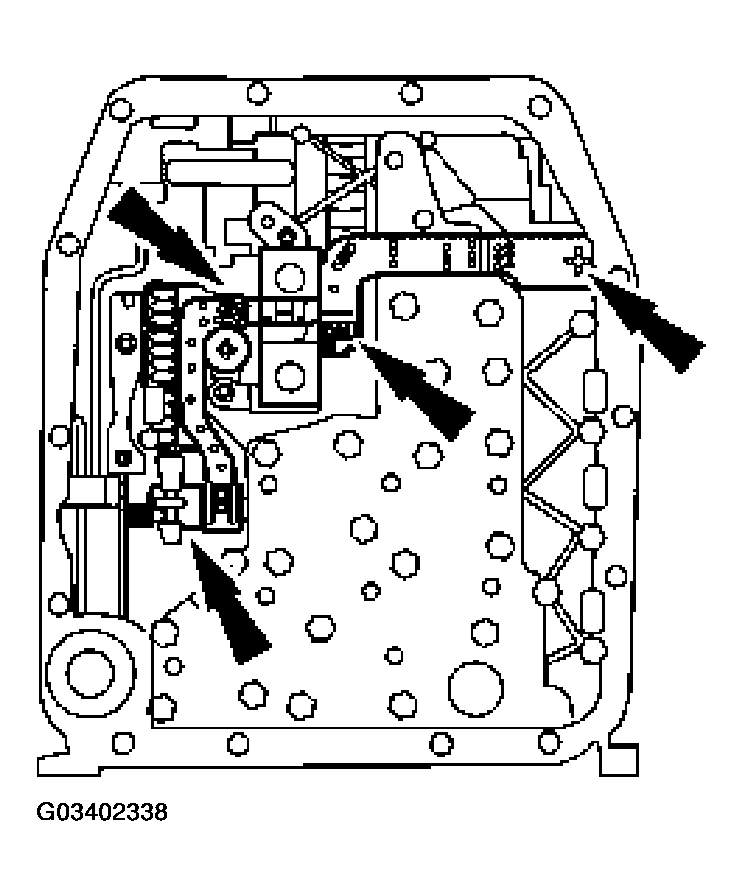

  61. Connect the molded lead frame to the solenoids.
    • Connect the bulkhead inter-connector by pressing it in place by hand and fully seating the connector in place.
    • Connect the EPC solenoid by pressing it in place by hand and fully seating the connector in place. Make sure that the terminals pass fully through the connector slots.
    • Connect the TCC by pressing it in place by hand and fully seating the connector in place. Make sure that the terminals pass fully through the connector slots.
    • Connect the shift solenoid SSA and SSB by pressing it in place by hand and fully seating the connector in place. Make sure that the terminals pass fully through the connector slots.
      Fig 60: Connecting Molded Lead Frame To Solenoids
      G03402338Courtesy of FORD MOTOR CO.

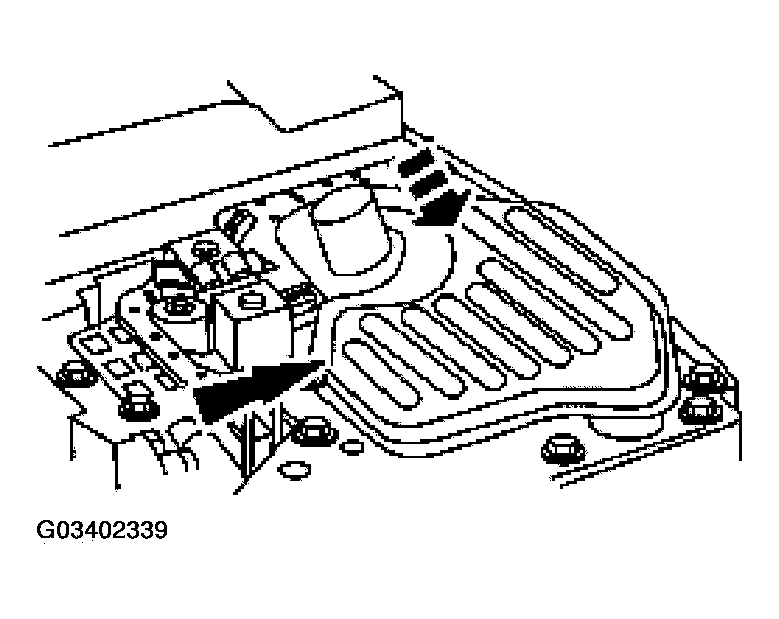

  62. Install the fluid filter and seal assembly.
    Fig 61: Installing Fluid Filter And Seal Assembly
    G03402339Courtesy of FORD MOTOR CO.
  63. Position the pan magnet onto the fluid pan.
    Fig 62: Positioning Pan Magnet Onto Fluid Pan
    G03402340Courtesy of FORD MOTOR CO.
    64. NOTE: The pan gasket is reusable; clean and inspect for damage. If not damaged, the gasket should be reused.
  64. Install the fluid pan.
    1. Position the transmission fluid pan.
    2. Install the 14 transmission fluid pan bolts.
      Fig 63: Installing Fluid Pan
      G03402341Courtesy of FORD MOTOR CO.
  65. Install the digital transmission range (TR) sensor.
    1. Install the digital TR sensor.
    2. Loosely install the digital TR bolts.
      Fig 64: Installing Digital Transmission Range (TR) Sensor
      G03402342Courtesy of FORD MOTOR CO.
    66. NOTE: The tool is designed to fit snugly.
    NOTE: Manual shift lever must be in the neutral position.
    Fig 65: Aligning Digital TR Sensor Slots
    G03402343Courtesy of FORD MOTOR CO.
  66. Using the special tool, align the digital TR sensor slots.
  67. Tighten the bolts.
    Fig 66: Tightening Bolts
    G03402344Courtesy of FORD MOTOR CO.
  68. Lightly lubricate the converter hub with clean automatic transmission fluid.
    Fig 67: Lubricating Converter Hub With Clean Automatic Transmission Fluid
    G03402345Courtesy of FORD MOTOR CO.
    69. WARNING: The torque converter can fall out if the transmission is tipped.
    CAUTION: Make sure the converter hub is fully engaged in the front pump support and gear and rotates freely. Do not damage the hub seal.
    CAUTION: If the torque converter slides out, the hub seal may be damaged.

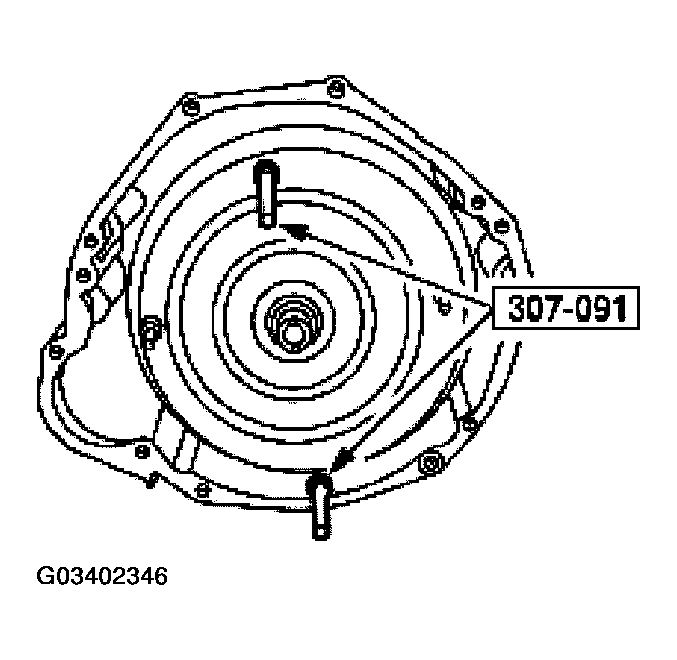

    Fig 68: Installing Torque Converter
    G03402346Courtesy of FORD MOTOR CO.
  69. Using the special tools, install the torque converter.

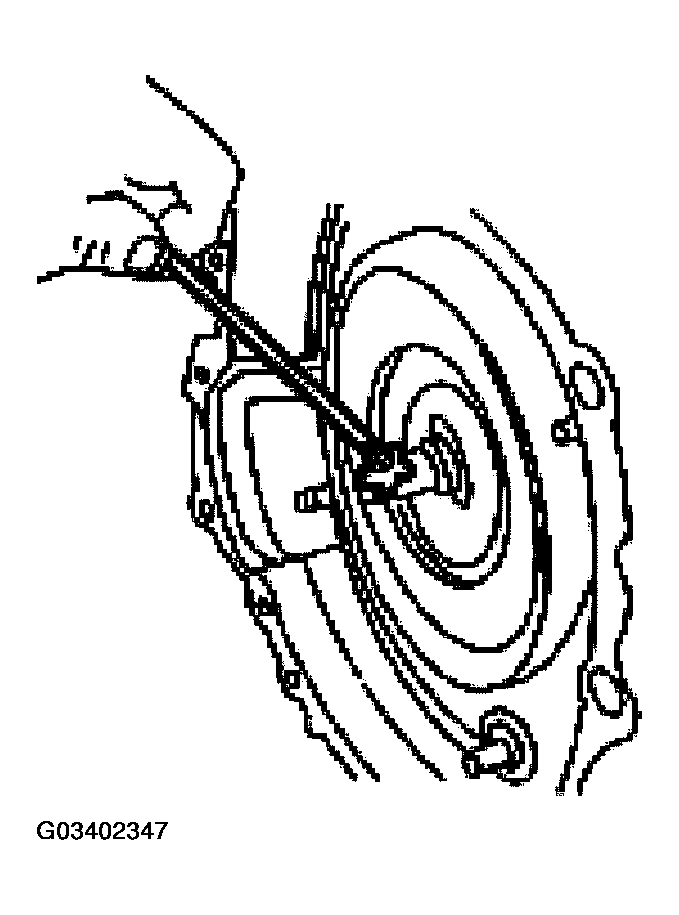

  70. Lubricate the torque converter pilot hub with multi-purpose grease.
    Fig 69: Lubricating Torque Converter Pilot Hub With Multi-Purpose Grease
    G03402347Courtesy of FORD MOTOR CO.
scientia non olet · About LEMON Manuals
