Audio Unit C290b

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

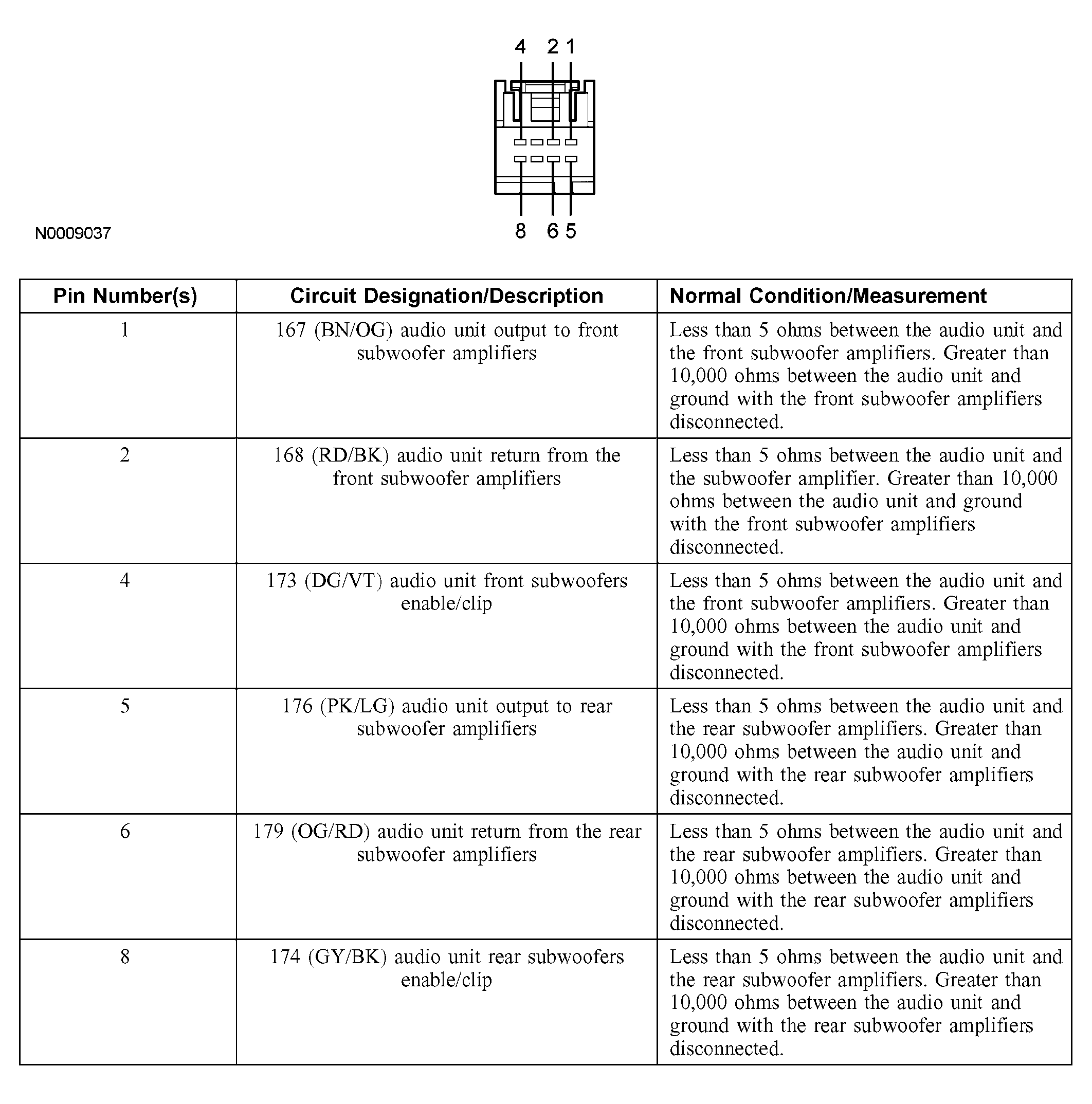

Fig 1: Identifying Audio Unit C290B Connector
G03986552Courtesy of FORD MOTOR CO.
