Occupant Classification Sensor: Notes

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL

Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

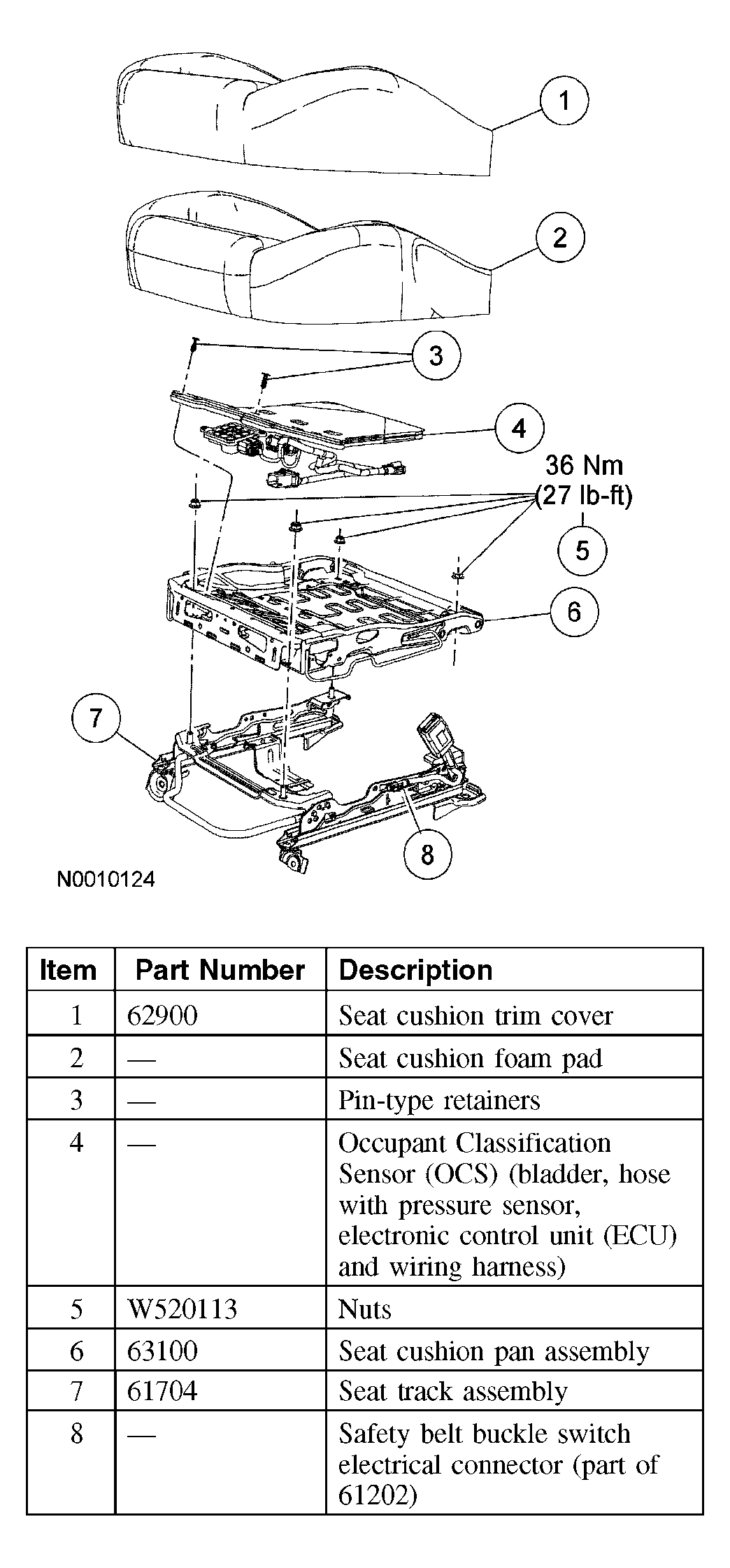

Fig 1: Exploded View Of Seat With OEM Occupant Classification Sensor

Courtesy of FORD MOTOR CO.

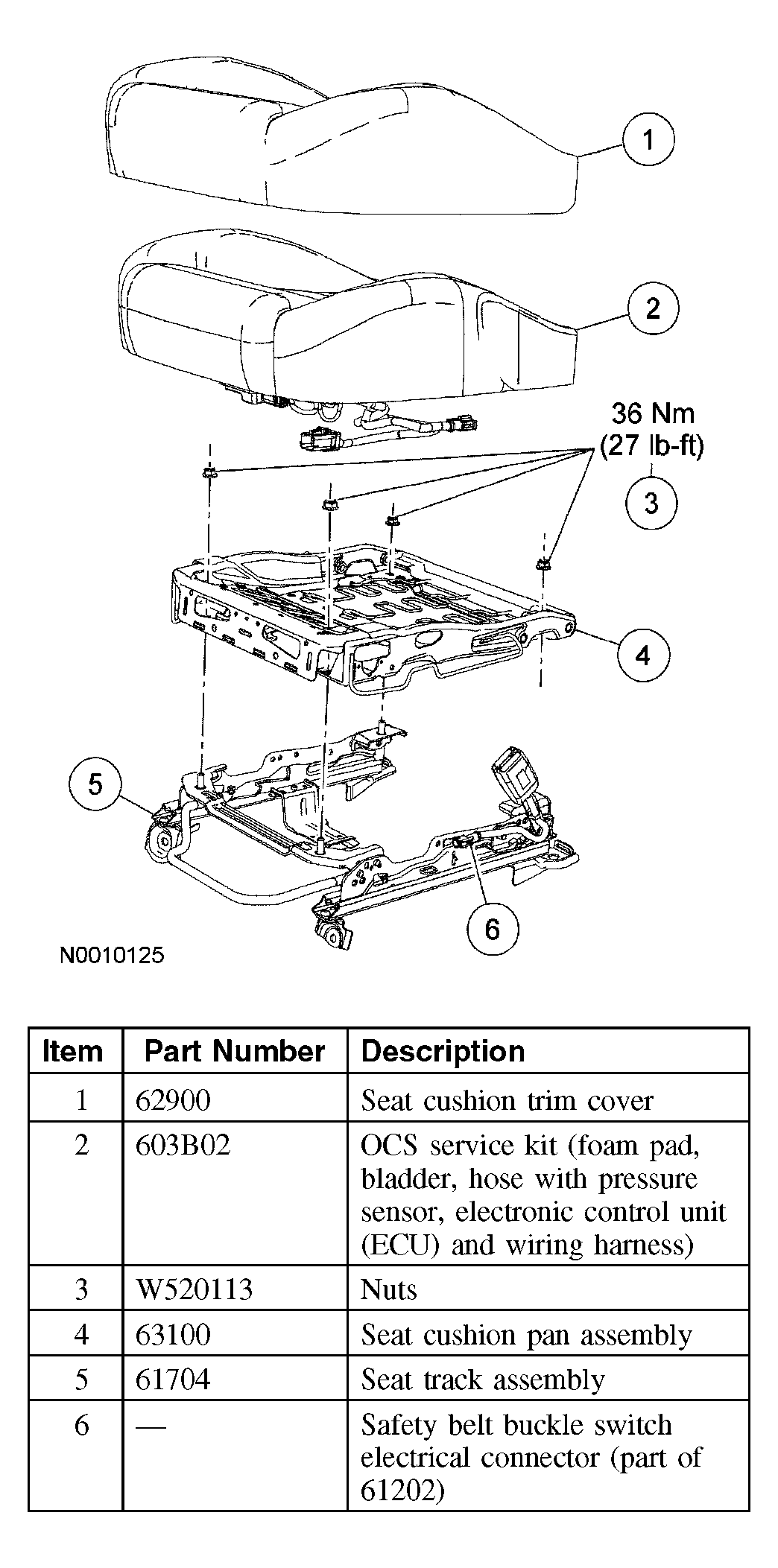

Fig 2: Exploded View Of Seat With Service Kit Occupant Classification Sensor

Courtesy of FORD MOTOR CO.
