Seat - Front: Notes

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

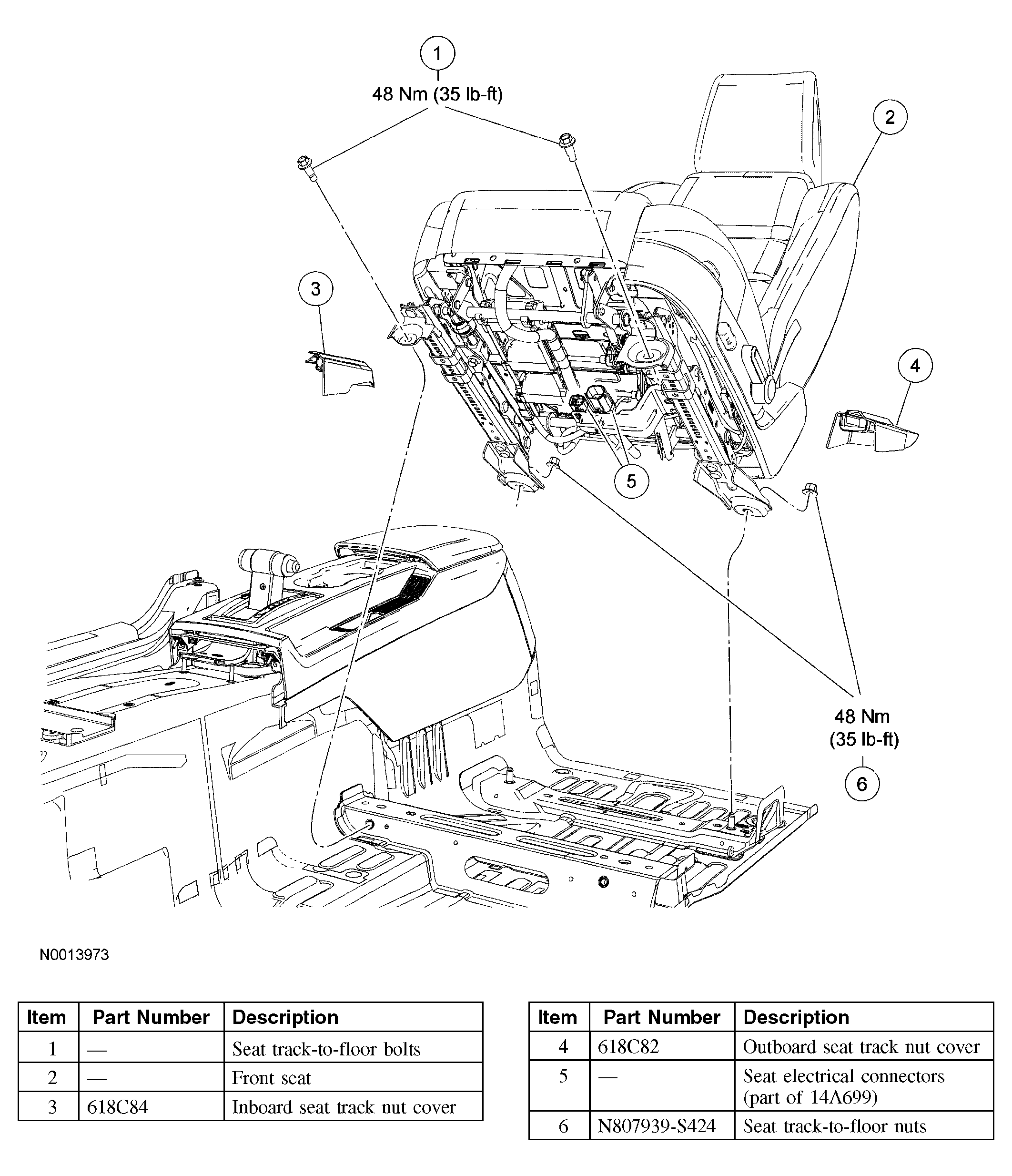

Fig 1: Removing Driver Seat
G03986954Courtesy of FORD MOTOR CO.
