Seat - Exploded View, Rear

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

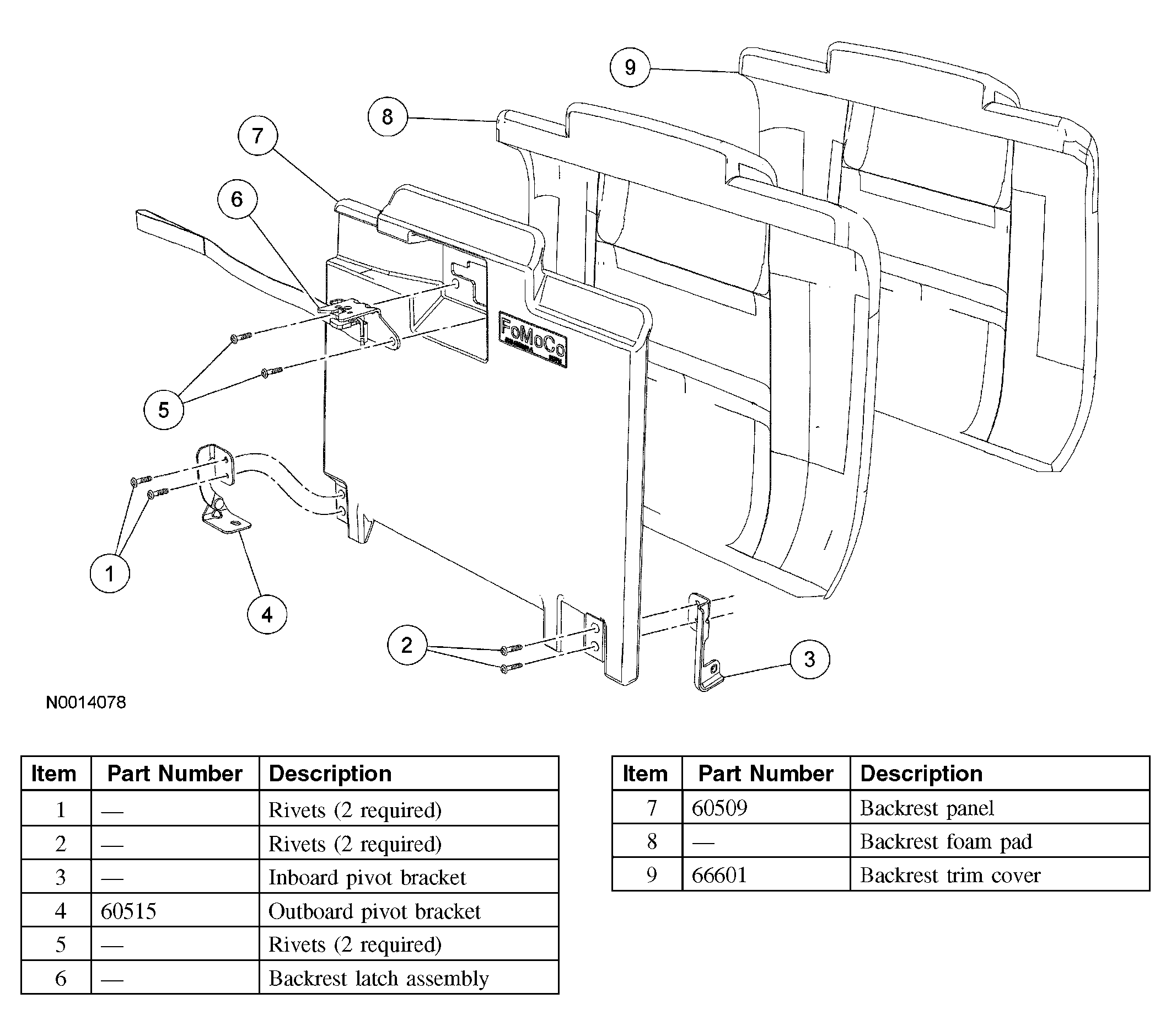

Fig 1: Exploded View Of Seat - Rear (Hard Top 50 Percent Backrest)

Courtesy of FORD MOTOR CO.
