Front Disc Brake: Removal

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not allow the brake caliper, brake pads and anchor plate assembly to hang from the brake hose or damage to the hose can occur.
  1. Remove the 2 brake caliper anchor plate bolts and position the brake caliper, brake pads and anchor plate aside as an assembly.
    • Support the brake caliper, brake pads and anchor plate assembly using mechanic's wire.
  2. If equipped, remove and discard the retainer nuts.

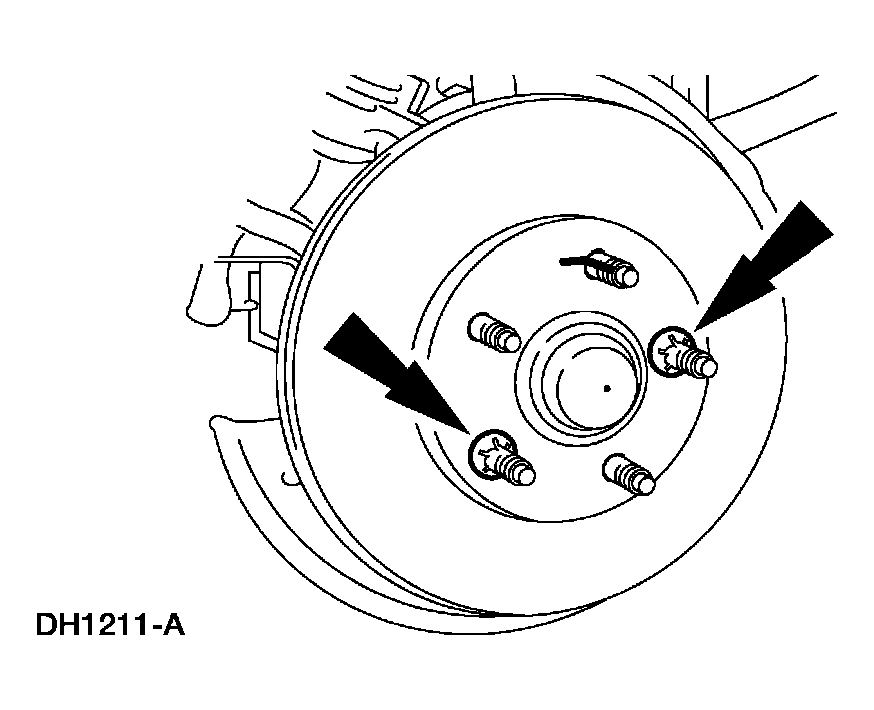

    Fig 1: Removing Retainers & Brake Disc
    G03983433Courtesy of FORD MOTOR CO.
  3. Remove the brake disc.
