Jacking Points - Front

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH side shown, LH side similar.

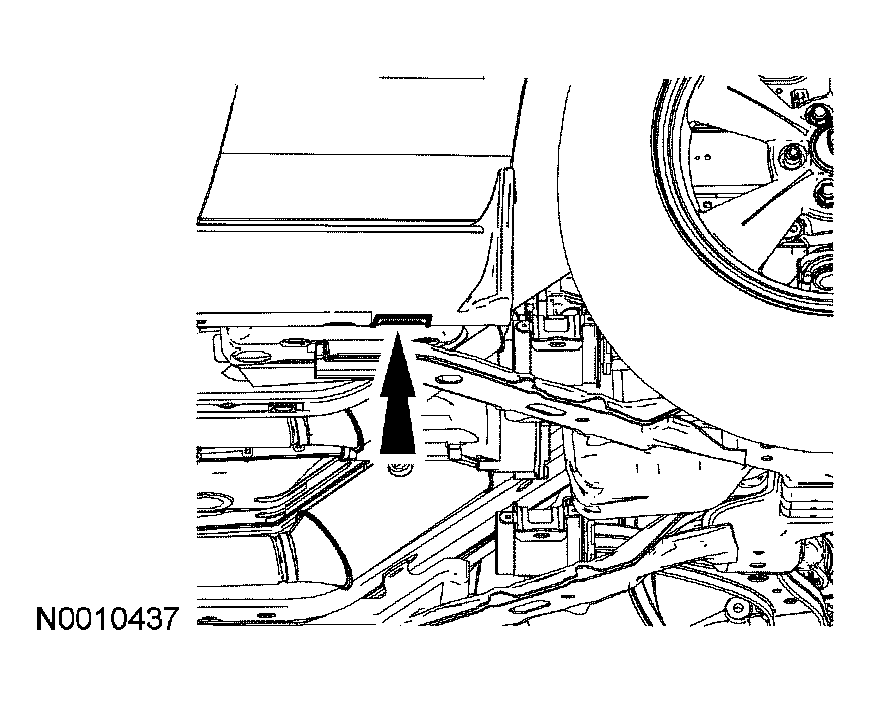

Fig 1: Identifying Front Jacking Points
G03982744Courtesy of FORD MOTOR CO.

To jack the front end, lift at the pinch welds, located at the front opening of the rocker panels.
