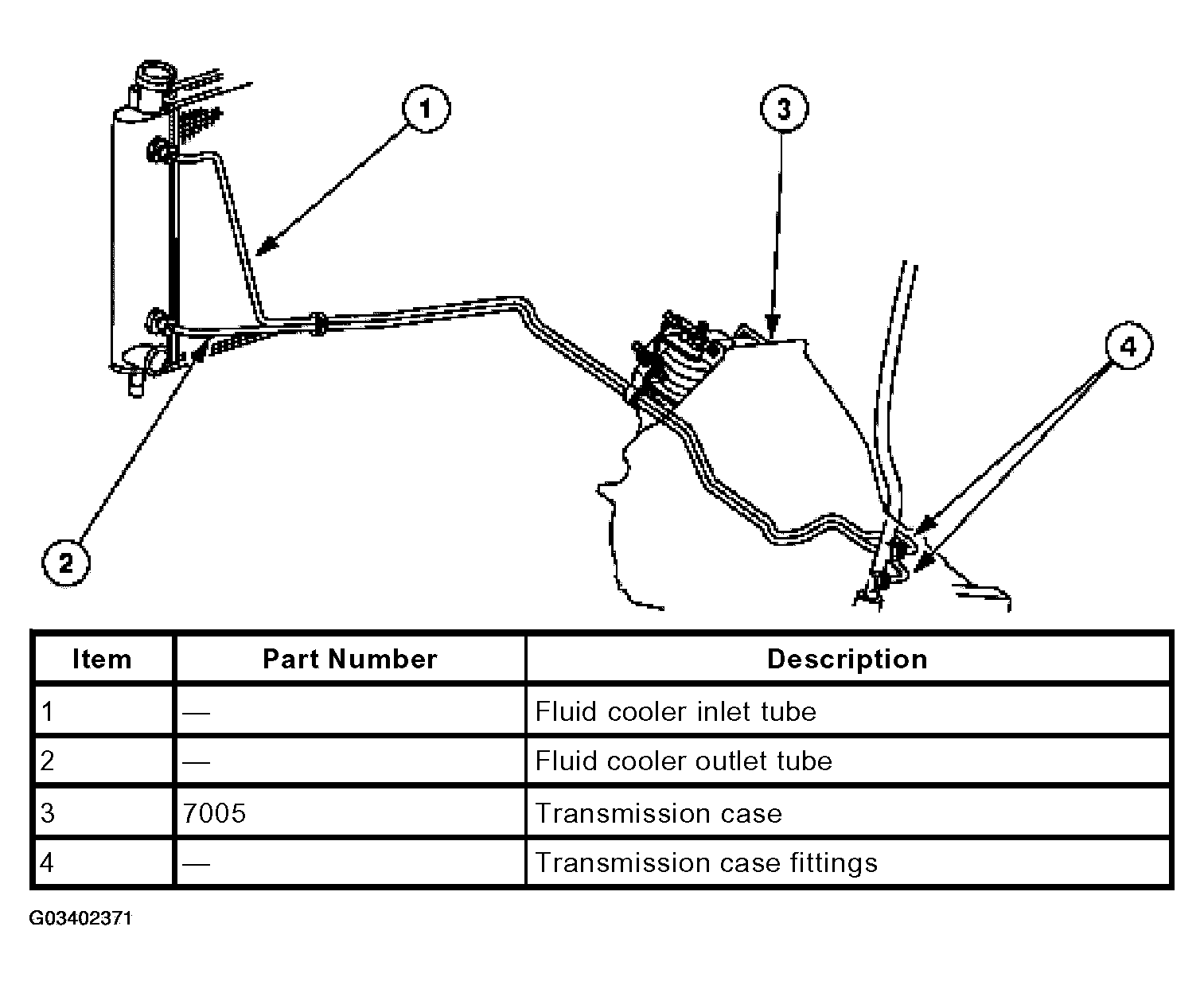

Transmission Cooling - Integral
This vehicle with an automatic transmission is equipped with an integral transmission fluid cooler. The cooler is contained inside of the radiator outlet tank and cannot be serviced separately. The cooler transfers heat from the transmission fluid to the engine coolant.
For transmission fluid cooler flow test, refer to TRANSMISSION FLUID COOLER FLOW TEST .
For transmission fluid cooler back flushing and cleaning, refer to TRANSMISSION FLUID COOLER -- BACKFLUSHING AND CLEANING .
