Selector Lever: Removal

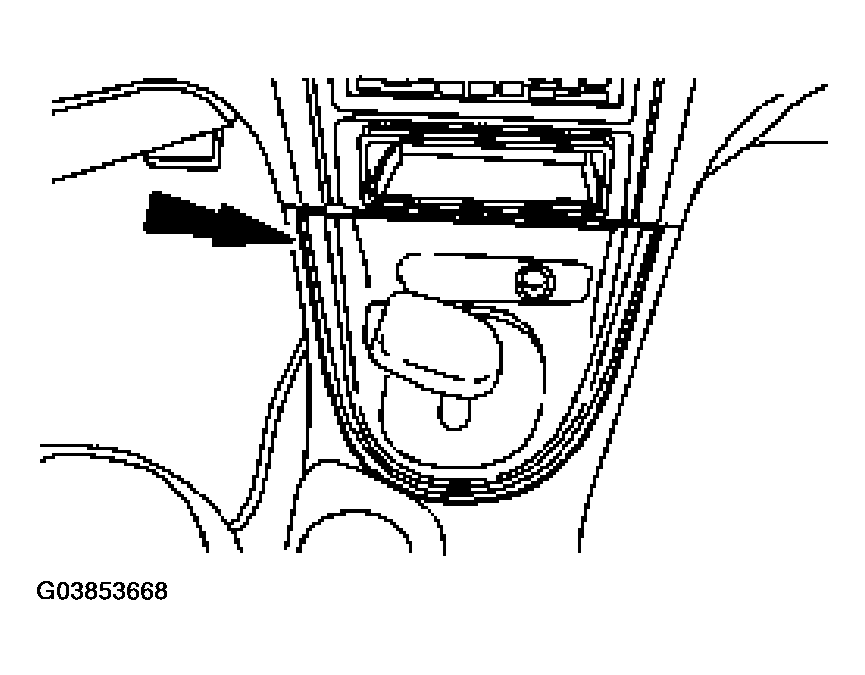

Remove the shifter top control panel.

Fig 1: Removing Shifter Top Control Panel

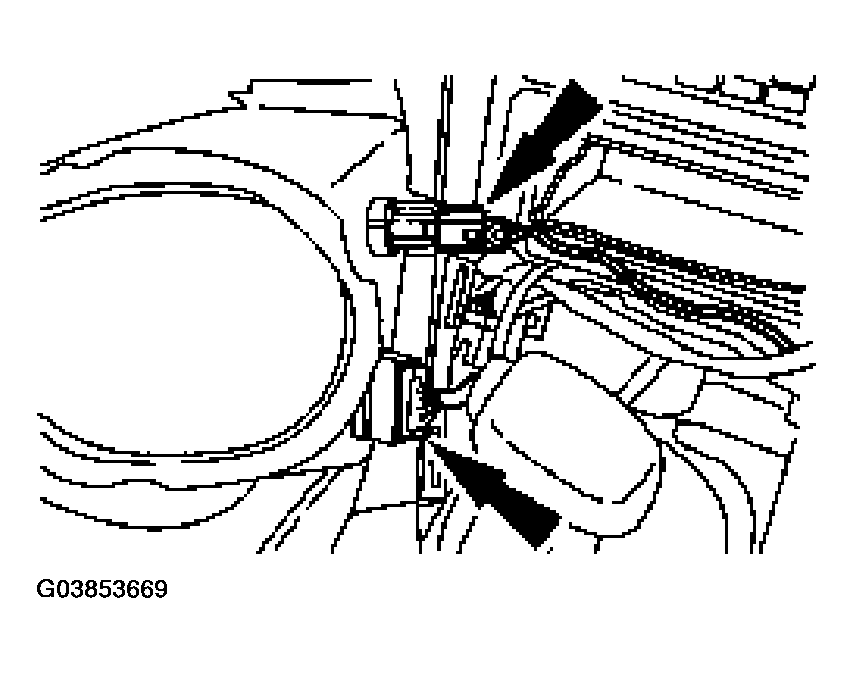

Disconnect the electrical connectors.

Fig 2: Disconnecting Electrical Connectors

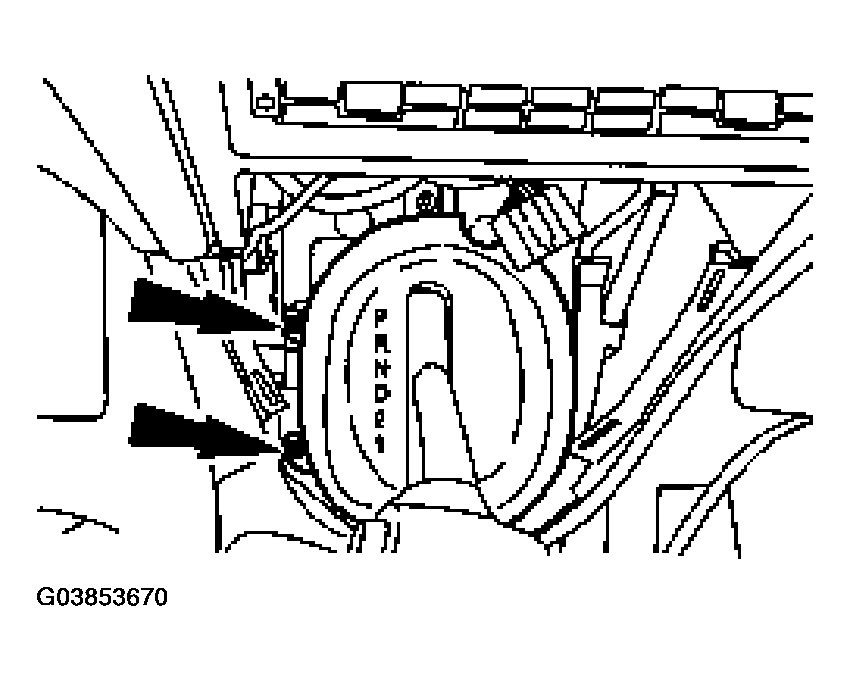

Remove the shifter bezel.

Fig 3: Removing Shifter Bezel
Remove the bulb from the bezel.

Fig 4: Removing Bulb From Bezel

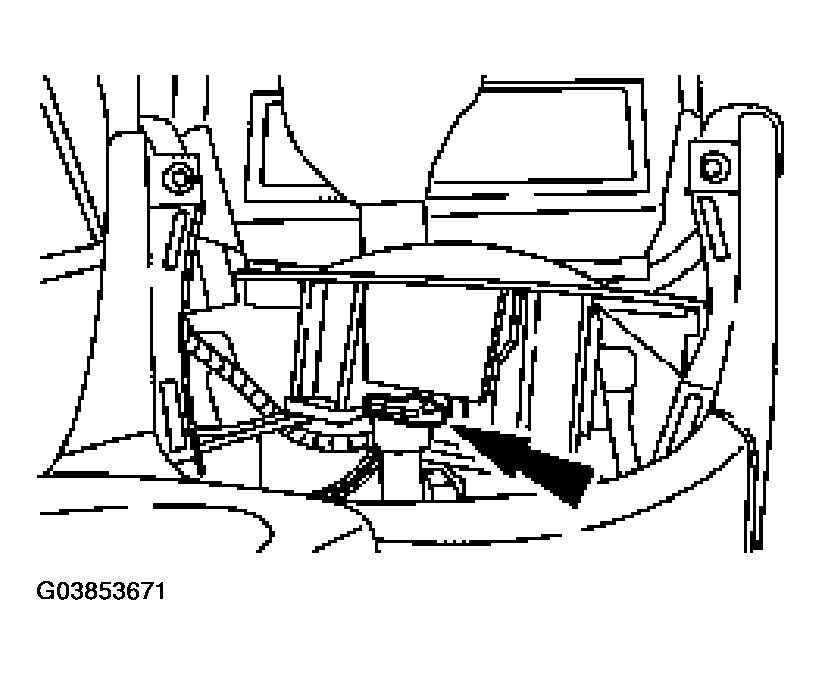

Disconnect the TCS connector.

Fig 5: Disconnecting TCS Connector

CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pulled out of the switch.

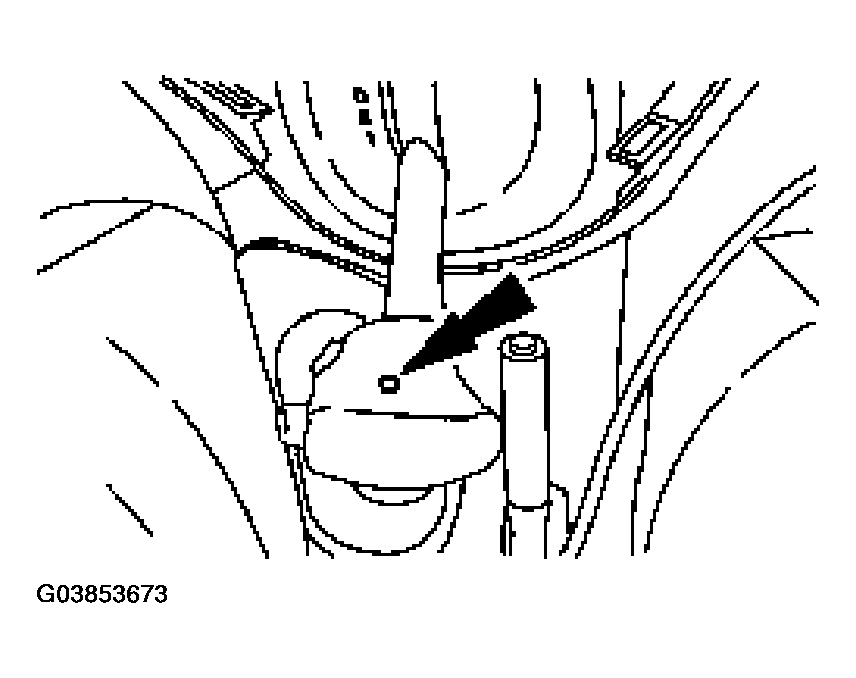

Fig 6: Removing Screw And Handle

Remove the screw and the handle.
Raise and support the vehicle.
Disconnect the shift cable and discard the plastic clip.

Fig 7: Disconnecting Shift Cable And Discarding Plastic Clip
Lower the vehicle.

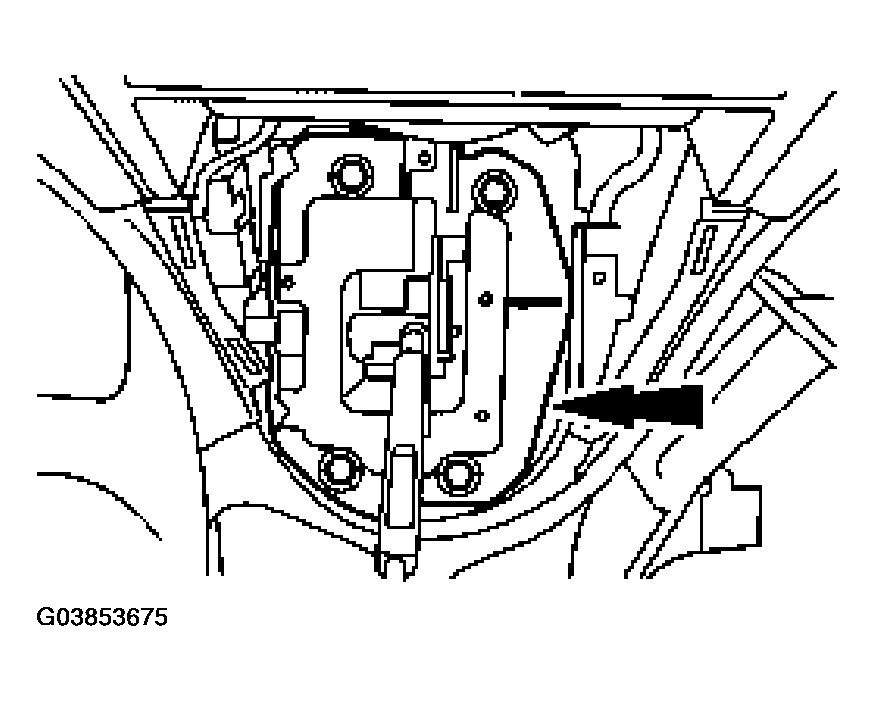

Remove the shifter.

Fig 8: Removing Shifter
