Cable and Bracket: Removal

Raise the vehicle on a hoist.
Remove the cable shift from the shifter lever and bracket and discard the clip.

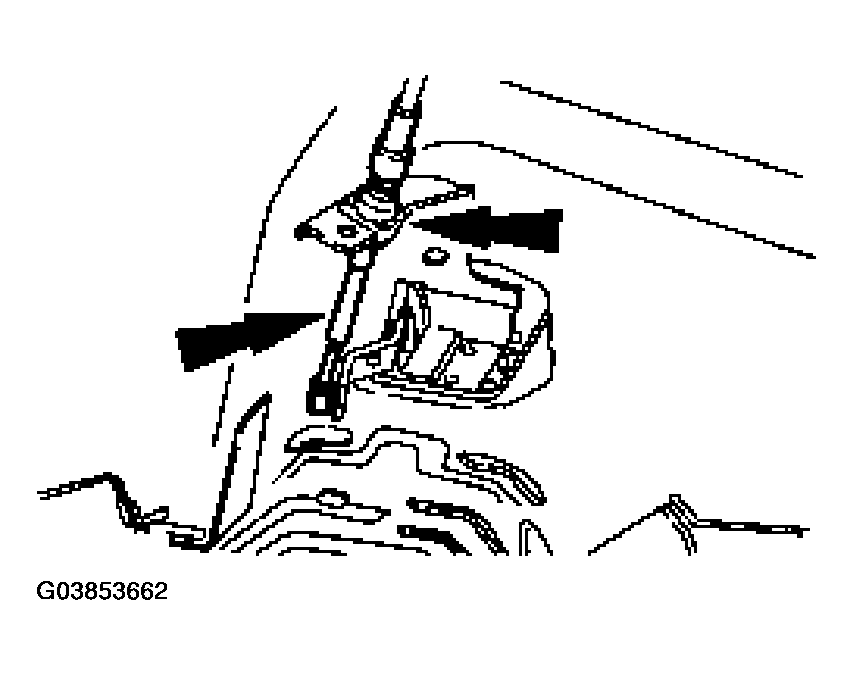

Fig 1: Removing Cable Shift From Shifter Lever And Bracket
Remove the bolt from the cable.

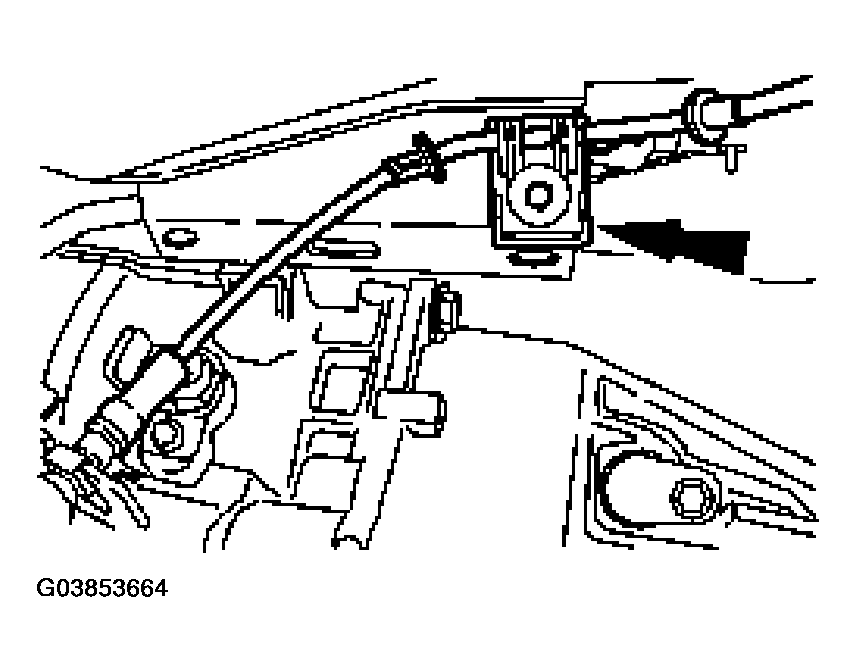

Fig 2: Removing Bolt From Cable
Remove the bolt from the cable.

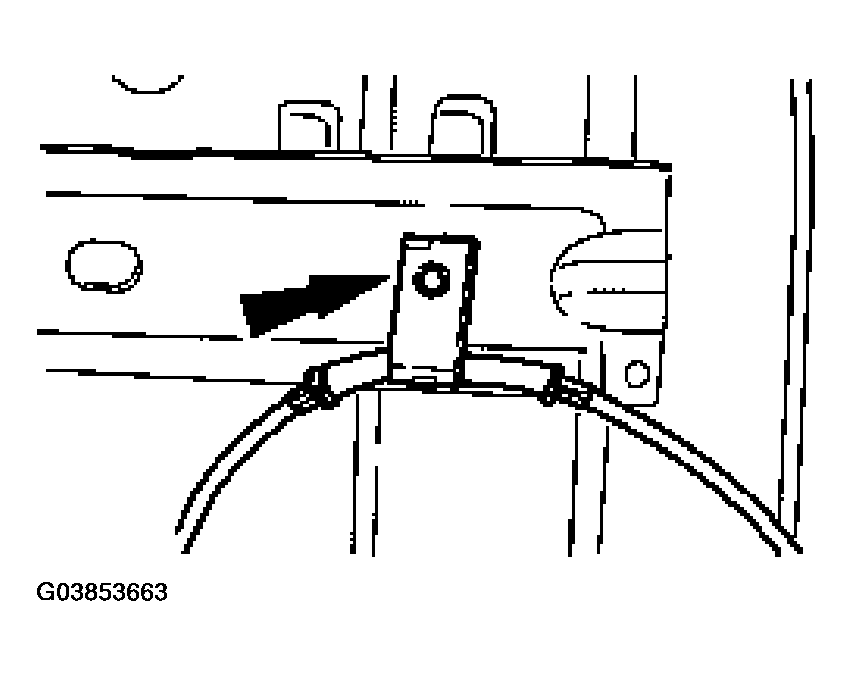

Fig 3: Removing Bolt From Cable
Disconnect the transmission range selector lever cable from the TR sensor lever.

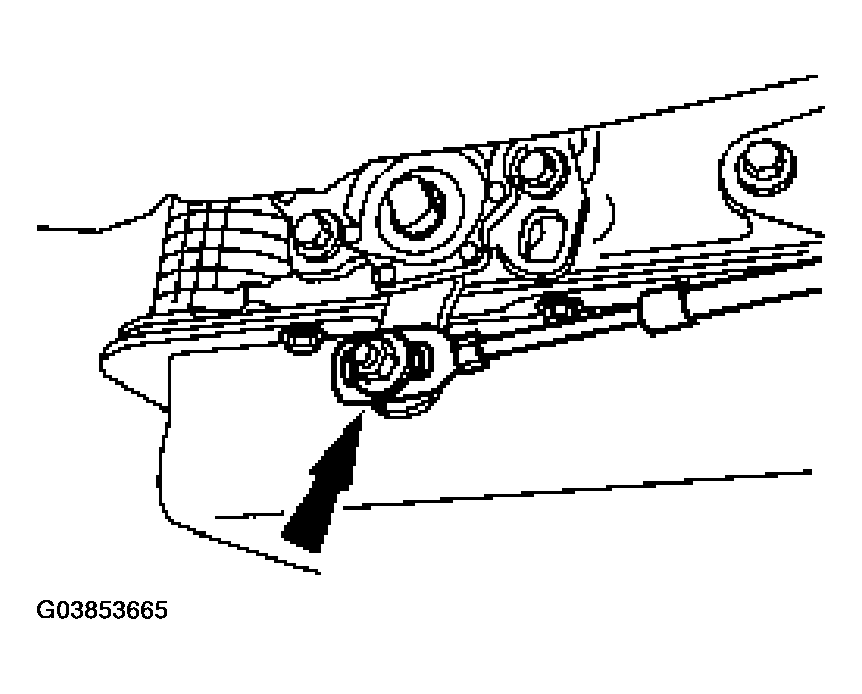

Fig 4: Disconnecting Transmission Range Selector Lever Cable From TR Sensor Lever
Remove the transmission shift cable bracket (7B229) from the transmission.
1. Remove the bolts.
2. Remove the bracket.

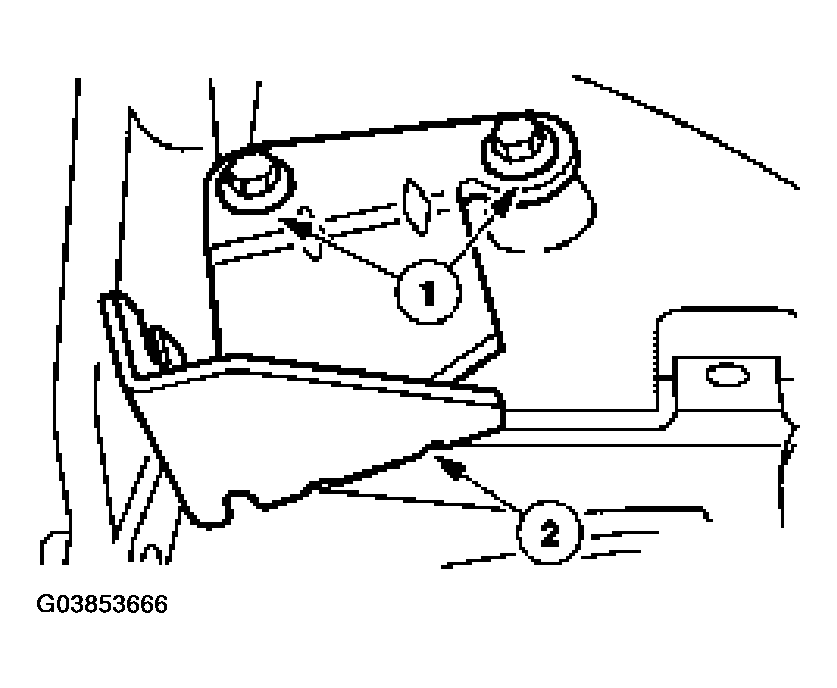

Fig 5: Removing Transmission Shift Cable Bracket
