Removal and Installation

  1. Remove the floor console.
  2. Remove the bolts, then position the bezel upward.

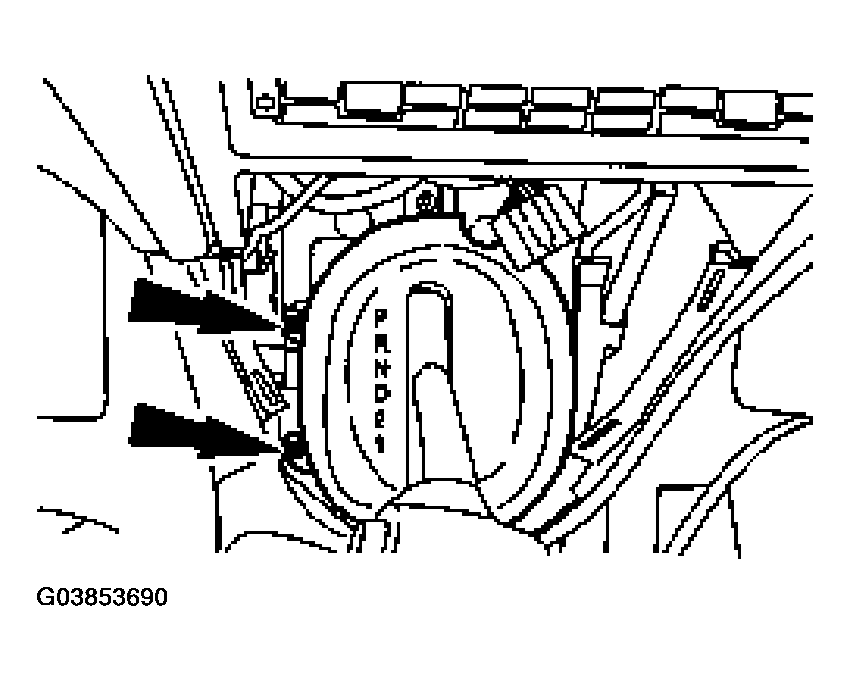

    Fig 1: Removing Bolts
    G03853690
  3. Remove the bulb socket from the bezel.

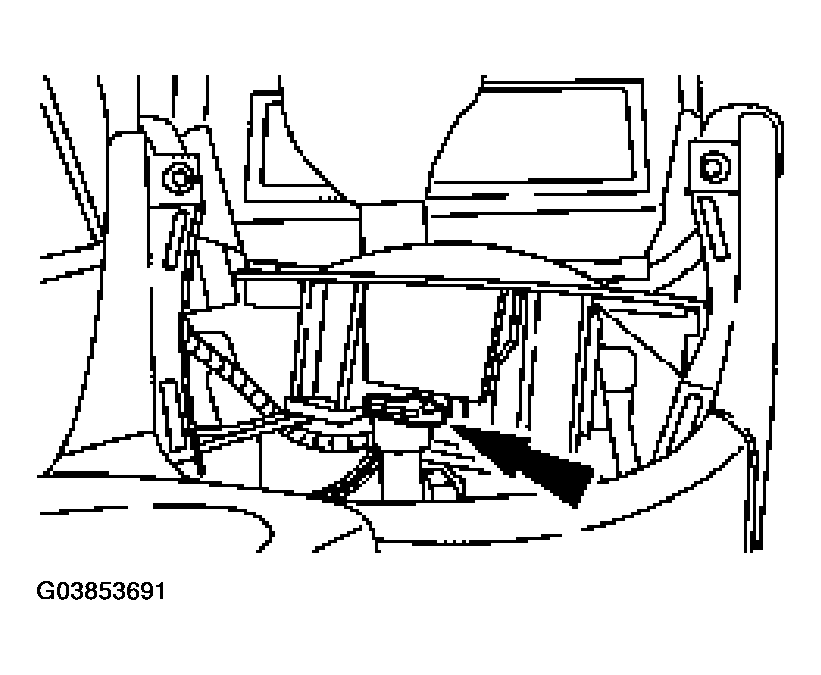

    Fig 2: Removing Bulb Socket From Bezel
    G03853691
  4. Remove the bulb.

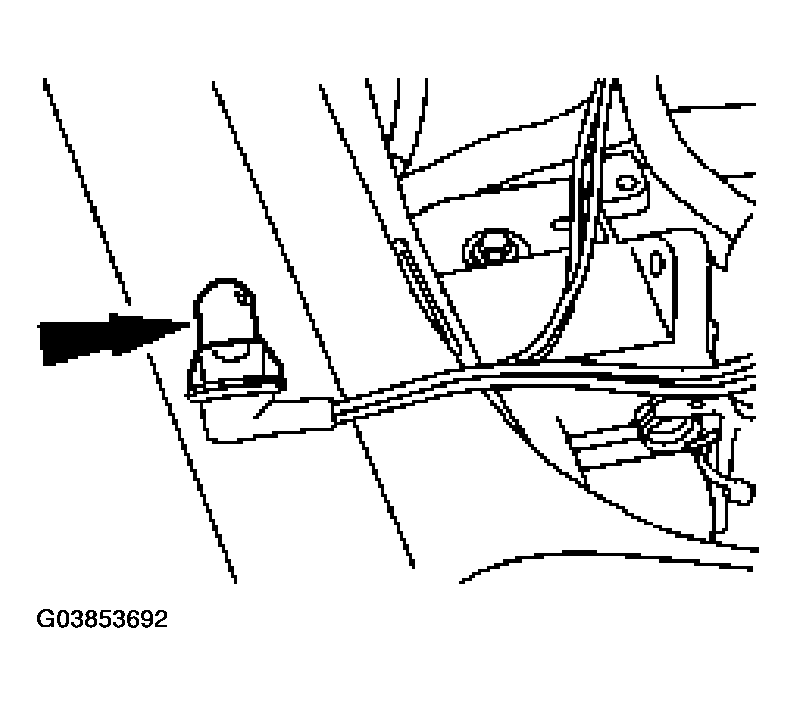

    Fig 3: Removing Bulb
    G03853692
  5. To install, reverse the removal procedure.

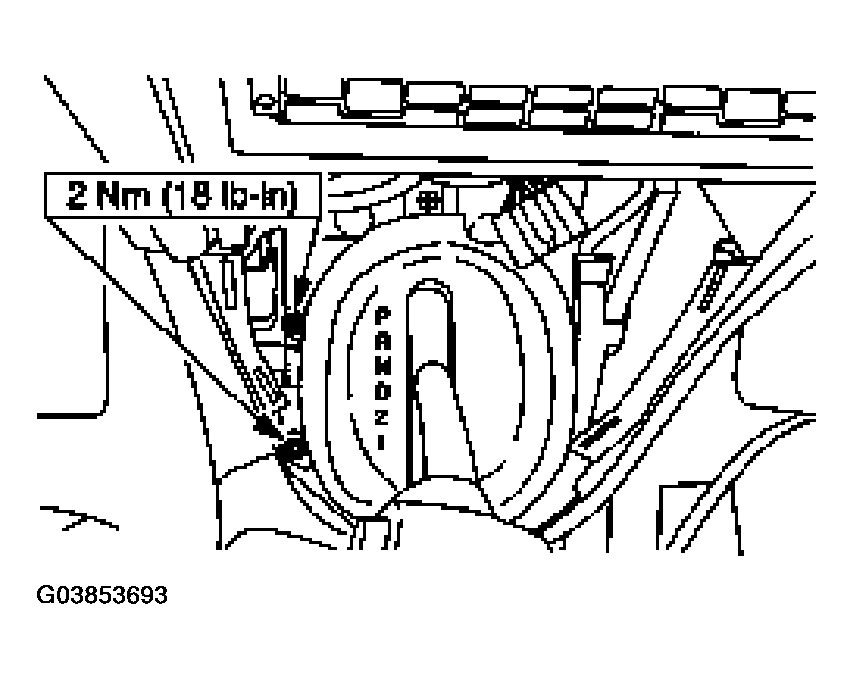

    Fig 4: Installing Bezel Bolts
    G03853693
