Brake Shift Interlock Actuator: Removal

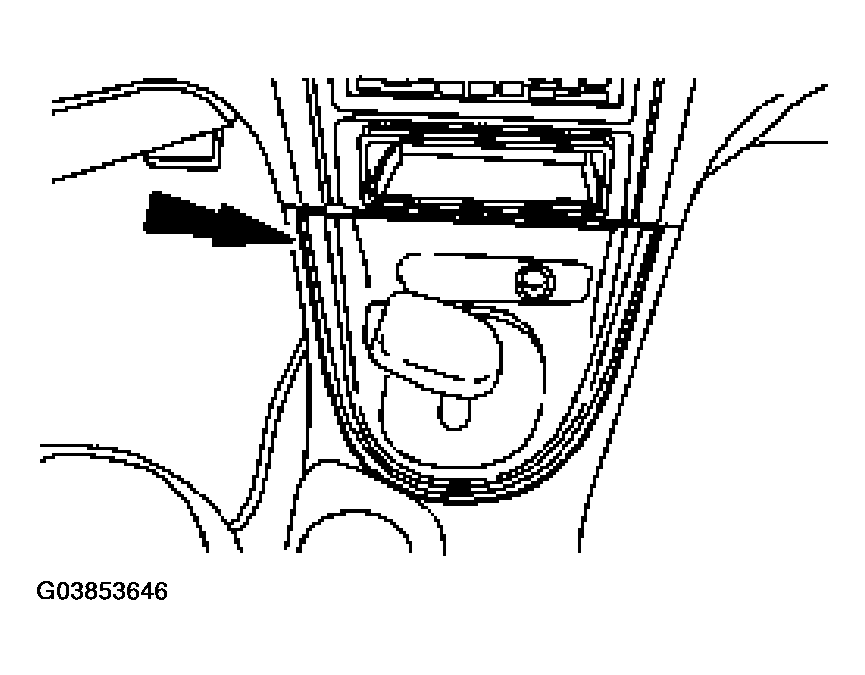

Remove the shifter top control panel.

Fig 1: Removing Shifter Top Control Panel

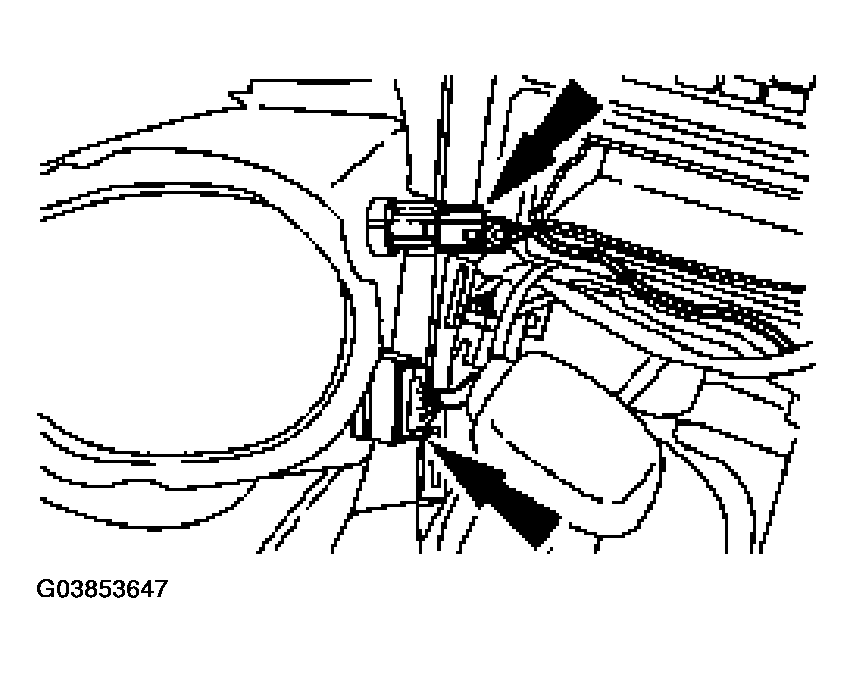

Disconnect the electrical connectors.

Fig 2: Disconnecting Electrical Connectors

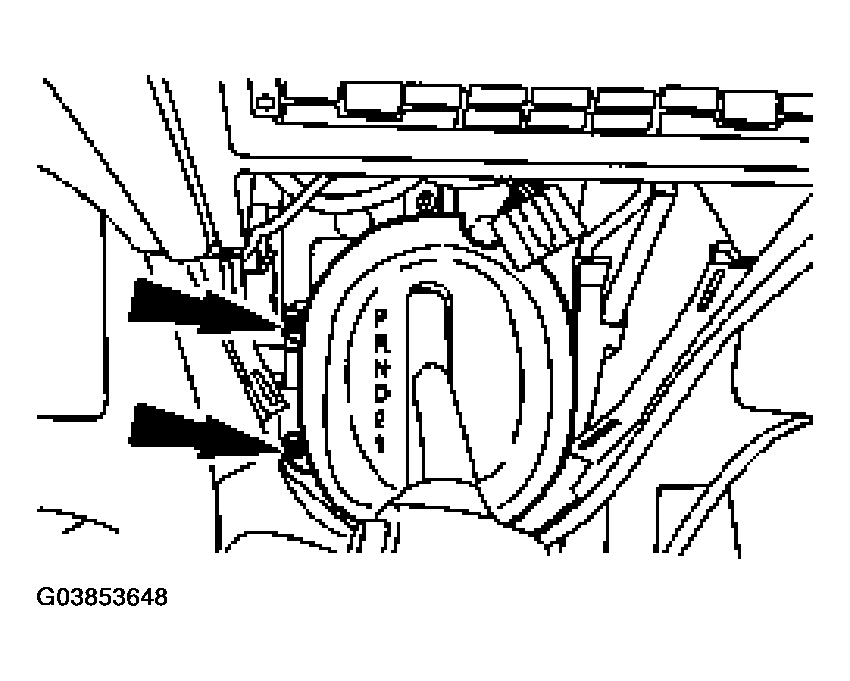

Remove the shifter bezel.

Fig 3: Removing Shifter Bezel
Remove the bulb from the bezel.

Fig 4: Removing Bulb From Bezel

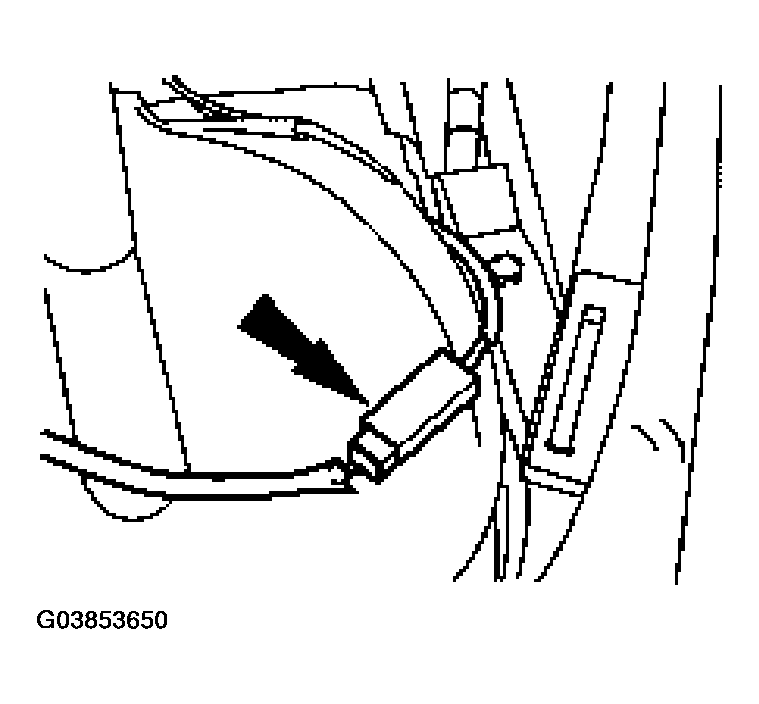

Disconnect the electrical connector.

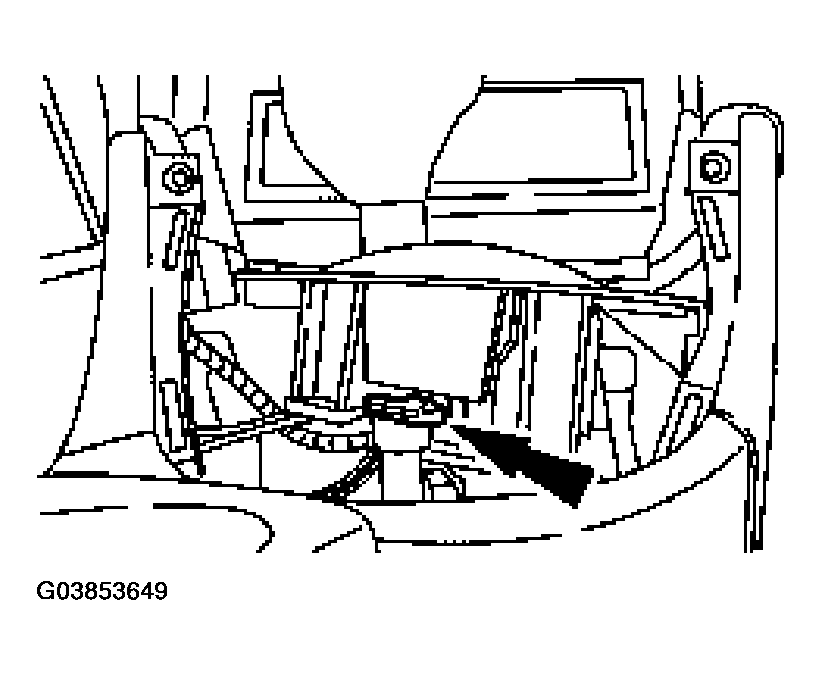

Fig 5: Disconnecting Electrical Connector

CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pulled out of the switch.

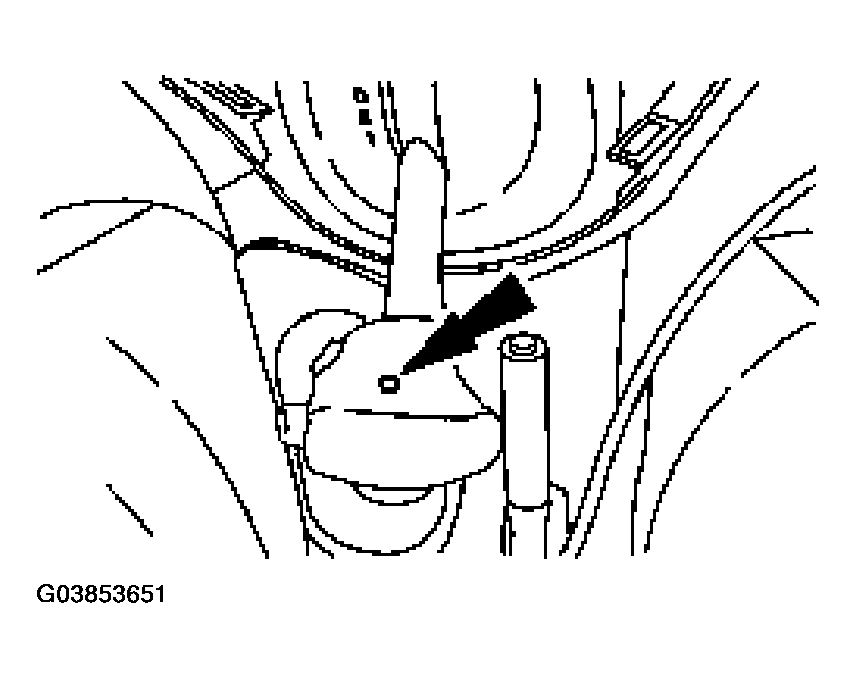

Fig 6: Removing Screw And Handle

Remove the screw and the handle.
Remove the clip and bolt from the brake shift interlock cable.

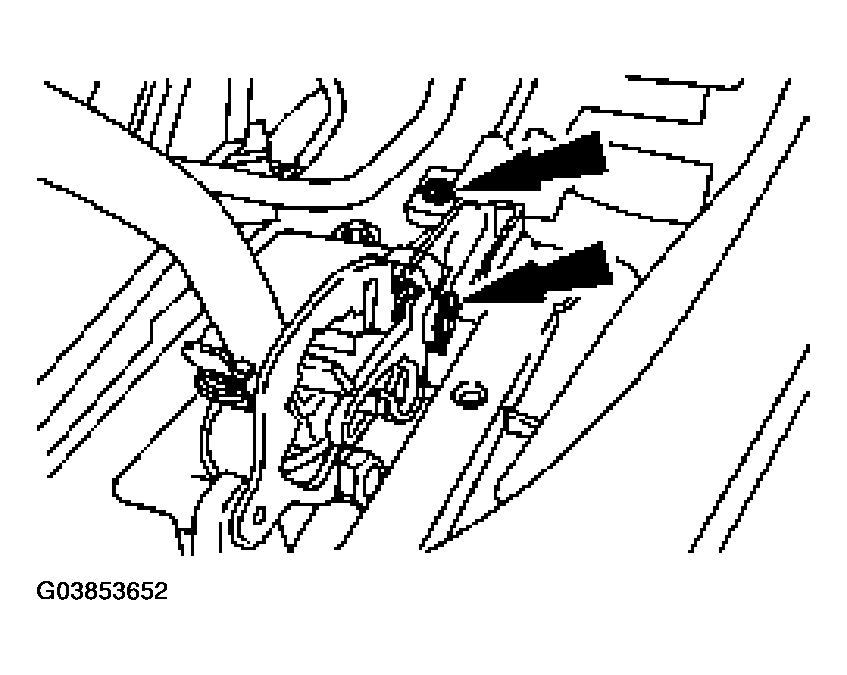

Fig 7: Removing Clip And Bolt From Brake Shift Interlock Cable

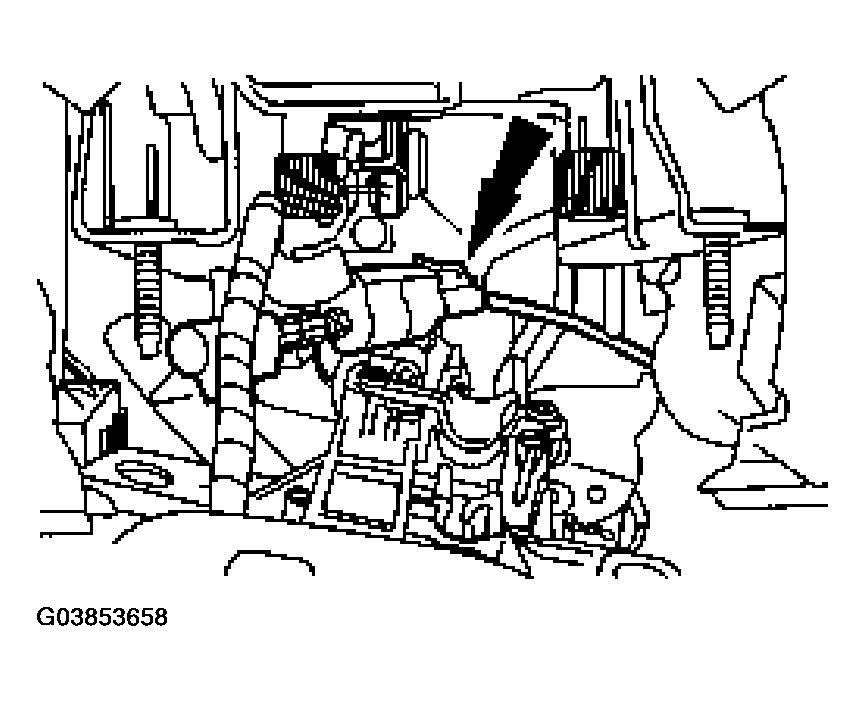

Disconnect the shift interlock cable.

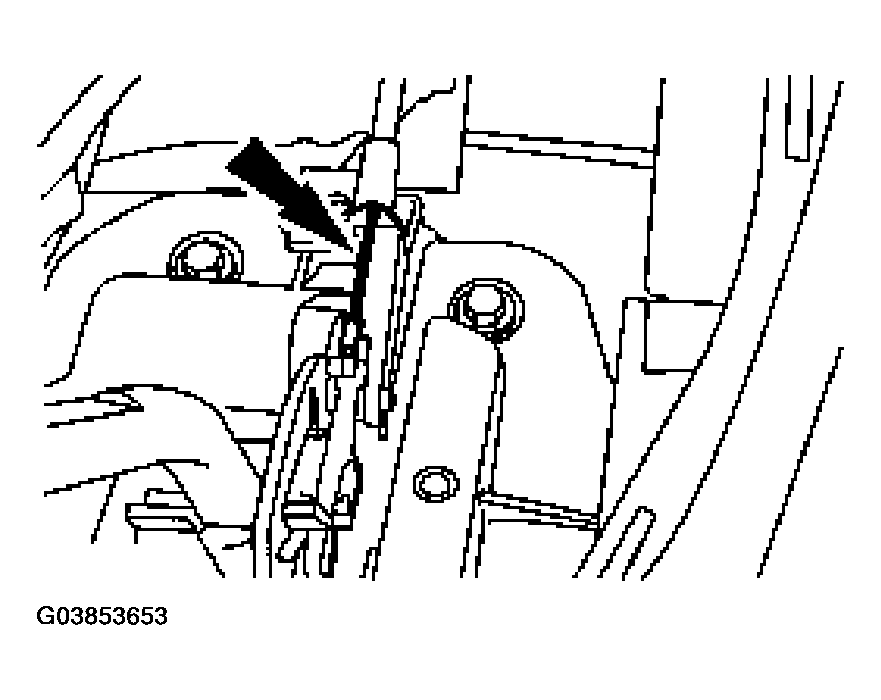

Fig 8: Disconnecting Shift Interlock Cable

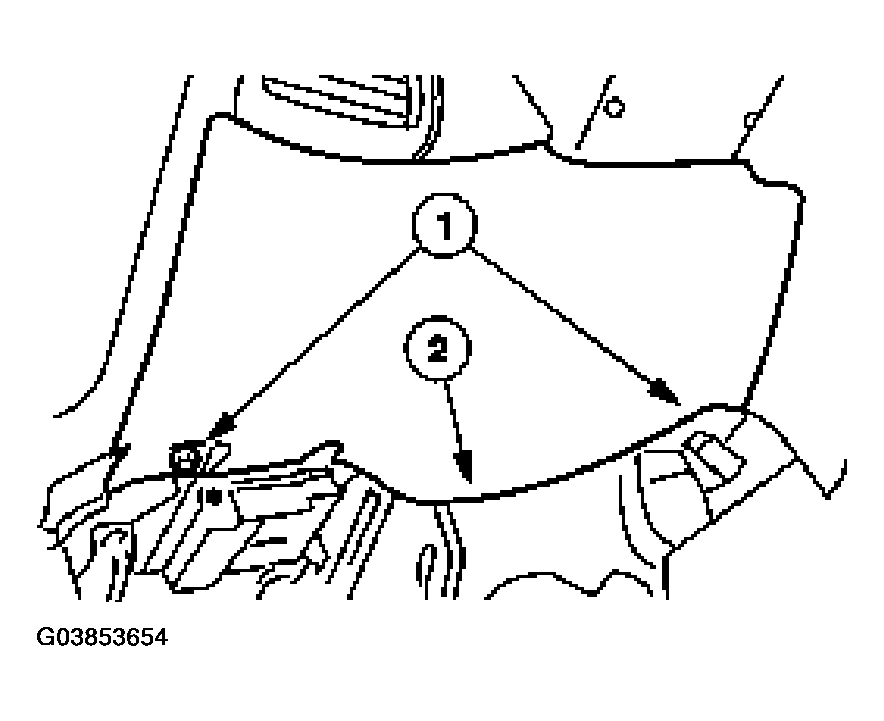

Remove the instrument panel steering column cover.
1. Remove the screws.
2. Remove the instrument panel steering column cover.

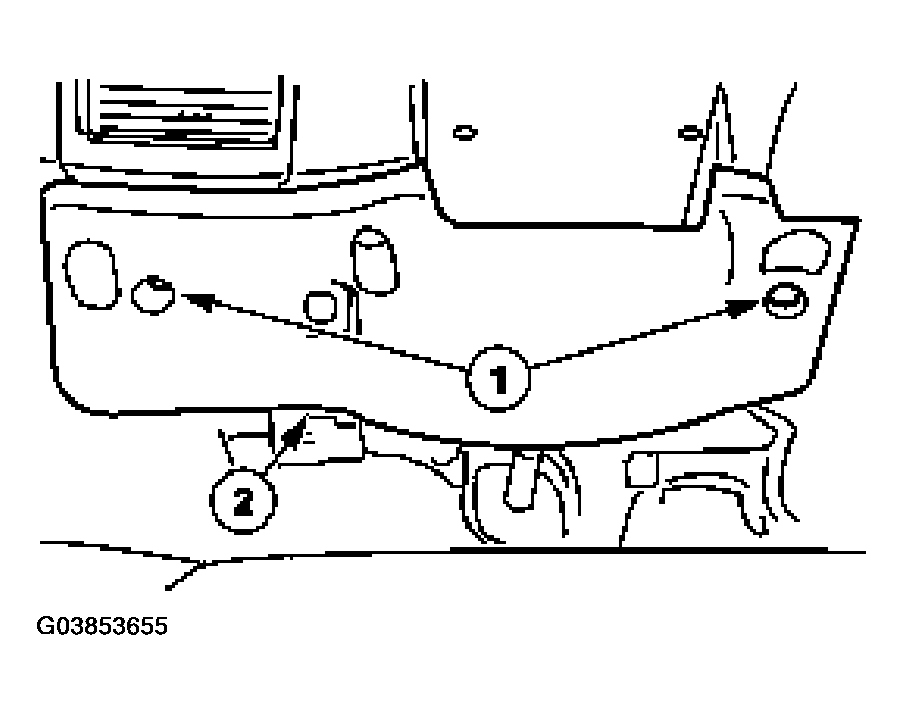

Fig 9: Removing Instrument Panel Steering Column Cover
Remove the instrument panel reinforcement.
1. Remove the screws.
2. Remove the instrument panel reinforcement.
Fig 10: Removing Instrument Panel Reinforcement

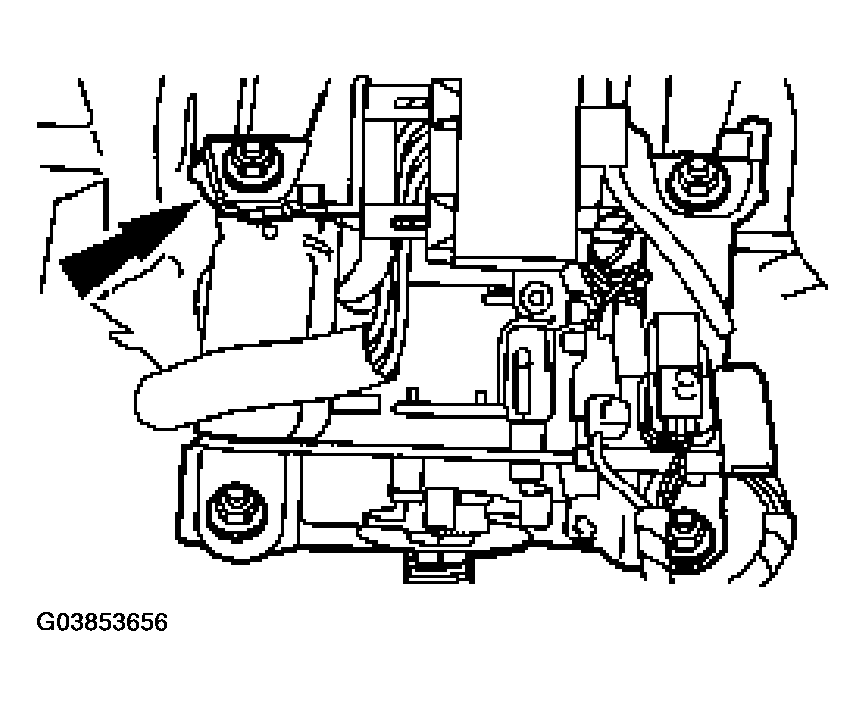

Remove the nuts and lower the steering column.

Fig 11: Removing Nuts And Lower Steering Column
Remove the screws from the brake shift interlock cable.

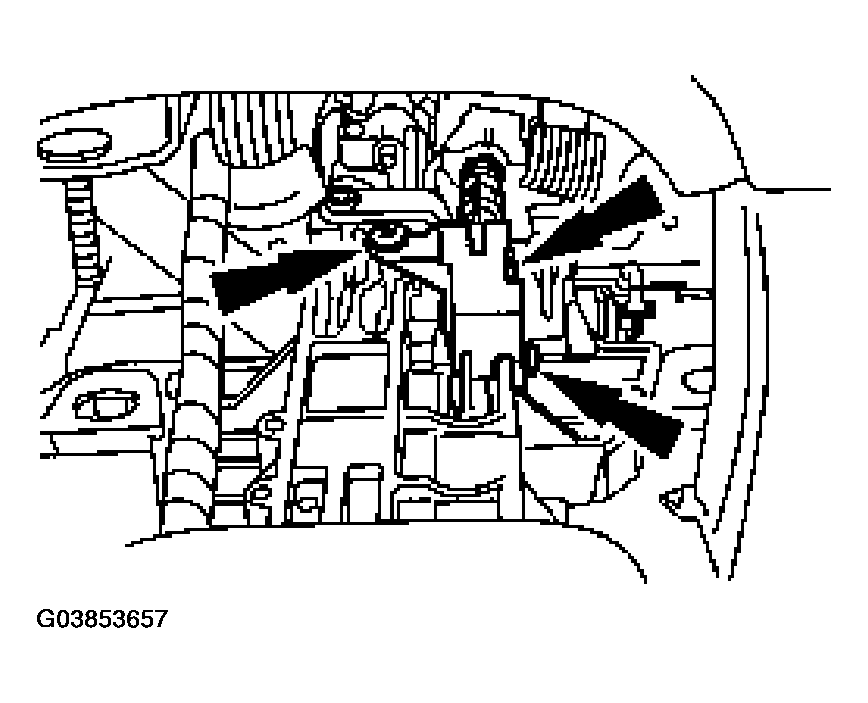

Fig 12: Removing Screws From Brake Shift Interlock Cable
Remove the brake shift cable interlock actuator.

Fig 13: Removing Brake Shift Cable Interlock Actuator
