Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative

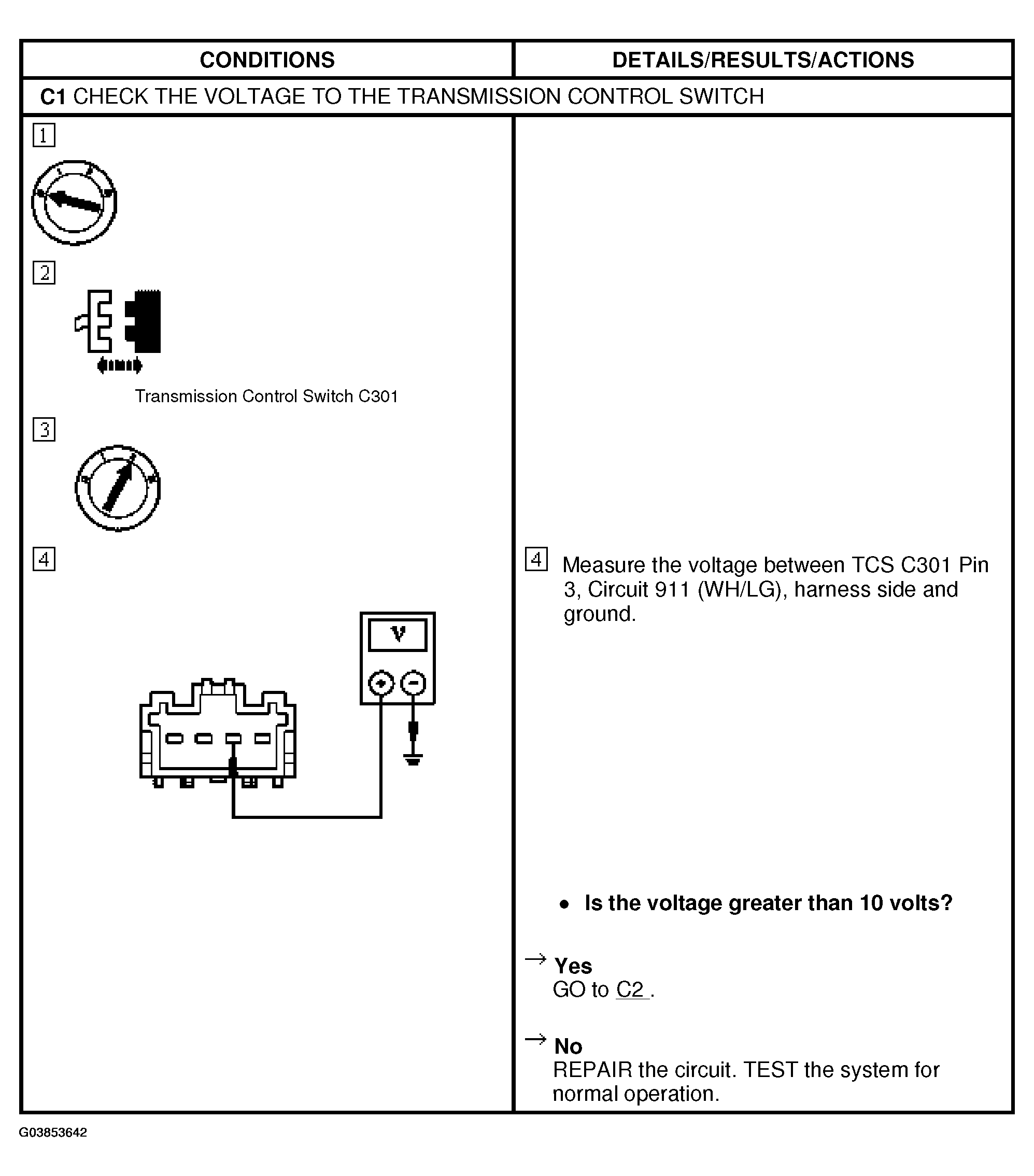

Fig 1: Pinpoint Test C Chart - Transmission Control Switch (TCS) Is Inoperative (C1)
G03853642

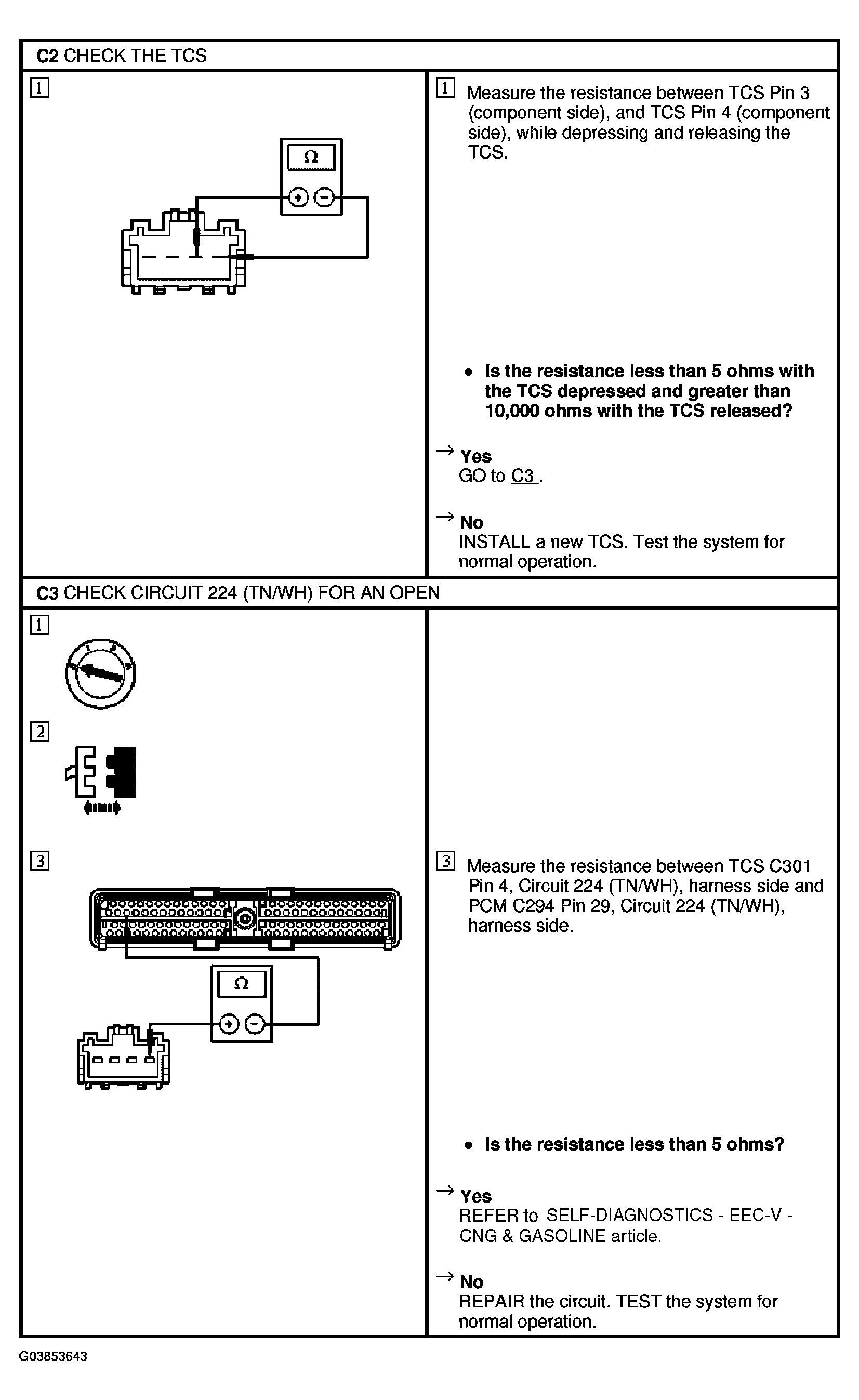

Fig 2: Pinpoint Test C Chart - Transmission Control Switch (TCS) Is Inoperative (C2 & C3)
G03853643
