Transmission Filler Tube: Removal

  1. Remove the bolt.

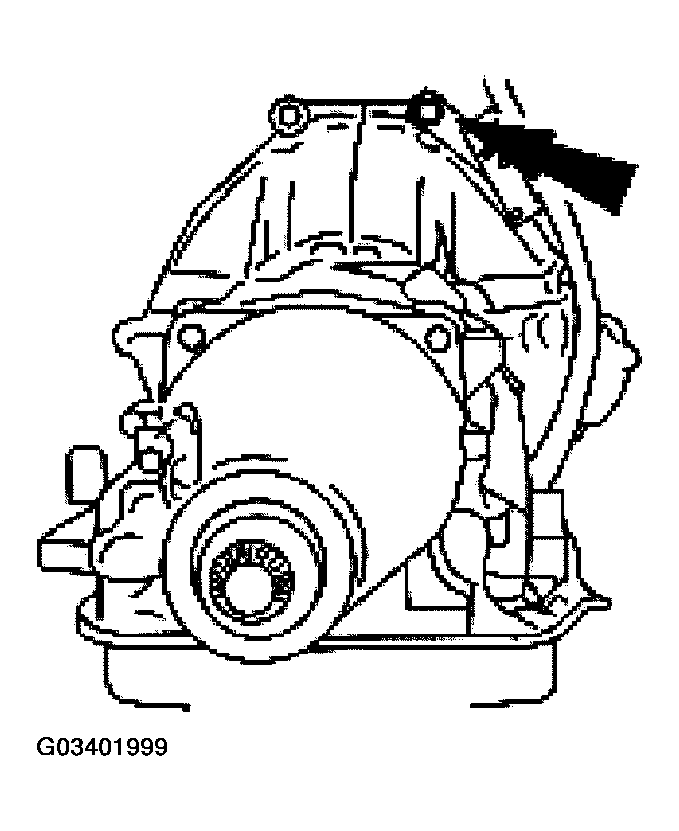

    Fig 1: Removing Transmission Filler Tube
    G03401999Courtesy of FORD MOTOR CO.
  2. Remove the fluid filler tube.

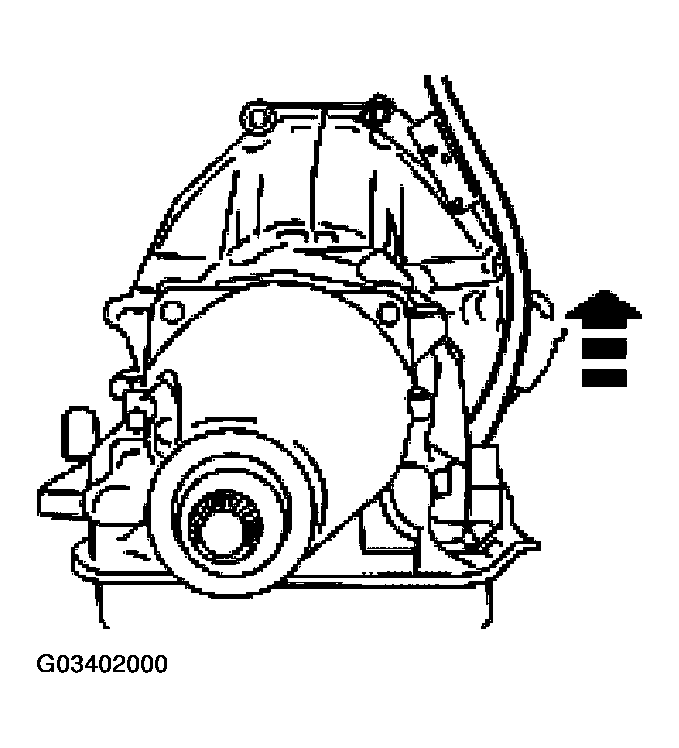

    Fig 2: Removing Fluid Filler Tube
    G03402000Courtesy of FORD MOTOR CO.
