Extension Housing Seal: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    2. NOTE: The output shaft and driveshaft are a balanced assembly.

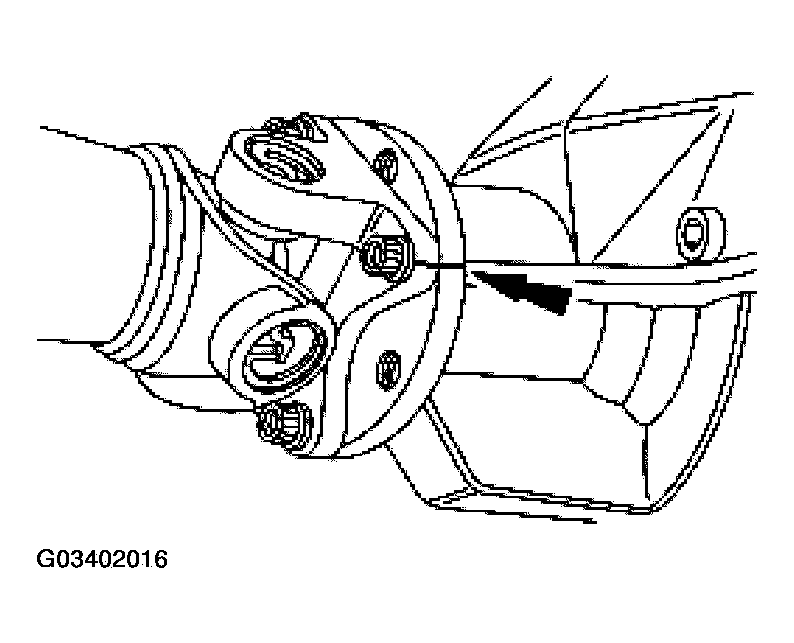

    Fig 1: Specification Material
    G03402016Courtesy of FORD MOTOR CO.
  2. Mark the driveshaft flange and the rear pinion flange for correct alignment during assembly.
  3. Remove the 4 driveshaft bolts.

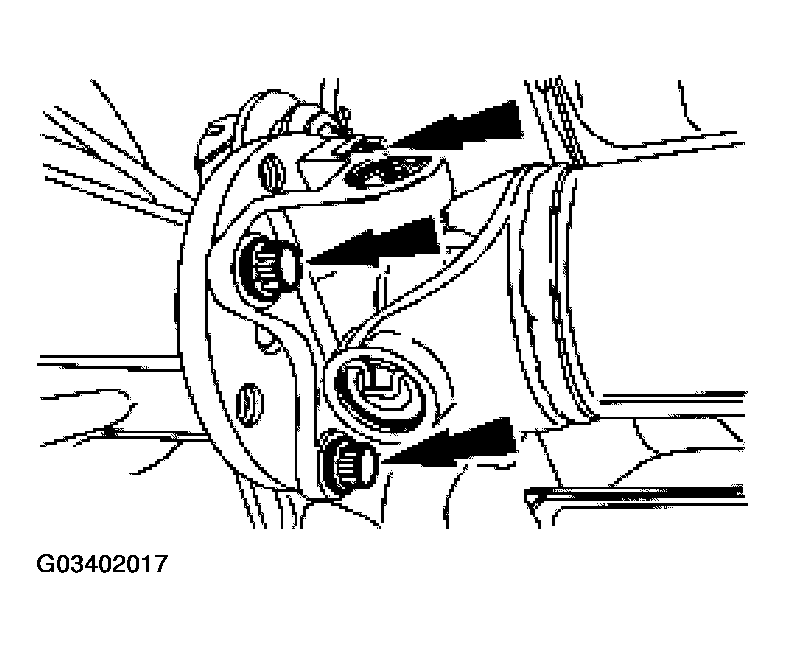

    Fig 2: Removing Driveshaft Bolts
    G03402017Courtesy of FORD MOTOR CO.
  4. Slide the driveshaft back enough to index-mark the driveshaft, the extension housing and the output shaft. Separate the driveshaft from the transmission.

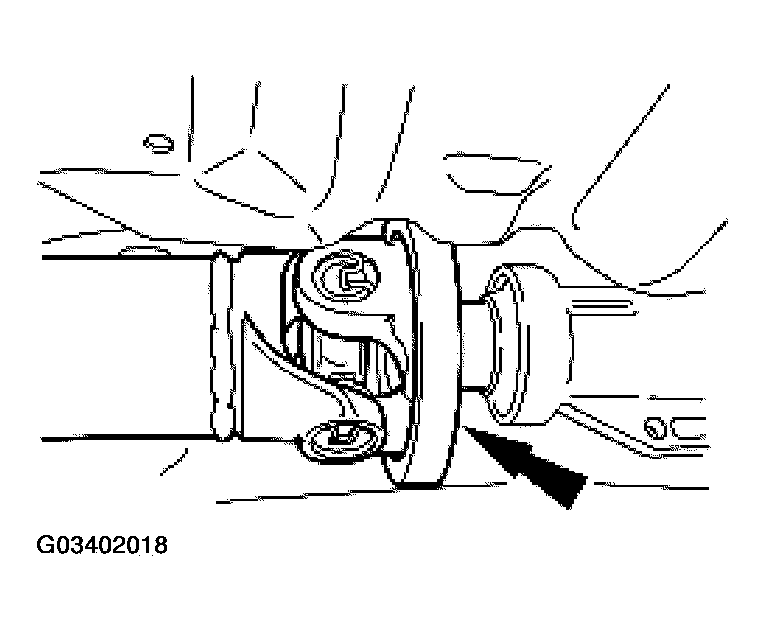

    Fig 3: Separating Driveshaft From Transmission
    G03402018Courtesy of FORD MOTOR CO.
  5. Using the special tools, remove the extension housing seal.

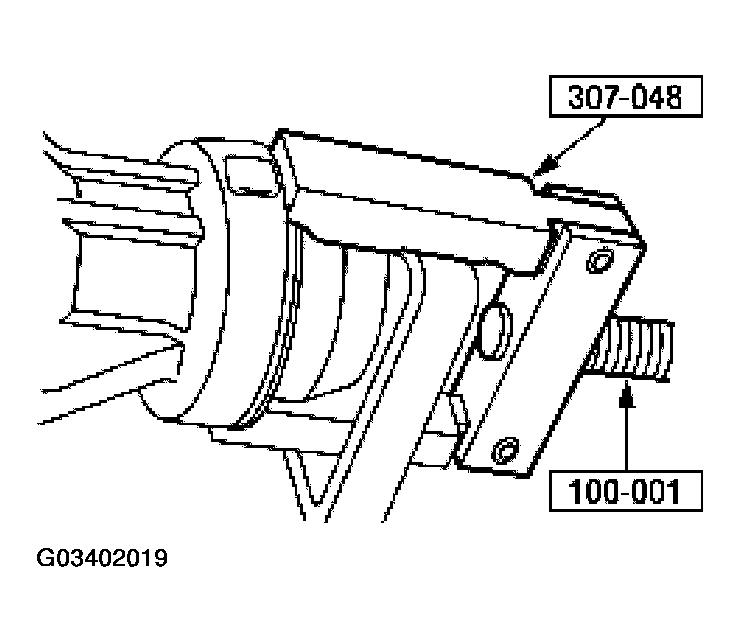

    Fig 4: Removing Extension Housing Seal
    G03402019Courtesy of FORD MOTOR CO.
