Disassembly and Assembly

NOTE: Inspect the outer and inner races for scores or damaged surface areas where rollers contact the races. Inspect the rollers and springs for excessive wear or damage. Inspect the spring and cage for bent or damaged spring retainers.

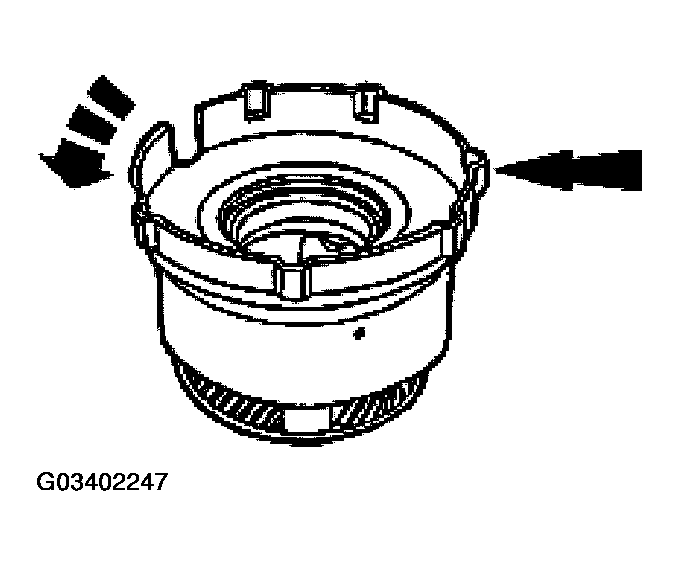

Fig 1: Rotating Center Support Counterclockwise

Courtesy of FORD MOTOR CO.

Rotate the center support counterclockwise and lift to remove the planetary gear support.
Remove the planetary one-way clutch.

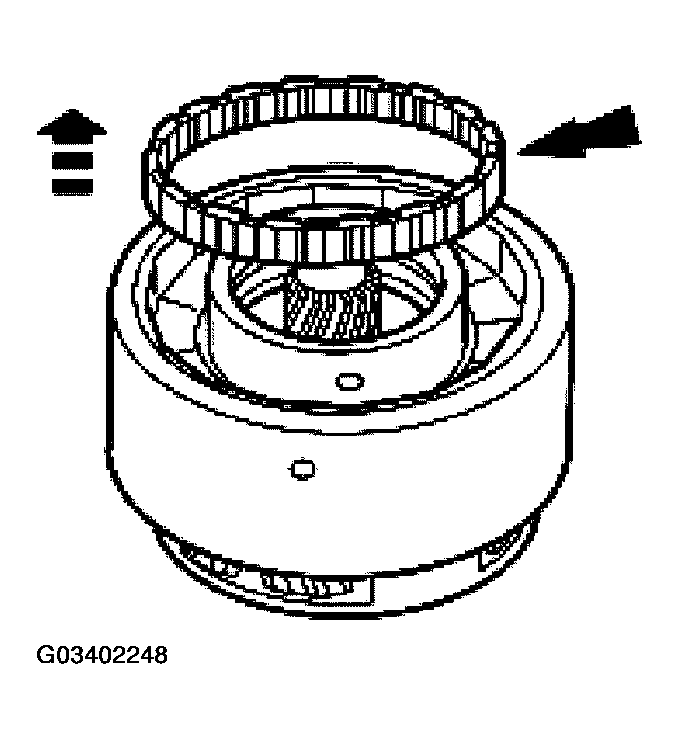

Fig 2: Removing Planetary One-Way Clutch
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
