4R70W Automatic Transmission - Disassembled View

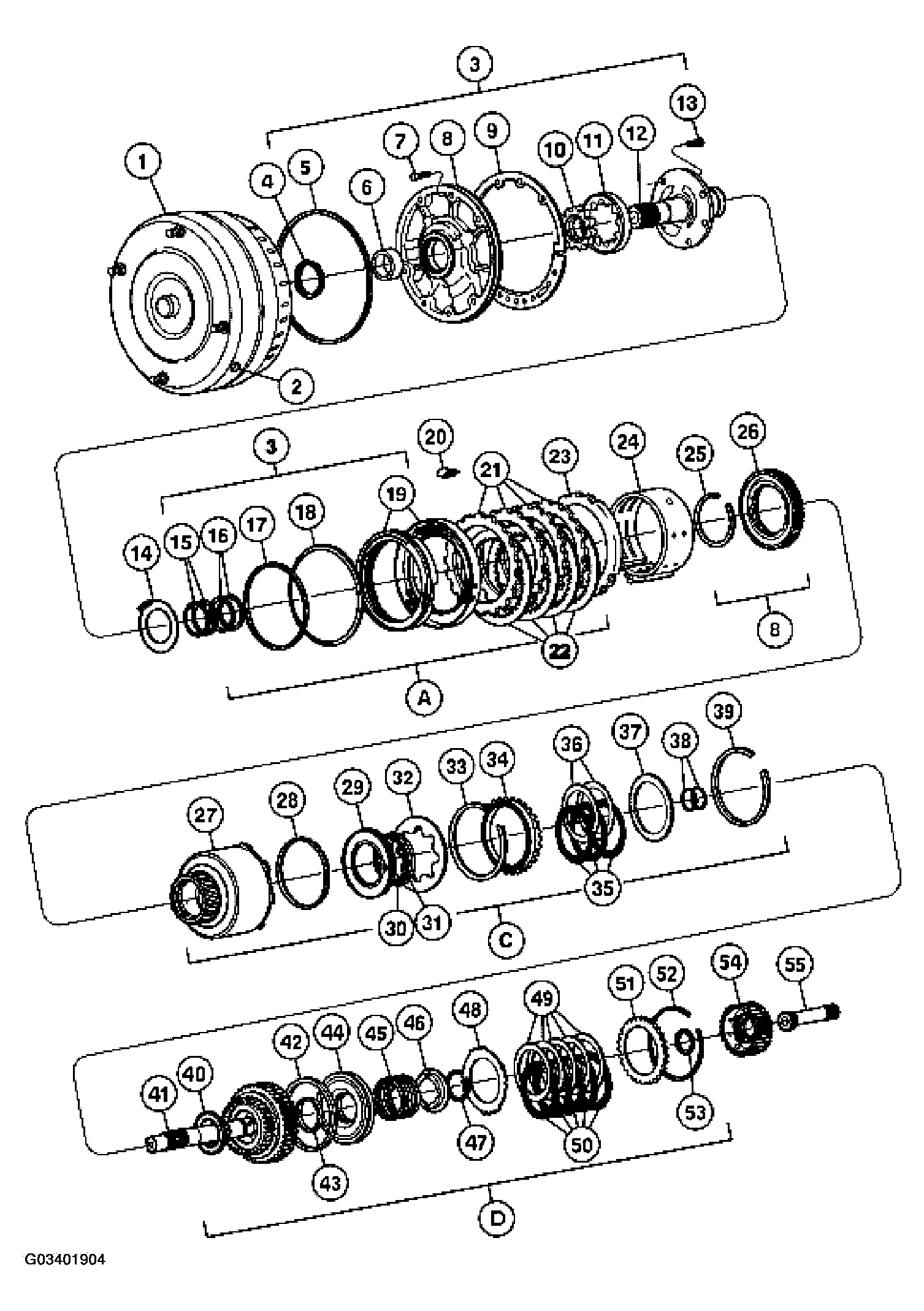

Fig 1: View Of Transmission Components (1 Of 7)

Courtesy of FORD MOTOR CO.

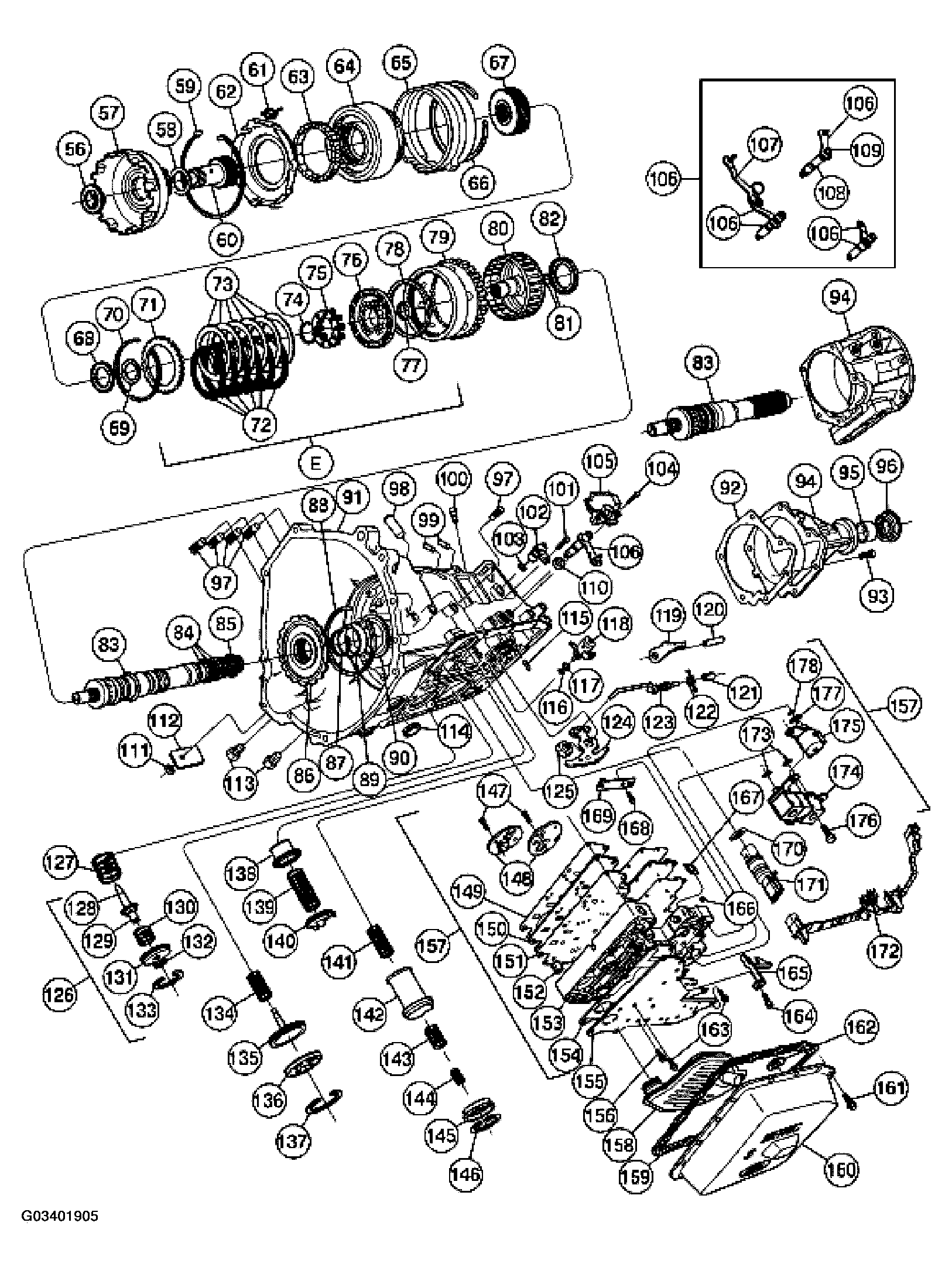

Fig 2: View Of Transmission Components (2 Of 7)

Courtesy of FORD MOTOR CO.

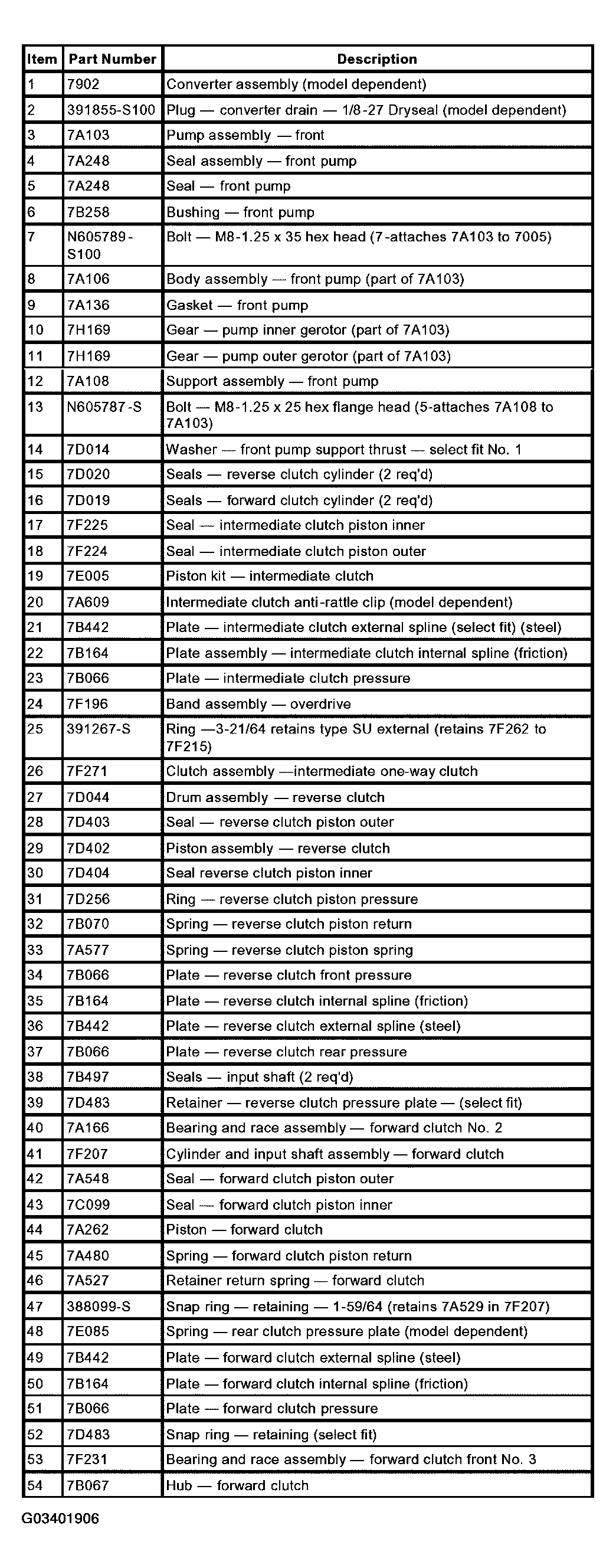

Fig 3: View Of Transmission Components (3 Of 7)

Courtesy of FORD MOTOR CO.

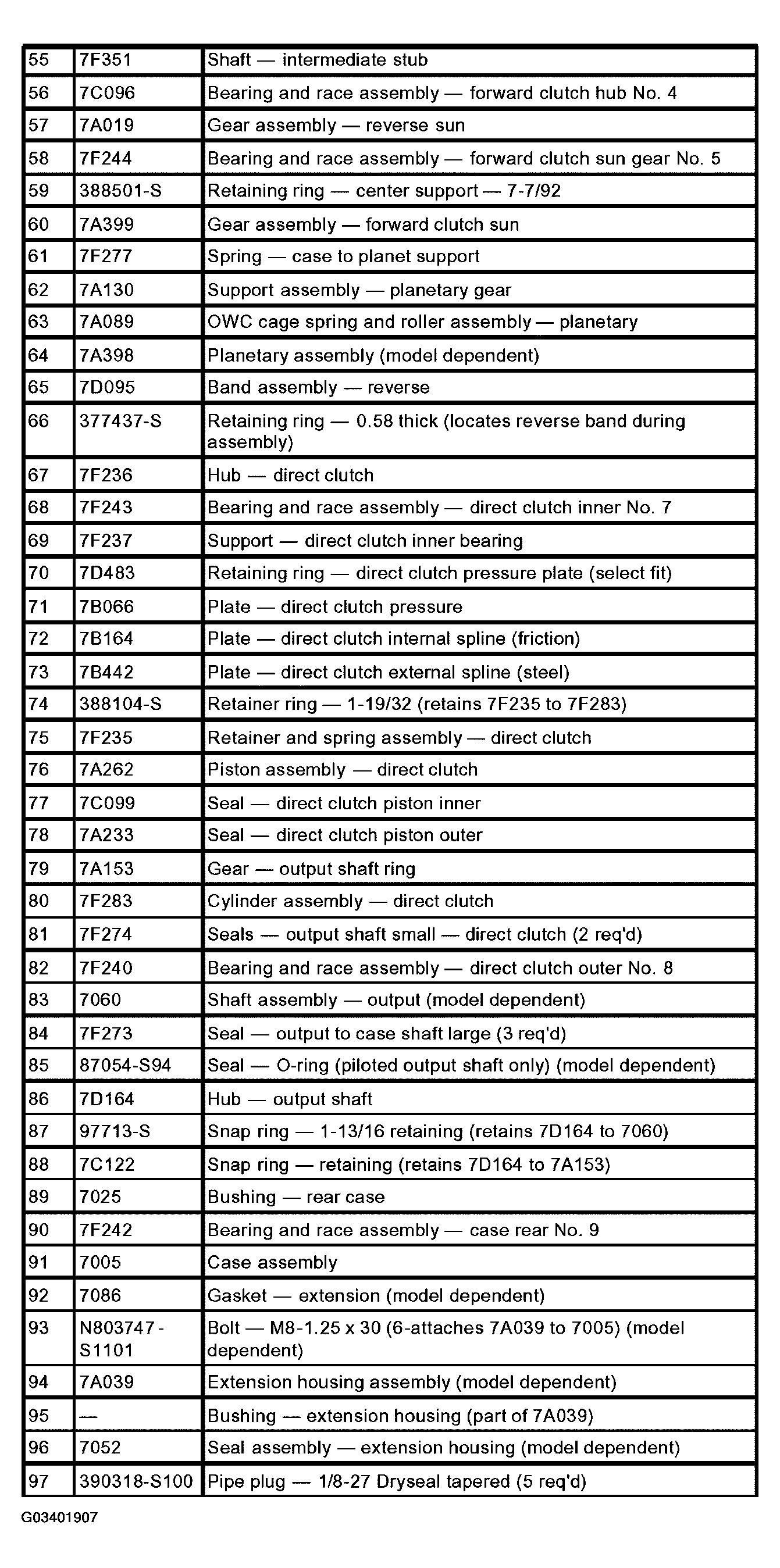

Fig 4: View Of Transmission Components (4 Of 7)

Courtesy of FORD MOTOR CO.

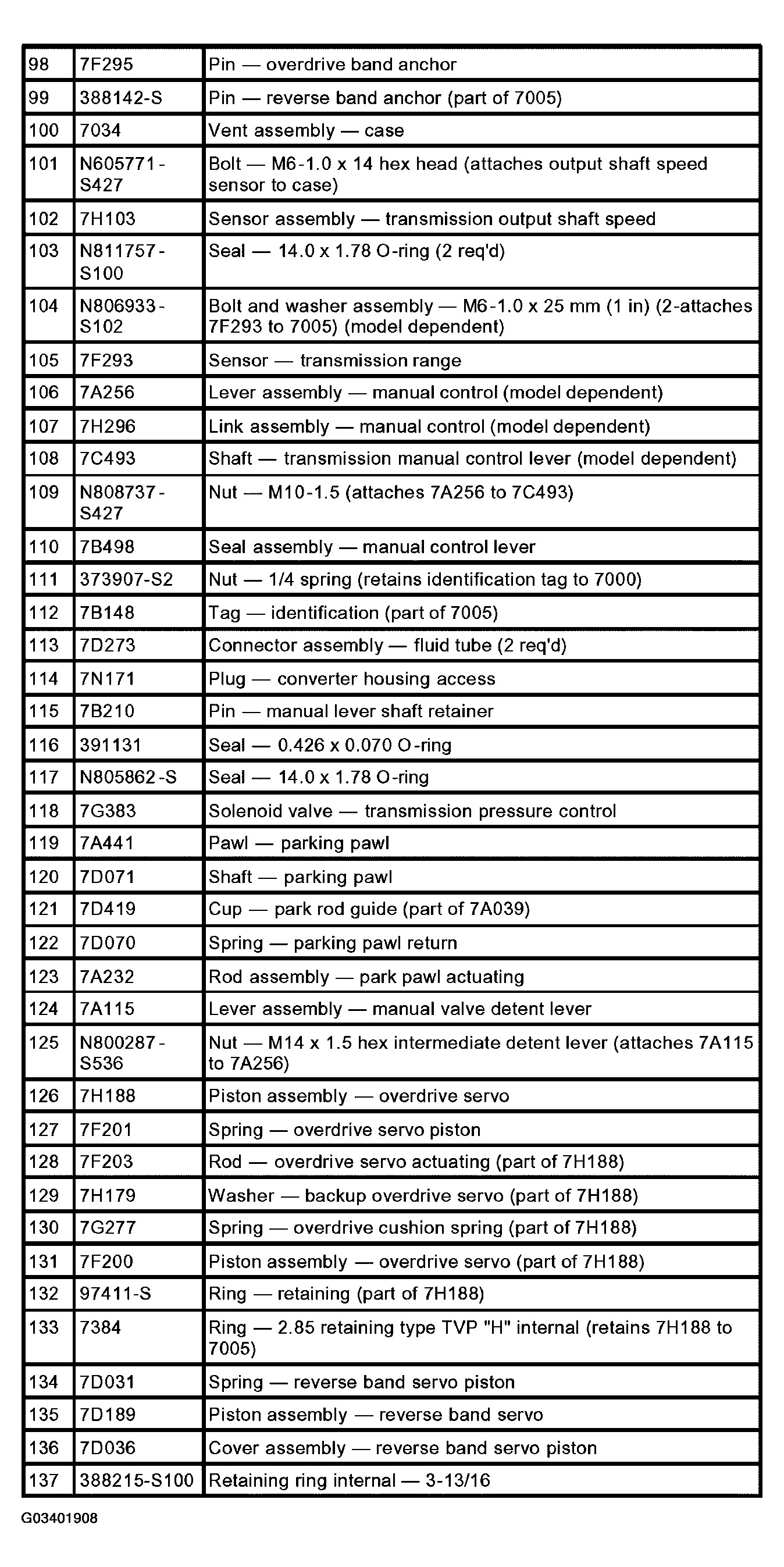

Fig 5: View Of Transmission Components (5 Of 7)

Courtesy of FORD MOTOR CO.

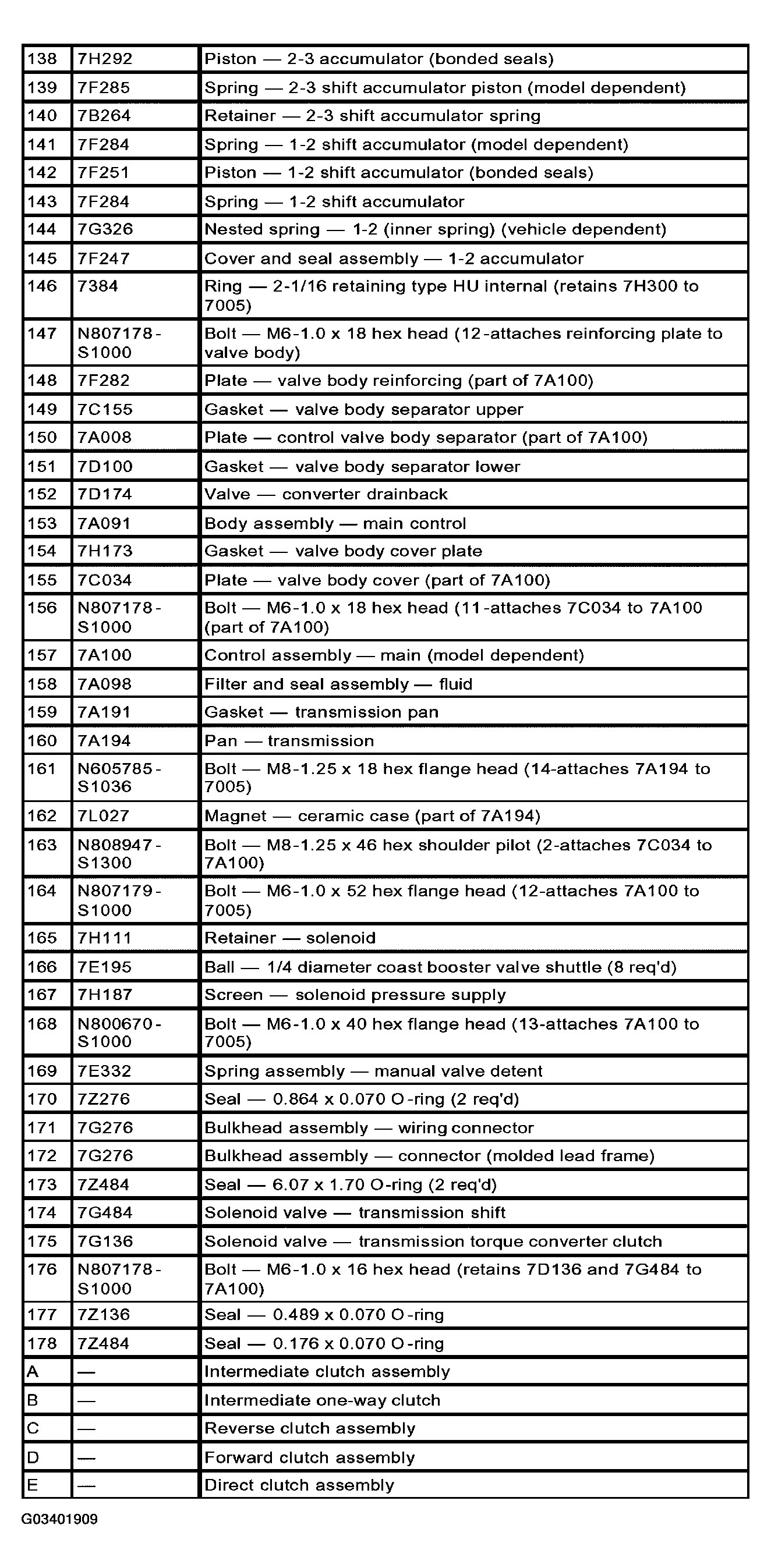

Fig 6: View Of Transmission Components (6 Of 7)

Courtesy of FORD MOTOR CO.
