Apply Components: Clutch-Forward

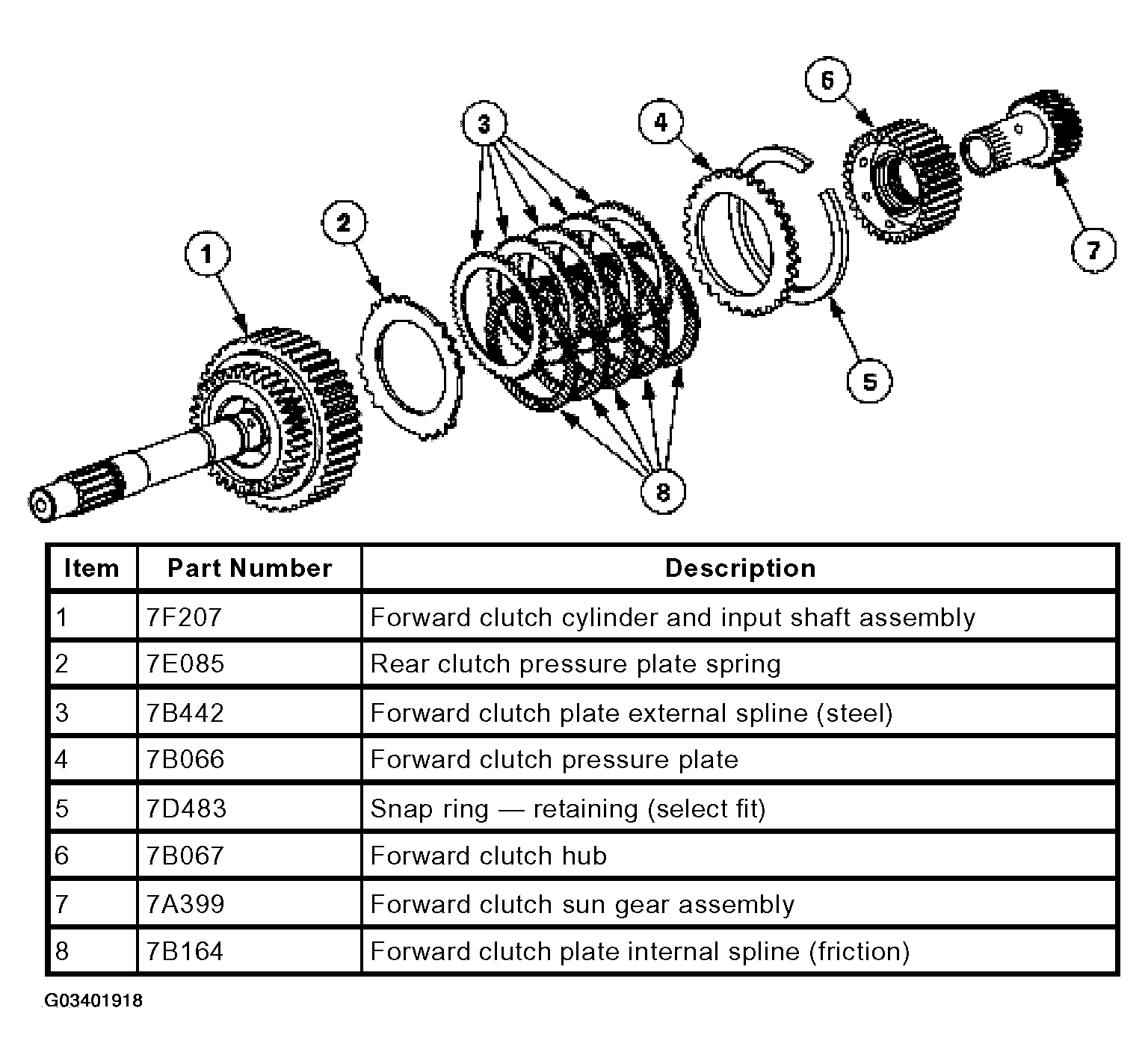

Fig 1: Identifying Clutch Forward
G03401918Courtesy of FORD MOTOR CO.

The forward clutch couples the forward clutch cylinder and input shaft to the forward sun gear in first, second, and third gears. The forward clutch is not applied in fourth gear.
