DTC C1155: Left Front Wheel Speed Input Circuit Failure

  1. Turn ignition off. Disconnect 30-pin ABS control module connector. Turn ignition on. Using DVOM, measure voltage between ABS control module connector terminal No. 20 (Tan/Orange wire) and ground. See WIRING DIAGRAMS . If voltage is present, repair short to power in Tan/Orange wire. Clear DTCs. Repeat self-test. If no voltage is present, go to next step.
  2. Turn ignition off. Measure resistance between ABS control module connector terminal No. 20 (Tan/Orange wire) and ground. If resistance is less than 10 k/ohms, go to next step. If resistance is more than 10 k/ohms, go to step 4)  .

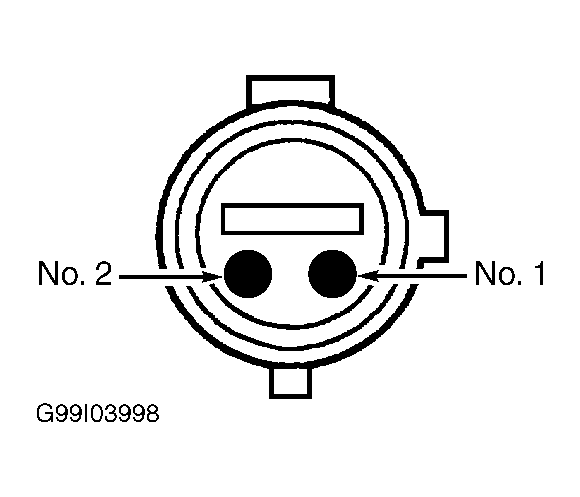

  3. Disconnect left front ABS sensor connector. Measure resistance between sensor connector terminal No. 1 harness side and ground. See Figure. If resistance is less than 10 k/ohms, replace sensor. Clear DTCs. Repeat self-test. If resistance is more than 10 k/ohms, repair Tan/Orange and/or Tan/Black wire. Clear DTCs. Repeat self-test.
  4. Turn ignition off. Measure resistance of Tan/Orange wire between ABS control module connector and ABS wheel speed sensor connector sensor. Measure resistance of Tan/Black wire between ABS control module connector and ABS wheel speed sensor connector. If resistances are less than 5 ohms, go to next step. If resistances are less than 5 ohms, repair Tan/Orange and/or Tan/Black wire. Clear DTCs. Repeat self-test.
  5. Measure resistance across wheel speed sensor connector terminals. If resistance is 1280-1920 ohms, replace ABS control module. Repeat self-test. If resistance is not 1280-1920 ohms, replace wheel speed sensor. Clear DTCs. Repeat self test.
