Stall Speed Chart

NOTE: Prior to using this chart, you should check the transmission identification tag. Some early built units will use a different specification.

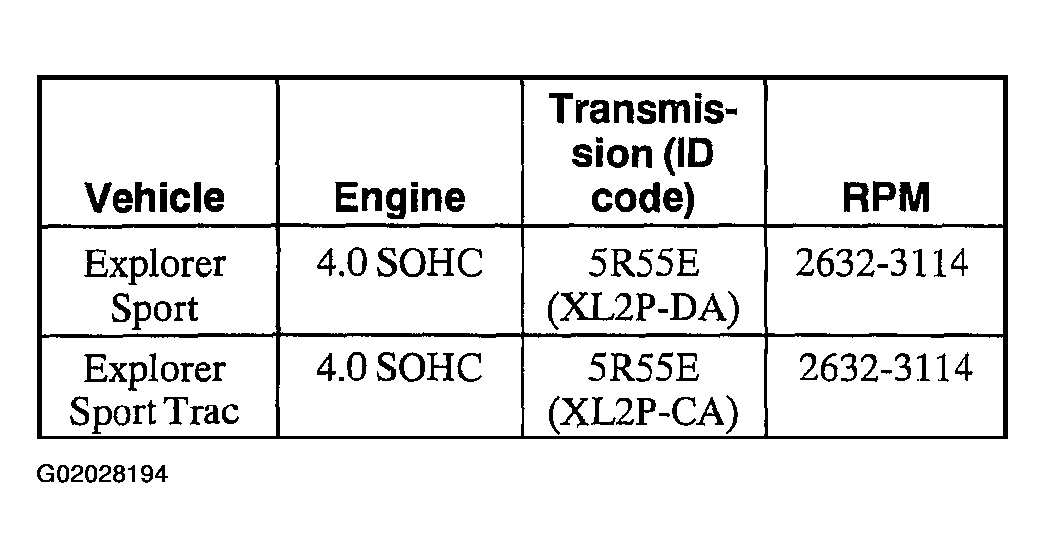

Fig 1: Stall Speed Chart (1 Of 2)
G02028194
Fig 2: Stall Speed Chart (2 Of 2)
G02028195
