End Play Specifications

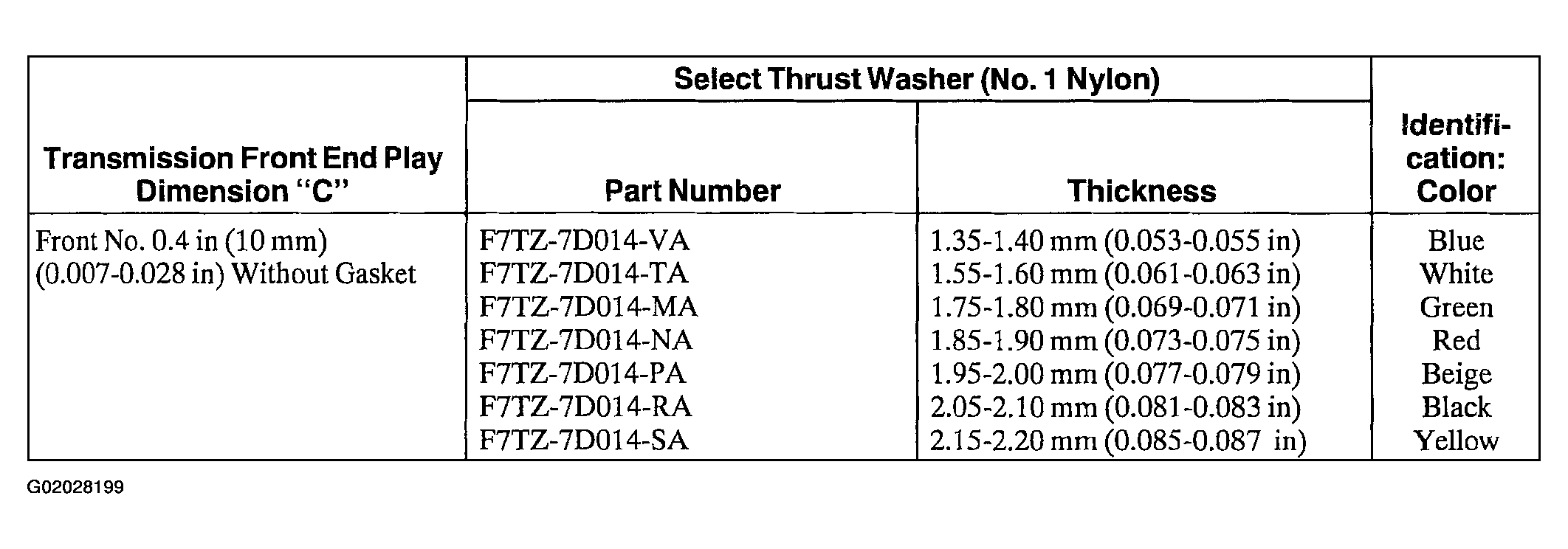

Fig 1: End Play Specifications - Transmission Front End Play Dimension C

G02028199

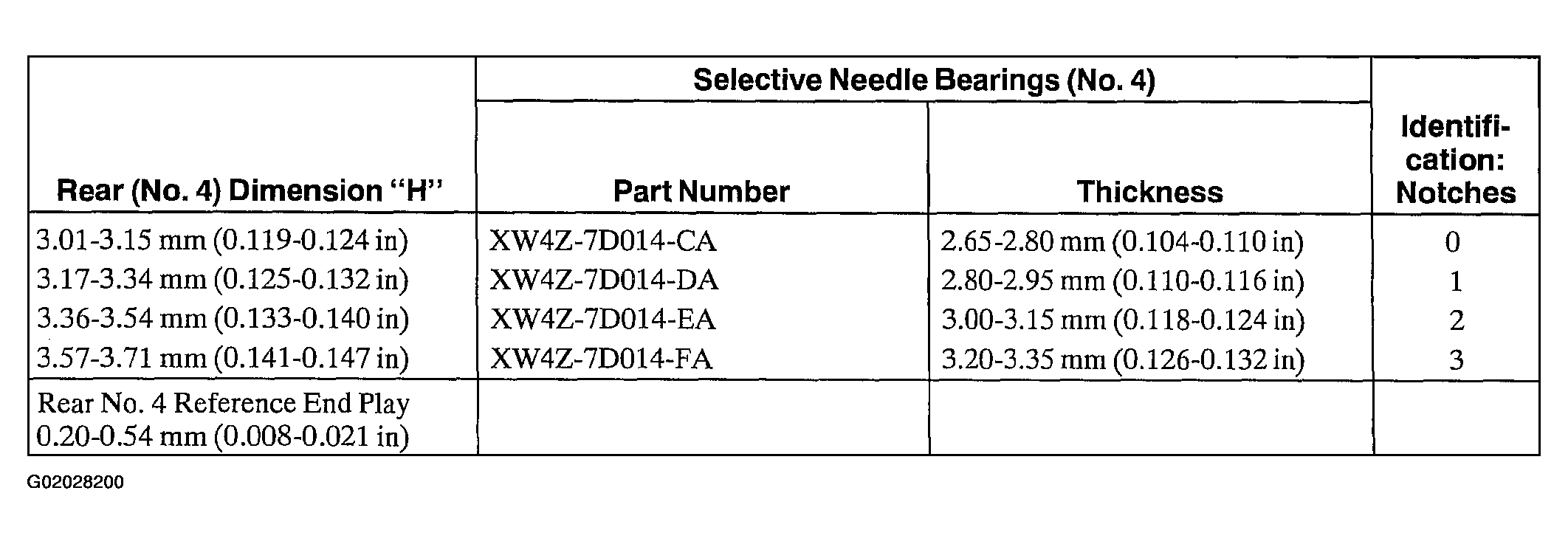

Fig 2: End Play Specifications - Rear (No. 4) Dimension H

G02028200

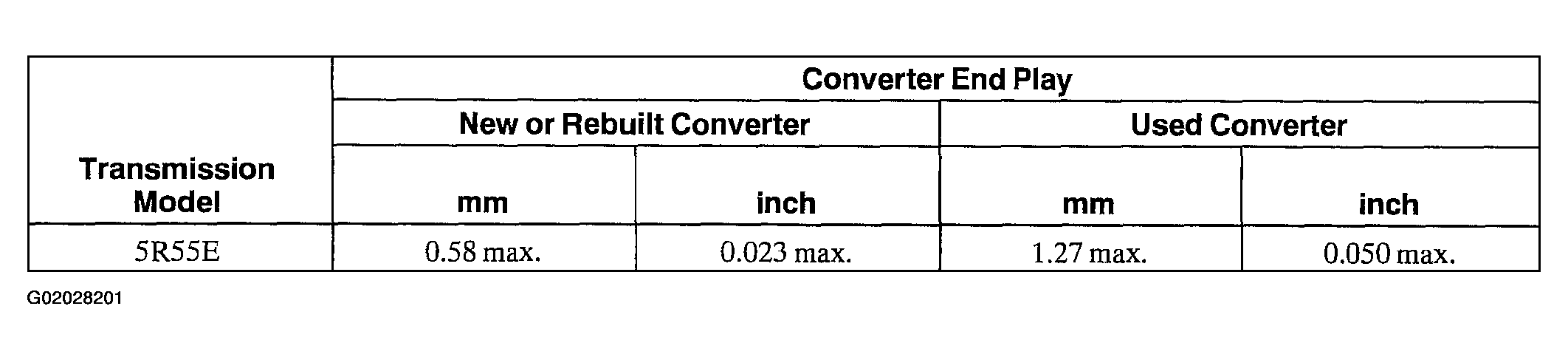

Fig 3: Torque Converter End Play

G02028201
