Main Control Valve Body: Disassembly

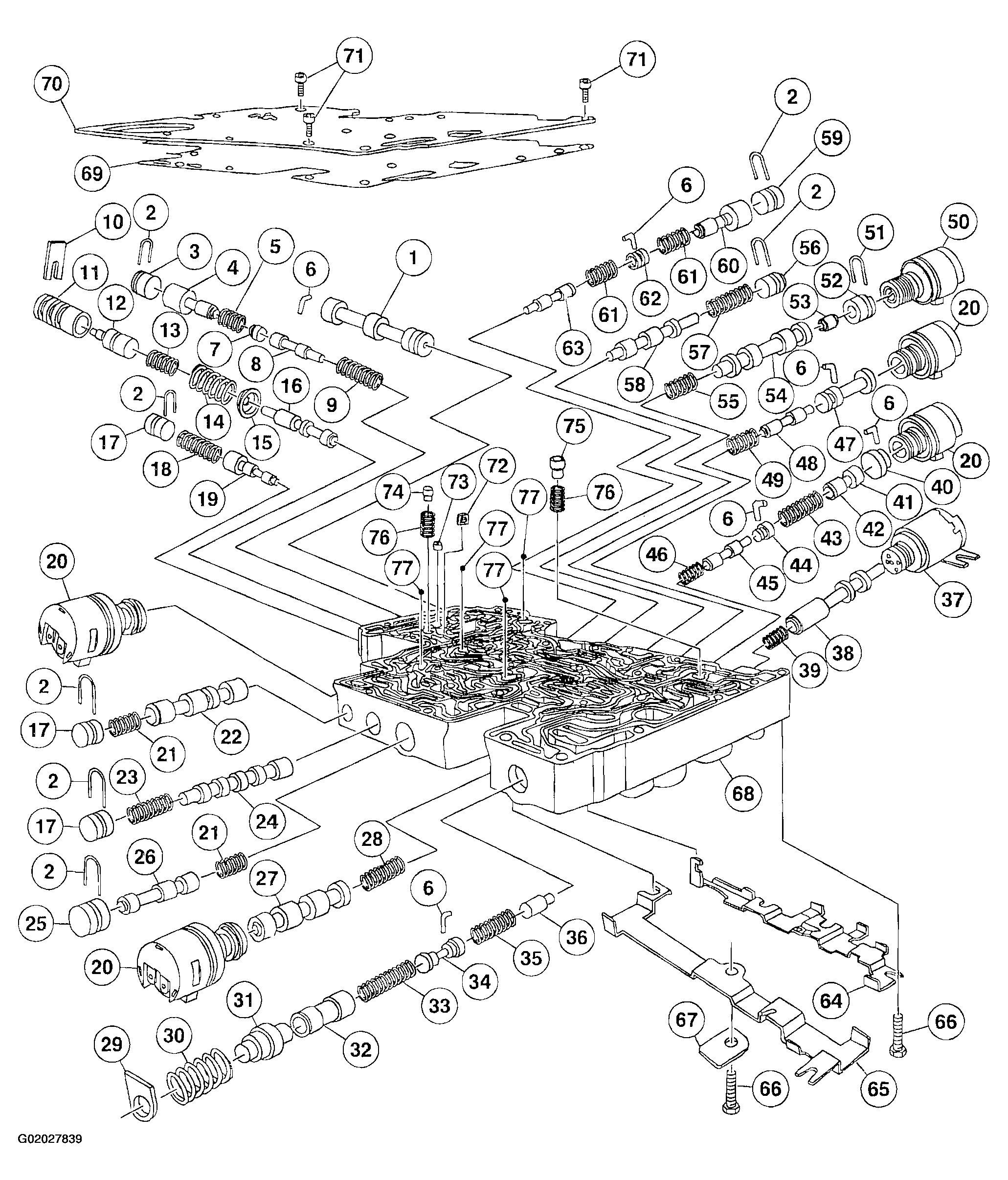

Fig 1: Exploded View Of Main Control Valve Body (1 Of 2)
G02027839

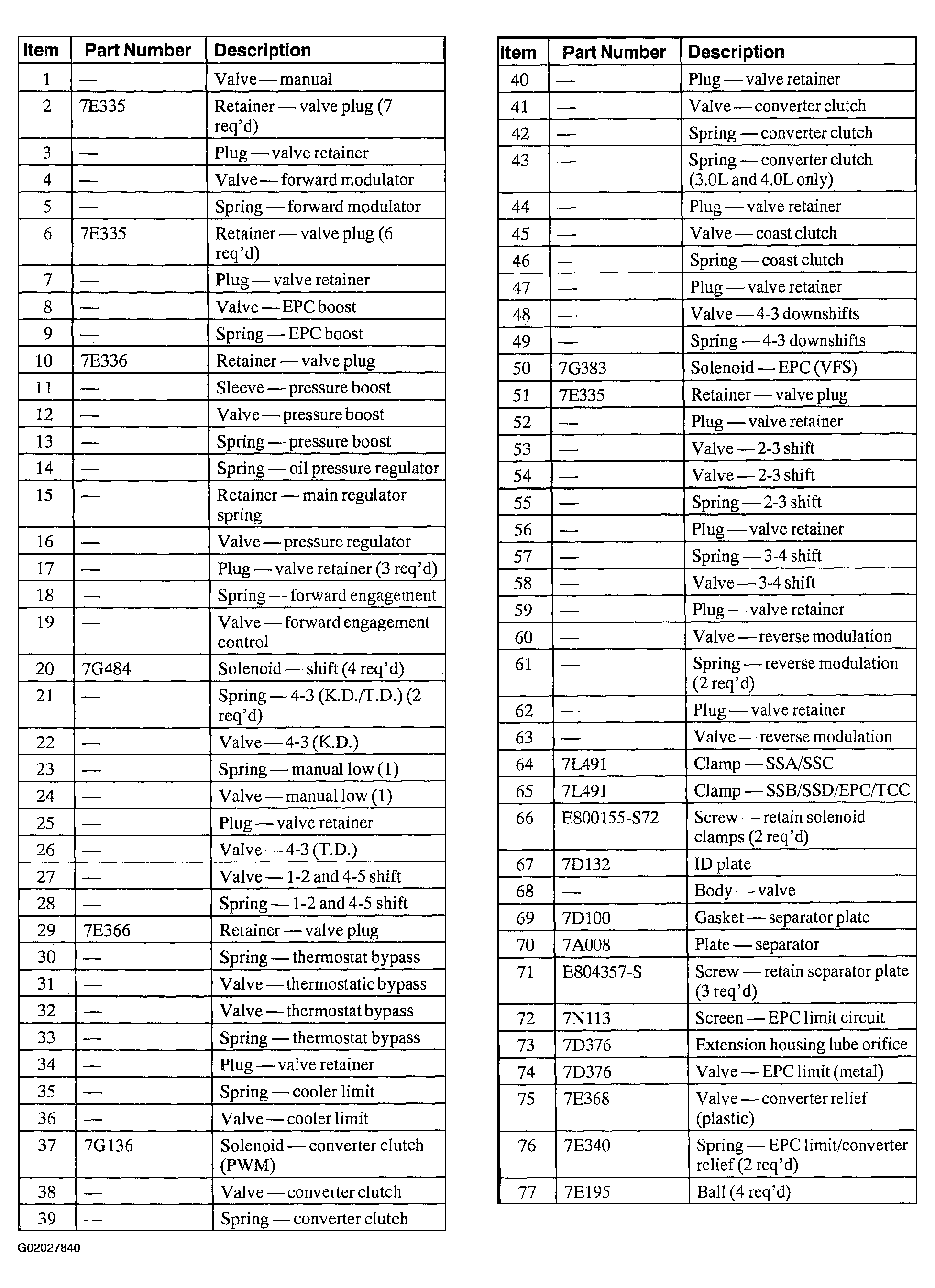

Fig 2: Exploded View Of Main Control Valve Body (2 Of 2)
G02027840
CAUTION: The SSC solenoid may pop out of its bore. This may damage the solenoid.
  1. Remove the SSA and the SSC clamp and SSA and SSC solenoid.
    1. Remove the solenoid clamp screw.
    2. Remove the solenoid clamp.
    3. Remove the SSA and SSC solenoids.

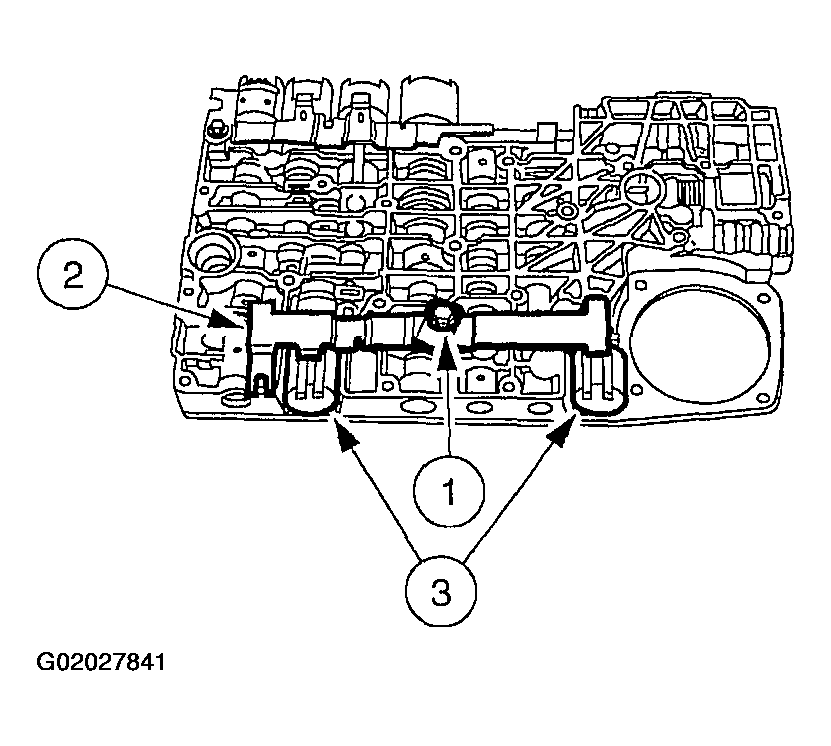

    Fig 3: Removing SSA & SSC Solenoids
    G02027841
    2. CAUTION: The torque converter clutch solenoid (TCC) solenoid map pop out of its bore. This may damage the solenoid.
    CAUTION: The converter modulator valve may come out after the TCC solenoid. This may cause damage to the valve.

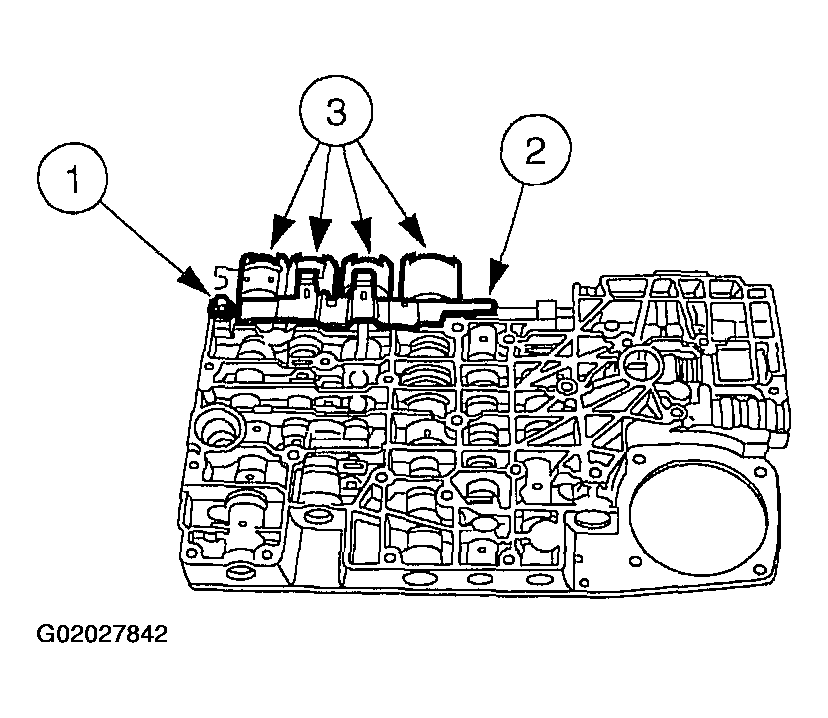

    Fig 4: Removing SSB, SSD, Torque Converter Clutch Solenoid & EPC Solenoids
    G02027842
  2. Remove the SSB, SSD, torque converter clutch solenoid, and the EPC solenoid.
    1. Remove the solenoid clamp screw.
    2. Remove the solenoid clamp.
    3. Remove the SSB, SSD, torque converter clutch solenoid and the EPC solenoids.
  3. Rotate the main control valve body so that the main control to case gasket is facing up.
    4. CAUTION: Valves may come out when rotating the main control valve body.
    CAUTION: The extension housing lube orifice and relief valves may stick to the separator plate.
    NOTE: Discard the main control to case gasket.
    Fig 5: Removing Valve Body Separator Plate Screws
    G02027843
  4. Remove the valve body separator plate screws.
    1. Remove the main control to case gasket and discard.
    2. Remove the valve body separator plate screws.
  5. Remove valve body separator plate and main control to separating plate gasket.
    1. Remove valve body separator plate.
    2. Remove main control to separator plate gasket and discard.

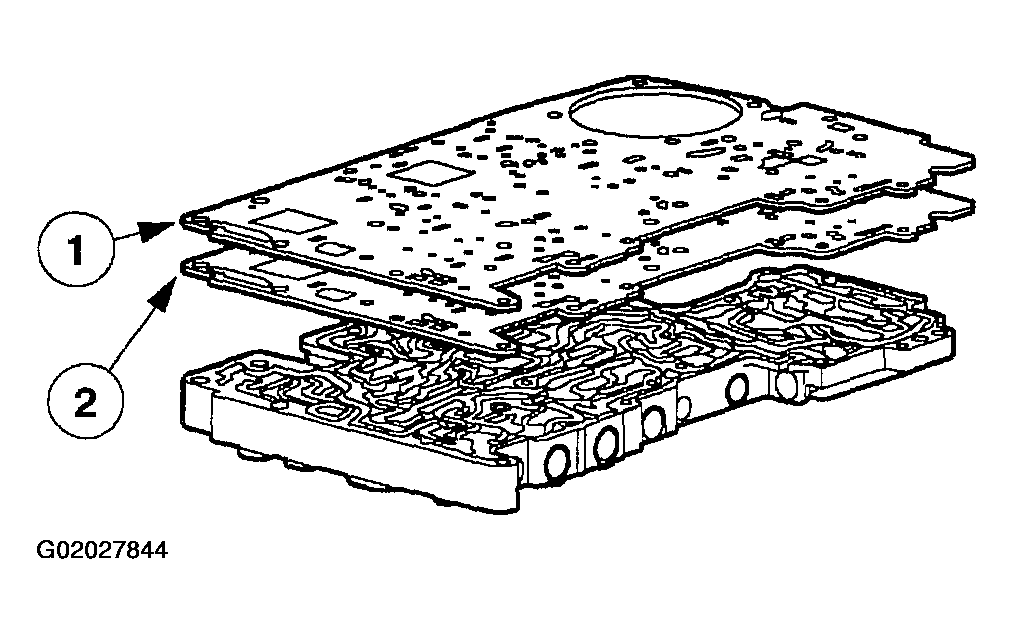

    Fig 6: Removing Valve Body Separator Plate & Main Control
    G02027844
  6. Remove the extension housing lube orifice and the metal silver electronic pressure control (EPC) limit relief valve and spring.
    1. Remove the extension housing lube orifice.
    2. Remove the silver metal EPC limit relief valve and spring.

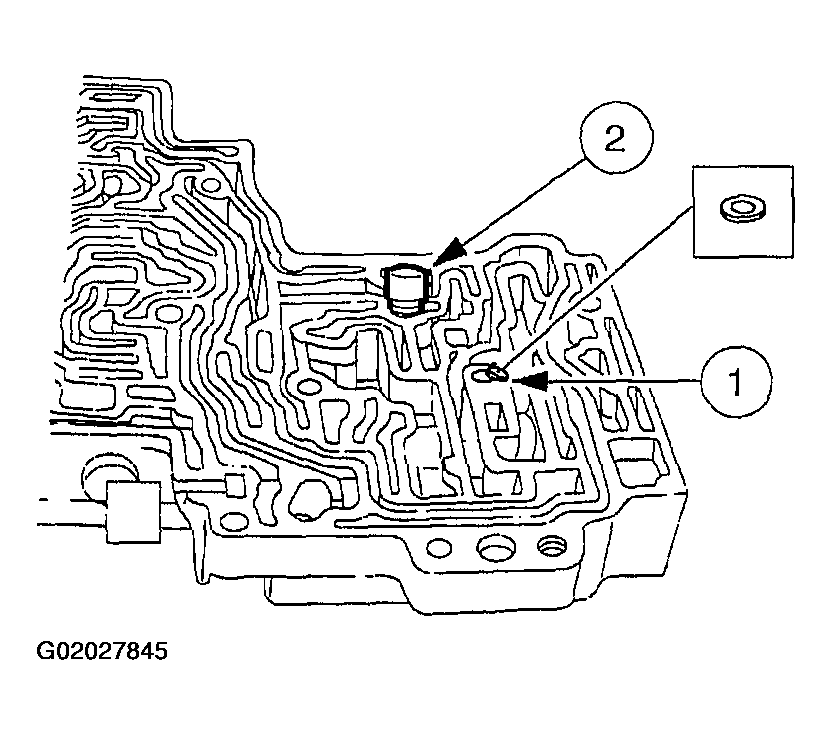

    Fig 7: Removing Extension Housing Lube Orifice & Metal Silver Electronic Pressure Control (EPC) Limit Relief Valve & Spring
    G02027845
  7. Remove the black plastic converter relief valve and spring.
    Fig 8: Removing Black Plastic Converter Relief Valve & Spring
    G02027846
  8. Remove the electronic pressure control (EPC) limit circuit screen.
    Fig 9: Removing Pressure Control (EPC) Limit Circuit Screen
    G02027847
  9. Remove the four main control valve body check balls.
Fig 10: Removing Four Main Control Valve Body Check Balls
G02027848
