Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 9 .
COMPONENT LOCATIONS

Component Location
Anti-Lock Brake System Module Left Rear Side Of Engine Compartment
Central Junction Box Behind Left Side Of Instrument Panel
Central Security Module Behind Right Side Of Instrument Panel
Data Link Connector Below Driver's Side Of Instrument Panel, To Right Of Steering Column
Generic Electronic Module Behind Center Of Instrument Panel
Passive Anti-Theft System Transceiver Module Behind Right Side Of Instrument Panel
Powertrain Control Module Center Rear Of Engine Compartment
Remote Anti-Theft Personality Module (Explorer Sport) Behind Left Rear Quarter Panel
Remote Anti-Theft Personality Module (Explorer Sport Trac) Behind Left Side Of Rear Window
Restraints Control Module Center Console, Below Instrument Panel
4WD Control Module Behind Right Kick Panel

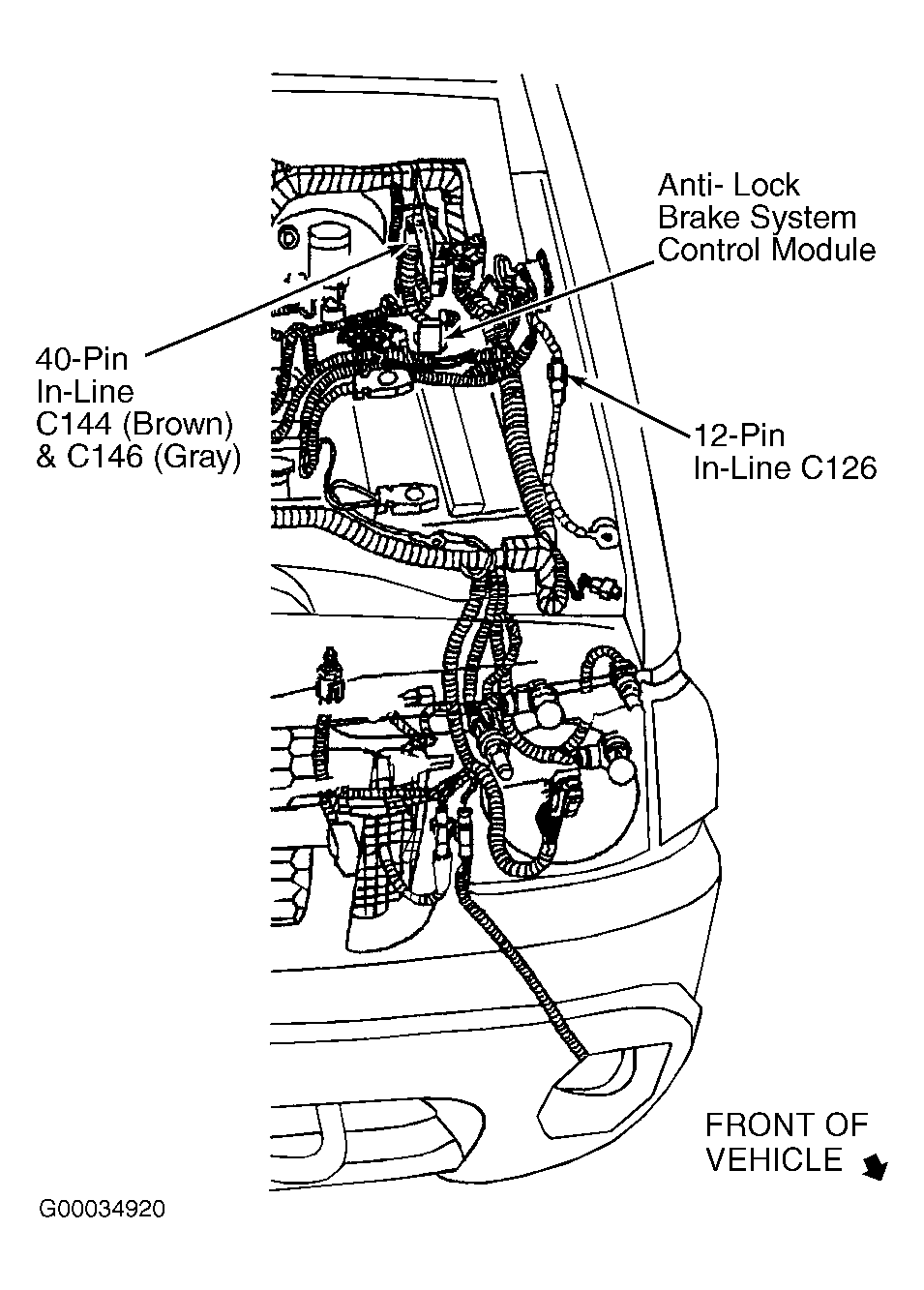

Fig 1: Locating Anti-Lock Brake System Control Module & In-Line Connector
G00034920Courtesy of FORD MOTOR CO.

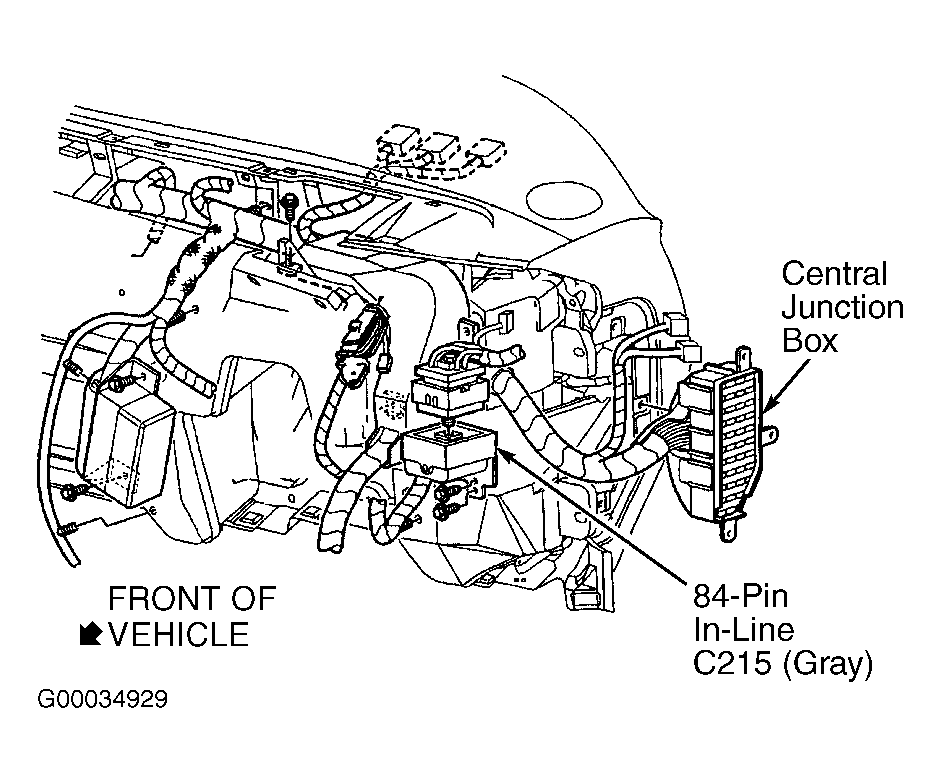

Fig 2: Locating Central Junction Box & In-Line Connector
G00034929Courtesy of FORD MOTOR CO.
Fig 3: Locating Central Security & Passive Anti-Theft Transceiver Module Harness Connectors
G00034921Courtesy of FORD MOTOR CO.

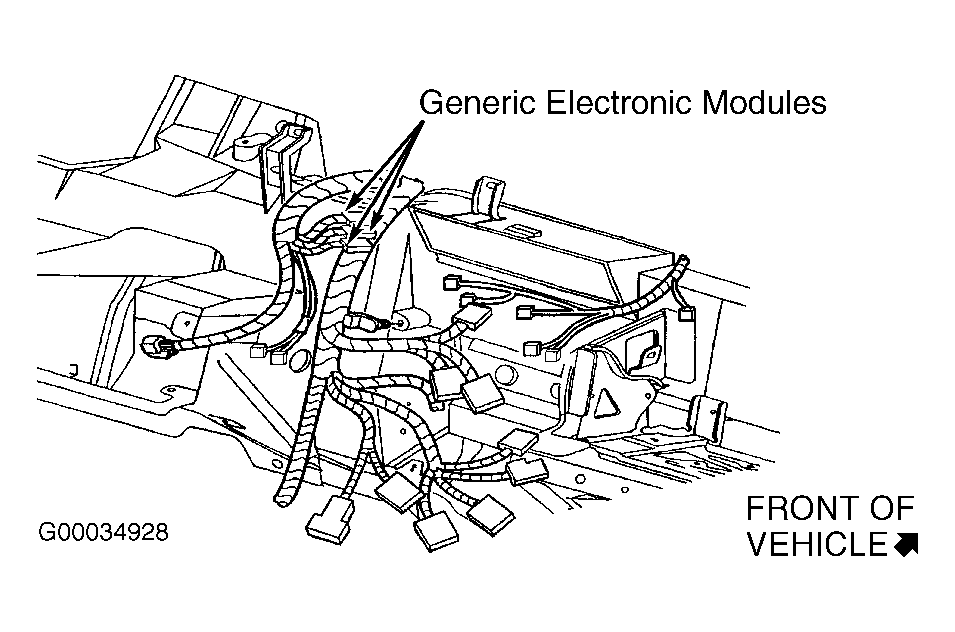

Fig 4: Locating Generic Electronic Module Harness Connectors
G00034928Courtesy of FORD MOTOR CO.

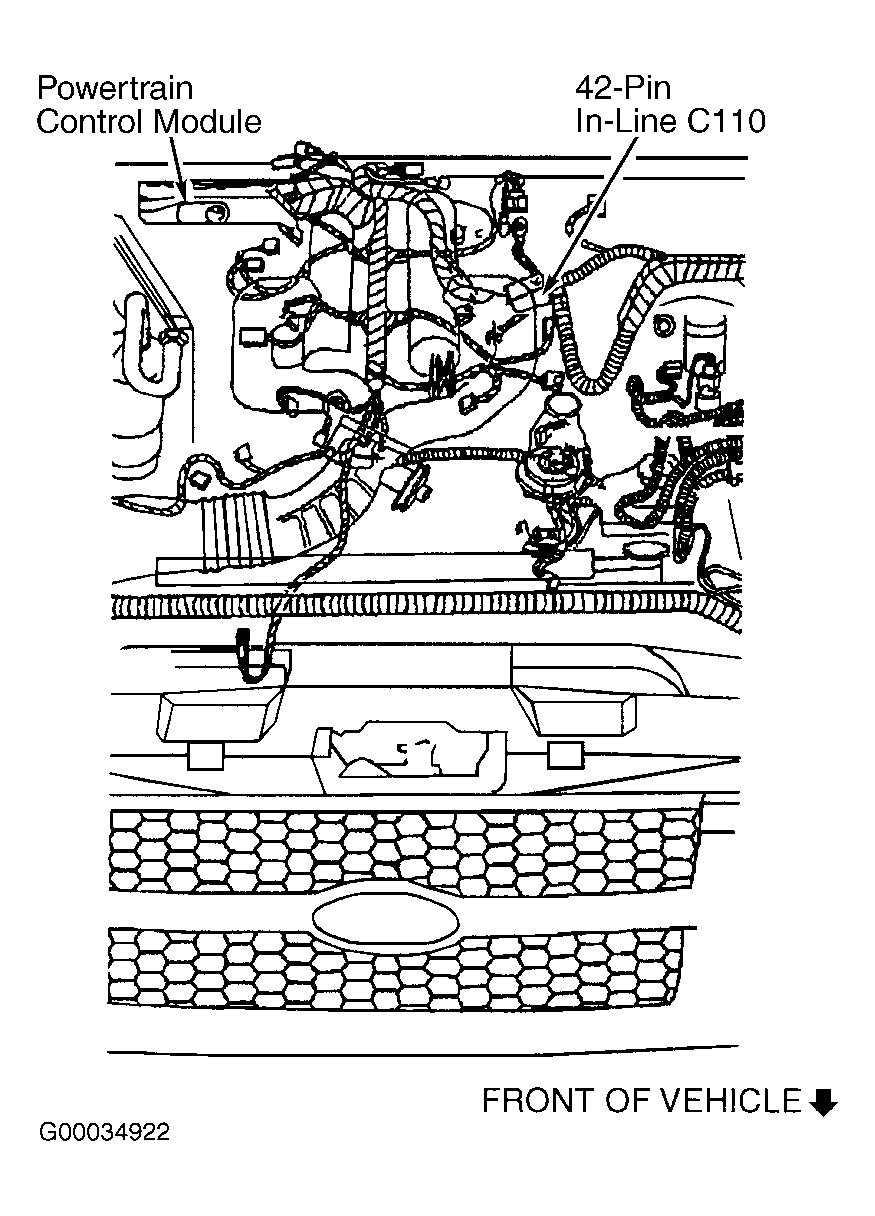

Fig 5: Locating Powertrain Control Module & In-Line Connector
G00034922Courtesy of FORD MOTOR CO.
Fig 6: Locating Restraints Control Module Harness Connectors
G00034923Courtesy of FORD MOTOR CO.
Fig 7: Locating Remote Anti-Theft Personality Module Harness Connectors (Explorer Sport)
G00034925Courtesy of FORD MOTOR CO.
Fig 8: Locating Remote Anti-Theft Personality Module Harness Connectors (Explorer Sport Trac)
G00034924Courtesy of FORD MOTOR CO.
Fig 9: Locating 4WD Module Harness Connectors
G00034926Courtesy of FORD MOTOR CO.
