Power Rack & Pinion Steering System: Description

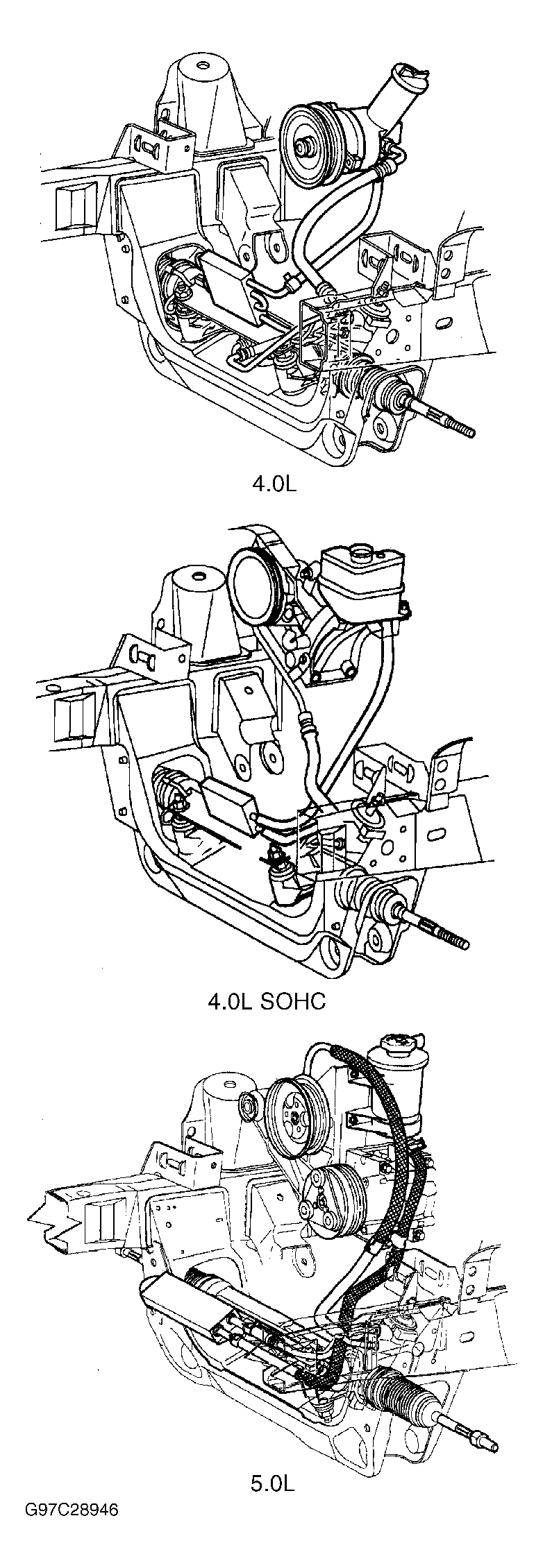

Power steering is a hydraulic-assisted rack and pinion unit with internal valving to direct fluid flow. The power steering pump is a vane type pump. Output pressure is regulated by a control valve located in pump housing. See Fig 1 .
