Removal And Installation: Cable/Bracket: Removal

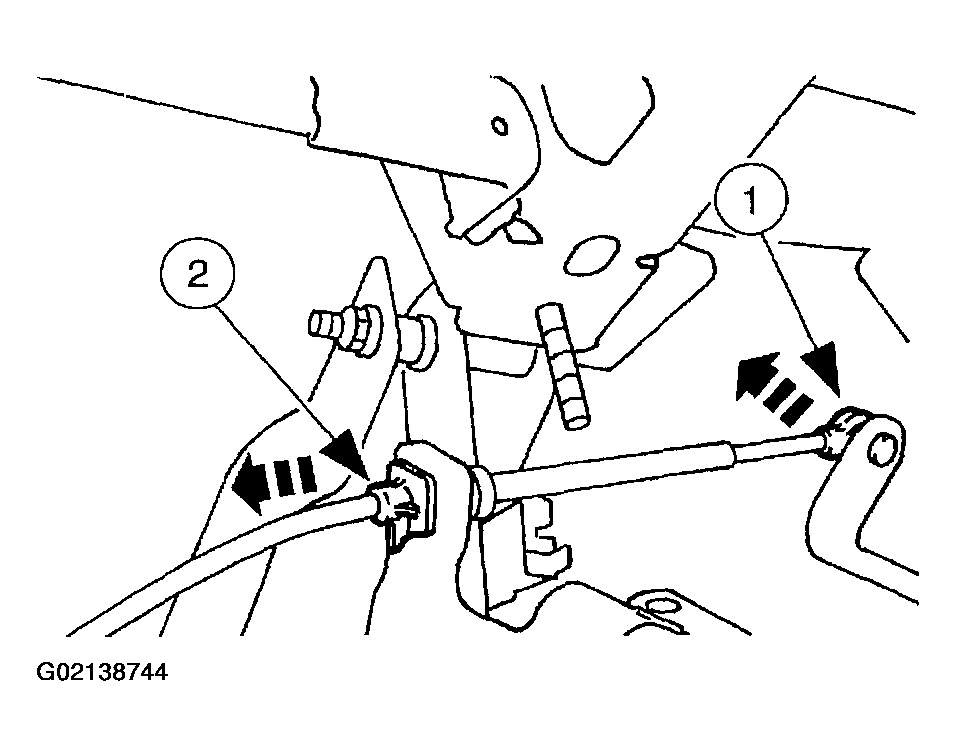

- Disconnect the transmission shift cable from the steering column.
- Disconnect the transmission shift cable from the transmission selector lever arm and support (7302).
- Disconnect the transmission shift cable from the steering column instrument panel bracket (3676).
- Disconnect the cable push pin.
- Push the rubber grommet and transmission shift cable through the bulkhead.
- Raise and support the vehicle.
- Remove the transmission shift cable from the automatic transmission (7003).
- Disconnect the transmission shift cable from the manual control lever (7A256).
- Depress the lock tabs to release the transmission shift cable and disconnect the transmission shift cable from the transmission shift cable bracket.

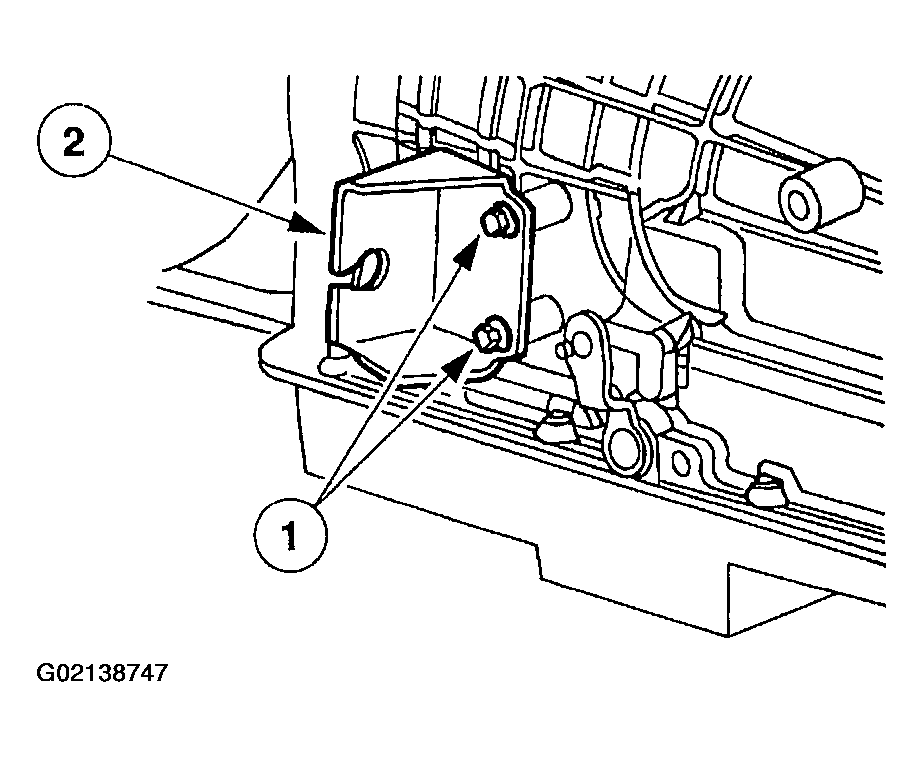

- Remove the shift cable bracket from the transmission (4.6L).
- Remove the bolts.
- Remove the bracket.

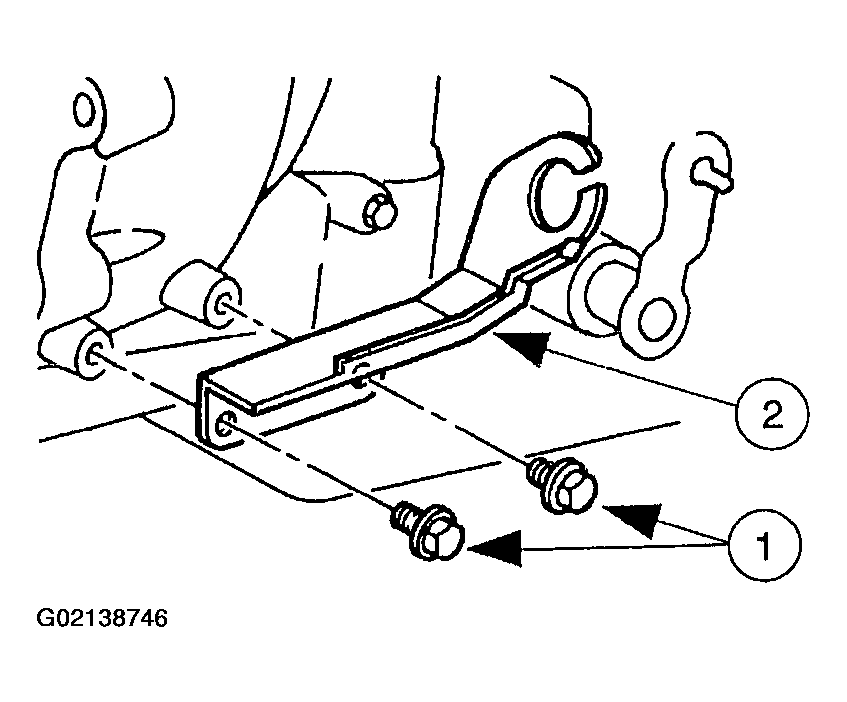

- Remove the shift cable bracket from the transmission (5.4L).
- Remove the bolts.
- Remove the shift cable bracket.
WARNING:
The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the rh kick panel area. Failure to do so may result in unexpected inflation or deflation of the air springs which may result in shifting of the vehicle during these operations.
