Symptom Chart

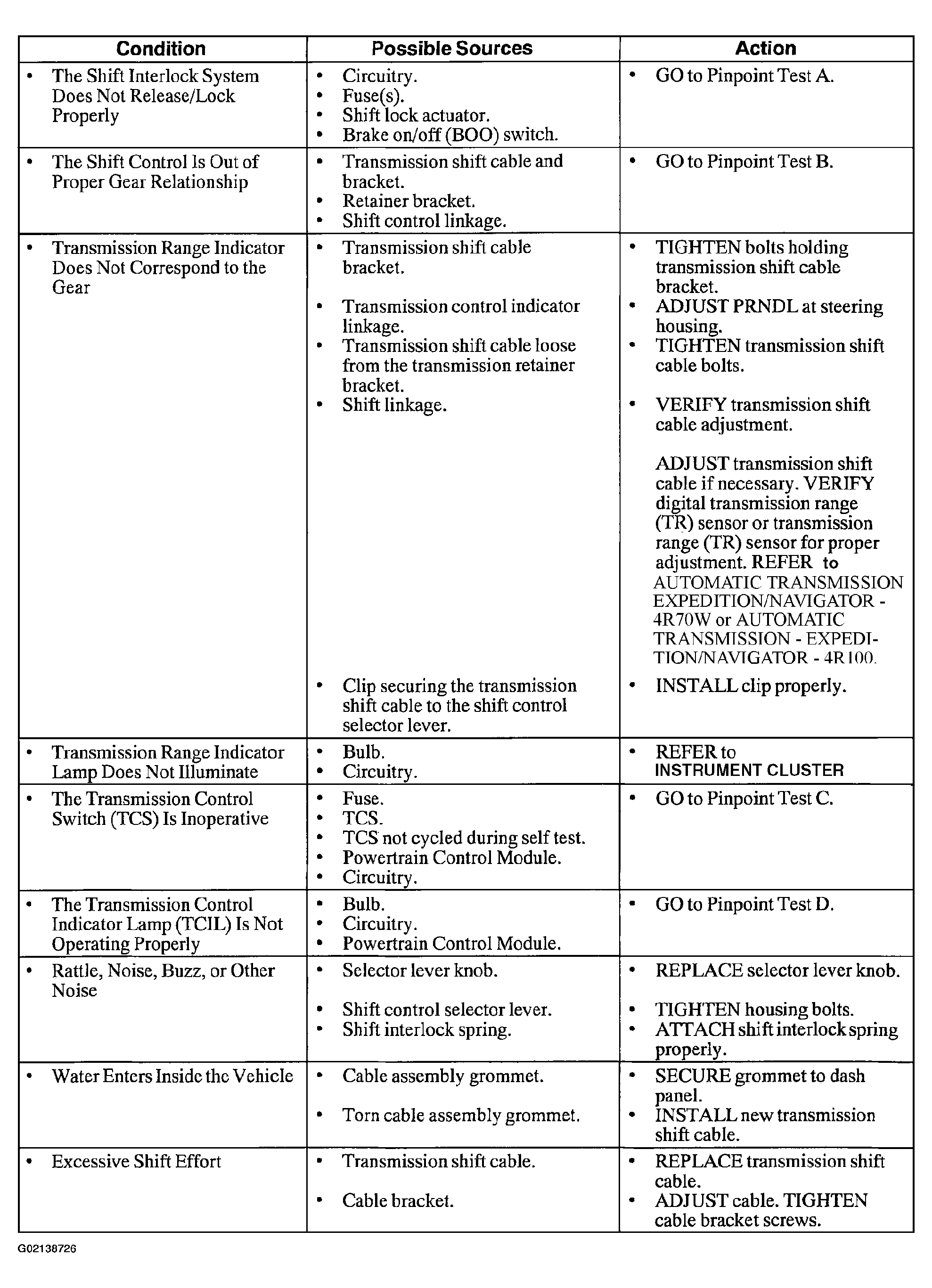

Fig 1: Identifying Symptom Chart (1 Of 2)

G02138726

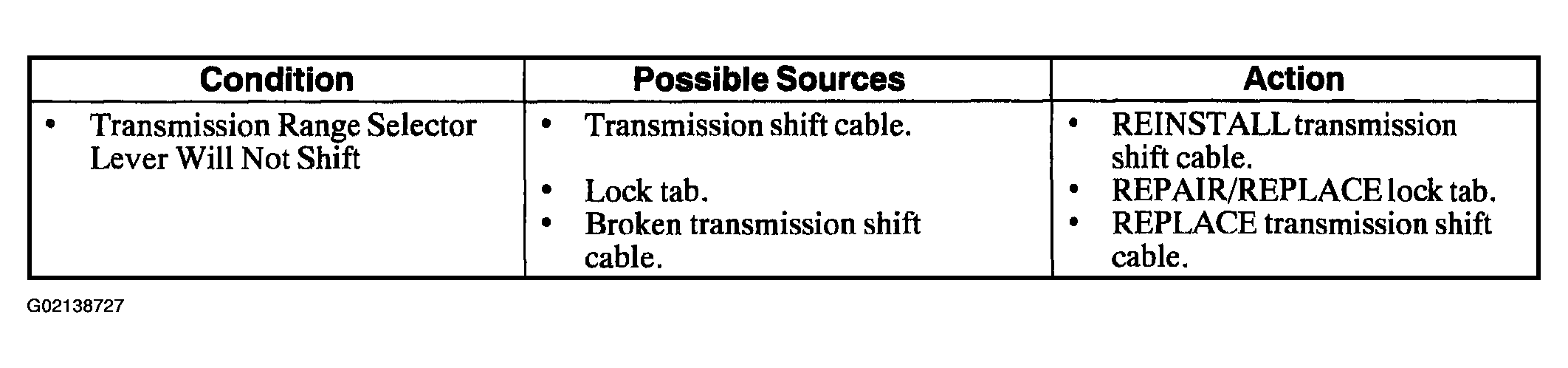

Fig 2: Identifying Symptom Chart (2 Of 2)

G02138727
