Pump Assembly: Notes

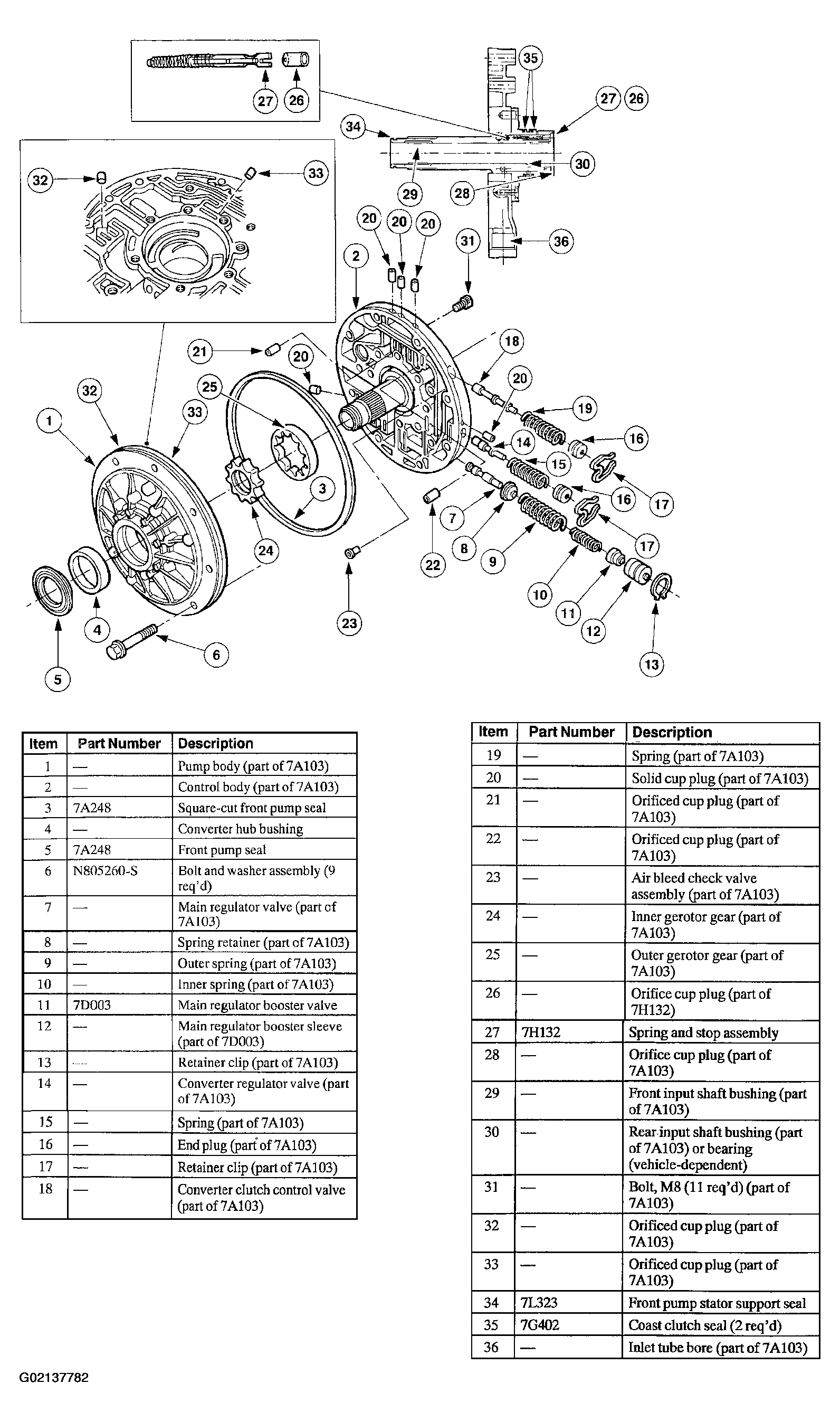

Fig 1: Pump Assembly - Disassembled View
G02137782

Special Tool(s)

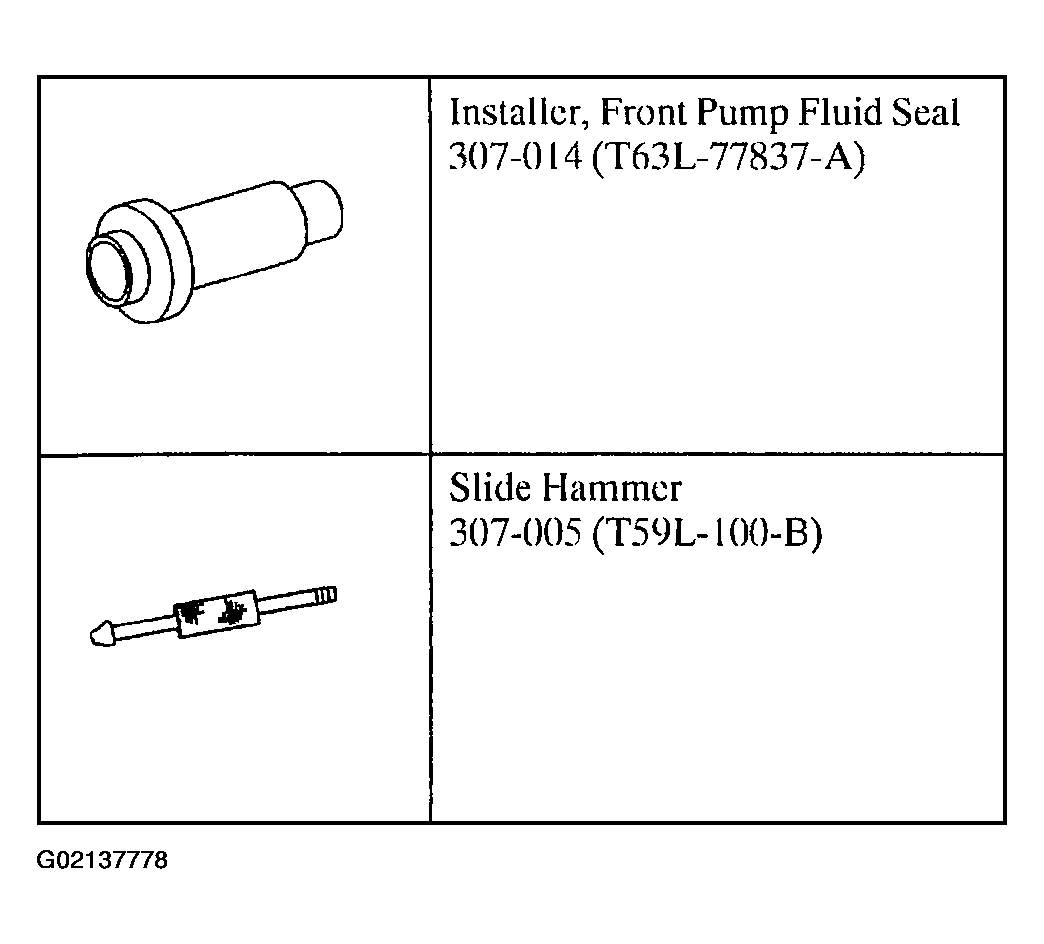

Fig 2: Identifying Pump Assembly Special Tool(s) (1 Of 3)
G02137778

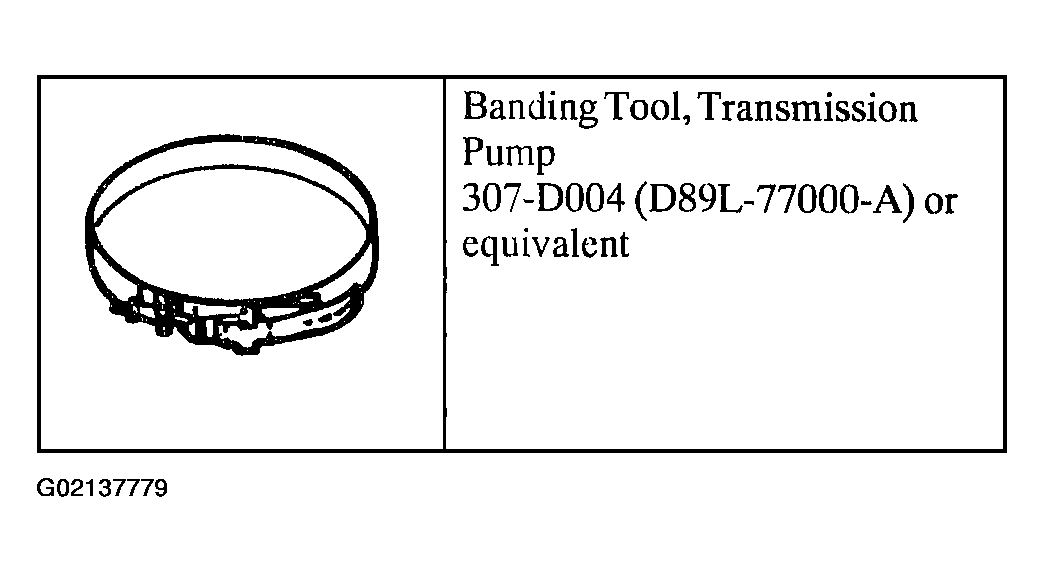

Fig 3: Identifying Pump Assembly Special Tool(s) (2 Of 3)
G02137779

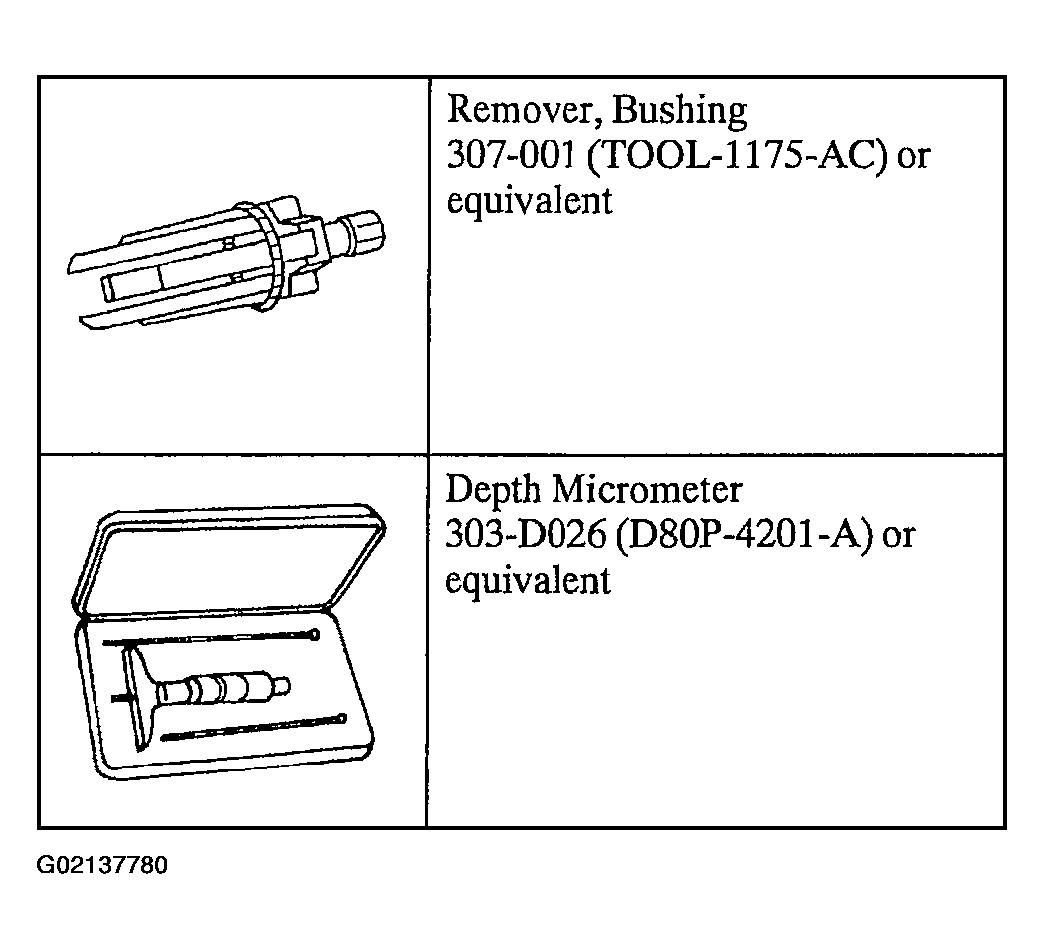

Fig 4: Identifying Pump Assembly Special Tool(s) (3 Of 3)
G02137780

Needed Materials

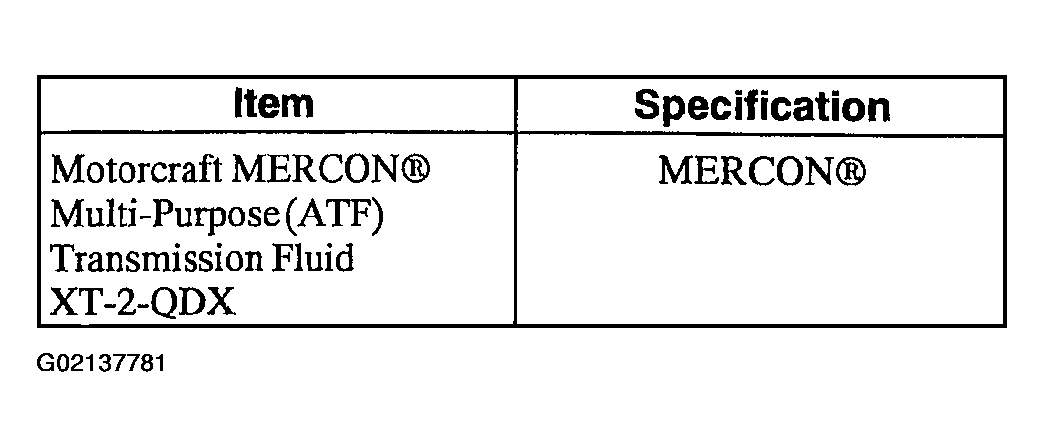

Fig 5: Materials Needed
G02137781
