LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2001
>>
Expedition 5.4 L, RWD
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - 4R100
>>
Disassembly And Assembly Of Subassemblies
>>
Intermediate/Overdrive Cylinder Assembly
>>
Notes
Intermediate/Overdrive Cylinder Assembly: Notes

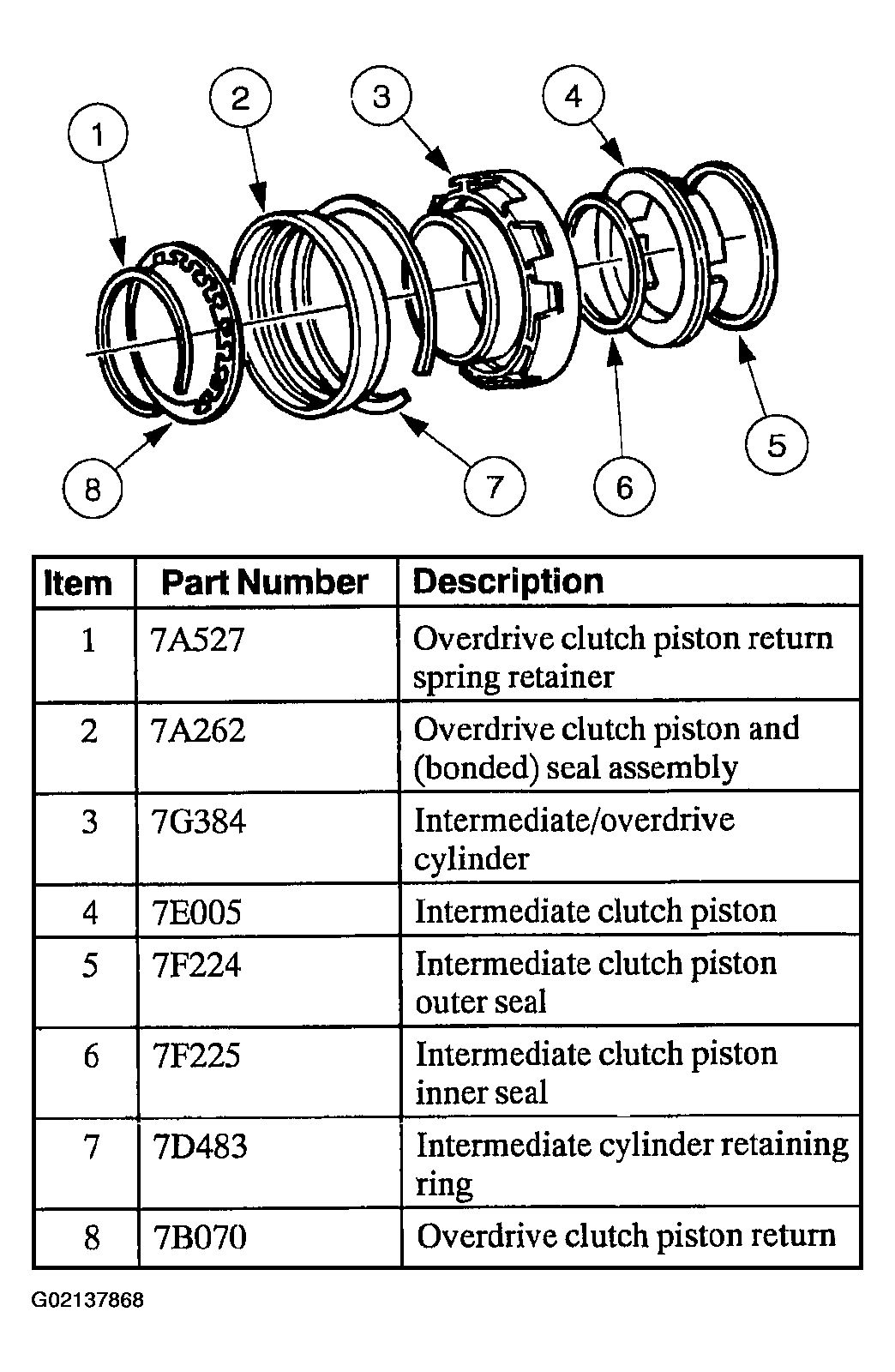

Fig 1: Intermediate/Overdrive Cylinder Assembly - Disassembled View
Special Tool(s)

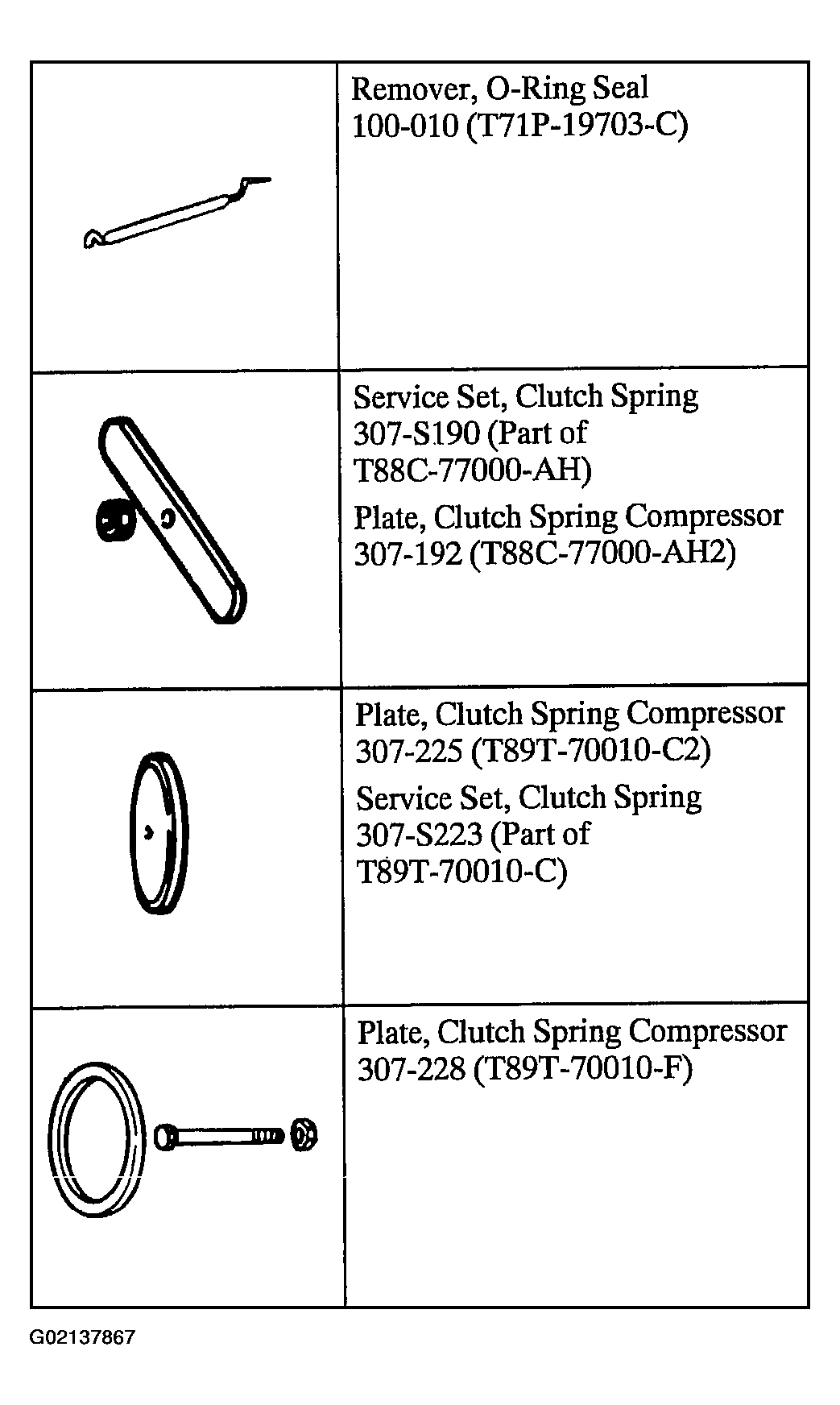

Fig 2: Intermediate/Overdrive Cylinder Assembly Special Tool(s)
