Input Shell: Disassembly

  1. Remove and discard the forward/reverse sun gear retaining ring.
    Fig 1: Removing Forward/Reverse Sun Gear Retaining Ring
    G02137943
  2. Remove the No. 14 input shell thrust washer.
    Fig 2: Removing No. 14 Input Shell Thrust Washer
    G02137944

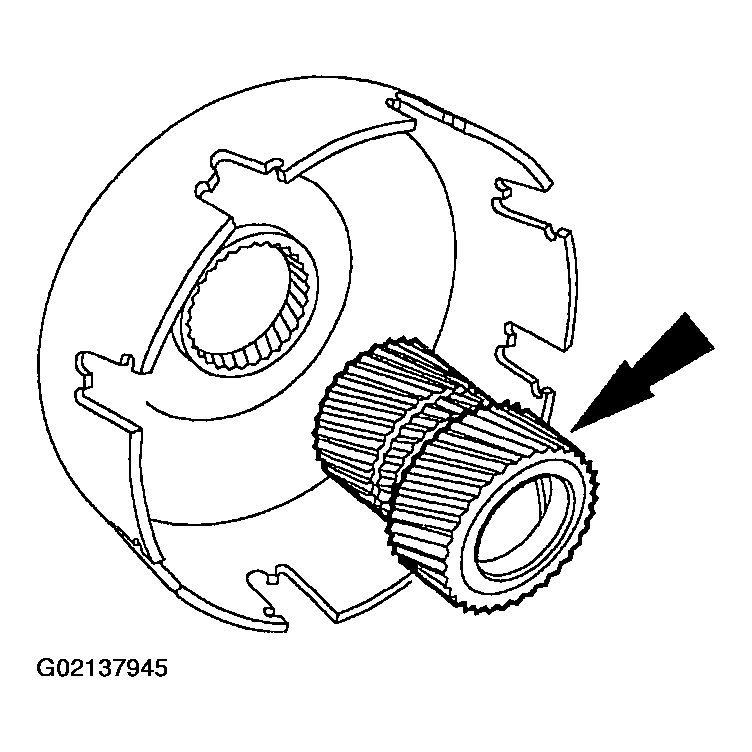

  3. Remove the forward/reverse sun gear.
    Fig 3: Removing Forward/Reverse Sun Gear
    G02137945
