Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parcel shelf. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the radio antenna/rear window defroster module.
    1. Remove the bolts.
    2. Disconnect the electrical connectors.

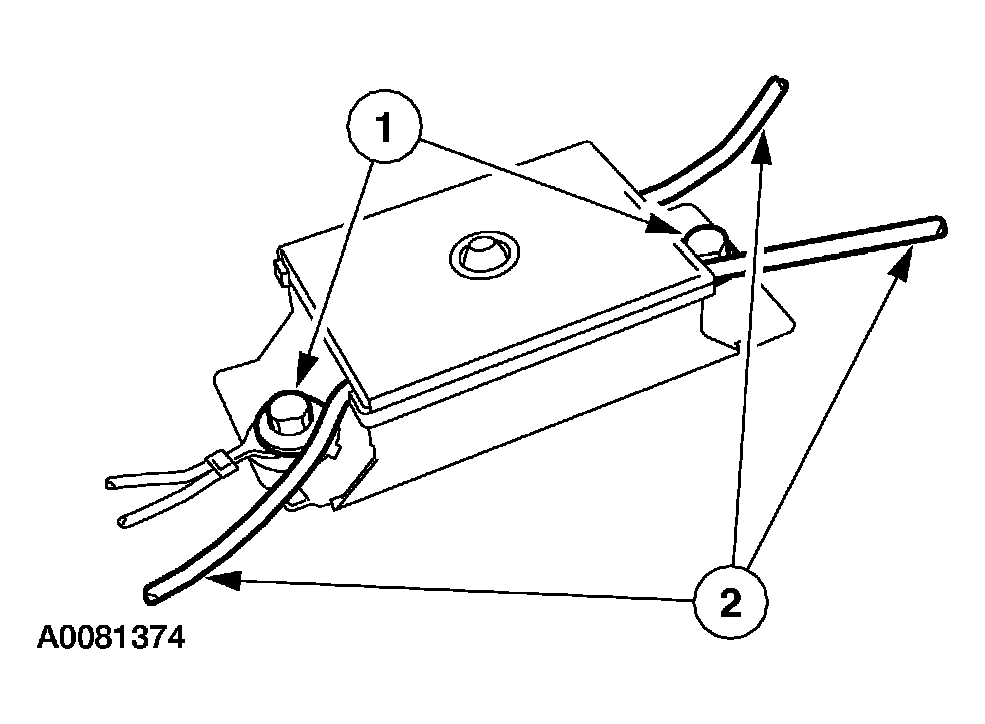

    Fig 1: Removing Radio Antenna/Rear Window Defroster Module
    G04003436Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
