Output Shaft: Disassembly

CAUTION: When pressing off components, hold the shaft so that it does not fall.
  1. Measure the output shaft clearances.
    1. Measure the clearance between first gear and the differential drive gear.
    2. Measure the clearance between second gear and secondary third gear.

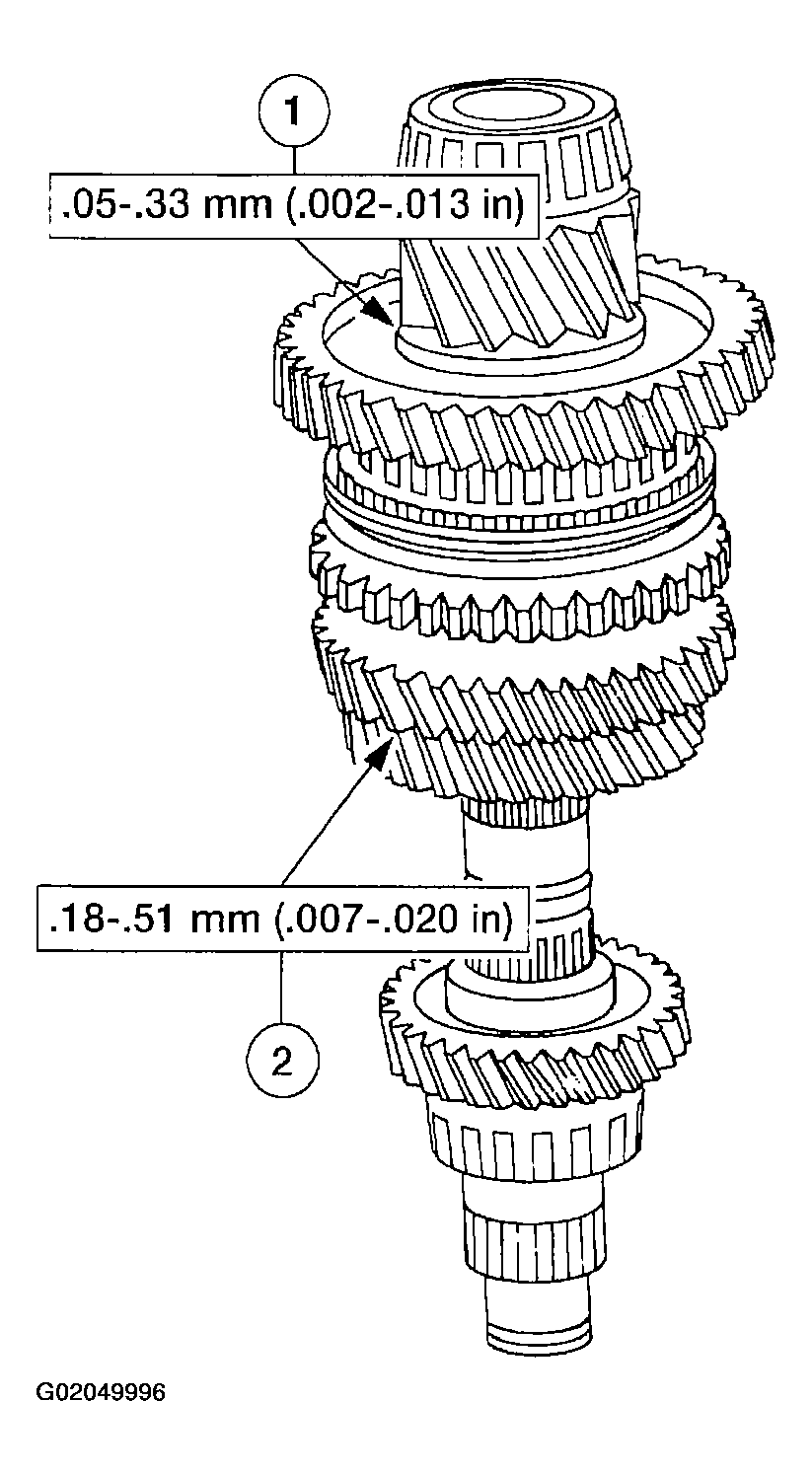

    Fig 1: Measuring Output Shaft Clearances
    G02049996
  2. Using the special tools and press, press off the bearing (fourth gear end).

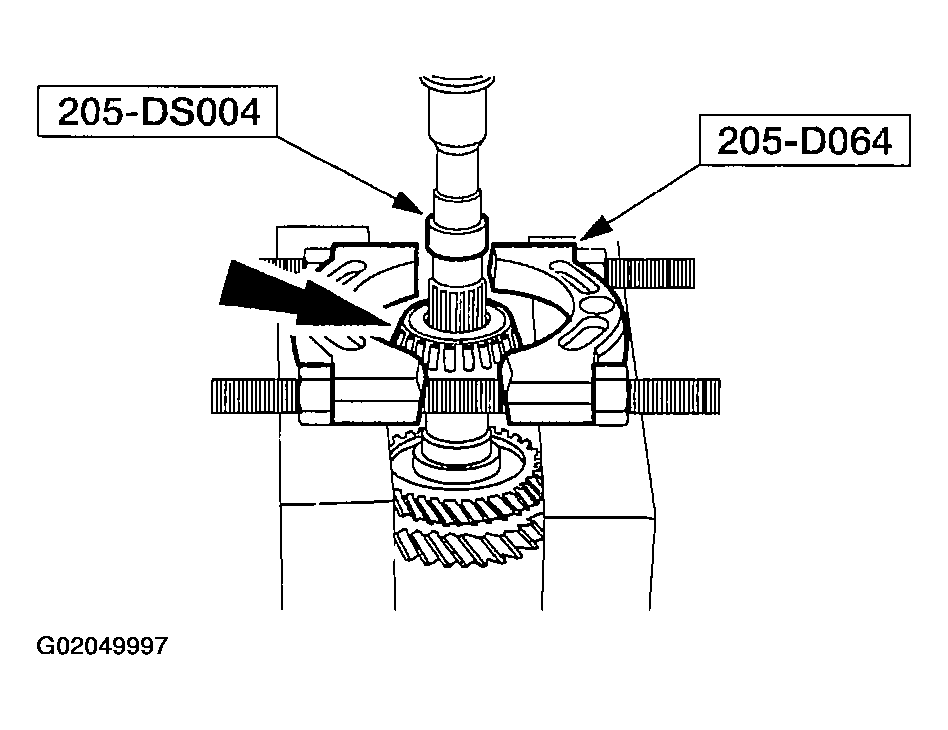

    Fig 2: Removing Bearing (Fourth Gear End)
    G02049997
  3. Using the special tools and a press, press off the fourth speed gear.

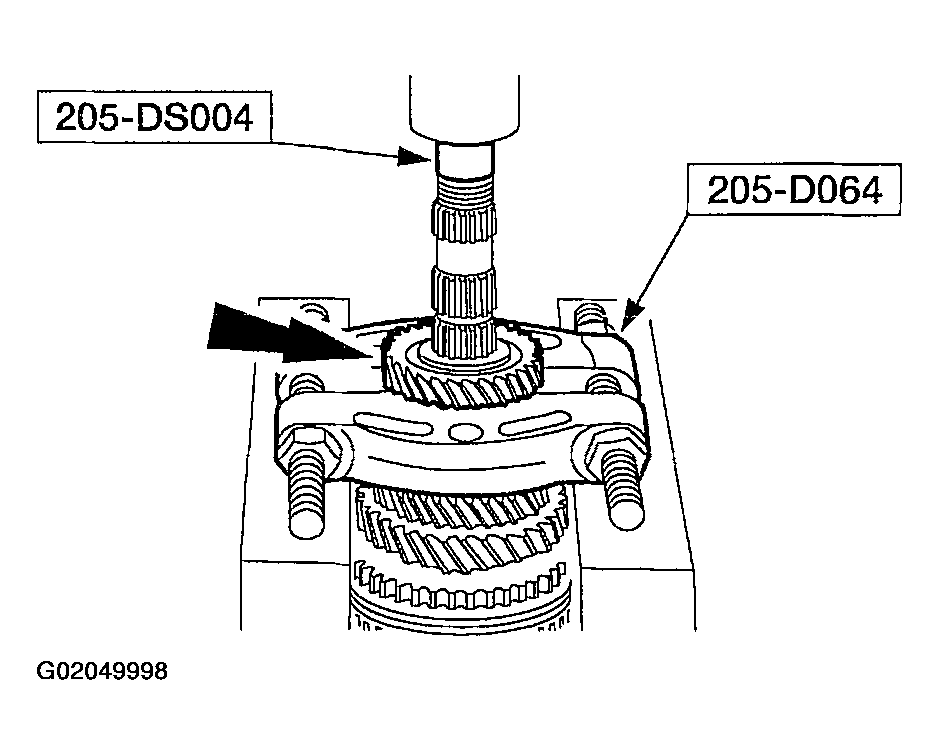

    Fig 3: Removing Fourth Speed Gear
    G02049998

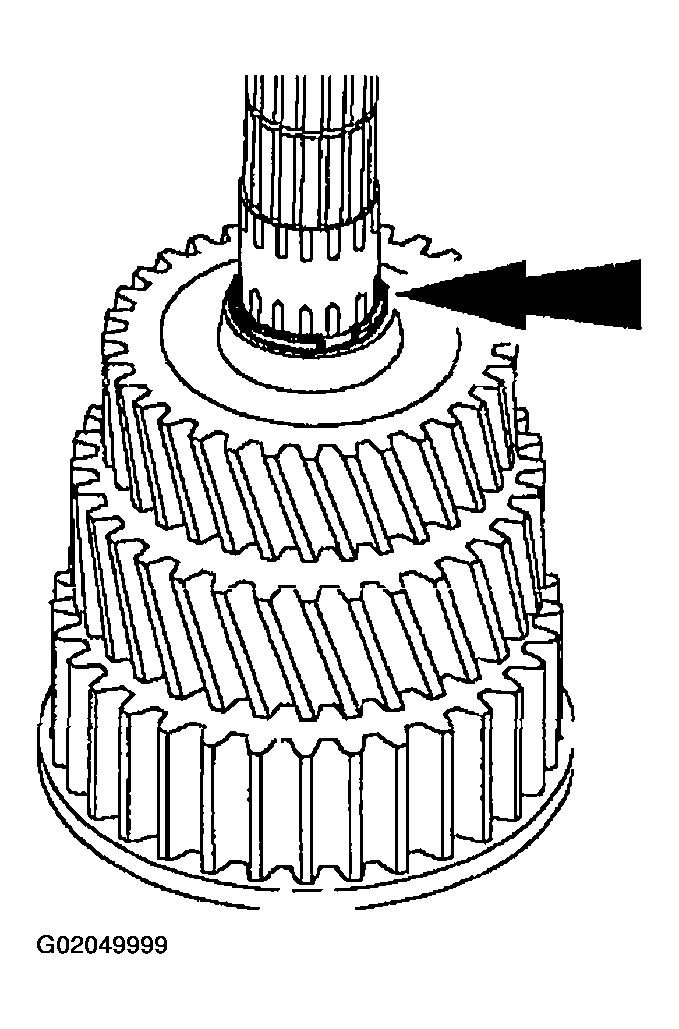

  4. Remove the snap ring.
    Fig 4: Removing Snap Ring
    G02049999
  5. Using the special tools and a press, press off the third speed gear and second gear.

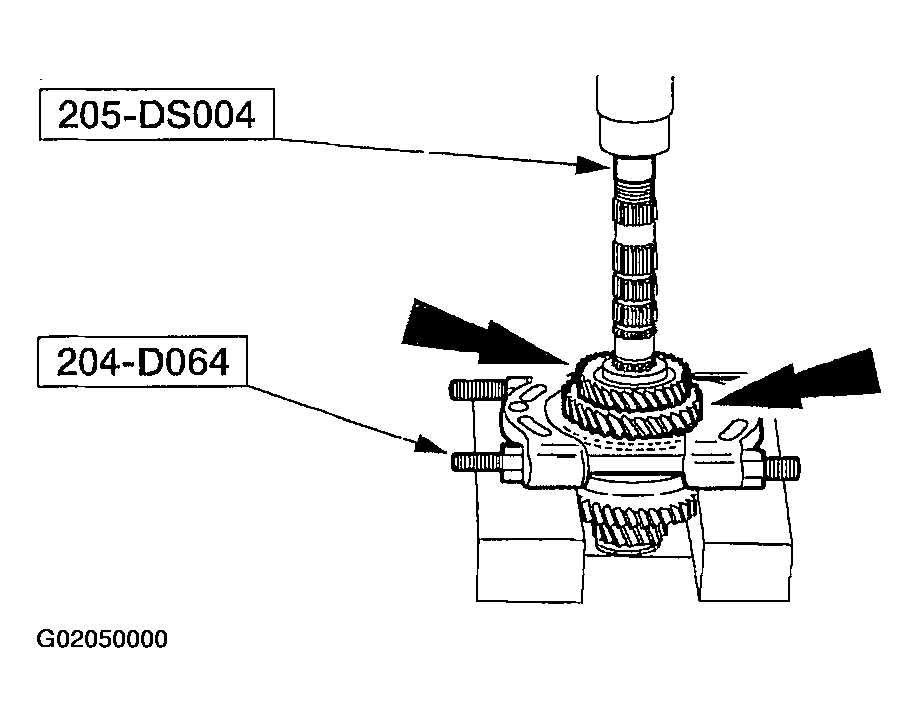

    Fig 5: Removing Third Speed Gear And Second Gear
    G02050000
  6. CAUTION: The synchronizer blocking rings are not interchangeable. Be sure to keep them in the order that they were removed.

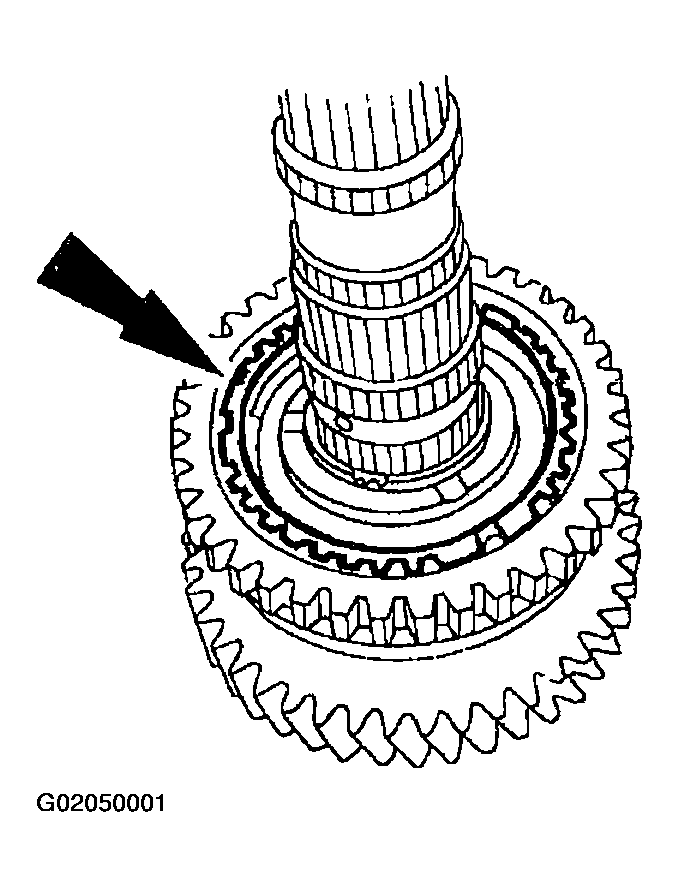

    Fig 6: Removing Synchronizer Blocking Ring
    G02050001
  7. Remove the synchronizer blocking ring.
  8. Remove the snap ring.

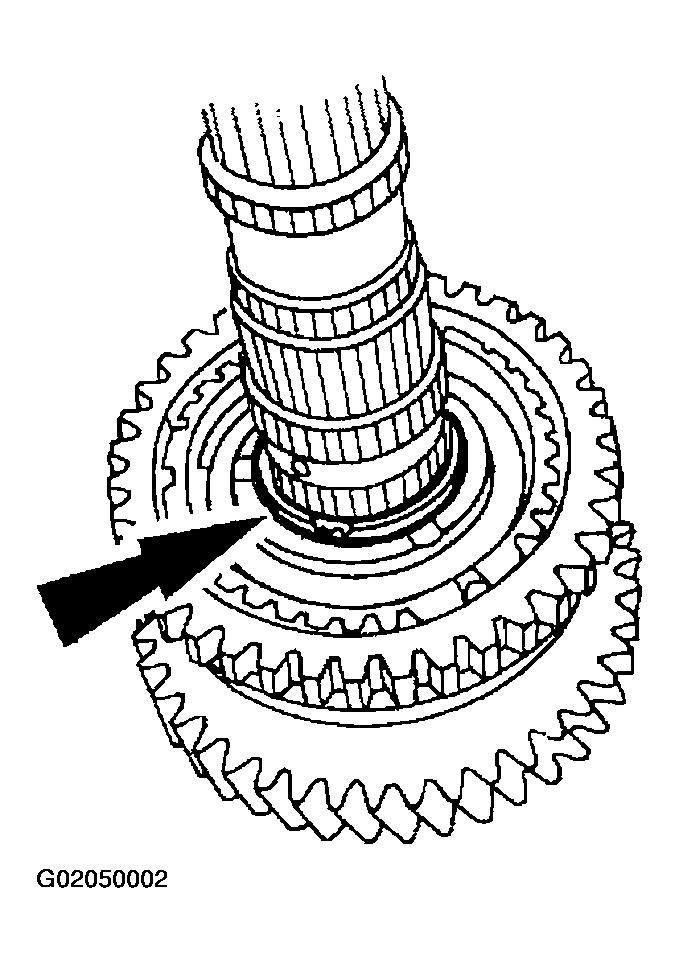

    Fig 7: Removing Snap Ring
    G02050002
  9. CAUTION: The synchronizer blocking rings are not interchangeable. Make sure to keep them in the order that they were removed.
    NOTE: Inspect all the synchronizer components for wear and damage; refer to SYNCHRONIZERS .

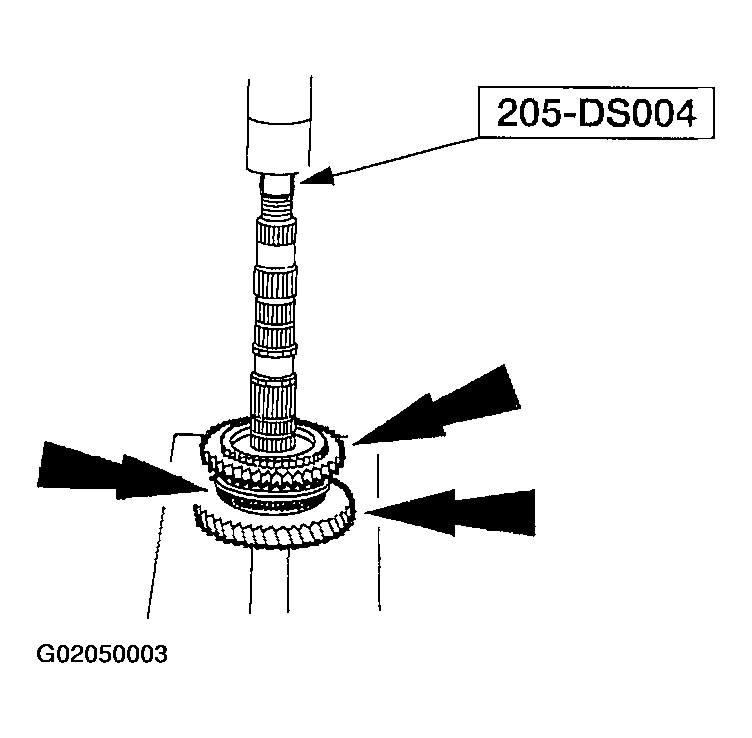

    Fig 8: Removing Synchronizer Hub, Synchronizer Blocking Ring, And First Gear
    G02050003
  10. Using the special tools and a press, press off the synchronizer hub, synchronizer blocking ring, and first gear.
  11. Using the special tools and a press, press off the bearing (first gear end).

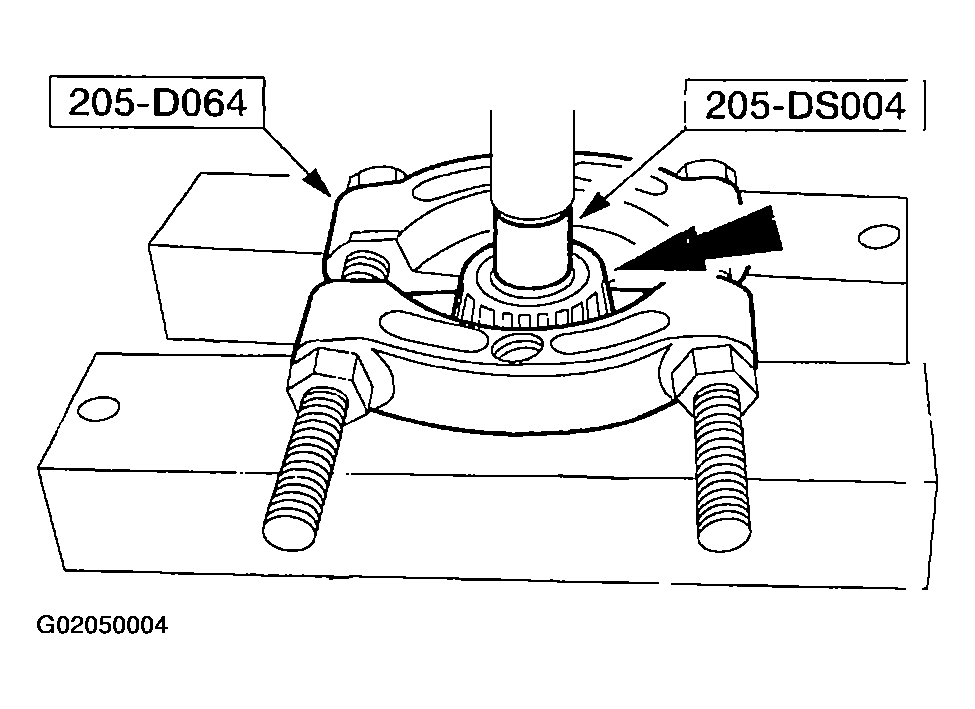

    Fig 9: Removing Bearing (First Gear End)
    G02050004
  12. Measure output shaft gear runout.
    • Inspect the output shaft for worn or damaged gears.
    • Inspect the output shaft for clogged oil passage.

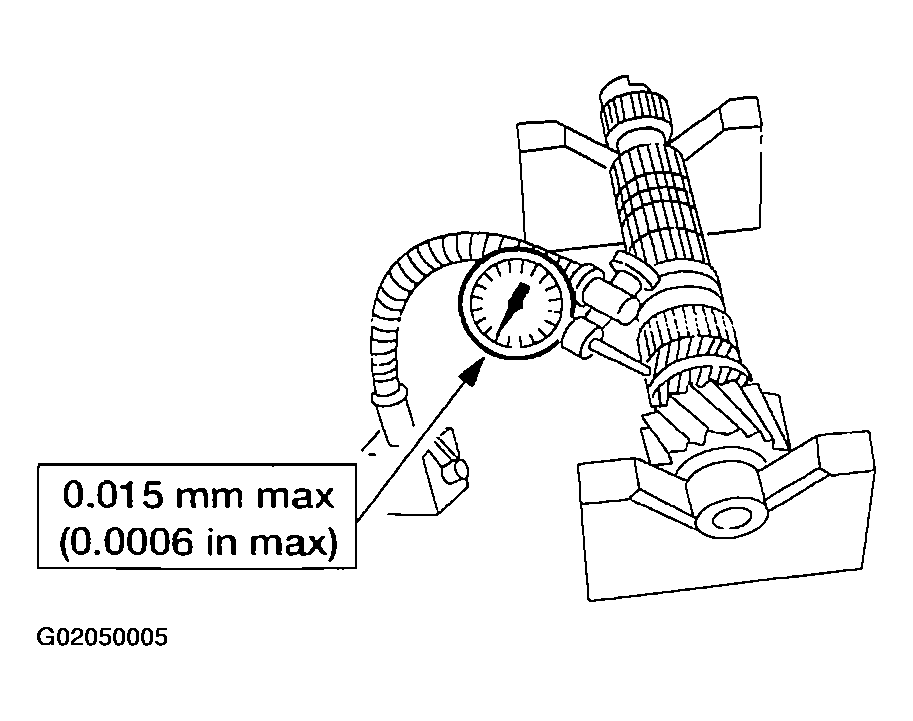

    Fig 10: Measuring Output Shaft Gear Runout
    G02050005
  13. NOTE: Set the synchronizer ring squarely in the gear, then measure around the circumference.

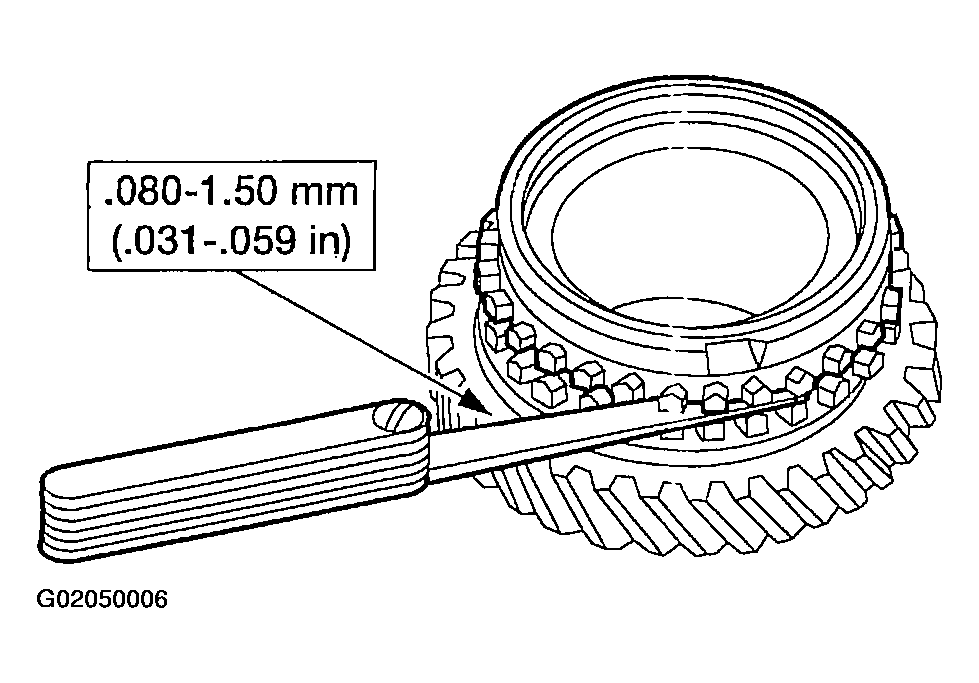

    Fig 11: Inspect Synchronizer Blocking Ring
    G02050006
  14. Inspect the synchronizer blocking ring.
    • Measure the clearance from the side of the gear.
    • Inspect for smooth engagement with the gear.
    • Inspect for worn or damaged teeth or tapered surface.
  15. Inspect the synchronizer hub.
    • Inspect for worn or damaged splines, synchronizer insert groove or end surface.
    • Inspect for smooth hub sleeve movement when it is installed.

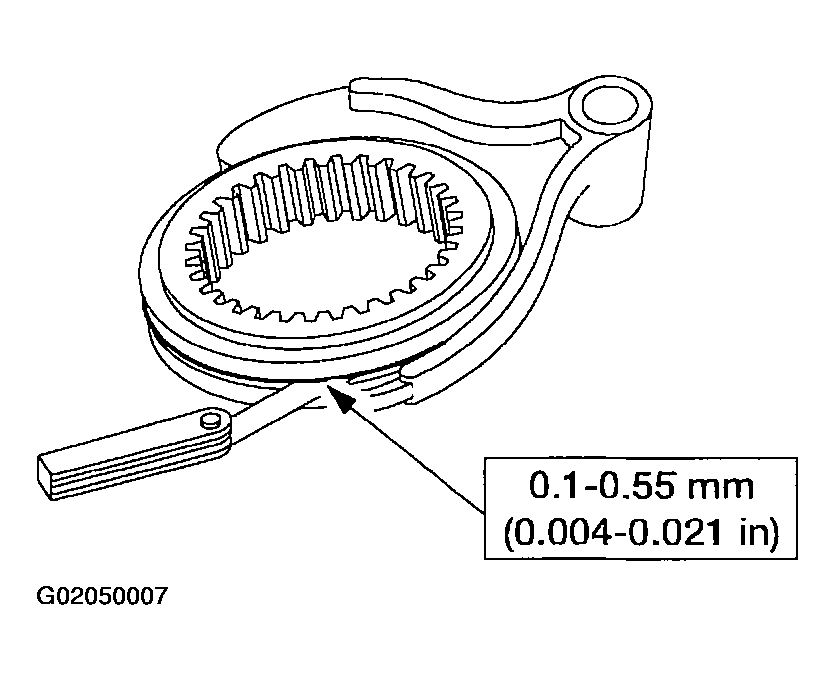

  16. Measure the clearance between the first/second synchronizer hub and its shift fork.
    Fig 12: Measuring Clearance Between The First/Second Synchronizer Hub And Shift Fork
    G02050007
