Headlight Switch

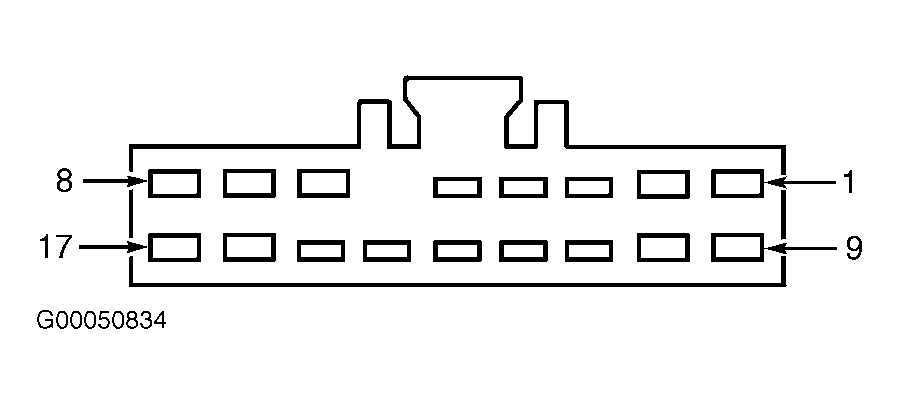

Disconnect headlight switch harness connector. Measure resistance between appropriate headlight switch terminals with switch in specified position. See HEADLIGHT SWITCH RESISTANCE table. See Fig 1 . If resistance is not as specified, replace headlight switch.
HEADLIGHT SWITCH RESISTANCE
| Switch Position | Between Terminals No. | Ohms | |
|---|---|---|---|
| Flash-To-Pass | 8 & 16 | Less Than 5 | |
| High Beam | 7 & 16 | Less Than 5 | |
| Low Beam | 16 & 17 | Less Than 5 | |
| Parking | 14 & 16 | Less Than 5 | |
| Left Turn | 1 & 2 | Less Than 5 | |
| Right Turn | 2 & 3 | Less Than 5 | |
