System Tests: Preparation

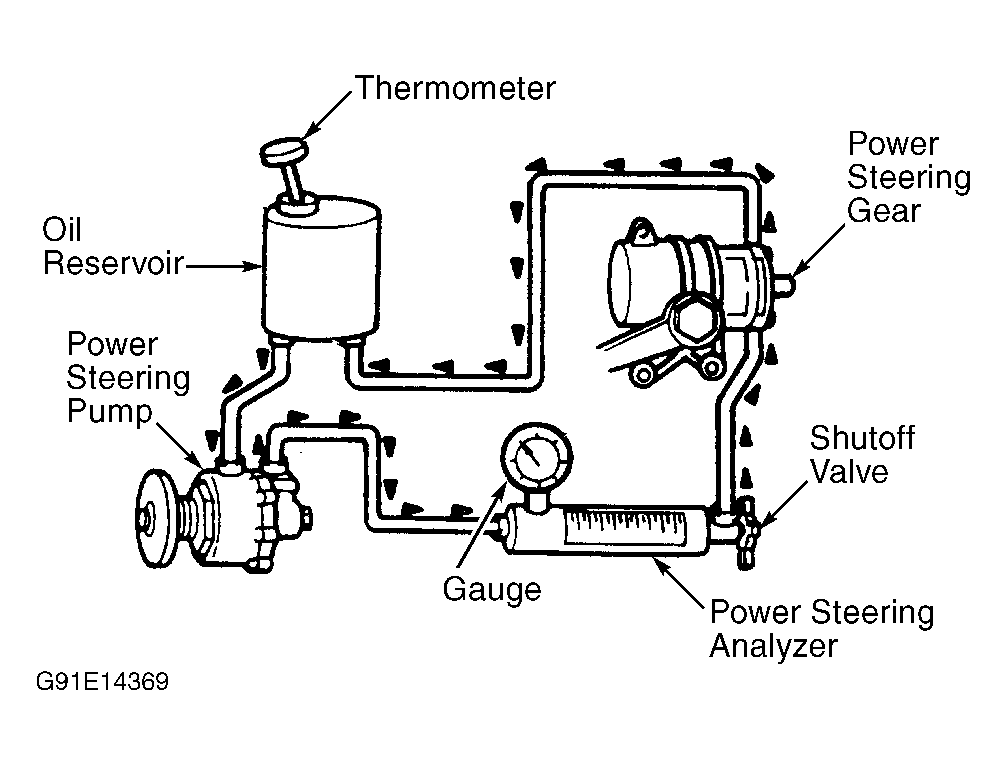

Ensure drive belt is in good condition and tension is properly adjusted. See POWER STEERING PUMP BELT under ADJUSTMENTS. Repair any external leaks before continuing with pressure test. Disconnect pressure line from connector at pump. Connect Power Steering Analyzer (D79L-33610-A). See Fig 1 .
