Seat adjust switch, driver side front (14A701)

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

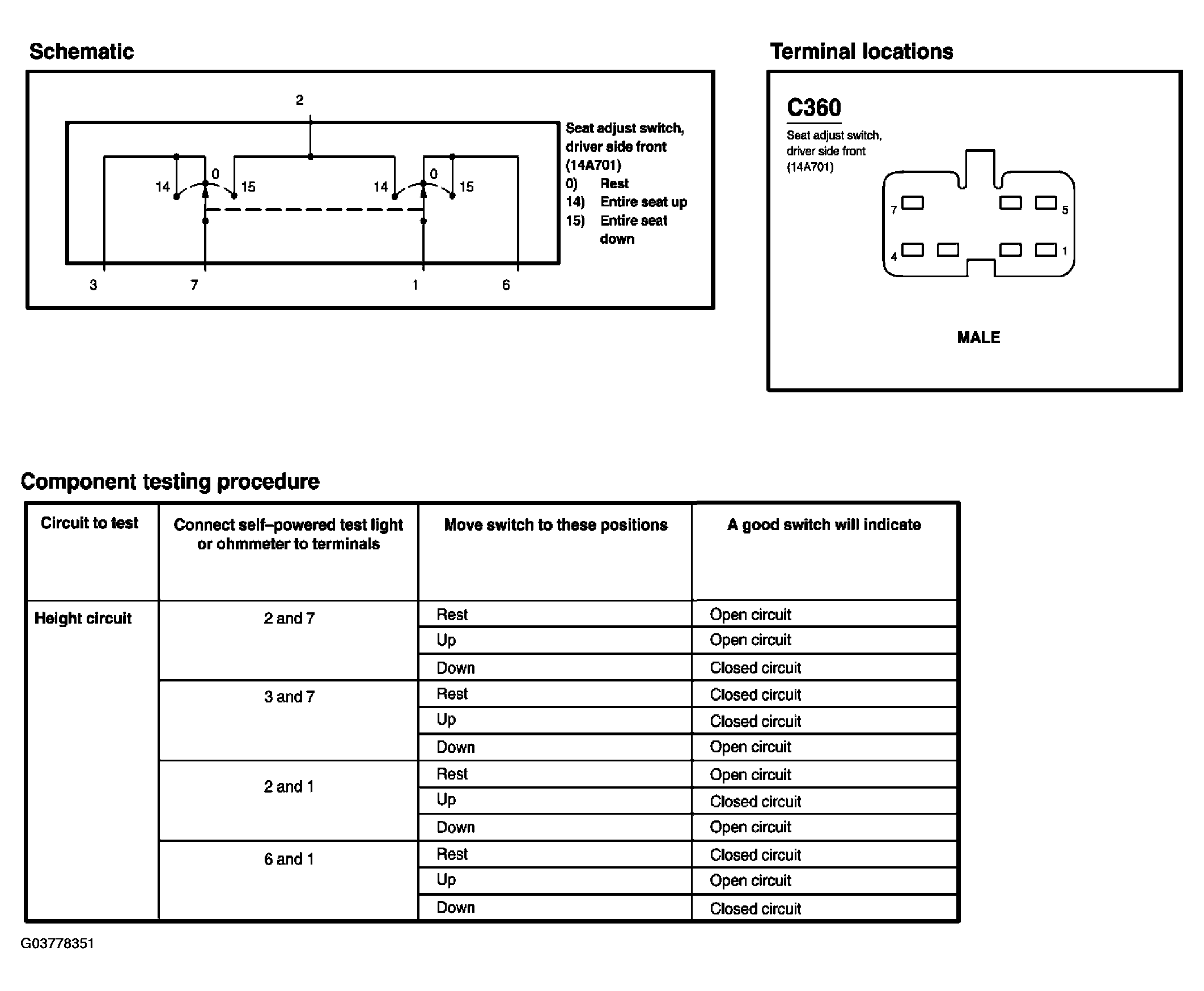

Fig 1: Testing Seat Adjust Switch, Driver Side Front
G03778351Courtesy of FORD MOTOR CO.
