Removal And Installation: Horn

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fender splash shield. For additional information, refer to BODY SYSTEM - EXTERIOR .
  2. NOTE: RH shown, LH similar.

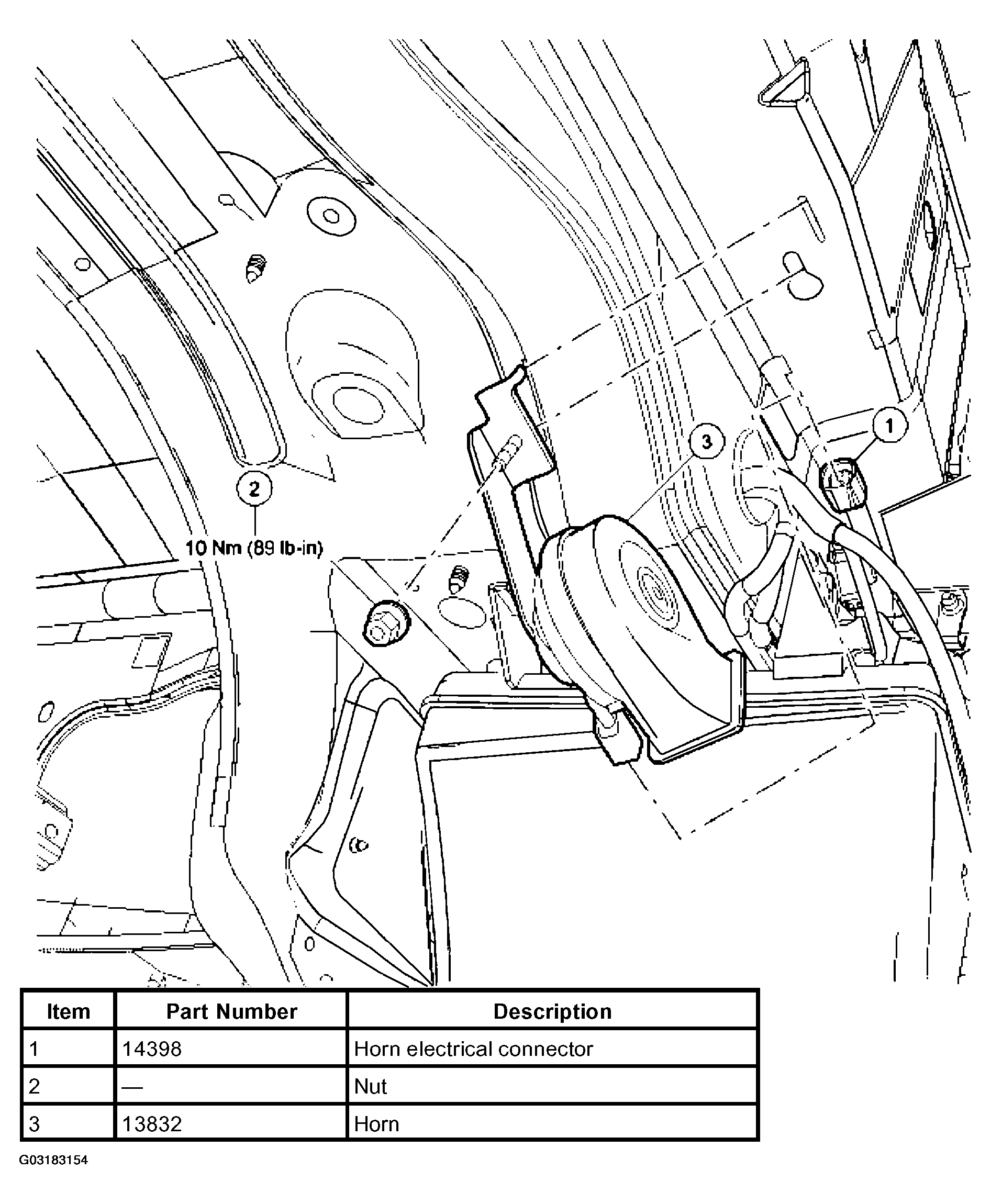

    Fig 1: Removing Horn Components
    G03183154Courtesy of FORD MOTOR CO.
  3. Remove the parts in the order indicated in the following illustration and table.
  4. To install, reverse the removal procedure.
