Push Rods - Inspection
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
- Check the ends of the push rods for nicks, grooves, roughness or excessive wear. Install new push rods as necessary.
- The push rods can be checked for straightness while they are installed in the engine by rotating them with the valve closed.

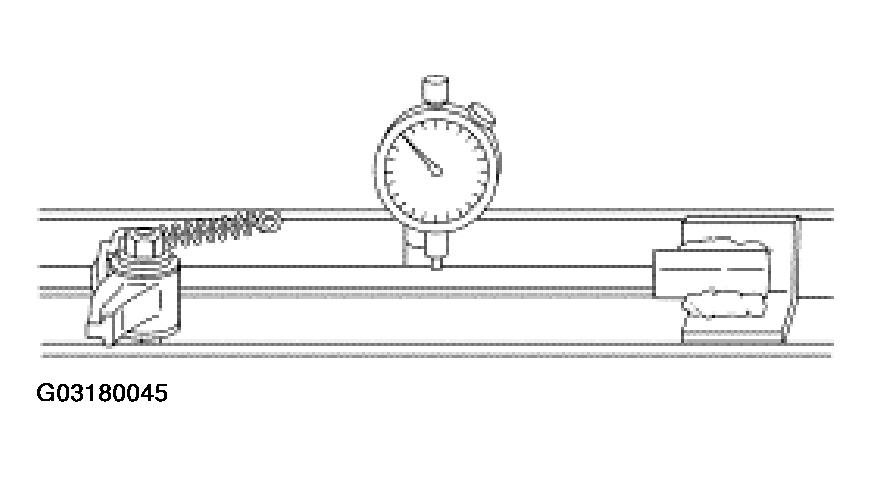

- They also can be checked using a Dial Indicator with Bracketry.
- If the push rod is bent beyond specifications, install a new push rod.
CAUTION:
Do not attempt to straighten push rods.
