Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

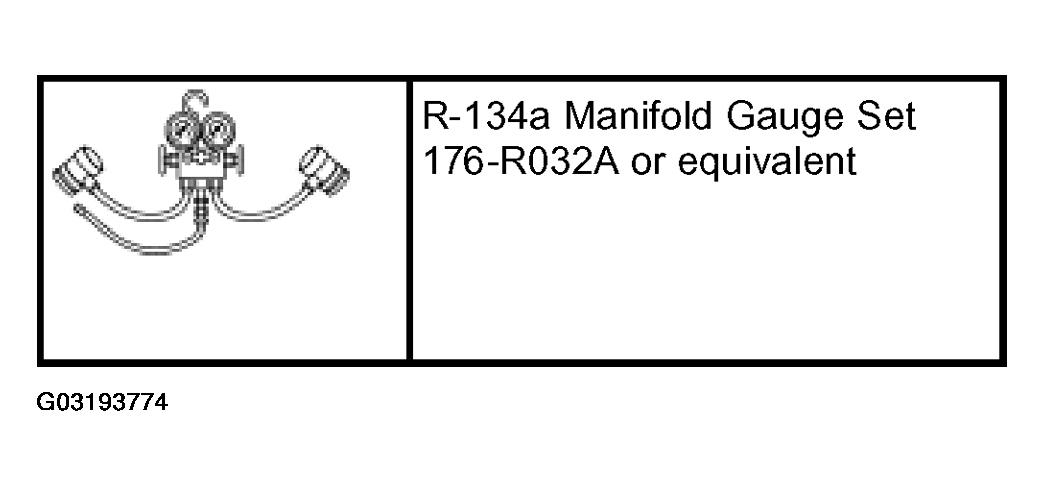

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

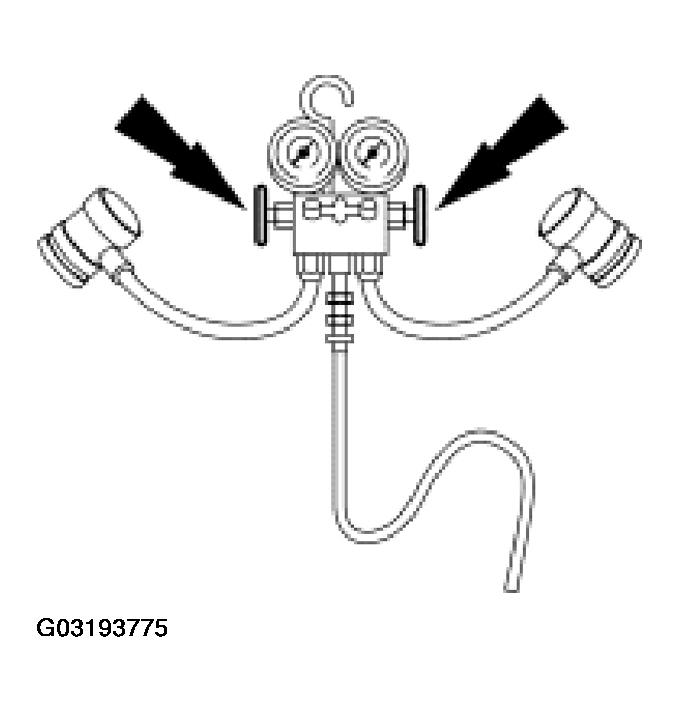

Turn both valves on the R-134a Manifold Gauge Set clockwise to close the low-and high-pressure hoses to the center manifold and center hose.

Fig 2: Turning Valves On R-134A Manifold Gauge Set Clockwise To Close Low- And High-Pressure Hoses
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap (19D702) from the low-pressure service gauge port valve.

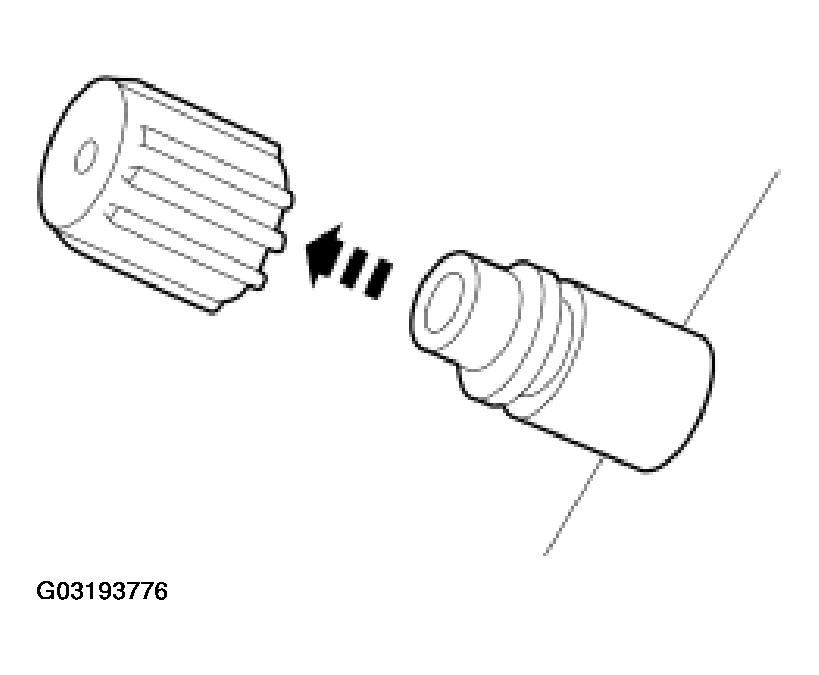

Fig 3: Removing A/C Charging Valve Cap From Low-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.

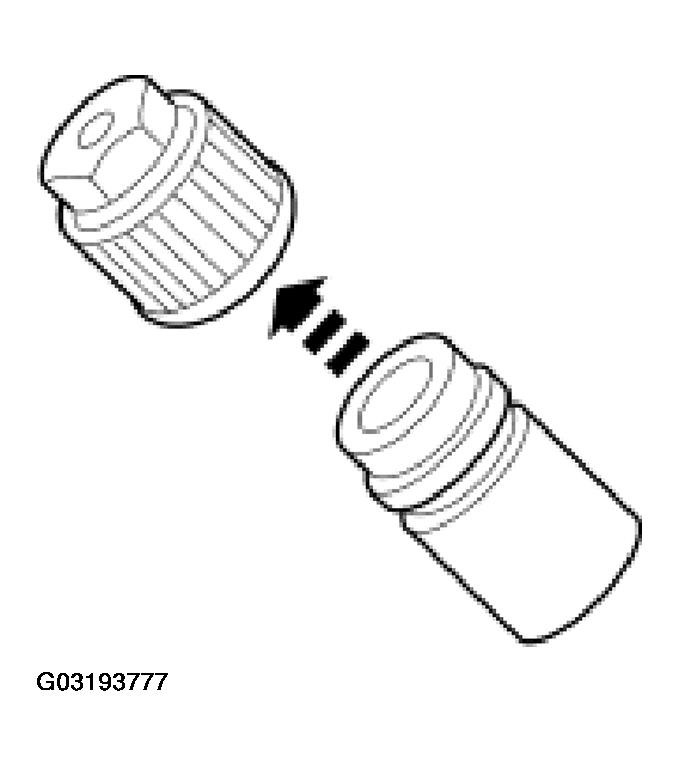

Remove the A/C charging valve cap from the high-pressure service gauge port valve.

Fig 4: Removing A/C Charging Valve Cap From High-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.

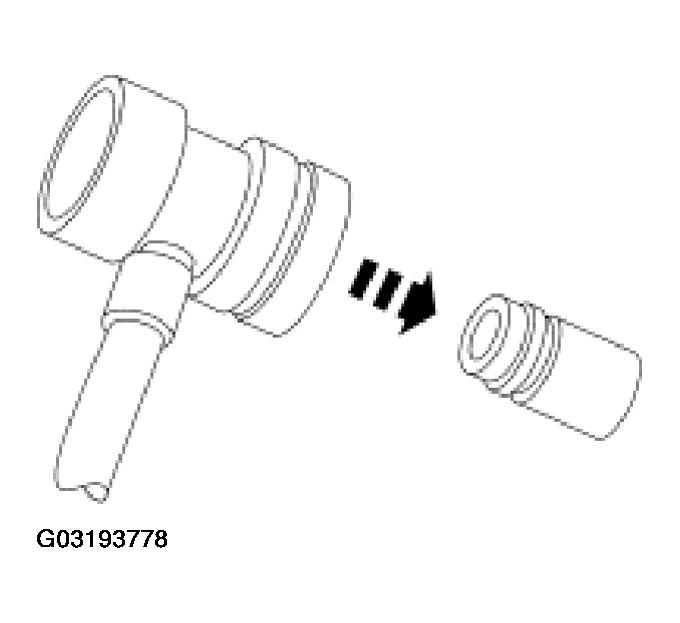

Connect the R-134a Manifold Gauge Set low-pressure hose and the R-134a low side quick disconnect to the low-pressure service gauge port valve.

Fig 5: Connecting R-134A Manifold Gauge Set Low-Pressure Hose
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set high-pressure hose and the R-134a high side quick disconnect to the high-pressure service gauge port valve.

Fig 6: Connecting R-134A Manifold Gauge Set High-Pressure Hose
Courtesy of FORD MOTOR CO.
