Removal And Installation: Radiator: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

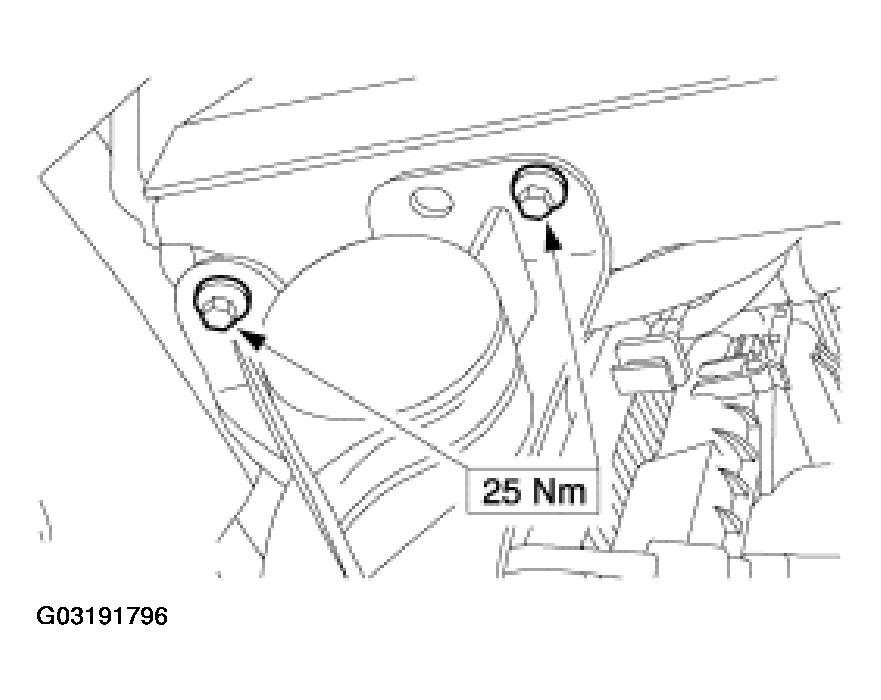

    Fig 1: Installing Radiator Support Bracket
    G03191796Courtesy of FORD MOTOR CO.

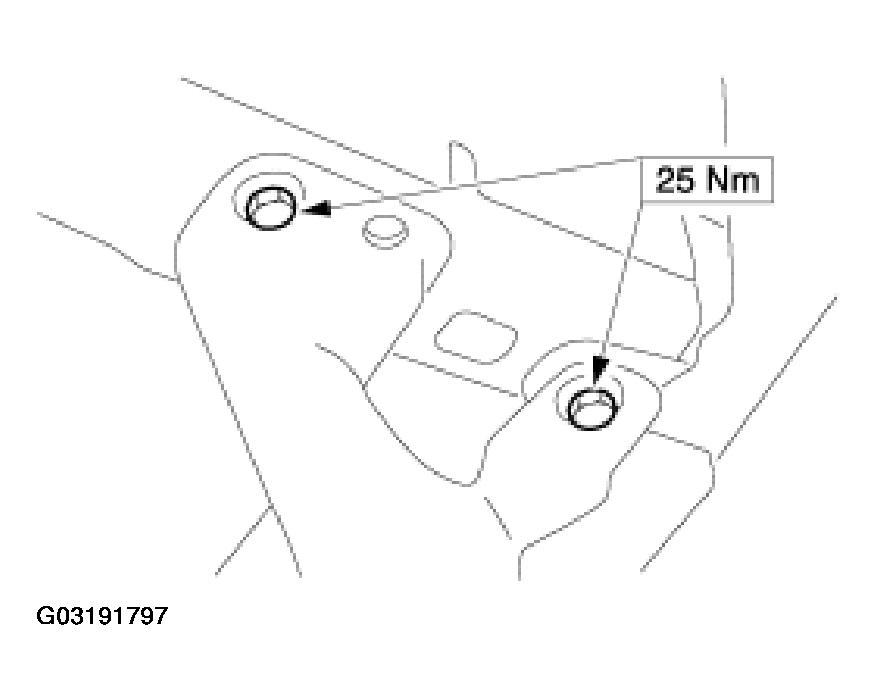

    Fig 2: Installing Radiator Support Bracket Bolts
    G03191797Courtesy of FORD MOTOR CO.
  2. Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
