Steering Wheel Audio Controls

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag module. For additional inormation, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the parts in the order indicated in the following illustration.

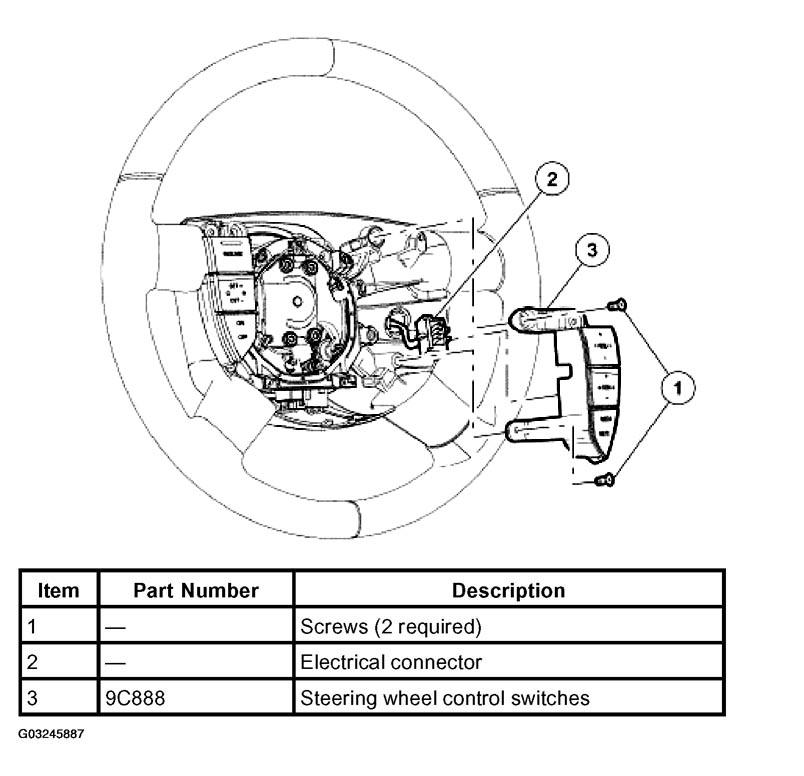

    Fig 1: Removing Steering Wheel Audio Control
    G03245887Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
